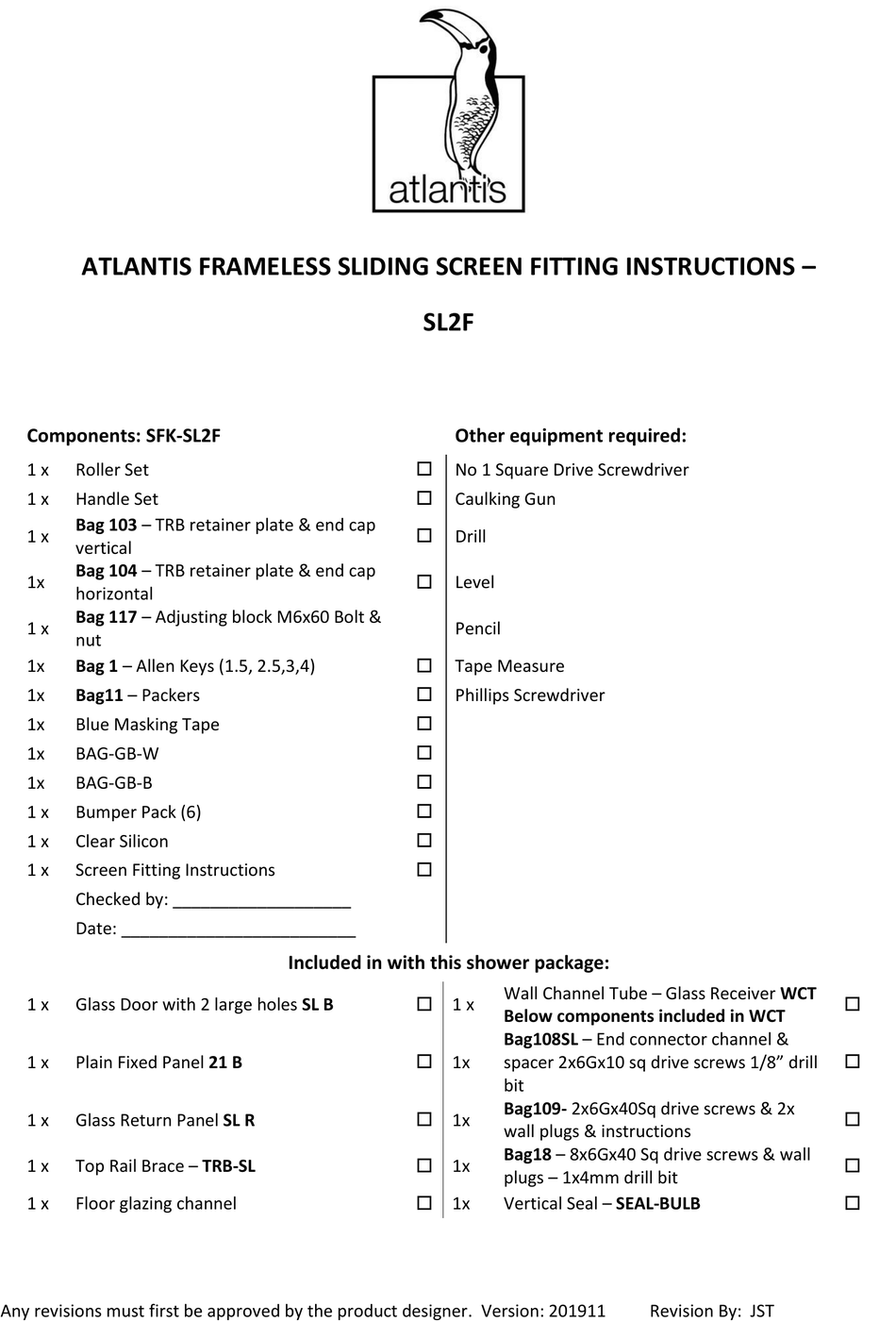

ATLANTIS FRAMELESS SLIDING SCREEN FITTING INSTRUCTIONS –
Components: SFK-SL2F
1 x
Roller Set
1 x
Handle Set
Bag 103 – TRB retainer plate & end cap
1 x
vertical
Bag 104 – TRB retainer plate & end cap
1x
horizontal
Bag 117 – Adjusting block M6x60 Bolt &
1 x
nut
1x
Bag 1 – Allen Keys (1.5, 2.5,3,4)
1x
Bag11 – Packers
1x
Blue Masking Tape
1x
BAG-GB-W
1x
BAG-GB-B
1 x
Bumper Pack (6)
1 x
Clear Silicon
1 x
Screen Fitting Instructions
Checked by: ___________________
Date: _________________________
1 x
Glass Door with 2 large holes SL B
1 x
Plain Fixed Panel 21 B
1 x
Glass Return Panel SL R
1 x
Top Rail Brace – TRB-SL
1 x
Floor glazing channel
Any revisions must first be approved by the product designer. Version: 201911
SL2F
Other equipment required:
No 1 Square Drive Screwdriver
Caulking Gun
Drill
Level
Pencil
Tape Measure
Phillips Screwdriver
Included in with this shower package:
1 x
1x
1x
1x
1x
Wall Channel Tube – Glass Receiver WCT
Below components included in WCT
Bag108SL – End connector channel &
spacer 2x6Gx10 sq drive screws 1/8" drill
bit
Bag109- 2x6Gx40Sq drive screws & 2x
wall plugs & instructions
Bag18 – 8x6Gx40 Sq drive screws & wall
plugs – 1x4mm drill bit
Vertical Seal – SEAL-BULB
Revision By: JST
Advertisement
Related Manuals for Atlantis SL2F
Summary of Contents for Atlantis SL2F
- Page 1 ATLANTIS FRAMELESS SLIDING SCREEN FITTING INSTRUCTIONS – SL2F Components: SFK-SL2F Other equipment required: Roller Set No 1 Square Drive Screwdriver Handle Set Caulking Gun Bag 103 – TRB retainer plate & end cap Drill vertical Bag 104 – TRB retainer plate & end cap ...
- Page 2 - It is the installer’s responsibility to thoroughly check the glass panel prior to installation. - Atlantis will take no responsibility for any glass panel that has been installed with a noticeable defect. NOTE: a noticeable defect must be visible to the naked eye, in normal daylight conditions, standing at a distance of two meters.
- Page 3 Atlantis Frameless may be installed prior to tiling or on an existing tiled surface Floor glazing channels are supplied overlength and are to be cut on site to the required size as per size chart for 2 Wall Showers –...
- Page 4 1. Mark the floor and wall for glazing channel 6. Ensure the glass receiver channel is located positions as per size chart firmly over the base glazing channel. The (refer page 3 of these instructions). machine recess in the wall glazing channel must firmly locate over the base glazing channel.
- Page 5 Detail in Fig. 1. Must be 12. Locate the glass panel SL R into the glazing accurate. 120mm from channel. The top top of wall channel to of panel SL R top of end connector must be level with channel. the top of the glass receiver channel on the...
- Page 6 14. HANDLE INSTALLATION 17. CRITICAL SEAL Assemble the handles as shown. Use 3mm Hex Remove dust Key supplied with the handle set. and dirt first. Seal the connection between the glass receiver channel and the base glazing channel with clear silicon, prior to the installation of the fixed panel, SL-F.
- Page 7 20. SILL INFILL Trim Sill Infill to fit between the fixed panel and 24. SLIDING DOOR GUIDE BLOCK the return panel. Apply a continuous bead of Slide the door as far back in an open position as clear silicon to each inside face of the base possible (be careful of it hitting the wall).
- Page 8 SLIDING SCREEN – GUIDE BLOCK CODE - ABS-LQ-GB-LONG Linea Quattro – Installed on base or prior to tiling CODE - ABS-LQ-GB-SHORT Linea Quattro – Used when installing frameless screens CODE - ABS-EI-GB-WHITE / BLACK Ebony & Ivory – Installed on base when installing screens Any revisions must first be approved by the product designer.
