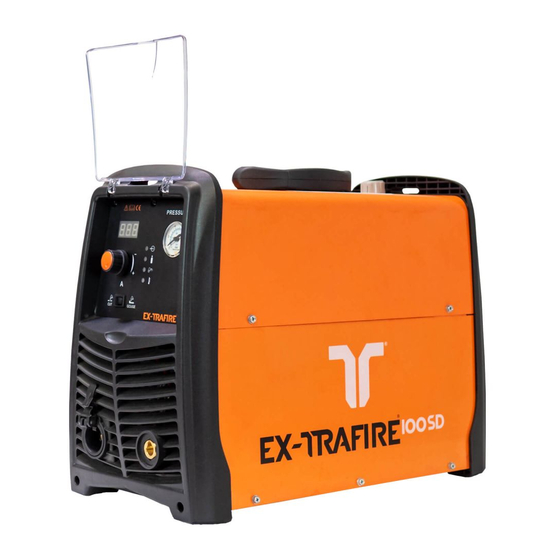

THERMACUT EX-TRAFIRE 100SD Operator's Manual

THERMACUT EX-TRAFIRE 100SD Operator's Manual

Plasma cutting power supply
Table of Contents

Advertisement

THERMACUT
PLASMA CUTTING POWER SUPPLY
Revision: T-5
English
2021
!IMPORTANT!
WITH EASY ACCESS TO ALL PERSONNEL. THE SYSTEM IS TO BE USED FOR METAL
CUTTING ONLY.
PLEASE, CHECK THE LATEST VERSION OF THE OPERATOR MANUAL ON OUR WEBSITE:
EX-TRAFIRE
100SD
Operator Manual
BEFORE SWITCHING ON OR OPERATING THE SYSTEM,
READ THIS MANUAL, BECOME FAMILIAR WITH THE
CONTENT. KEEP THE MANUAL LOCAL TO THE JOB SITE
www.ex-trafire.com
®
®
EX-5-907-001
N-22158

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX-TRAFIRE 100SD and is the answer not in the manual?

Questions and answers

Summary of Contents for THERMACUT EX-TRAFIRE 100SD

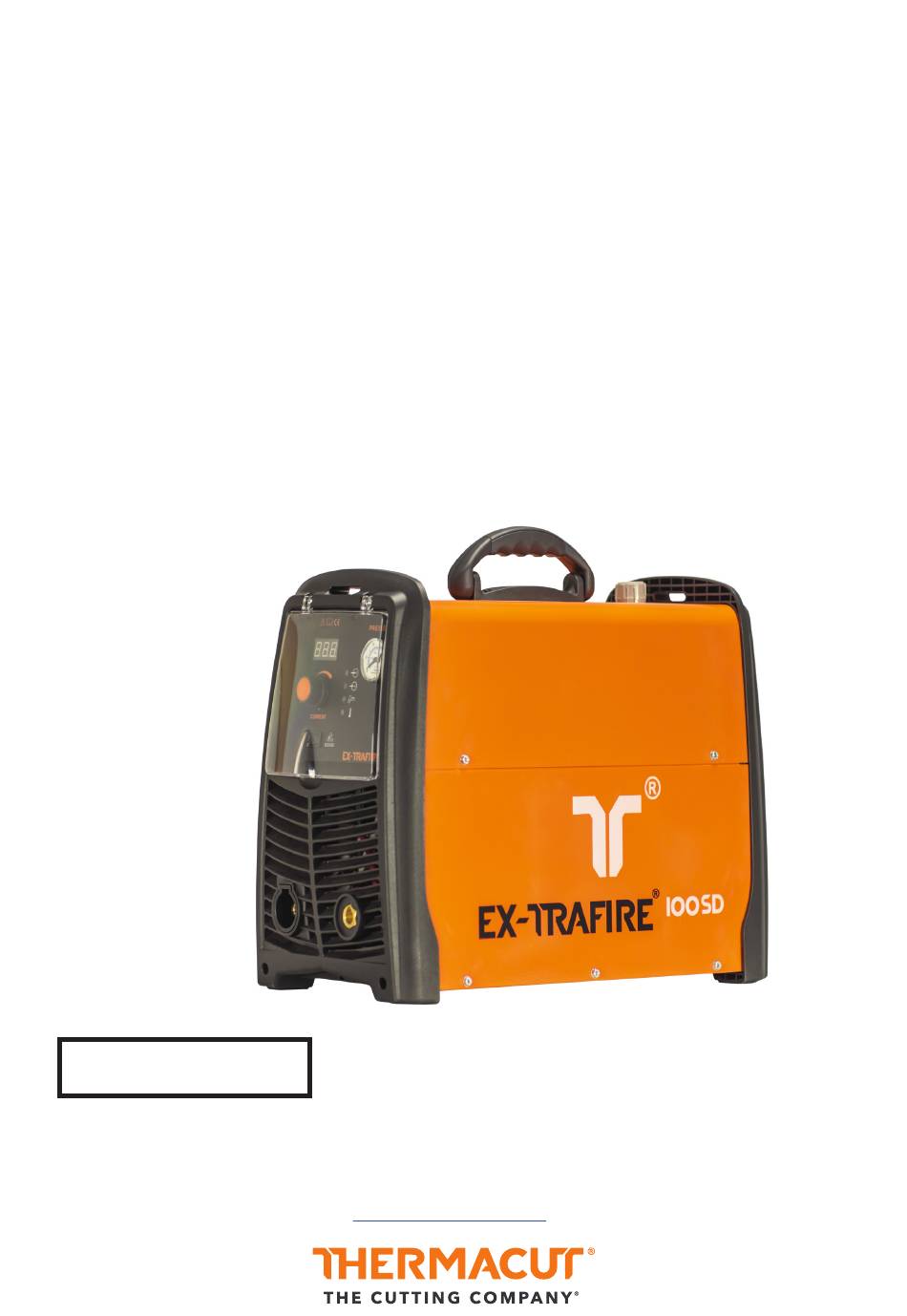

  • Page 1 THERMACUT ® EX-TRAFIRE ® 100SD PLASMA CUTTING POWER SUPPLY Operator Manual Revision: T-5 English 2021 BEFORE SWITCHING ON OR OPERATING THE SYSTEM, !IMPORTANT! READ THIS MANUAL, BECOME FAMILIAR WITH THE CONTENT. KEEP THE MANUAL LOCAL TO THE JOB SITE WITH EASY ACCESS TO ALL PERSONNEL. THE SYSTEM IS TO BE USED FOR METAL CUTTING ONLY.
  • Page 2 EX-TRAFIRE 100SD ® INDEX SECTION 1: SAFETY ��������������������������������������������������������������������������������������5 !Caution! ��������������������������������������������������������������������������������������������������������������������������������������6 Plasma arc rays can burn eyes and skin �����������������������������������������������������������������������������������6 Noise can damage hearing ������������������������������������������������������������������������������������������������������6 Flying sparks (arc spray) can cause injury, fire or explosion ��������������������������������������������������6 Caution! Read operator’s manual ���������������������������������������������������������������������������������������������6 Cutting can cause fire or explosion �����������������������������������������������������������������������������������������7 Electric shock can kill������������������������������������������������������������������������������������������������������������������7 Plasma arc can injure ������������������������������������������������������������������������������������������������������������������7 Flying sparks (arc spray) can cause injury, fire or explosion ��������������������������������������������������7...
  • Page 3 EX-TRAFIRE 100SD ® Additional gas filtration �������������������������������������������������������������������������������������������������������� 3-24 Gas supply installation ��������������������������������������������������������������������������������������������������������� 3-25 Setting the gas pressure ������������������������������������������������������������������������������������������������������ 3-25 System CNC interface connection �������������������������������������������������������������������������������������� 3-26 Activating an external DC coil with an external power supply ��������������������������������������� 3-27 Activating an external AC coil with an external power supply ���������������������������������������� 3-27 Activating an industrial isolated module with an external power supply ����������������������...
  • Page 4 EX-TRAFIRE 100SD ® Circle cutting guide kit for FHT-EX 105RTXH/105TTH/45TTH ��������������������������������������� 8-53 ® SECTION 9: SYSTEM CIRCUIT DIAGRAM ������������������������������������������������ 9-54 Power supply block diagram ����������������������������������������������������������������������������������������������� 9-54 SECTION 10: DISPOSAL OF PRODUCT ������������������������������������������������� 10-55 Use and disposal of waste �������������������������������������������������������������������������������������������������10-55 End of lifetime product disposal���������������������������������������������������������������������������������������10-55 SECTION 11: WARRANTY ���������������������������������������������������������������������...
  • Page 5 EX-TRAFIRE 100SD ® SECTION 1� SAFETY: SECTION 1: SAFETY ��������������������������������������������������������������������������������������5 !Caution! ��������������������������������������������������������������������������������������������������������������������������������������6 Plasma arc rays can burn eyes and skin �����������������������������������������������������������������������������������6 Noise can damage hearing ������������������������������������������������������������������������������������������������������6 Flying sparks (arc spray) can cause injury, fire or explosion ��������������������������������������������������6 Caution! Read operator’s manual ���������������������������������������������������������������������������������������������6 Cutting can cause fire or explosion �����������������������������������������������������������������������������������������7 Electric shock can kill������������������������������������������������������������������������������������������������������������������7 Plasma arc can injure ������������������������������������������������������������������������������������������������������������������7...
  • Page 6 EX-TRAFIRE 100SD ® SAFETY !CAUTION! CAUTION! READ OPERATOR’S MANUAL The symbol shown in this section means: !Caution! !Beware! Follow the safety instructions to avoid danger� ¡There are possible hazards with this procedure! Only qualified persons should install, operate, maintain and When you find this symbol in the manual or on the system, repair the system�...
  • Page 7 EX-TRAFIRE 100SD ® CUTTING CAN CAUSE FIRE FLYING SPARKS (ARC SPRAY) CAN OR EXPLOSION CAUSE INJURY, FIRE OR EXPLOSION FIRE PREVENTION Flying sparks are created during the metal cutting/gouging • Keep flammable items away from the work area� processes; the area should be kept free from flammables� •...
  • Page 8 EX-TRAFIRE 100SD ® SMOKE AND GASES CAN BE HAZARDOUS Induction heating of certain materials, adhesives, and fluxes may cause fumes or smoke� • Work in a confined space only if it is well ventilated, • Breathing the fumes and smoke can be hazardous to or while wearing an air-supplied respirator�...
  • Page 9 EX-TRAFIRE 100SD ® Safety Sticker Safety instructions WARNING! Plasma arc is generated immediately when the torch trigger is depressed. The plasma arc will cut quickly through gloves and skin. Make sure the power is switched off before changing consumables. Torch consumables installation Hand torch Machine torch EX-0-904-008...
  • Page 10 EX-TRAFIRE 100SD ® SECTION 2� SPECIFICATIONS: Dimensions and weight of the plasma arc power supply ����������������������������������������������� 2-11 Specifications: plasma arc power supply �������������������������������������������������������������������������� 2-12 Hand torch setup ������������������������������������������������������������������������������������������������������������������ 2-14 Machine torch setup ������������������������������������������������������������������������������������������������������������� 2-15 Symbols and marking ����������������������������������������������������������������������������������������������������������� 2-16 2-10 Operator Manual, Revision T-5...
  • Page 11 EX-TRAFIRE 100SD ® SPECIFICATIONS EX-TRAFIRE 100SD ® • I s a portable plasma arc cutting system� • It can be used for machine and handheld cutting or handheld gouging too� • U ses air or nitrogen for cutting electrically conductive metals (mild steel, stainless steel, and aluminium)�...
  • Page 12 EX-TRAFIRE 100SD ® Specifications: plasma arc power supply Open circuit voltage (U 300 VDC Output characteristic* Drooping * Curve is defined as the output voltage versus output current Input voltage (U 3 x 400 VAC ± 15% Rated output current (I 30 - 100 A 170 V (Extra-Boost 220 V) Standard rated output voltage (U...
  • Page 13 EX-TRAFIRE 100SD ® Duty cycle Duty cycle is the percentage of time, during a period of 10 minutes, that the power supply can continuously cut� The following diagram represents a duty cycle of 50%� 5 minutes cutting 5 minutes resting PARAMETERS EX-TRAFIRE 100SD...
  • Page 14 EX-TRAFIRE 100SD ® Hand torch setup Gas hose (min� Ø8 mm) Workpiece Torch lead min� 270 LPM min� 6 bar max� 10 bar Ground Work table Work lead Power lead Gas supply view P Torch lead Work lead 2-14 Operator Manual, Revision T-5...
  • Page 15 EX-TRAFIRE 100SD ® Machine torch setup Machine Torch lead Gas hose (min� Ø8 mm) interface cable Workpiece min� 270 LPM min� 6 bar max� 10 bar Ground Work table Work lead Power lead Gas supply view P Torch lead Work lead Operator Manual, Revision T-5 2-15...
  • Page 16 EX-TRAFIRE 100SD ® Symbols and marking For compliance with the European Norm, it is NOT permissible to use unshielded consumables in Hand-Held applications� mark indicates that the power supply and torch are suitable for S Mark; use in environments with danger of electrocution� The hand torches must have shielded consumable parts fitted to mantain mark compliance�...
  • Page 17 EX-TRAFIRE 100SD ® SECTION 3� INSTALLATION: Upon receipt of goods ��������������������������������������������������������������������������������������������������������� 3-18 Claims ������������������������������������������������������������������������������������������������������������������������������������� 3-18 Box contents �������������������������������������������������������������������������������������������������������������������������� 3-18 Power supply location ���������������������������������������������������������������������������������������������������������� 3-19 Mains power connection ����������������������������������������������������������������������������������������������������� 3-19 Connecting to an engine drive power generator ������������������������������������������������������������� 3-19 Grounding ����������������������������������������������������������������������������������������������������������������������������� 3-19 Mains power lead �����������������������������������������������������������������������������������������������������������������...
  • Page 18 EX-TRAFIRE 100SD ® INSTALLATION Upon receipt of goods 1� Verify that all ordered items have been received, for short shipment or damage to equipment, contact the Authorized Supplier� 2� If there is evidence of damage, see Claims, below� 3� All communication relating to this plasma arc system should include the model and serial number located on the bottom of the plasma arc power supply�...
  • Page 19 5� For optimum performance, do not share the engine drive with other equipment such as welding plant, lighting systems or angle grinders� Three-phases, 50/60 Hz, 400 VAC ±15% Engine drive rating Current output EX-TRAFIRE 100SD Performance 25 kW 100 A Full arc stretch 22�5 kW...
  • Page 20 EX-TRAFIRE 100SD ® Mains power lead EX-TRAFIRE 100SD is supplied with a 3 meter length of 4 core 4 mm flexo cable without plug� ® Use of a mains power lead extension is at the discretion of the user� The extension of the mains power lead shall comply with local and national codes of practice and should be installed by a certified electrician�...
  • Page 21 EX-TRAFIRE 100SD ® The mains power lead connection A certified electrician or electrotechnically competent person should connect the mains power lead to a plug or hard wire to a suitable supply according to national standards� Torch installation step by step 1�...
  • Page 22 EX-TRAFIRE 100SD ® 3� Torch connection – Torch TCS plug Latch with key position� TCS latch with key Torch TCS plug Latch with key position 4� Torch connection – 1st step – place the TCS latch with key into the TCS power supply socket� The TCS latch with key must be locked in the TCS socket properly with the latch nose�...
  • Page 23 EX-TRAFIRE 100SD ® 5� Torch connection – 2nd step – put TCS plug into the TCS socket� The torch TCS plug must be locked in the TCS socket properly with the key nose� TCS key nose 6� Torch connection – proper position of the TCS plug in the TCS socket� Operator Manual, Revision T-5 3-23...
  • Page 24 100SD is equipped with a built-in filtration system� ® Additional gas filtration The Thermacut filtration system should be used when oil, moisture or other contaminants are found in the air supply� In more severe cases the 3-stage filtration system should be used� Water /...
  • Page 25 EX-TRAFIRE 100SD ® Gas supply installation Connect the air-line hose as follows: 1� Air-line hose connection� Female G1/4” thread adapter� • 2� Air-line hose� Use an inert gas hose with a minimum internal • diameter of 8 mm, make a direct attachment or use a quick disconnect fitting�...
  • Page 26 EX-TRAFIRE 100SD ® System CNC interface connection Each type of signal is available through the system CNC interface connector located on the rear control panel� Use the chart with details of each signal type below when connecting the system interface lead to the plasma arc power supply� START Arc transfer Signal:...
  • Page 27 EX-TRAFIRE 100SD ® Activating an external DC coil with an external power supply Use a diode 1N4007 if the voltage is 24 VDC 24 VDC Activating an external AC coil with an external power supply 24 VAC 230 VAC Operator Manual, Revision T-5 3-27...
  • Page 28 EX-TRAFIRE 100SD ® Activating an industrial isolated module with an external power supply Notes: 1� Isolated input module, provided by the user� 2� 24 VDC power supply to be provided by the user� ISOLATED INPUT MODULE� Installation of the machine interface cable must be performed by a certified electrician or competent person�...
  • Page 29 EX-TRAFIRE 100SD ® The circle cutting guide installation - for the FHT-EX 105RTXH/105TTH/45TTH ® 1� Disconnect the torch from the plasma power supply� 2� Insert the hand torch into the cutting guide� Hand torch Retaining cap Hand shield Cutting guide 3�...
  • Page 30 EX-TRAFIRE 100SD ® 5� The hand torch clamped in the cutting guide can be used alone or with a radius bar� If you don’t want use the radius bar, lock the cutting guide in a fixed position by using of the screw with hexagonal head so that the wheels of the cutting guide point in the same direction as the torch handle - see picture below�...
  • Page 31 EX-TRAFIRE 100SD ® 8� Use the following fasteners to anchor the radius bar to the center of the circle: Magnetic base Free centering Straight assembly straight pin locking pin Operator Manual, Revision T-5 3-31...
  • Page 32 EX-TRAFIRE 100SD ® SECTION 4� OPERATION: Front view ������������������������������������������������������������������������������������������������������������������������������� 4-33 Front control panel ��������������������������������������������������������������������������������������������������������������� 4-33 Rear view �������������������������������������������������������������������������������������������������������������������������������� 4-34 Rear control panel detail ������������������������������������������������������������������������������������������������������ 4-34 Turn ON ���������������������������������������������������������������������������������������������������������������������������������� 4-35 Check the LED indicators����������������������������������������������������������������������������������������������������� 4-35 Operating the hand torch ���������������������������������������������������������������������������������������������������� 4-36 Operating the torch safety trigger ��������������������������������������������������������������������������������������...
  • Page 33 EX-TRAFIRE 100SD ® OPERATION Front view Front control panel Torch connector Work clamp connector Front control panel 1� Display - Cutting current display� When fault occures, error code will display� 2� Torch control - LED illuminates when consumables are loose, improperly installed or missing� 3�...
  • Page 34 EX-TRAFIRE 100SD ® Rear view Rear control panel Rear control panel detail 1� Power supply switch 2� Mains power lead 3� CNC interface connector 4� Gas supply input fitting G1/4” Female 4-34 Operator Manual, Revision T-5...
  • Page 35 EX-TRAFIRE 100SD ® Turn ON Switch ON (I) Note: The cooling fan will only run when needed� Check the LED indicators Check that LED1 is illuminated and LED2, LED3 and LED4 are not illuminated before cutting� Operator Manual, Revision T-5 4-35...
  • Page 36 EX-TRAFIRE 100SD ® Operating the hand torch WARNING Plasma arc is generated immediately when the torch trigger is depressed� The plasma arc will cut quickly through gloves and skin� Make sure the power supply is switched off before changing consumables� Keep away from the torch tip�...
  • Page 37 EX-TRAFIRE 100SD ® WARNING SPARKS AND HOT METAL CAN BURN THE SKIN AND EYES When angling the torch for cutting or piercing, molten metal (Arc Spray) will occur in the direction that the torch is aimed� Aim the torch away from yourself and others� Fit the work clamp Secure the work clamp to the workpiece, ensure good contact, and remove surface contaminants�...
  • Page 38 EX-TRAFIRE 100SD ® Hand torch cutting technique Avoid unnecessary firing of the torch, each firing of the torch reduces the lifetime of the electrode and nozzle� When cutting, ensure the arc spray exits the underside of the workpiece� Direction of cut Incomplete severance is indicated by an upward arc spray�...
  • Page 39 EX-TRAFIRE 100SD ® Piercing WARNING SPARKS AND HOT METAL CAN BURN THE SKIN AND EYES When angling the torch for cutting or piercing, molten metal (Arc Spray) will occur in the direction that the torch is aimed� Aim the torch away from yourself and others�...
  • Page 40 EX-TRAFIRE 100SD ® Gouging WARNING SPARKS AND HOT METAL CAN BURN THE SKIN AND EYES When angling the torch for cutting, piercing or gouging, molten metal (Arc Spray) will occur in the direction that the torch is aimed� Aim the torch away from yourself and others�...
  • Page 41 EX-TRAFIRE 100SD ® Gouge profile The gouge profile can be modified by changing the speed of moving of the torch over the workpiece, changing the angle of the torch to the workpiece, changing the torch to workpiece distance or changing the gouging amperage (the output power) of the power supply� Angle of torch Speed of gouging...
  • Page 42 EX-TRAFIRE 100SD ® Operating the machine torch WARNING Plasma arc is generated immediately when the CNC start signal is ON� The plasma arc will cut quickly through gloves and skin� Make sure the power supply is switched off before changing consumables� Keep away from the torch tip�...
  • Page 43 EX-TRAFIRE 100SD ® SECTION 5� MAINTENANCE: Routine maintenance ����������������������������������������������������������������������������������������������������������� 5-44 Purging/draining of the built-in filter ���������������������������������������������������������������������������������� 5-45 Operator Manual, Revision T-5 5-43...
  • Page 44 EX-TRAFIRE 100SD ® MAINTENANCE Routine maintenance WARNING ELECTRIC SHOCK CAN KILL Disconnect mains power lead before servicing; Qualified technicians only should perform any work that requires removal of the system cover� Allow a period (minimum 5 min�) for electrical discharge before handling internal parts� Check the gas pressure�...
  • Page 45 EX-TRAFIRE 100SD ® Purging/draining the built-in filter This power supply is equipped with built-in float type auto drain filter� Do not cover outflow drain hole located on the bottom of the power supply (see the picture below)� Position of the outflow drain hole Operator Manual, Revision T-5 5-45...
  • Page 46 EX-TRAFIRE 100SD ® SECTION 6� ADITIONAL ORDERING INFORMATION EX-TRAFIRE 100SD Power Supplies ® Part No� DESCRIPTION EX-5-001-003 EX-TRAFIRE 100SD/CE/3x400V Power Supply Unit (fully-equipped) ® EX-TRAFIRE 100SD Manual Plasma Cutting Systems ® Part No� DESCRIPTION Length EX-5-010-033 EX-TRAFIRE®100SD/CE/3x400V Hand System/FHTEX®105RTXH Torch 8m/H Starter Kit EX-5-010-034 EX-TRAFIRE®100SD/CE/3x400V Hand System/FHTEX®105RTXH Torch 15m/H Starter Kit 15 m...
  • Page 47 EX-TRAFIRE 100SD ® SECTION 7� TROUBLESHOOTING Fault This may mean Cause Solution Main switch • No / low voltage • Insufficient mains • Check the mains input is ON and the of mains power power source� voltage 3 x 400 VAC ± 15% AC power source�...
  • Page 48 EX-TRAFIRE 100SD ® Fault This may mean Cause Solution The LED3 • Consumables • Consumables are • Install the consumables and blinks no arc fault� loose, improperly fit the retaining cap� output when installed or missing� the trigger is • The retaining cap •...
  • Page 49 EX-TRAFIRE 100SD ® Fault This may mean Cause Solution No transfer • Work clamp • Fluctuating • Clean the surface of the between connection fault� connection clamp and material� pilot arc and between the clamp workpiece� and workpiece� • No connection to •...
  • Page 50 EX-TRAFIRE 100SD ® Fault This may mean Cause Solution Cut quality • Incorrect current • Poor quality� • Adjust the current to suit issues� setting� the thickness of material to be cut� • Consumables • Consumables are • Inspect consumables – see fault�...
  • Page 51 EX-TRAFIRE 100SD ® ERROR CODES The power input voltage is too low The power input voltage is too high System operation failed (e�g�: no arc pressure) Missing nozzle or electrode During the pilot arc, the electrode is not separated from the nozzle (check the electrode free movement) Over-temperature alarm Over-current alarm...
  • Page 52 EX-TRAFIRE 100SD ® SECTION 8� ACCESSORIES Filter-EX Compressed Air Filter with replacement filter cartridge EX-0-804-001 EX-0-804-002 Filter-EX Compressed Air Filter Filter-EX Air Filter Cartridge (Standard package 1 piece) (Standard package 8 pieces) Technical specification Filtering Degree: 0�01 μinch – 0�25 μm Maximum Pressure: 125 PSI –...
  • Page 53 EX-TRAFIRE 100SD ® CNC interface EX-0-803-001 EX-0-803-004 CNC Interface 14-pin Plug Kit, incl� 7 pins CNC Interface connection lead 6 m O-Ring lubricant EX-0-805-001 Grease 25ml Circle cutting guide kit for FHT-EX 105RTXH/105TTH/45TTH ® EX-5-801-002 This Circle cutting guide kit for hand-held cutting obtains: Circle cutting attachment •...
  • Page 54 EX-TRAFIRE 100SD ® SECTION 9� POWER SUPPLY BLOCK DIAGRAM Power supply block diagram 9-54 Operator Manual, Revision T-5...
  • Page 55 Hereby Thermacut, k�s� confirms that to its knowledge all Plasma Power supply models EX-TRAFIRE H, SC, SD and HD (unless otherwise expressly stated) sold by Thermacut, k�s� fulfill the requirements of the EU directive 2011/65/EU� These products are compatible with the current RoHS requirements for the 7 substances (max 0�1% by weight in homogeneous materials for lead,...
  • Page 56 This Warranty Certificate forms an integral part of General Business Conditions (“GBC”) of THERMACUT, k.s. (the “Seller”) and shall apply to supplies of Goods under Contract concluded between the Seller and the other contracting party as the recipient of the Goods (the “Buyer”); terms used herein have the same meaning as is ascribed to them in the GBC 1�...
  • Page 57 EX-TRAFIRE 100SD ® Notes: Operator Manual, Revision T-5 11-57...
  • Page 58 EX-TRAFIRE 100SD ® Revision history: 1� Revision T-1/2020 - 02/2020 - Official release 2� Revision T-2/2020 - 05/2020 Page 2-12 - Specifications - new value of Max� input power and Rated input voltage Page 11-52 - new page of Warranty added 3�...
  • Page 59 742 42 Šenov u Nového Jičína Tel�: +33 3 88 76 25 78 CZECH REPUBLIC www�thermacut�fr Tel�: +420 556 423 418, 440 THERMACUT-POLAND SP� Z O�O� Fax: +420 556 423 443, 444 Aleja Jana Łyska 3 E-mail: sales@thermacut�cz 43-400 Cieszyn obchod@thermacut�cz...
  • Page 60 686 01, Uherské Hradiště Czech Republic www�thermacut�cz sales@thermacut�cz THERMACUT®, FHT-EX® and EX-TRAFIRE® are registered trademarks of THERMACUT, k�s� and may be registered in Czech Republic and/or other countries� All other trademarks are properties of their respective owners� 11-60 Operator Manual, Revision T-5...
