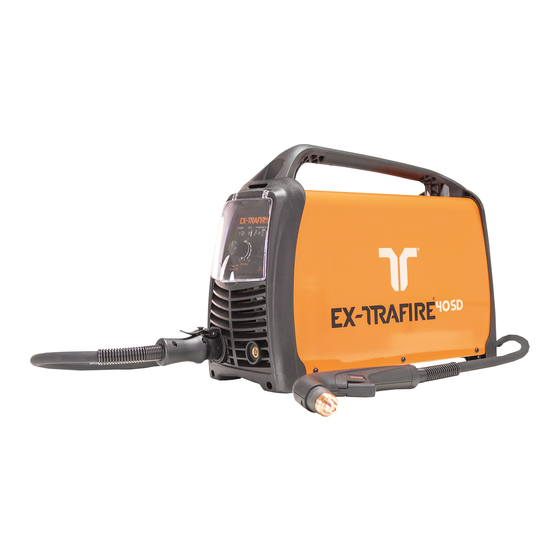

THERMACUT ® EX-TRAFIRE ® 40SD PLASMA ARC CUTTING SYSTEM Operator Manual Revision: T-15 English 2020 BEFORE SWITCHING ON OR OPERATING THE SYSTEM, !IMPORTANT! READ THIS MANUAL, BECOME FAMILIAR WITH THE CONTENT. KEEP THE MANUAL LOCAL TO THE JOB SITE WITH EASY ACCESS TO ALL PERSONNEL. THE SYSTEM IS TO BE USED FOR METAL CUTTING ONLY.
EX-TRAFIRE 40SD ® INDEX SECTION 1: SAFETY ��������������������������������������������������������������������������������������5 !Caution! ��������������������������������������������������������������������������������������������������������������������������������������6 Plasma arc rays can burn eyes and skin �����������������������������������������������������������������������������������6 Noise can damage hearing ������������������������������������������������������������������������������������������������������6 Flying sparks (arc spray) can cause injury, fire or explosion ��������������������������������������������������6 Caution! Read operator’s manual ���������������������������������������������������������������������������������������������6 Cutting can cause fire or explosion �����������������������������������������������������������������������������������������7 Electric shock can kill������������������������������������������������������������������������������������������������������������������7 Plasma arc can injure ������������������������������������������������������������������������������������������������������������������7 Flying sparks (arc spray) can cause injury, fire or explosion ��������������������������������������������������7...
Page 3
EX-TRAFIRE 40SD ® Plasma gas supply ���������������������������������������������������������������������������������������������������������������� 3-23 Additional gas filtration �������������������������������������������������������������������������������������������������������� 3-23 Gas supply installation ��������������������������������������������������������������������������������������������������������� 3-24 Alignment of the machine torch FHT-EX 40M ������������������������������������������������������������������ 3-24 ® System CNC interface connection �������������������������������������������������������������������������������������� 3-25 Set the DIP switches to one of the following settings� ����������������������������������������������������� 3-25 Activating an external DC coil with an external power supply ���������������������������������������...
Page 5
EX-TRAFIRE 40SD ® SECTION 1� SAFETY: !Caution! ��������������������������������������������������������������������������������������������������������������������������������������6 Plasma arc rays can burn eyes and skin �����������������������������������������������������������������������������������6 Noise can damage hearing ������������������������������������������������������������������������������������������������������6 Flying sparks (arc spray) can cause injury, fire or explosion ��������������������������������������������������6 Caution! Read operator’s manual ���������������������������������������������������������������������������������������������6 Cutting can cause fire or explosion �����������������������������������������������������������������������������������������7 Electric shock can kill������������������������������������������������������������������������������������������������������������������7 Plasma arc can injure ������������������������������������������������������������������������������������������������������������������7 Flying sparks (arc spray) can cause injury, fire or explosion ��������������������������������������������������7...
EX-TRAFIRE 40SD ® SAFETY !CAUTION! CAUTION! READ OPERATOR’S MANUAL The symbol shown in this section means: !Caution! !Beware! Follow the safety instructions to avoid danger� ¡There are possible hazards with this procedure! Only qualified persons should install, operate, maintain and When you find this symbol in the manual or on the system, repair the system�...
EX-TRAFIRE 40SD ® CUTTING CAN CAUSE FIRE FLYING SPARKS (ARC SPRAY) CAN OR EXPLOSION CAUSE INJURY, FIRE OR EXPLOSION FIRE PREVENTION Flying sparks are created during the metal cutting/gouging • Keep flammable items away from the work area� processes; the area should be kept free from flammables� •...
EX-TRAFIRE 40SD ® SMOKE AND GASES CAN BE HAZARDOUS Induction heating of certain materials, adhesives, and fluxes may cause fumes or smoke� • Work in a confined space only if it is well ventilated, Breathing the fumes and smoke can be hazardous to your or while wearing an air-supplied respirator�...
EX-TRAFIRE 40SD ® Safety Sticker WARNING! Plasma arc is generated immediately when the torch trigger is depressed. Plasma arc is generated immediately when the torch trigger is depressed. The plasma arc will cut quickly through gloves and skin. Make sure the power is switched off before changing consumables. Safety instructions Torch consumable installation 1.
EX-TRAFIRE 40SD ® Specifications: plasma arc power supply Open circuit voltage (U 480 VDC Output characteristic* Drooping Curve is defined as the output voltage versus output current Input voltage (U ) *PFC 100 - 130 VAC (CE) 220 - 240 VAC (CE/C-TICK) Rated output current (I 10–30 A 10–40 A...
EX-TRAFIRE 40SD ® Symbols and marking S Mark; mark indicates that the power supply and torch are suitable for use in environments with danger of electrocution� The hand torches must have shielded consumable parts fitted to maintain mark compliance� CE Mark; This marking signifies the manufacturer’s declaration of conformity to applicable European directives and standards (EMC &...
Page 16
EX-TRAFIRE 40SD ® SECTION 3� INSTALLATION: Upon receipt of goods ��������������������������������������������������������������������������������������������������������� 3-17 Claims ������������������������������������������������������������������������������������������������������������������������������������� 3-17 Box contents �������������������������������������������������������������������������������������������������������������������������� 3-17 Power supply location ���������������������������������������������������������������������������������������������������������� 3-18 Mains power connection ����������������������������������������������������������������������������������������������������� 3-18 Connecting to an engine drive power generator ������������������������������������������������������������� 3-18 Grounding ����������������������������������������������������������������������������������������������������������������������������� 3-18 Mains power lead �����������������������������������������������������������������������������������������������������������������...
EX-TRAFIRE 40SD ® INSTALLATION Upon receipt of goods 1� Verify that all ordered items have been received, for short shipment or damage to equipment, contact the Authorized Supplier� 2� If there is evidence of damage, see Claims, below� 3� All communication relating to this plasma arc system should include the model and serial number located on the bottom of the plasma arc power supply�...
EX-TRAFIRE 40SD ® Power supply location Place the plasma arc power supply EX-TRAFIRE 40SD on a flat even surface with a minimum ® distance of 0�5m of clear space all round to ensure good ventilation� Mains power connection The EX-TRAFIRE 40SD plasma arc power supply requires a 100 - 130 VAC (CE) –...
EX-TRAFIRE 40SD ® Mains power lead EX-TRAFIRE 40SD is supplied with a 3 meter length of 3 core 2�5 mm flexo cable without plug� ® Use of an alternative mains power lead is at the discretion of the user� The mains power lead shall comply with local and national codes of practice�...
EX-TRAFIRE 40SD ® The mains power lead connection A certified electrician or competent person should connect the mains power lead to a plug or hard wire to a suitable supply according to national standards� Torch installation step by step 1� TURN “OFF” the power supply OFF (0) / Turn OFF ON (I) / Turn ON 2�...
Page 21
EX-TRAFIRE 40SD ® 3� Torch conenction – torch location TCS latch with key Torch TCS plug Latch with key position 4� Torch connection – 1st step – place the TCS latch with key into the TCS power supply socket� The TCS latch with key must be locked in the TCS socket properly with the latch nose� TCS latch nose Operator Manual, Revision T-15 3-21...
Page 22
EX-TRAFIRE 40SD ® 5� Torch connection – 2nd step – put TCS plug into the TCS socket� The torch TCS plug must be locked in the TCS socket properly with the key nose� TCS key nose 6� Torch connection – proper position of the TCS plug in the TCS socket� WARNING FHT-EX 40 torches are only for use with...
40SD is equipped with a built-in filtration system� ® Additional gas filtration The Thermacut filtration system should be used when oil, moisture or other contaminants are found in the air supply� In more severe cases the 3-stage filtration system should be used� Water /...
EX-TRAFIRE 40SD ® Gas supply installation Connect the air-line hose as follows: 1� Air-line hose connection� Female G1/4” thread adapter� • 2� Air-line hose� Use an inert gas hose with a minimum • internal diameter of 6 mm, make a direct attachment or use a quick disconnect fitting�...
EX-TRAFIRE 40SD ® System CNC interface connection Each type of signal is available through the system CNC interface connector located on the rear control panel� Use the chart with details of each signal type below when connecting the system interface lead to the plasma arc power supply� START Arc transfer Signal:...
EX-TRAFIRE 40SD ® Activating an external DC coil with an external power supply Use a diode 1N4007 if the voltage is 24 VDC 24 VDC Activating an external AC coil with an external power supply 24 VAC 230 VAC 3-26 Operator Manual, Revision T-15...
EX-TRAFIRE 40SD ® Activating an industrial isolated module with an external power supply Notes: 1� Isolated input module, provided by the user� 2� 24 VDC power supply to be provided by the user� ISOLATED INPUT MODULE� Installation of the machine interface cable must be performed by a certified electrician or competent person�...
EX-TRAFIRE 40SD ® The circle cutting guide installation - for the FHT-EX 30/40H ® 1� Disconnect the torch from the plasma power supply� 2� Insert the hand torch into the cutting guide� Hand torch Retaining cap Hand shield Cutting guide 3�...
Page 29
EX-TRAFIRE 40SD ® 5� The hand torch clamped in the cutting guide can be used alone or with a radius bar� If you don’t want use the radius bar, lock the cutting guide in a fixed position by using of the screw with hexagonal head so that the wheels of the cutting guide point in the same direction as the torch handle - see picture below�...
Page 30
EX-TRAFIRE 40SD ® 8� Use the following fasteners to anchor the radius bar to the center of the circle: Free centering Magnetic base straight pin assembly Straight locking pin 3-30 Operator Manual, Revision T-15...
Page 31
EX-TRAFIRE 40SD ® SECTION 4� OPERATION: Front view ������������������������������������������������������������������������������������������������������������������������������� 4-32 Front control panel ��������������������������������������������������������������������������������������������������������������� 4-32 Rear view �������������������������������������������������������������������������������������������������������������������������������� 4-33 Rear control panel detail ������������������������������������������������������������������������������������������������������ 4-33 Torch consumables installation ������������������������������������������������������������������������������������������� 4-34 Turn ON ���������������������������������������������������������������������������������������������������������������������������������� 4-35 Check the LED indicators����������������������������������������������������������������������������������������������������� 4-35 Operating the hand torch ���������������������������������������������������������������������������������������������������� 4-36 Operating the torch safety trigger ��������������������������������������������������������������������������������������...
EX-TRAFIRE 40SD ® OPERATION Front view Front control panel Torch connector Work clamp connector Front control panel 1� Power ON/OFF indicator� LED1 illuminates when the power supply is turned ON� 2� Cutting current regulator knob 3� Over-Current (OC), Over-Temperature (OT) alarm indicator 4�...
EX-TRAFIRE 40SD ® Rear view Rear control panel CNC INTERFACE 7BAR MAX 101PSI MAX Rear control panel detail 1� Power supply switch 120/230V 2� Mains power lead 3� CNC interface connector 4� Gas supply input fitting G1/4” Female CNC INTERFACE 10BAR MAX 7BAR MAX 101PSI MAX...
EX-TRAFIRE 40SD ® Torch consumables installation WARNING Plasma arc is generated immediately when the torch trigger is depressed Plasma arc is generated immediately when the torch trigger is depressed� The plasma arc will cut quickly through gloves and skin� Make sure the power is switched off before changing consumables�...
EX-TRAFIRE 40SD ® Turn ON Switch ON (I) Note: The cooling fan will only run when needed� Check the LED indicators Check that LED1 is illuminated and LED2, LED3 and LED4 are not illuminated before cutting� Operator Manual, Revision T-15 4-35...
EX-TRAFIRE 40SD ® Operating the hand torch WARNING Plasma arc is generated immediately when the torch trigger is depressed Plasma arc is generated immediately when the torch trigger is depressed� The plasma arc will cut quickly through gloves and skin� Make sure the power supply is switched off before changing consumables�...
EX-TRAFIRE 40SD ® WARNING SPARKS AND HOT METAL CAN BURN THE SKIN AND EYES When angling the torch for cutting or piercing, molten metal (Arc Spray) will occur in the direction that the torch is aimed� Aim the torch away from yourself and others� Fit the work clamp Secure the work clamp to the work piece, ensure good contact, and remove surface contaminants�...
EX-TRAFIRE 40SD ® Hand torch cutting technique Avoid unnecessary firing of the torch, each firing of the torch reduces the lifetime of the electrode and nozzle� When cutting, ensure the arc spray exits the underside of the work piece� Direction of cut Incomplete severance is indicated by an upward arc spray�...
EX-TRAFIRE 40SD ® Piercing WARNING SPARKS AND HOT METAL CAN BURN THE SKIN AND EYES When angling the torch for cutting or piercing, molten metal (Arc Spray) will occur in the direction that the torch is aimed� Aim the torch away from yourself and others�...
10% versus the shield configuration� Adjust the AVC settings to new distance and speed� (Normally reduce the AVC setting by 5 – 7 Volts�) Thermacut NOT recommends EX-2-421-006 and or promotes operating handheld cutting when not using the shielded consumables�...
Page 42
10% versus the shield configuration� Adjust the AVC settings to new distance and speed� (Normally reduce the AVC setting by 5 – 7 Volts�) Thermacut NOT recommends EX-2-421-001 and or promotes operating handheld cutting when not using the shielded consumables�...
Page 43
EX-TRAFIRE 40SD ® SECTION 5� MAINTENANCE: Routine maintenance ����������������������������������������������������������������������������������������������������������� 5-44 Consumable parts inspection ��������������������������������������������������������������������������������������������� 5-45 Purging/draining of the built-in filter ���������������������������������������������������������������������������������� 5-46 Operator Manual, Revision T-15 5-43...
Page 44
EX-TRAFIRE 40SD ® MAINTENANCE Routine maintenance WARNING ELECTRIC SHOCK CAN KILL Disconnect mains power lead before servicing; Qualified technicians only should perform any work that requires removal of the system cover� Allow a period (minimum 5 min�) for electrical discharge before handling internal parts� Check the gas pressure�...
Page 45
EX-TRAFIRE 40SD ® Consumable parts inspection Part Inspect Operation Out of round orifice or worn cruciform Replace shield indicates worn condition Accumulated spatter in the gap between Clean away any material from the the shield and the nozzle shield and nozzle surface Heat damage, cracks / fractures, damaged Replace nozzle Retaining Cap threads, blocked gas holes...
Page 46
EX-TRAFIRE 40SD ® Purging/draining the built-in filter This power supply is equipped with built-in float type auto drain filter� Do not cover outflow drain hole located on the bottom of the power supply (see the picture below)� Position of the outflow drain hole 5-46 Operator Manual, Revision T-15...
Page 48
EX-TRAFIRE 40SD ® TORCHES AND TORCH PARTS FHT-EX 40H Hand Torch Assembly ® Item Part No� DESCRIPTION EX-2-133-000 DEMO FHT-EX 40H Hand Torch Assembly/TCS13 ® EX-2-130-001 FHT-EX 40H Hand Torch Assembly w/o consumables w/4m Lead/TCS13 ® EX-2-101-003 FHT-EX 40H Hand Torch Assembly w/o consumables w/5m Lead/TCS13 ®...
Page 49
EX-TRAFIRE 40SD ® FHT-EX 40H Hand Torch Components ® Item Part No� DESCRIPTION EX-2-328-001 Hand Torch Lead Replacement Kit 4m Lead/TCS13 EX-2-331-002 Hand Torch Lead Replacement Kit 5m Lead/TCS13 EX-2-329-003 Hand Torch Lead Replacement Kit 7�5m Lead/TCS13 EX-2-336-004 Hand Torch Lead Replacement Kit 15m Lead/TCS13 EX-5-318-001 TCS Plug Spring Stain Relief EX-0-325-015...
EX-TRAFIRE 40SD ® FHT-EX 40H Hand Torch Consumables ® Hand Torch Consumables Configuration 30/40A Item Part No� DESCRIPTION EX-2-401-001 Electrode EX-2-404-002 Swirl Ring EX-2-409-003 Nozzle 30A, 0�8mm EX-2-409-001 Nozzle 40A, 0�9mm EX-2-415-004 Nozzle Retaining Cap (Protection Cap) EX-5-419-005 Hand (contact) Shield 30A EX-2-419-001 Hand (contact) Shield 40A For use in countries that requires CE conformity,...
Page 55
EX-TRAFIRE 40SD ® SECTION 7� ADITIONAL ORDERING INFORMATION: EX-TRAFIRE 40SD Power Supply ® Part No� DESCRIPTION EX-2-001-007 EX-TRAFIRE®40SD/CE/1x100-240V Power Supply Unit (fully-equipped) EX-TRAFIRE 40SD Manual Plasma Cutting Systems ® Part No� DESCRIPTION Length EX-2-010-001 EX-TRAFIRE®40SD/CE/1x100-240V Hand System/FHTEX40H 4m/H Starter Kit EX-2-010-002 EX-TRAFIRE®40SD/CE/1x100-240V Hand System/FHTEX40H 5m/H Starter Kit EX-2-010-003...
Page 56
EX-TRAFIRE 40SD ® SECTION 8� TROUBLESHOOTING: Fault This may mean Cause Solution Main switch • No / low voltage • Insufficient mains • Check the mains input is ON and the of mains power power source� voltage 100 - 130 VAC (CE) / AC power source�...
Page 57
EX-TRAFIRE 40SD ® Fault This may mean Cause Solution • Gas pressure • The gas input • Check gas supply input The LED3 illuminates� fault� pressure is lower pressure� than 3 bar/43 psi� • Damaged torch • Replace the torch lead� lead�...
Page 58
EX-TRAFIRE 40SD ® Fault This may mean Cause Solution No arc output • RUN/TEST switch • Switch is not in • Select “RUN” position� but no alarm positioning� correct position� light when • Torch fault� • Incorrect type of • Use the correct torch type torch trigger is the torch�...
Page 59
EX-TRAFIRE 40SD ® Fault This may mean Cause Solution The pilot arc • Consumables • Check for worn • Change the consumable is difficult to fault� consumables� which may be worn� ignite and cuts • Air pressure fault� • The air pressure is •...
Page 60
EX-TRAFIRE 40SD ® SECTION 9� ACCESSORIES: Filter-EX Compressed Air Filter with replacement filter cartridge EX-0-804-001 EX-0-804-002 Filter-EX Compressed Air Filter Filter-EX Air Filter Cartridge (Standard package 1 piece) (Standard package 8 pieces) Technical specification Filtering Degree: 0�01 μinch – 0�25 μm Maximum Pressure: 125 PSI –...
Page 61
EX-TRAFIRE 40SD ® CNC interface EX-0-803-001 EX-0-803-004 CNC Interface 14-pin Plug Kit, incl� 7 pins CNC Interface connection lead 6 m O-Ring lubricant EX-0-805-001 Grease 25ml Circle cutting guide kit for FHT-EX 30/40H ® EX-2-801-001 This Circle cutting guide kit for hand-held cutting obtains: Circle cutting attachment •...
Page 62
EX-TRAFIRE 40SD ® SECTION 10� POWER SUPPLY BLOCK DIAGRAM: Power supply block diagram 10-62 Operator Manual, Revision T-15...
Page 63
Hereby Thermacut, k�s� confirms that to its knowledge all Plasma Power supply models EX-TRAFIRE H, SC, SD and HD (unless otherwise expressly stated) sold by Thermacut, k�s� fulfill the requirements of the EU directive 2011/65/EU� These products are compatible with the current RoHS requirements for the 7 substances (max 0�1% by weight in homogeneous materials for lead,...
Page 64
This Warranty Certificate forms an integral part of General Business Conditions (“GBC”) of THERMACUT, k.s. (the “Seller”) and shall apply to supplies of Goods under Contract concluded between the Seller and the other contracting party as the recipient of the Goods (the “Buyer”); terms used herein have the same meaning as is ascribed to them in the GBC 1�...
Page 72
686 01, Uherské Hradiště Czech Republic www�thermacut�cz sales@thermacut�cz THERMACUT®, FHT-EX® and EX-TRAFIRE® are registered trademarks of THERMACUT, k�s� and may be registered in Czech Republic and/or other countries� All other trademarks are properties of their respective owners� 12-72 Operator Manual, Revision T-15...
