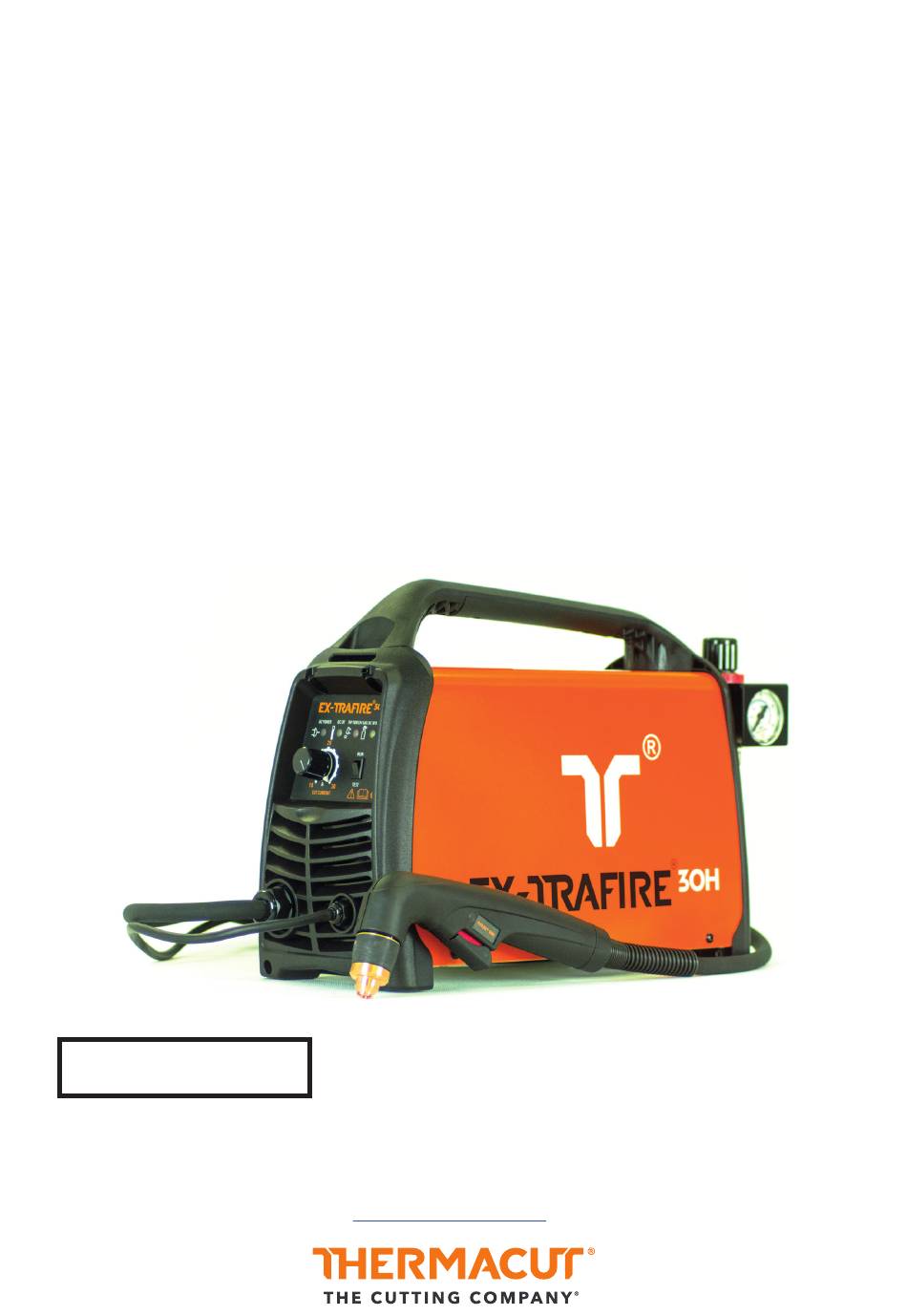

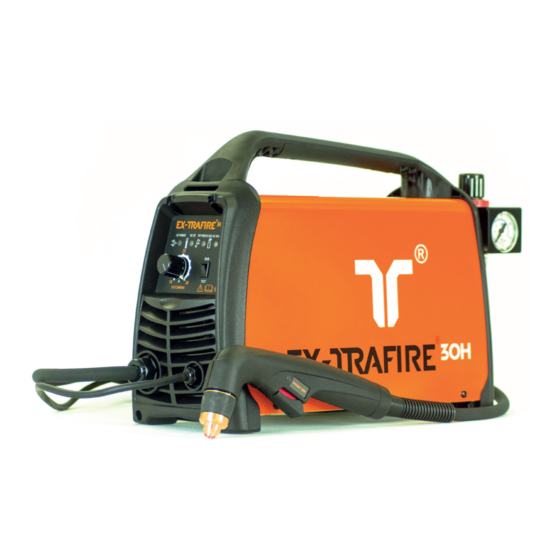

  • Page 1 THERMACUT ® ® EX-TRAFIRE PLASMA ARC CUTTING SYSTEM Operator Manual Revision: T-15 English 2020 BEFORE SWITCHING ON OR OPERATING THE SYSTEM, !IMPORTANT! READ THIS MANUAL, BECOME FAMILIAR WITH THE CONTENT. KEEP THE MANUAL LOCAL TO THE JOB SITE WITH EASY ACCESS TO ALL PERSONNEL. THE SYSTEM IS TO BE USED FOR METAL CUTTING ONLY.
  • Page 2: Table Of Contents

    EX-TRAFIRE ® INDEX SECTION 1: SAFETY �������������������������������������������������������������������������������������� 4 !Caution! ��������������������������������������������������������������������������������������������������������������������������������������6 Plasma arc rays can burn eyes and skin �����������������������������������������������������������������������������������6 Noise can damage hearing ������������������������������������������������������������������������������������������������������6 Flying sparks (arc spray) can cause injury, fire or explosion ��������������������������������������������������6 Caution! Read operator’s manual ���������������������������������������������������������������������������������������������6 Follow the safety instructions to avoid danger�...
  • Page 3 EX-TRAFIRE ® Additional gas filtration �������������������������������������������������������������������������������������������������������� 3-18 Gas supply installation ��������������������������������������������������������������������������������������������������������� 3-19 The circle cutting guide installation - for the FHT-EX 30/40H ����������������������������������������� 3-19 ® SECTION 4: OPERATION ������������������������������������������������������������������������� 4-22 Front view ������������������������������������������������������������������������������������������������������������������������������� 4-23 Front control panel ��������������������������������������������������������������������������������������������������������������� 4-23 Rear view �������������������������������������������������������������������������������������������������������������������������������� 4-24 Rear control panel detail ������������������������������������������������������������������������������������������������������...
  • Page 4 EX-TRAFIRE ® Use and disposal of waste �������������������������������������������������������������������������������������������������11-47 End of lifetime product disposal���������������������������������������������������������������������������������������11-47 SECTION 12: WARRANTY ��������������������������������������������������������������������� 12-48 Notes: �����������������������������������������������������������������������������������������������������������������������������������12-49 Notes: �����������������������������������������������������������������������������������������������������������������������������������12-50 Notes: �����������������������������������������������������������������������������������������������������������������������������������12-51 Notes: �����������������������������������������������������������������������������������������������������������������������������������12-52 Revision history: ������������������������������������������������������������������������������������������������������������������12-53 Revision history: ������������������������������������������������������������������������������������������������������������������12-54 Operator Manual, Revision T-15...
  • Page 5: Section 1: Safety

    EX-TRAFIRE ® SECTION 1� SAFETY: SECTION 1: SAFETY �������������������������������������������������������������������������������������� 5 !Caution! ��������������������������������������������������������������������������������������������������������������������������������������6 Plasma arc rays can burn eyes and skin �����������������������������������������������������������������������������������6 Noise can damage hearing ������������������������������������������������������������������������������������������������������6 Flying sparks (arc spray) can cause injury, fire or explosion ��������������������������������������������������6 Caution! Read operator’s manual ���������������������������������������������������������������������������������������������6 Cutting can cause fire or explosion �����������������������������������������������������������������������������������������7 Electric shock can kill������������������������������������������������������������������������������������������������������������������7 Plasma arc can injure ������������������������������������������������������������������������������������������������������������������7...
  • Page 6: Caution

    EX-TRAFIRE ® SAFETY !CAUTION! CAUTION! READ OPERATOR’S MANUAL The symbol shown in this section means: !Caution! !Beware! Follow the safety instructions to avoid danger� ¡There are possible hazards with this procedure! Only qualified persons should install, operate, maintain and When you find this symbol in the manual or on the system, repair the system�...
  • Page 7: Cutting Can Cause Fire Or Explosion

    EX-TRAFIRE ® CUTTING CAN CAUSE FIRE FLYING SPARKS (ARC SPRAY) CAN OR EXPLOSION CAUSE INJURY, FIRE OR EXPLOSION FIRE PREVENTION Flying sparks are created during the metal cutting/gouging • Keep flammable items away from the work area� processes; the area should be kept free from flammables� •...
  • Page 8: Smoke And Gases Can Be Hazardous

    EX-TRAFIRE ® SMOKE AND GASES CAN BE HAZARDOUS Induction heating of certain materials, adhesives, and fluxes may cause fumes or smoke� • Work in a confined space only if it is well ventilated, Breathing the fumes and smoke can be hazardous to your or while wearing an air-supplied respirator�...
  • Page 9: Safety Sticker

    EX-TRAFIRE ® Safety Sticker WARNING! Plasma arc is generated immediately when the torch trigger is depressed. Plasma arc is generated immediately when the torch trigger is depressed. The plasma arc will cut quickly through gloves and skin. Make sure the power is switched off before changing consumables. Safety instructions Torch consumable installation 1.
  • Page 10: Dimensions And Weight Of The Plasma Arc Power Supply

    EX-TRAFIRE ® SECTION 2� SPECIFICATIONS: Dimensions and weight of the plasma arc power supply ����������������������������������������������� 2-10 Specifications: Plasma arc power supply ��������������������������������������������������������������������������� 2-11 Specifications: Torch FHT-EX 30H �������������������������������������������������������������������������������������� 2-12 ® Hand torch dimensions and configuration ������������������������������������������������������������������������ 2-12 Symbols and marking ����������������������������������������������������������������������������������������������������������� 2-13 SPECIFICATIONS Dimensions and weight of the plasma arc power supply * Weight of plasma arc power supply with torch...
  • Page 11: Specifications: Plasma Arc Power Supply

    EX-TRAFIRE ® Specifications: Plasma arc power supply Open circuit voltage (U 320 VDC Output characteristic* Drooping * Curve is defined as the output voltage versus output current Rated output current (I 10–30 A standard rated output voltage ( 92 VDC at U = 220 - 240 VAC 100%...
  • Page 12: Specifications: Torch Fht-Ex ® 30H

    EX-TRAFIRE ® Specifications: Torch FHT-EX ® The FHT-EX manual cutting torch is designed for plasma cutting of metalic conductive materials� ® Torch construction: Torch body, handle, leadset and consumables� The torch leads are wired directly to the inside of the plasma arc power supply� FHT-EX torches fulfill the requirements of IEC/EN ®...
  • Page 13: Symbols And Marking

    EX-TRAFIRE ® Symbols and marking S Mark; mark indicates that the power supply and torch are suitable for use in environments with danger of electrocution� The hand torches must have shielded consumable parts fitted to maintain mark compliance� CE Mark; This marking signifies the manufacturer’s declaration of conformity to applicable European directives and standards (EMC &...
  • Page 14 EX-TRAFIRE ® SECTION 3� INSTALLATION: Upon receipt of goods ��������������������������������������������������������������������������������������������������������� 3-15 Claims ������������������������������������������������������������������������������������������������������������������������������������� 3-15 Box contents �������������������������������������������������������������������������������������������������������������������������� 3-15 Power supply location ���������������������������������������������������������������������������������������������������������� 3-16 Mains power connection ����������������������������������������������������������������������������������������������������� 3-16 Connecting to an engine drive power generator ������������������������������������������������������������� 3-16 Grounding ����������������������������������������������������������������������������������������������������������������������������� 3-16 Mains power lead �����������������������������������������������������������������������������������������������������������������...
  • Page 15: Section 3: Installation

    EX-TRAFIRE ® INSTALLATION Upon receipt of goods 1� Verify that all ordered items have been received, for short shipment or damage to equipment, contact the Authorized Supplier� 2� If there is evidence of damage, see Claims, below� 3� All communication relating to this plasma arc system should include the model and serial number located on the bottom of the plasma arc power supply�...
  • Page 16: Power Supply Location

    EX-TRAFIRE ® Power supply location Place the plasma arc power supply EX-TRAFIRE 30H on a flat even surface with a minimum distance ® of 0�5m of clear space all round to ensure good ventilation� Mains power connection The EX-TRAFIRE 30H plasma arc power supply requires a 220 - 240 VAC single-phase mains power ®...
  • Page 17: Single-Phase Mains Power Lead

    EX-TRAFIRE ® Use of an alternative mains power lead is at the discretion of the user� The mains power lead shall comply with local and national codes of practice� The mains power lead should be installed by a certified electrician� See the length requirements listed in the table� Recommended mains power lead extension Input voltage Recommended wire cross-section...
  • Page 18: Plasma Gas Supply

    EX-TRAFIRE®30H is equipped with air filter� Additional gas filtration The Thermacut filtration system should be used when oil, moisture or other contaminants are found in the air supply� In more severe cases the 3-stage filtration system should be used� Water /...
  • Page 19: Gas Supply Installation

    EX-TRAFIRE ® Gas supply installation Connect the air-line hose as follows: 1� Air-line hose connection� Female G1/4” thread adapter� • 2� Air-line hose� Use an inert gas hose with a minimum • internal diameter of 6 mm, make a direct attachment or use a quick disconnect fitting�...
  • Page 20 EX-TRAFIRE ® 3� Secure the hand torch in the cutting guide with help of the screw with hexagonal head� Use the hexagonal wrench� Tighten by hand� The hand shield defines the required torch to workpiece distance� Hexagonal wrench Screw with Work piece hexagonal head 4�...
  • Page 21 EX-TRAFIRE ® 6� If you want use the radius bar, make sure the screw with hexagonal head isn’t tightened so that the cutting guide can rotate freely� Screw with hexagonal head 7� Screw in the radius bar* into the threaded hole in the cutting guide� * Lengths of bars are 250 mm or 400 mm�...
  • Page 22 EX-TRAFIRE ® SECTION 4� OPERATION: Front view ������������������������������������������������������������������������������������������������������������������������������� 4-23 Front control panel ��������������������������������������������������������������������������������������������������������������� 4-23 Rear view �������������������������������������������������������������������������������������������������������������������������������� 4-24 Rear control panel detail ������������������������������������������������������������������������������������������������������ 4-24 Torch consumables installation ������������������������������������������������������������������������������������������� 4-25 Turn ON ���������������������������������������������������������������������������������������������������������������������������������� 4-26 Check the LED indicators����������������������������������������������������������������������������������������������������� 4-26 Operating the hand torch ���������������������������������������������������������������������������������������������������� 4-27 Operating the torch safety trigger ��������������������������������������������������������������������������������������...
  • Page 23: Front View

    EX-TRAFIRE ® OPERATION Front view Front control panel Torch cable Work clamp cable Front control panel 1� Power ON/OFF indicator� LED 1 illuminates when the power supply is turned ON� 2� Cutting current regulator knob� 3� Over-Current (OC), Over-Temperature (OT) alarm indicator�...
  • Page 24: Rear View

    EX-TRAFIRE ® Rear view Rear control panel Rear control panel detail 1� Gas supply input fitting G1/4” Female 2� Mains power lead 3� Power supply switch 4-24 Operator Manual, Revision T-15...
  • Page 25: Torch Consumables Installation

    EX-TRAFIRE ® Torch consumables installation WARNING Plasma arc is generated immediately when the torch trigger is depressed Plasma arc is generated immediately when the torch trigger is depressed� The plasma arc will cut quickly through gloves and skin� Make sure the power is switched off before changing consumables�...
  • Page 26: Turn On

    EX-TRAFIRE ® Turn ON Switch ON (I) Note: The cooling fan will only run when needed� Check the LED indicators Check that LED1 is illuminated and LED2, LED3 and LED4 are not illuminated before cutting� 4-26 Operator Manual, Revision T-15...
  • Page 27: Operating The Hand Torch

    EX-TRAFIRE ® Operating the hand torch WARNING Plasma arc is generated immediately when the torch trigger is depressed Plasma arc is generated immediately when the torch trigger is depressed� The plasma arc will cut quickly through gloves and skin� Make sure the power supply is switched off before changing consumables�...
  • Page 28: Fit The Work Clamp

    EX-TRAFIRE ® WARNING sparks and hot metal can burn the skin and eyes When angling the torch for cutting or piercing, molten metal (Arc Spray) will occur in the direction that the torch is aimed� Aim the torch away from yourself and others� Fit the work clamp Secure the work clamp to the work piece, ensure good contact, and remove surface contaminants�...
  • Page 29: Hand Torch Cutting Technique

    EX-TRAFIRE ® Hand torch cutting technique Avoid unnecessary firing of the torch, each firing of the torch reduces the lifetime of the electrode and nozzle� When cutting, ensure the arc spray exits the underside of the work piece� Direction of cut Incomplete severance is indicated by an upward arc spray�...
  • Page 30: Piercing

    EX-TRAFIRE ® Piercing WARNING sparks and hot metal can burn the skin and eyes When angling the torch for cutting or piercing, molten metal (Arc Spray) will occur in the direction that the torch is aimed� Aim the torch away from yourself and others�...
  • Page 31 EX-TRAFIRE ® SECTION 5� MAINTENANCE: Routine maintenance ����������������������������������������������������������������������������������������������������������� 5-32 Consumable parts inspection ��������������������������������������������������������������������������������������������� 5-33 Purging/draining the air filter ���������������������������������������������������������������������������������������������� 5-34 Operator Manual, Revision T-15 5-31...
  • Page 32 EX-TRAFIRE ® MAINTENANCE Routine maintenance WARNING ELECTRIC SHOCK CAN KILL Disconnect mains power lead before servicing; Qualified technicians only should perform any work that requires removal of the system cover� Allow a period (minimum 5 min�) for electrical discharge before handling internal parts� Check the gas pressure�...
  • Page 33 EX-TRAFIRE ® Consumable parts inspection Part Inspect Operation Out of round orifice or worn cruciform Replace shield indicates worn condition Accumulated spatter in the gap between Clean away any material from the the shield and the nozzle shield and nozzle surface Heat damage, cracks/fractures, damaged Replace nozzle Retaining Cap threads, blocked gas holes...
  • Page 34 EX-TRAFIRE ® Purging/draining the air filter The air filter is located on rear cover� For better system performance, the air (complementary) filter should be checked/purged every six cutting hours or per daily operation checks� 1� To purge/drain the air filter depress the knob located on the underside of the filter bowl� 2�...
  • Page 35 EX-TRAFIRE ® SECTION 6� TORCHES AND TORCH PARTS: FHT-EX 30H Hand Torch Assembly ������������������������������������������������������������������������������������ 6-36 ® FHT-EX 30H Hand Torch Components ������������������������������������������������������������������������������ 6-37 ® FHT-EX 30H Hand Torch Consumables ����������������������������������������������������������������������������� 6-38 ® Operator Manual, Revision T-15 6-35...
  • Page 36 EX-TRAFIRE ® TORCHES AND TORCH PARTS FHT-EX 30H Hand Torch Assembly ® Item Part No� DESCRIPTION EX-1-134-001 FHT-EX 30H Hand Torch Assembly w/4m Lead/FC ® CAUTION Replacement of the torch may only be performed by an authorized service center� 6-36 Operator Manual, Revision T-15...
  • Page 37 EX-TRAFIRE ® FHT-EX 30H Hand Torch Components ® Item Part No� DESCRIPTION EX-1-373-001 Hand Torch Lead Replacement Kit 4m Lead/FC EX-0-319-021 Insulating Teflon Tube EX-2-304-020 Hand Torch PIP Pins Replacement Kit (w/Wires) EX-2-302-009 Hand Torch Body FHT-EX ® EX-0-319-011 Shrink Tube EX-2-314-015 Hand Torch Handle Replacement Kit EX-5-309-013...
  • Page 38 EX-TRAFIRE ® FHT-EX 30H Hand Torch Consumables ® EX-2-401-001 Electrode EX-2-404-002 Swirl Ring EX-2-409-003 Nozzle 30A, 0�8mm EX-2-415-004 Nozzle Retaining Cap (Protection Cap) EX-2-419-005 Hand (contact) Shield 30A 6-38 Operator Manual, Revision T-15...
  • Page 39 EX-TRAFIRE ® SECTION 7� ADITIONAL ORDERING INFORMATION: EX-TRAFIRE 30H Manual Plasma Cutting Systems ® Part No� DESCRIPTION Length EX-1-010-005 EX-TRAFIRE®30H/CE/1x220-240VAC Hand System/FHT-EX30H-FC 4m/H Starter Kit Available Bulk Packs Part No� DESCRIPTION EX-2-434-014 Bulk Pack – Electrode – 25pcs EX-2-435-015 Bulk Pack – Nozzle 30A 0�8mm – 25pcs EX-2-436-016 Bulk Pack –...
  • Page 40 EX-TRAFIRE ® SECTION 8� TROUBLESHOOTING: Fault This may mean Cause Solution Main switch • No/low voltage • Insufficient mains • Check the mains input is ON and the mains power power supply� voltage 220 - 240 VAC AC power supply� •...
  • Page 41 EX-TRAFIRE ® Fault This may mean Cause Solution The LED3 • Consumables • Consumables are • Install the consumables and blinks, no arc fault� loose, incorrectly fit the retaining cap� output when installed or missing� the trigger is • The retaining cap •...
  • Page 42 EX-TRAFIRE ® Fault This may mean Cause Solution No transfer • Work clamp • Fluctuating • Clean the surface of the between connection fault� connection clamp and material� pilot arc and between the clamp workpiece� and work piece� • No connection to •...
  • Page 43 EX-TRAFIRE ® Fault This may mean Cause Solution Cut quality • Incorrect current • Current (Amperage) • Adjust the current to suit the issues� setting� toodlow / mateial thickness of material to be too thick� cut� • Consumables • Consumables are •...
  • Page 44 EX-TRAFIRE ® SECTION 9� ACCESSORIES: Filter-EX Compressed Air Filter with replacement filter cartridge EX-0-804-001 - Filter-EX Compressed Air Filter EX-0-804-002 - Filter-EX Air Filter Cartridge (Standard package 1 piece) (Standard package 8 pieces) Technical specification Filtering Degree: 0�01 μinch – 0�25 μm Maximum Pressure: 125 PSI –...
  • Page 45 EX-TRAFIRE ® O-Ring lubricant EX-0-805-001 Grease 25ml Circle cutting guide kit for FHT-EX 30/40H ® EX-2-801-001 This Circle cutting guide kit for hand-held cutting obtains: Circle cutting attachment • Cutting guide • Radius bar mm� 250 • Radius bar mm� 400 •...
  • Page 46 EX-TRAFIRE ® SECTION 10� POWER SUPPLY BLOCK DIAGRAM: Power supply block diagram 10-46 Operator Manual, Revision T-15...
  • Page 47 Hereby Thermacut, k�s� confirms that to its knowledge all Plasma Power supply models EX-TRAFIRE H, SC, SD and HD (unless otherwise expressly stated) sold by Thermacut, k�s� fulfill the requirements of the EU directive 2011/65/EU� These products are compatible with the current RoHS requirements for the 7 substances (max 0�1% by weight in homogeneous materials for lead,...
  • Page 48 This Warranty Certificate forms an integral part of General Business Conditions (“GBC”) of THERMACUT, k.s. (the “Seller”) and shall apply to supplies of Goods under Contract concluded between the Seller and the other contracting party as the recipient of the Goods (the “Buyer”); terms used herein have the same meaning as is ascribed to them in the GBC 1�...
  • Page 49 EX-TRAFIRE ® Notes: Operator Manual, Revision T-15 12-49...
  • Page 50 EX-TRAFIRE ® Notes: 12-50 Operator Manual, Revision T-15...
  • Page 51 EX-TRAFIRE ® Notes: Operator Manual, Revision T-15 12-51...
  • Page 52 EX-TRAFIRE ® Notes: 12-52 Operator Manual, Revision T-15...
  • Page 53 EX-TRAFIRE ® Revision history: 1� Revision T-2/2017 - 08/2017 Official release 2� Revision T-3/2017 - 10/2017 Split manual to Operator Manual and Service Manual 3� Revision T-4/2017 - 11/2017 Page 2-10 - dimensions (l x h x w): from: 480 x 165 x 290 to: 480 x 290 x 165 Page 2-11 - new value of operating pressure: from: dynamic 4�5 bar / static 7�0 bar to: dynamic 4�5 bar / static 6�0 bar...
  • Page 54 EX-TRAFIRE ® Revision history: 12-54 Operator Manual, Revision T-15...
  • Page 55 742 42 Šenov u Nového Jičína Tel�: +33 3 88 76 25 78 CZECH REPUBLIC www�thermacut�fr Tel�: +420 556 423 418, 440 THERMACUT-POLAND SP� Z O�O� Fax: +420 556 423 443, 444 Aleja Jana Łyska 3 E-mail: sales@thermacut�cz 43-400 Cieszyn obchod@thermacut�cz...
  • Page 56 686 01, Uherské Hradiště Czech Republic www�thermacut�cz sales@thermacut�cz THERMACUT®, FHT-EX® and EX-TRAFIRE® are registered trademarks of THERMACUT, k�s� and may be registered in Czech Republic and/or other countries� All other trademarks are properties of their respective owners� 12-56 Operator Manual, Revision T-15...
