ECONOMIZING
AVAILABLE
NOT AVAILABLE
TEMPERATURE
ENTHALPY TEMP. DRY
CURVE BULB (F)
ES1
80
ES2
75
ES3
70
ES4
65
ES5
60
HL
86

CHECKOUT

Inspect all wiring connections at the economizer module's termi-
nals, and verify compliance with the installation wiring diagrams.
For checkout, review the Status of each configured parameter and
perform the Checkout tests.
NOTE: For information about menu navigation and use of the
keypad see Interface Overview on page 34.
Power Up
After the W7220 module is mounted and wired, apply power.
Initial Menu Display
On initial start up, Honeywell displays on the first line and econo-
mizer W7220 on the second line. After a brief pause, the revision
of the software appears on the first line and the second line will be
blank.
Power Loss (Outage or Brownout)
All set points and advanced settings are restored after any power
loss or interruption.
NOTE: All settings are stored in non-volatile flash memory.
Status
Use the Status menu (see Table 9) to check the parameter values
for the various devices and sensors configured.
NOTE: For information about menu navigation and use of the
keypad, see Interface Overview on page 34.
Checkout Tests
Use the Checkout menu (see page 38) to test the damper operation
and any configured outputs. Only items that are configured are
shown in the Checkout menu.
NOTE: For information about menu navigation and use of the
keypad, see Interface Overview on page 34.
To perform a Checkout test:
1. Scroll to the desired test in the Checkout menu using the ▲
and ▼ buttons.

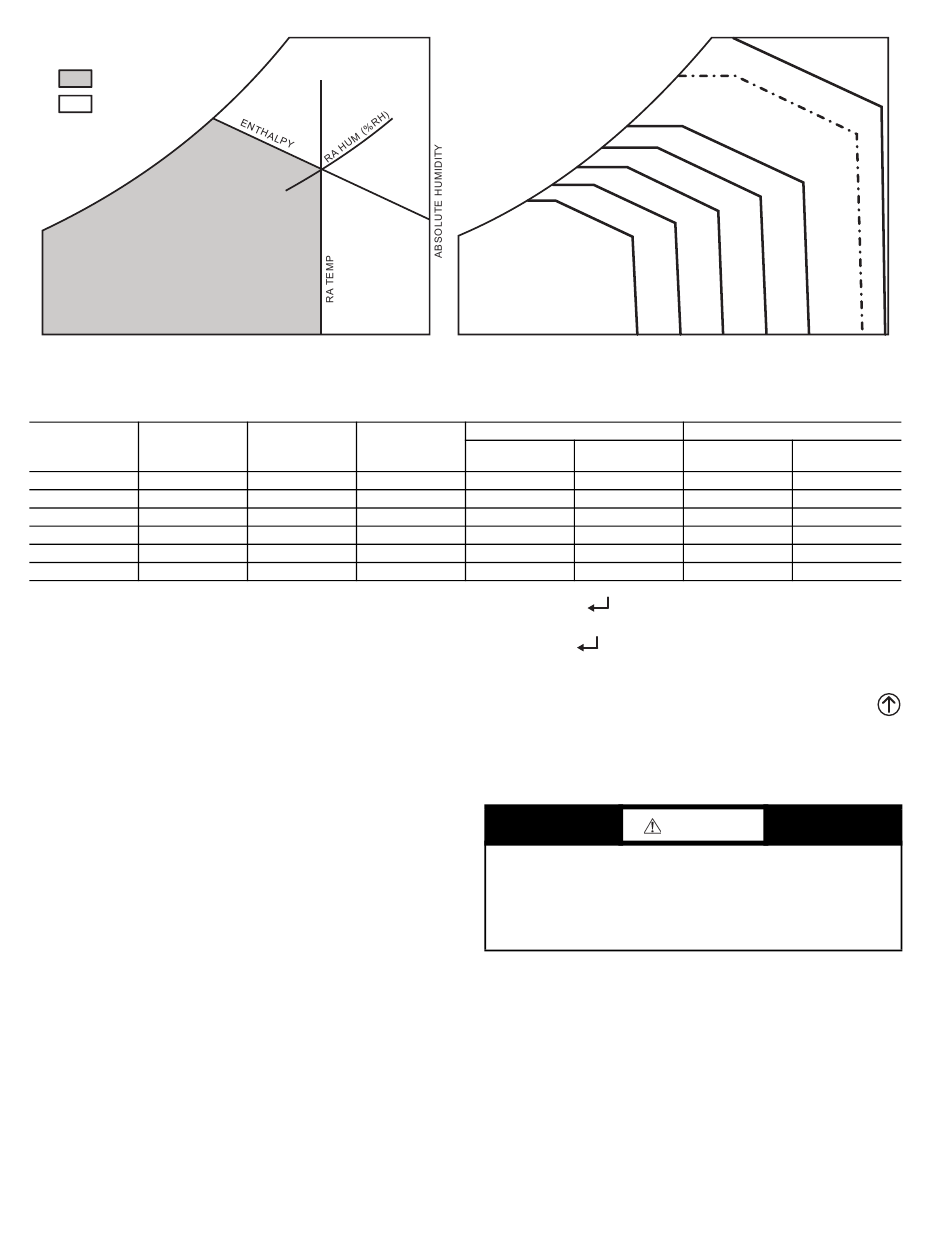

Fig. 55 — Single Enthalpy Curve Boundaries
Table 15 — Single Enthalpy and Dual Enthalpy High Limit Curves
TEMP. ENTHALPY
DEWPOINT (F) (btu/lb/da)
60
57
54
51
48
66
POINT P1
TEMP. (F)
28.0 80
26.0 75
24.0 70
22.0 65
20.0 60
32.4 86
2. Press the
appears.
3. Press the
and then displays IN PROGRESS. When the test is complete,
DONE appears.
4. When all desired parameters have been tested, press the
(Menu Up) button to end the test.
The Checkout tests can all be performed at the time of installation
or at any time during the operation of the system as a test that the
system is operable.
EQUIPMENT DAMAGE HAZARD
Failure to follow this caution may result in equipment damage.
Be sure to allow enough time for compressor start-up and shut-
down between checkout tests so that you do not short-cycle the
compressors.

TROUBLESHOOTING

Alarms
The economizer module provides alarm messages that display on
the 2-line LCD.
NOTE: Upon power up, the module waits 60 minutes before
checking for alarms. This allows time for all the configured devic-
es (e.g. sensors, actuator) to become operational. The exception is
the SAT sensor which will alarm immediately.
If one or more alarms are present and there has been no keypad ac-
tivity for at least 5 minutes, the Alarms menu displays and cycles
through the active alarms.
You can also navigate to the Alarms menu at any time.
42
DUAL ENTHALPY
HIGH LIMIT
SINGLE ENTHALPY
P2 (T,RH)
P1
(T,RH)
ES4 ES2
ES5 ES3
POINT P2
HUMIDITY
TEMP. (F)
(%RH)
36.8 66.3
39.6 63.3
42.3 59.7
44.8 55.7
46.9 51.3
38.9 72.4
(Enter) button to select the item. RUN?
(Enter) button to start the test. The unit pauses
CAUTION
ES1
HL
HUMIDITY
(%RH)
80.1
80.0
81.4
84.2
88.5
80.3
