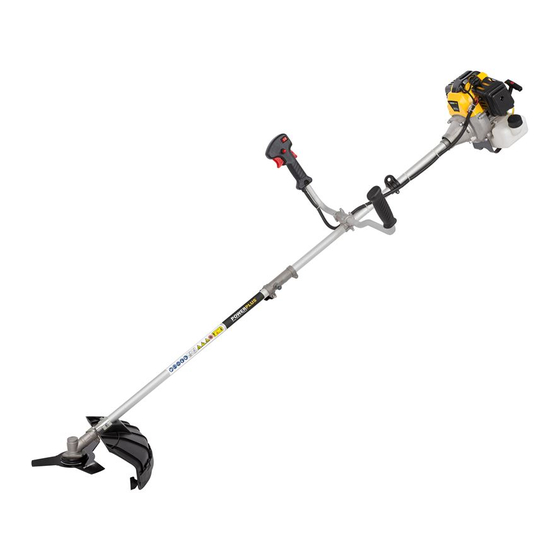

POWXG30412 BRUSH CUTTER 52CC POWXG30412 1 APPLICATION Depending on the assembled cutting tools, the bush cutter can be used to mow lawns or meadows, and to trim scrub, shrubs, bushes and very small trees. It is for private use. The device cannot be used for other purposes. -
Page 4: Symbols
POWXG30412 4 SYMBOLS The following symbols are used in this manual and/or on the machine: Read the manual before Wear sturdy shoes with using the machine. antiskid soles! Mandatory use of eye Wear noise protection. protection. Denotes risk of personal injury or damage to the tool. -
Page 5: Personal Safety
POWXG30412 Personal safety ▪ Stay alert, watch what you are doing and use common sense when operating a tool. Do not use a tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a tool may result in serious personal injury. -
Page 6: Petrol Safety Warning
POWXG30412 ▪ In start-up or during operation of the engine, never touch hot parts such as the muffler, the high voltage wire or the spark plug. ▪ After the engine has stopped, the muffler is still hot. Never place the machine in any places where there are flammable materials (dry grass, etc.), combustible gasses or... -
Page 7: Assembly
POWXG30412 ▪ DO NOT USE ANY OTHER CUTTING ATTACHMENT. Only use our replacement parts and accessories, which are designed specifically to enhance the performance and maximize the safe operation of our products. Failure to do so may cause poor performance and possible injury. Use only the stringhead supplied with this product. Do not use any other cutting attachment. -
Page 8: Assembly Spool (Fig. 5)
POWXG30412 STOP ENGINE IMMEDIATELY! Excessive vibration of blade means that it is not properly installed-stop engine immediately and check blade. Blade not properly installed will cause injury. 8.4.2 Assembly spool (Fig. 5) ▪ Set correctly the inner holder and the outer holder to the gear shaft. -
Page 9: Fuel And Lubrication Symbols
POWXG30412 9.2.1 Fuel and lubrication symbols 9.2.2 Recommended fuels Some conventional kinds of petrol are now blended with oxygenates such as alcohol or an ether compound to meet clean air standards. The engine is designed to operate satisfactorily with any petrol intended for automotive use including oxygenated petrol. -
Page 10: Trimming Procedures
POWXG30412 10.5 Trimming procedures When properly equipped with a debris shield and stringhead, your unit will trim unsightly weeds and tall grass in those hard-to-reach areas - along fences, walls, foundations and around trees. It can also be used for scalping to remove vegetation down to the ground for easier preparation of a garden or to clean out a particular area. -
Page 11: Cutting With Blades
POWXG30412 10.6 Cutting with blades AVOID KICKOUT Kickout refers to the reaction of a moving blade if it contacts a strong tree, brush or a solid object. The force that results violently pushes the blade away in an arc. Kickout may cause loss of control resulting in injury to the operator or bystanders. -
Page 12: Carburettor Adjustment
420 mm Cutting width brush cutter 255 mm Rotation speed grass trimmer 6000 min Rotation speed brush cutter 6800 min Engine type POWERPLUS 2-STROKE ENGINE Fuel tank capacity 1.1 L Thread lengthening type TAP&GO Spool diameter 2.4 mm Spool length... -
Page 13: Storage
POWXG30412 14 STORAGE WARNING: Failure to follow these steps may cause varnish to form in the carburettor and lead to difficult starting or permanent damage after storage. ▪ Clean outside surface of unit. ▪ Drain fuel from the fuel tank. -
Page 14: Trouble Shooting
POWXG30412 16 TROUBLE SHOOTING PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Unit won’t start or ▪ ▪ Incorrect starting Follow instructions in the User starts but will not run. procedures. Manual. ▪ ▪ Incorrect carburettor Have carburettor adjusted by mixture adjustment an Authorized Service Centre. -
Page 15: Warranty
▪ We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. ▪ Repairs may only be carried out by an authorised customer service centre for Powerplus tools. ▪ You can always obtain more information at the number 00 32 3 292 92 90. -
Page 16: Declaration Of Conformity
POWXG30412 19 DECLARATION OF CONFORMITY VARO – Vic. Van Rompuy N.V. – Joseph Van Instraat 9 – 2500 Lier – Belgium, declares that, Product: brush cutter 52cc trade mark: POWERplus model: POWXG30412 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
