Summary of Contents for novaer K5 2.05 C00

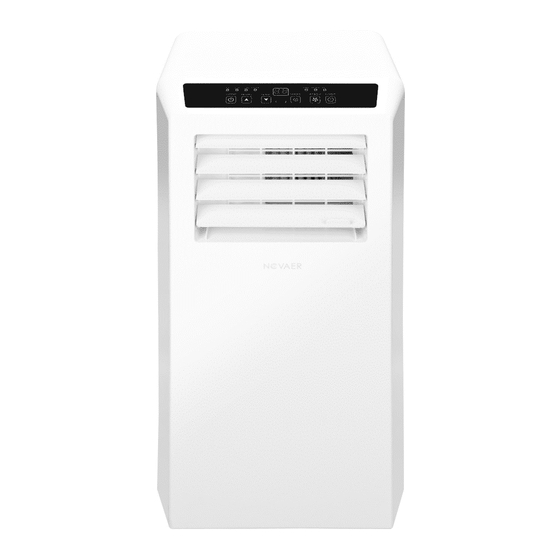

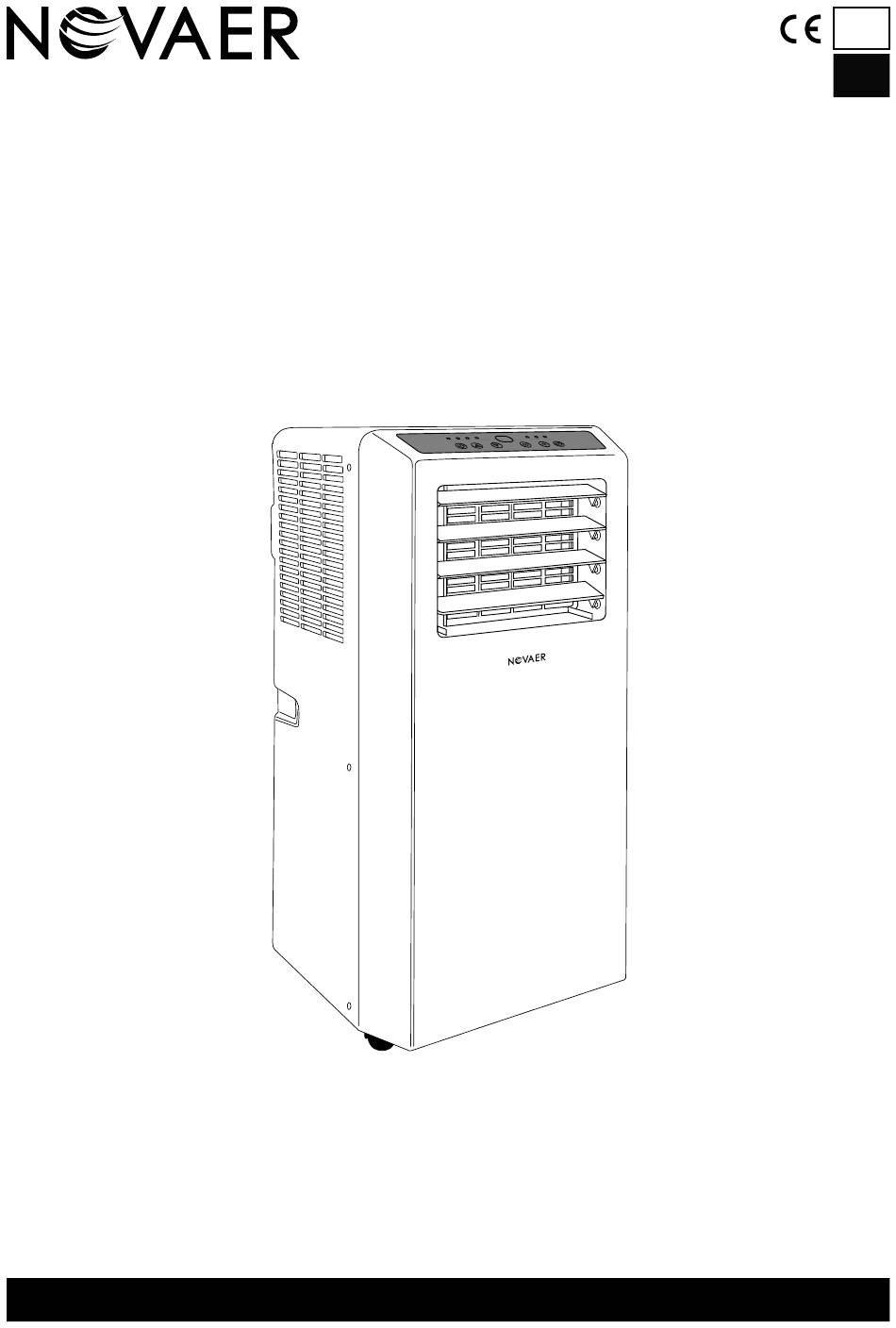

- Page 1 MOBILE AIR CONDITIONER K5 2.05 C00 INSTRUCTIONS...
- Page 2 If a repair is required, then you can contact your nearest authorized service partner of NOVAER. Repairs should only be executed by qualified professionals for avoiding accidents or damages.
- Page 3 The appliance shall be stored in a room without any continuously operating ignition sources (for example open flames, an operating gas appliance or an operating electric heater. Do not pierce or burn. Be aware the refrigerants may not contain an odor. The appliance must be installed, operated and stored in a room with a floor area larger than 4 m .
-
Page 4: Operating And Safety Instructions
• The unit is equipped with a compressor overload protection system, whereby the compressor only starts once 3 minutes have elapsed from its previous stoppage. • Please wait at least 3 minutes before starting the unit. This helps to prevent the compressor from being damaged. - Page 5 • The system socket must always be fitted with an efficient earth connection. • Make sure that the plug is inserted correctly and do not use multiple adapters and ensure the plug is clean. • Never touch the plug with wet hands! •...
-
Page 6: Description Of The Appliance
with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. -
Page 7: Remote Control
Cooling: 18 °C DB / 35 °C DB Dehumidification: 18 °C DB / 35 °C DB Cooling mode room temperature adjustment range: 16 °C DB / 31 °C DB PORTABLE AIR CONDITIONER SETUP The following parts are included in this packaging. Please take them all out of the packaging. -
Page 8: Select Mode
1. SPEED This button regulates the ventilation speed which can only be used in fan and in the cooling mode. Press this button to adjust to either higher or lower speed. 2. INCREASE TEMPERATURE Press this button for increasing the temperature in the cooling mode. 3. -
Page 9: On/Off Button
6. ON/OFF BUTTON Use this button for tuning the unit ON or OFF. INFORMATION FOR CORRECT DISPOSAL OF THE BATTERIES PURSUANT TO EUROPEAN DIRECTIVE 2006/66/EC Replace the batteries when depleted. At the end of their working life, batteries must be disposed of separately from unsorted waste. - Page 10 USE WITH WINDOW KIT STEP 1 STEP 2 Slide the Hose Connector (Air Connect the flat fitting (Hose Conditioner End) into the grooves. Connector Window End) to the hose, extend the hose as far as needed for taking it outside. Connect the other end with the air conditioner.
-
Page 11: Operating Modes
OPERATING MODES Ensure that the Hot Air Hose has been mounted properly. When using functions on cooling and dehumidifying, keep an interval of at least 3 minutes between each POWER. Maximum cooling Minimum cooling DB/WB(°C ) 35/24 18/12 Cooling Mode •... -
Page 12: Troubleshooting
Internal Tank Water Full Alarm Function The inner water tank in the air-conditioner has one water level safety switches, it controls water level. When water level reaches an anticipated height, the water full indicator lamp lights up. (If water pump is damaged, when the water is full, please remove the rubber blockage at the bottom of unit, and all water will drain outside.) Continuous Drainage •... -
Page 13: Care And Maintenance
NOISY The ground is not level or not flat Place the unit on a flat, level ground if enough possible The sound comes from the flowing of It is normal. the refrigerant inside the air conditioner E0 CODE Room temperature sensor failed Replace room temperature sensor (the unit can also work without replacement.) E2 CODE... - Page 14 The sorted disposal requirement is indicated by the crossed waste bin label affixed to the appliance. CONTACT If you have questions about the appliance you can always get in touch with NOVAER or Page 14 of 15 V 1904...
- Page 15 The contact details of NOVAER can be seen below. For contacting the distributor, you can visit their website for further details. NOVAER Asia Pacific Ltd. Postfach 1452 82035 Deisenhofen Germany info@novaer.de Page 15 of 15...
