Installation manual for
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no
liability whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1.
Please carefully read the manual thoroughly before beginning with the installation process!
2.
Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard's circuit board (PCB).
3.
The EK-HFB and EK-ACF type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber o-ring gaskets.
4.
The use of quality, market proved corrosion inhibiting coolants is always strongly recommended for any liquid cooling system.

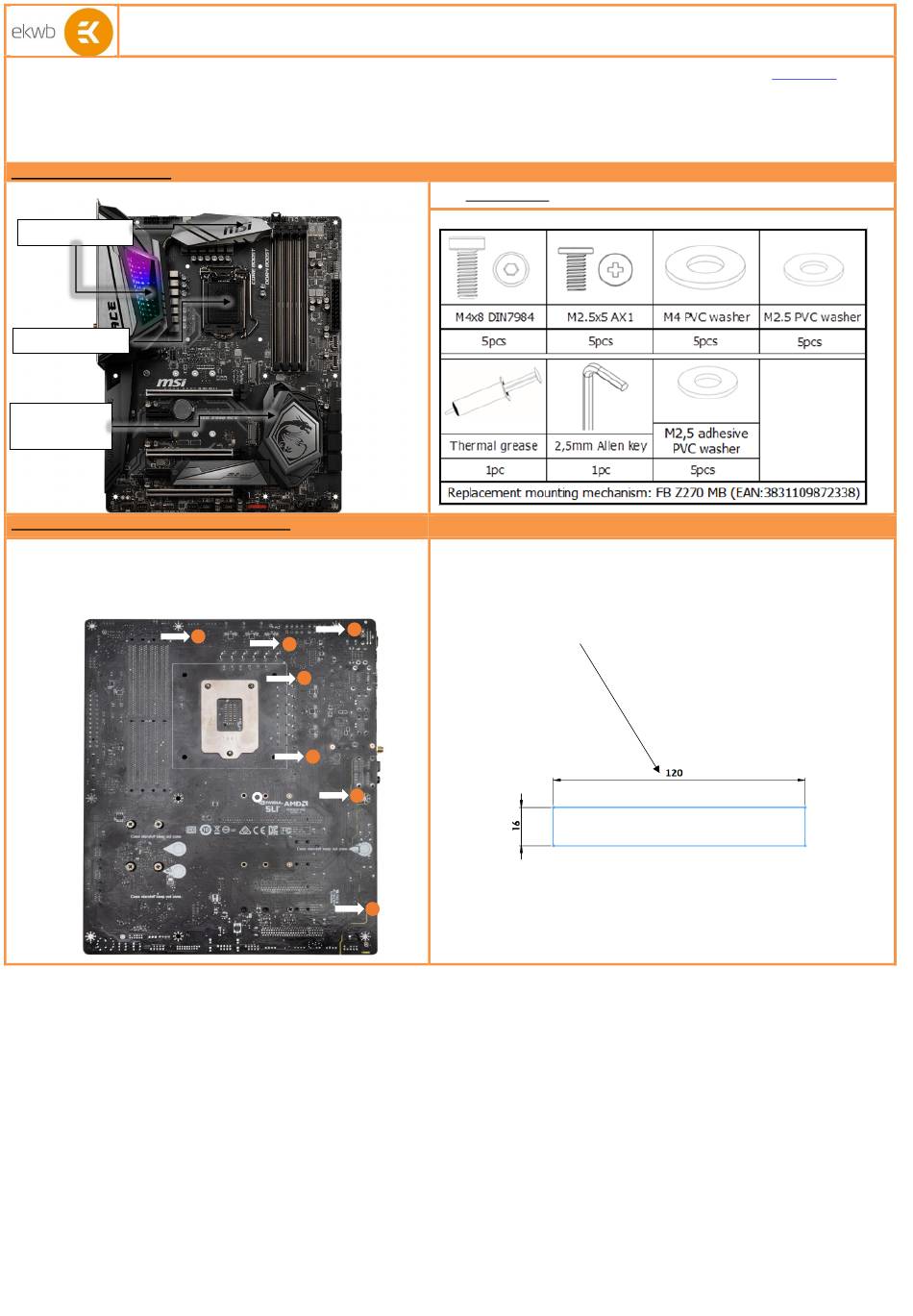

GENERAL INFORMATION Sample photo of MSI Z390 MEG ACE motherboard
Mosfets
Cpu socket
MSI Z390
chipset heatsink
STEP 1: PREPARING YOUR MOTHERBOARD
REMOVING STOCK COOLER. Remove all encircled screws. There are 4 screws on
the back of the motherboard that need to be removed in order to remove the
factory installed MOSFET cooling solution. Additional 3 screws need to be removed
to remove the plastic I/O cover. Please store the removed material away for later
use. You can attach the I/O cover back, after you mount the Monoblock.
All disclosures, notices and warranty conditions are being written on EKWB web page. Please check terms of use.

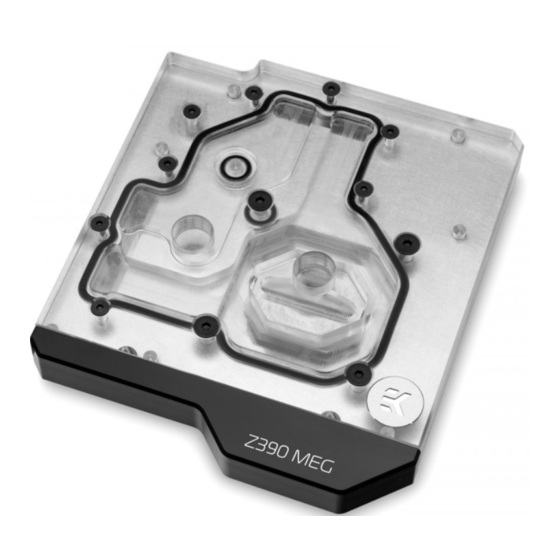

EK-Momentum MSI Z390 MEG ACE
BAG CONTENT:
CUTTING THERMAL PADS. Your block comes with thermal pads which needs to be
trimmed in order to fit the voltage regulation area (MOSFETs and coils) on the
motherboard's circuit board. WARNING: DIMENSIONS ON PICTURES BELOW ARE
SCALED.
1. Thermal pad F – 1.0mm
(EAN: 3830046996732 )
water block
Bag content is universal for all water blocks, you may not need all screws.
Revision 1.0. Published on April 17
www.ekwb.com
for updates.
th
2019
