Franke F3SV1004 Installation And Operating Instructions Manual

Franke F3SV1004 Installation And Operating Instructions Manual

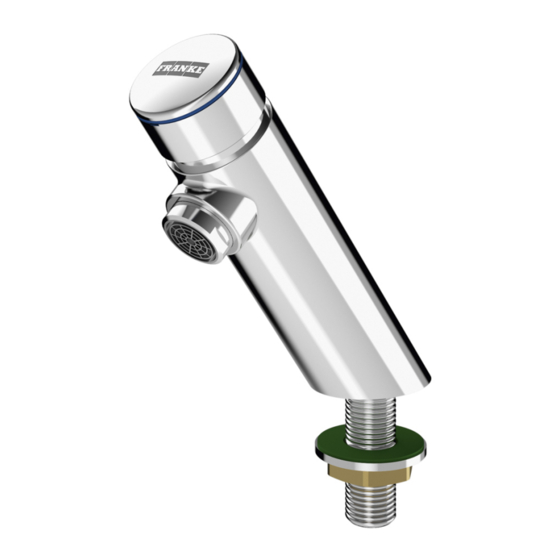

Self-closing pillar tap

Advertisement

Quick Links

F3
F3SV1004
2030049135
7612982259579
DE
Montage- und Betriebsanleitung
EN
Installation and operating instructions
FR
Notice de montage et de mise en service
ES
Instrucciones de montaje y servicio
IT
Istruzioni per il montaggio e l'uso
NL
Montage- en bedrijfsinstructies
PL
Instrukcja montażu i obsługi
SV
Monterings- och driftinstruktion
CS
Návod pro montáž a provoz
FI
Asennus- ja käyttöohje
RU
Инструкция по монтажу и вводу в эксплуатацию
Selbstschluss-Standventil
Self-closing pillar tap
Robinet à fermeture automatique sur plan
Válvula de pie con cierre automático
Zelfsluitende wastafelkraan
Samozamykająca bateria pionowa
Samouzavírací stojánkový ventil
Itsesulkeutuva pylväsventtiili

Advertisement

loading
Need help?

Need help?

Do you have a question about the F3SV1004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Franke F3SV1004

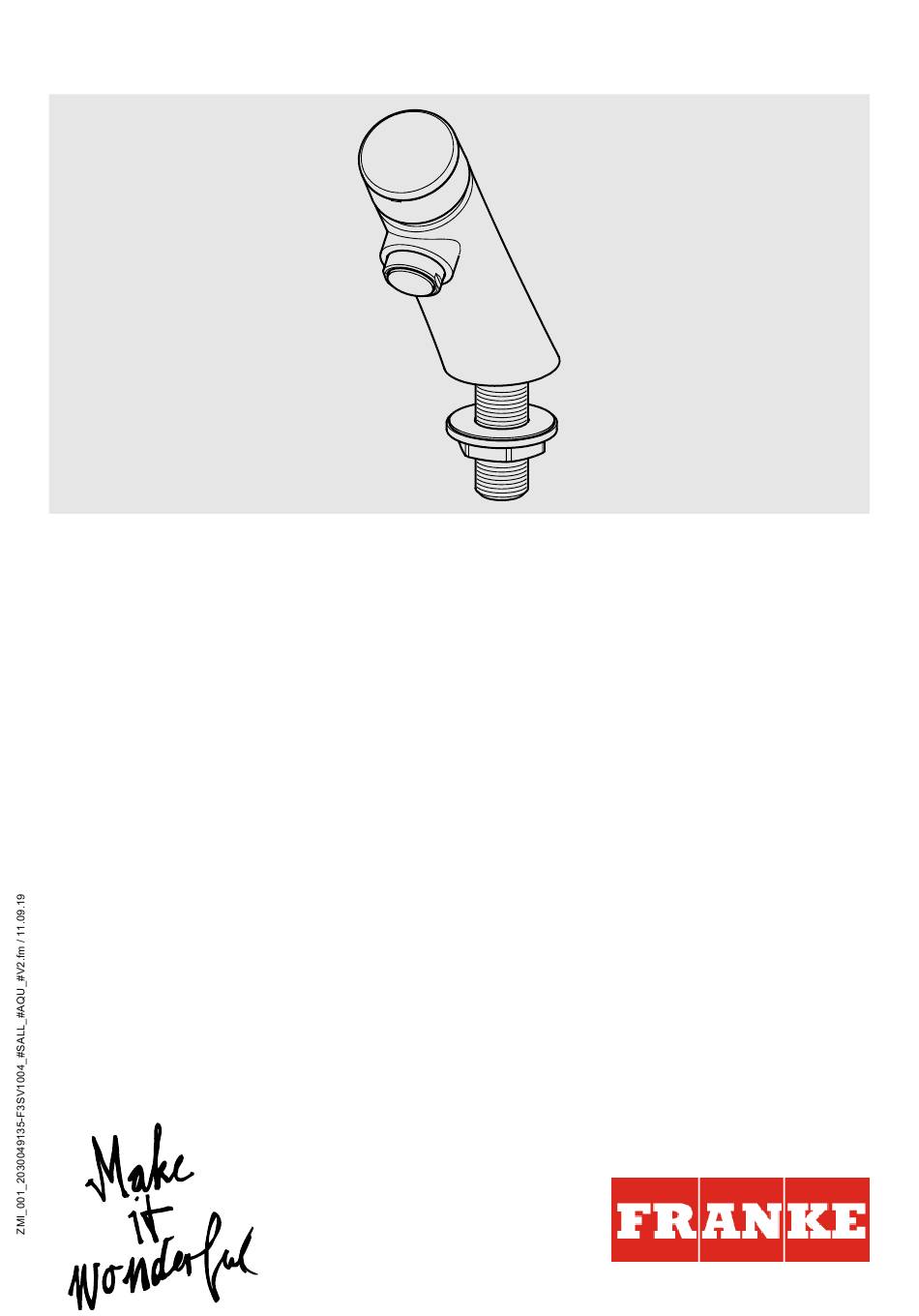

  • Page 1 F3SV1004 2030049135 7612982259579 Montage- und Betriebsanleitung Selbstschluss-Standventil Installation and operating instructions Self-closing pillar tap Notice de montage et de mise en service Robinet à fermeture automatique sur plan Instrucciones de montaje y servicio Válvula de pie con cierre automático Istruzioni per il montaggio e l'uso...
