Single-phase current relay
Hide thumbs
Table of Contents

Advertisement

Quick Links

New Product

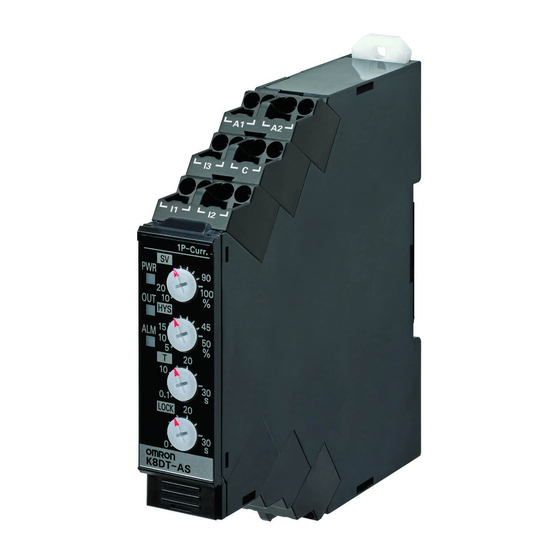

Single-phase Current Relay
K8DT-AS
Detect errors in motors and other equipment
through current changes.
Use in either overcurrent or undercurrent mode.
• Monitor AC or DC currents with one Relay.
• Use with commercially available CTs (CT secondary side: 0 to 1 A or 0 to 5 A).
• Settings for the operating value, hysteresis, startup lock time, and operating time.
• Width of 17.5 mm to reduce space required in panels.
• Push-In Plus Technology that reduce wiring work.
Double-insertion holes for crossover wiring (all terminals).
• UL listed for easy shipping to North America.
• Models added with transistor outputs for superior contact reliability.
• RoHS compliant.
Refer to Safety Precautions on page 10.
Refer to page 9 for commonly asked questions.
Ordering Information
Single-phase Current Relay
Setting range
2 to 20 mA AC/DC,
10 to 100 mA AC/DC,
50 to 500 mA AC/DC
0.1 to 1 A AC/DC,
0.5 to 5 A AC/DC
10 to 100 A AC *,
20 to 200 A AC *
* The K8DT-AS3@@ is designed to be used in combination with an OMRON K8AC-CT200L Current Transformer (CT). (Direct input is not possible.)
OMRON CT
Applicable
Appearance
Input range
10 to 100 A AC,
K8DT-AS3
20 to 200 A AC
Options (Order Separately)
Front Cover
Power supply voltage
24 VAC/DC
100 to 240 VAC
24 VAC/DC
100 to 240 VAC
24 VAC/DC
100 to 240 VAC
Model
Relay
K8AC-CT200L
Output
Relay: SPDT contact output
Transistor: Open collector
Relay: SPDT contact output
Transistor: Open collector
Relay: SPDT contact output
Transistor: Open collector
Relay: SPDT contact output
Transistor: Open collector
Relay: SPDT contact output
Transistor: Open collector
Relay: SPDT contact output
Transistor: Open collector
Commercially Available CTs *
CT current on secondary
Appearance
0 to 1 A AC,
0 to 5 A AC
* If you use a commercially available CT, do not exceed the overload
capacity of the K8DT-AS2.
Appearance
Model
Y92A-D1A
For the most recent information on models
that have been certified for safety
standards, refer to your OMRON website.
Model
K8DT-AS1CD
K8DT-AS1TD
K8DT-AS1CA
K8DT-AS1TA
K8DT-AS2CD
K8DT-AS2TD
K8DT-AS2CA
K8DT-AS2TA
K8DT-AS3CD
K8DT-AS3TD
K8DT-AS3CA
K8DT-AS3TA
Applicable Relay
side
K8DT-AS2
1
