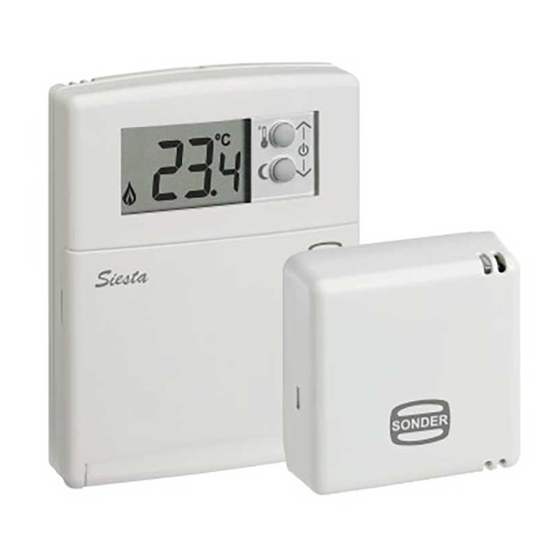

Sonder Siesta -TA Series Instruction Manual

Siesta - TA RF Emisor
SONDER
Digital Radio Thermostat Code: 29.083
Emitter installation
Location - Keep away the emitter of any Support to
1
put over table
source of heat or direct light
(Optional)
2
1
Coding between emitter and receiver
1
Open and press the ON button
of the relay until the led flashes
2
-TA RF Sonder
Hold down Put batteries
Until the led turns off
Zona10RF
Zona6RF
Technical data
Power supply:. 2 alkaline battery 1,5V LR03 (AAA)
Measures mm:
Low battery indicator:.................................. "bAt"
Battery duration:............................ 2 years, aprox
Regulation scale:........................... from 5 to 35°C
Transmission frequency:.................... 868,3 MHz
Ambient temperature:.............. from 0°C to 40°C
Storage temperature:................... maximum 50°C
% Relativity Humidity operating:.. from 20 to 85%
Dregee of protection:.................................... IP20
Action Type According EN 60730:.................... 1.B
Homologated:................................................... CE
Approximate maximum distance between
Net weight: 95 g
emitter and receiver:........ 130m in free field
Siesta - TA ECO RF Emisor
Digital Thermostat Heating Via Radio Code: 29.082
Wall installation
2
1
Zona10R F
Zona6RF
Press the forced ON button of the relay to code with the
transmitter of that zone, until flashing LEDs of zone & encoder
If you have installed the batteries,
Sonder
-TA RF before coding it, you have to remove
them & wait until the display shut down
and keep ...
5
-TA RF Sonder
Zona10RF
Zona6RF
Batteries replacement
-TA RF Sonder
Insert 2 LR03 AAA 1.5V batteries. Make sure are
on the right position of polarity, as shown picture
& always introducing them as indicated. Very
Important: Don´t use rechargeables batteries
Instructions for Installation and Use
Emitter
Siesta - TA RF Emisor
º
-TA RF Sonder
Zona10R F Siesta - TA ECO RF Emisor
Zona6RF
º
-TA RF
Siesta
- TA ECO
CONSIGNAS / TEMPERATURE SET: eco - confort
º º º
eco
4s.
º º
1 s. confort 4s.
Siesta-TA ECO RF has the frost protection fix to 5°C & no have:
- Regulation in cooling mode
- The parameters: Setpoints limits and sensor calibration
- Reset
º Reset
-TA RF Sonder
°
Sonder
-TA RF
10 s
Guarantee conditions
This appliance has a three-years guarantee limited to
replacement of defective parts. Transport not included.
We will not accept any responsibility for damage caused to
the appliance by poor handling.
The guarantee does not include:
- Appliances with a damaged, effaced or altered series
number.
- Appliances which have not been connected or used
following the instructions that accompany it.
- Appliances which have been altered without the prior
consent of the manufacturer.
- Appliances damaged by blows or liquid spills or gaseous
emissions.
For the rest of general conditions visit our web.
Comfort setpoint
Eco setpoint
(starting display)
(starting display)
Next parameter C hange value
(within parameters) (within parameters)
Comfort setpoint
Eco setpoint
(starting display)
Sonder (starting display)
Next parameter Change value
(within parameters) (within parameters)
º
º
°
Sonder Sonder
-TA RF -TA RF
VERY IMPORTANT:
This appliance should be mounted on a universal
embedded box.
Device designed for a clean pollution situation.
This control is not a safety device and should not
be used as such, is the responsibility to
incorporate appropriate protection for each
type of facility (homologated) installer.
Independent control device mounting, and
connection via fixed pipeline.
We reserve the right of modify without prior
notice.
ON/OFF Regulation mode
(starting display) (internal key)
Input to parameters
Reset
(within setpoint change)
(pressing 10 s)
Coding
emitter-receiver
(programmationn)
ON/OFF
(starting display)
Input to parameters
(within setpoint change)
Coding emitter-receiver
(programmation)
Advance Manual
In our technical web (www.sonder-
regulacion.com), may find the complete
manual with detailed instructions at link of
Installation Manual inside product sheet
29.082 & 29.083 .
Sonder Regulación, S.A.
Avda. La Llana, 93
08191 RUBÍ
(Barcelona) Spain
www.sonder.es
