Sonder Siesta 105 WiFi RF Instruction Manual

Sonder Siesta 105 WiFi RF Instruction Manual

Smart chronothermostat with wifi and radio communication heating / cooling includes app sonder home
Hide thumbs Also See for Siesta 105 WiFi RF:

Advertisement

Quick Links

Instructions Manual
33.6
23
°
.
8
26.0

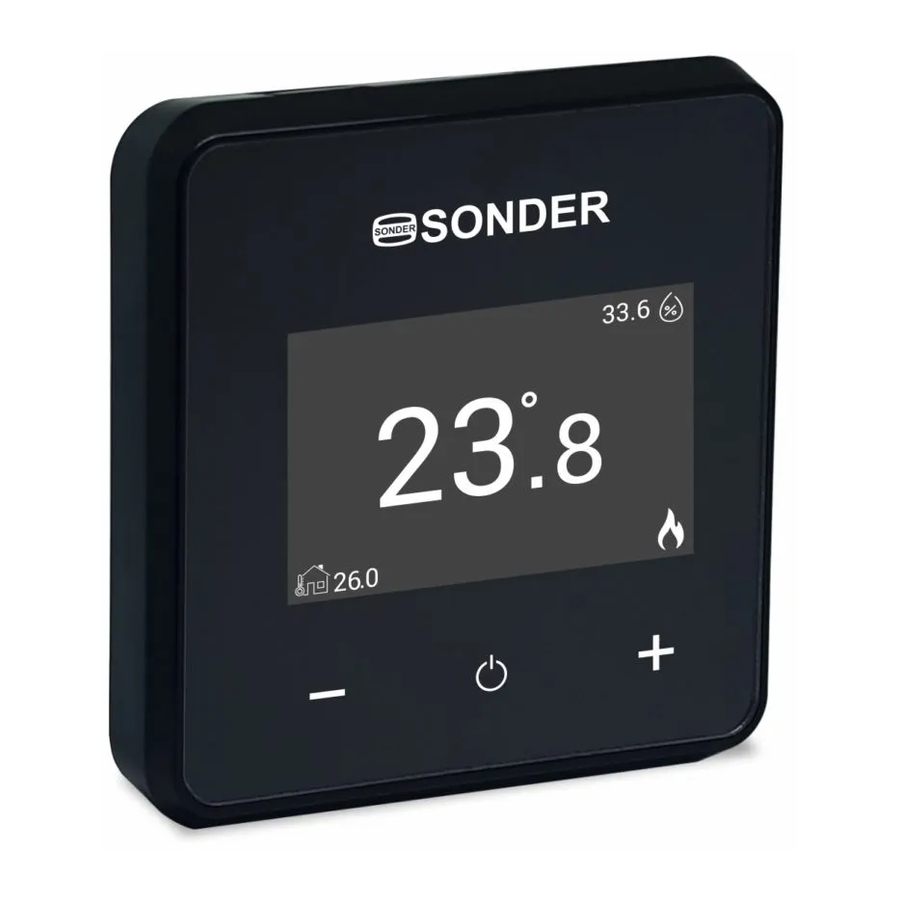

Siesta 1 05 WiFi RF
Code: 29.102
C h r o n o t h e r m o s t a t W i F i R F
Smart chronothermostat with WiFi and radio communication
Heating / Cooling includes App Sonder Home

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Siesta 105 WiFi RF and is the answer not in the manual?

Questions and answers

Summary of Contents for Sonder Siesta 105 WiFi RF

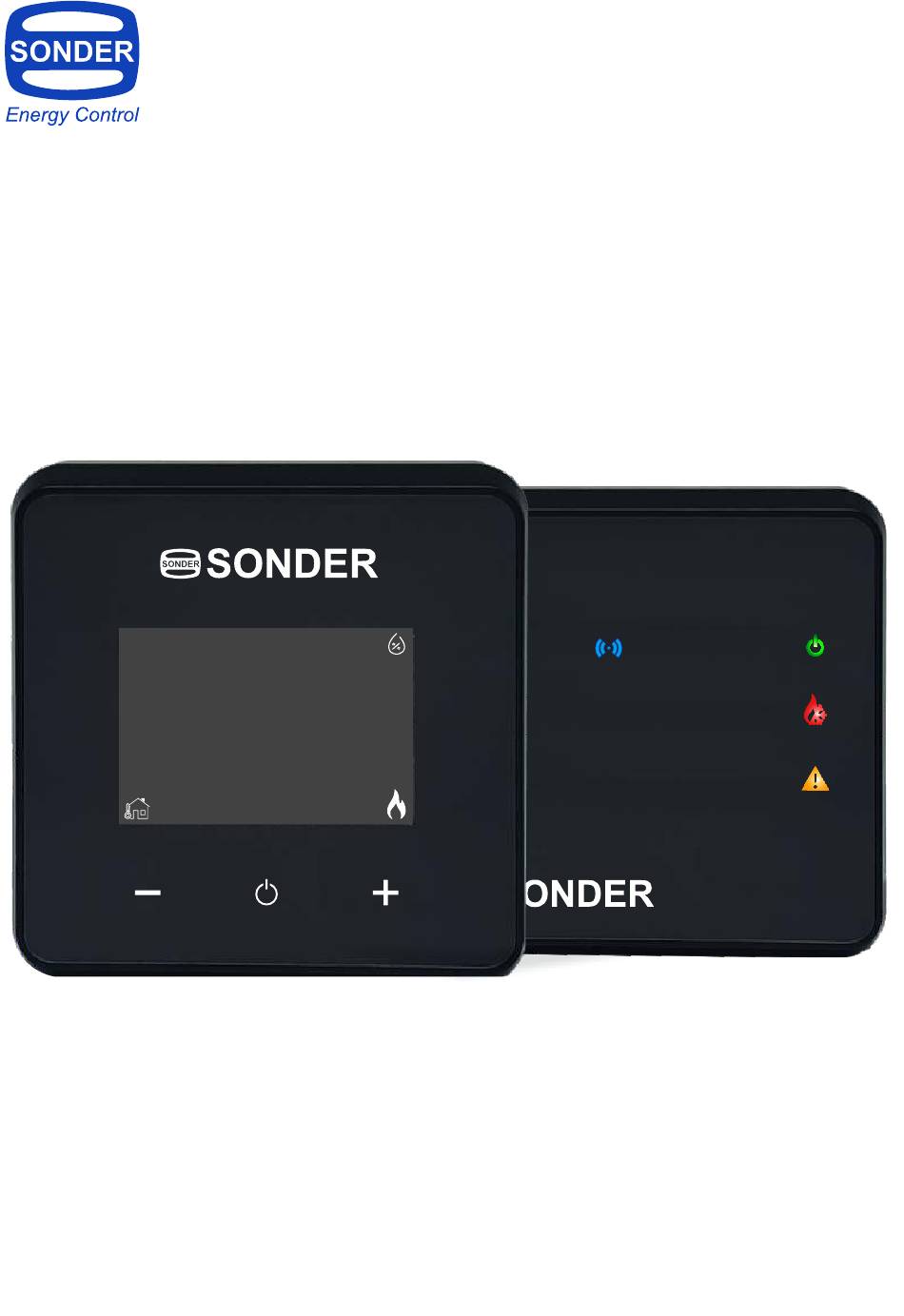

  • Page 1 Siesta 1 05 WiFi RF Code: 29.102 C h r o n o t h e r m o s t a t W i F i R F Smart chronothermostat with WiFi and radio communication Heating / Cooling includes App Sonder Home...
  • Page 2: Warnings

    - It is an independent control device for surface mounting - Sonder Regulación S.A. reserves the right to make on a 60 mm diameter junction box. changes related to the product, technical data, or assembly and use instructions without prior notice.
  • Page 3: Table Of Contents

    INDEX Warnings Presentation ........................4 Content ......................4 Characteristics ......................4 Functioning ......................5 Installation Location ......................... 5 Connection and Examples ..................6 App Installation Error Screens ......................11 Thermostat Display ........................ 12 ......................12 Keyboard Leds WiFi Reset Button ........................
  • Page 4: Presentation

    App. Steps to follow: your installation. - Install receiver without powering (page 5) The Siesta 105 WiFi RF is a smart wireless thermostat for - Download App and install (page 7) heating or cooling and App with WiFi communication.
  • Page 5: Installation

    Installa on Before any manipulation make sure that the electric current is disconnected. The connection cables between the receiver and the boiler must not exceed 100 m, of type H-05V-K, flexible 2-wire. Fixed to a wall With op onal Peana accessory Location Keep at least 30 cm away from other electronic devices.
  • Page 6: Connection And Examples

    Connec on and Examples When there is a power failure, the receiver may take 1 minute to recover the synchroniza on with the thermostat, but it saves all data and se ngs. 2 Ba eries LR6 AA de 1,5V Boiler Power Supply connec on 230V~ 50/60Hz...
  • Page 7: App Installation

    QR direct to download - Download App "Sonder Home" from the respec ve store to your opera ng system & install. Sonder - Open the applica on by clicking on the "Sonder Home Home" app icon Sign In Sonder Home yourname@yourmail.com...
  • Page 8 Add device Sending home WiFi data to WiFi synchroniza on with the device to be controlled the device to be controlled Choose your device Connecting to device Configuring device OTHER NETWORKS Siesta Device - DE6B4 Configuring WiFi Configuring WiFi Waiting for the device Cancel Comprobación final Customize product...
  • Page 9 Settings Wi-Fi Your profile Wi-Fi Casa ID de Apple, iCloud, iTunes Store y App ... MIS REDES Modo Avión Sonder 105 WiFi RF-9AXXXX Wi-Fi Wi-Fi Casa OTRAS REDES Bluetooth Sí 1. On your iPhone open Wi-Fi settings and Movistar 2BDC Datos móviles...
  • Page 10 Main App screen Device access menu* Sonder Home MY Devices Informa on and Comedor configura on of Wasn’t online yet the devices. Siesta 105 WiFi Disposi vos Online since 07:02 Jul 24, 2019 - Last connec on Add new device...
  • Page 11: Error Screens

    Connec on error screen Appears when the Wi-Fi se ngs on the device fail - Check Wi-Fi status and se ngs. - Check that you have typed in the name of the Wi-Fi network you have at home and to which Siesta will connect.
  • Page 12: Display

    Thermostat display The thermostat has a basic opera on, the setpoint temperature rises or falls (desired room temperature). If it is in programmed (automa c) regula on mode, it will return to its programming in the following period. You can also turn off (an -freeze setpoint).
  • Page 13 Off ° If we press the bu on for 2 seconds, the thermostat is turned off, it disables the regula on and keeps the an freeze. Exhausted ba eries Screen that appears when it detects that the ba ery level is running low and does not guarantee proper opera on.
  • Page 14: Leds

    Leds Receiver Blue to indicate WiFi status Green when powered at 230V ~ - Blinks fast when you do not have WiFi Red when the relay is ac vated configured. - Turn on and off slowly when you are wai ng to receive WiFi se ngs. Orange has no communica on with - Off...
  • Page 15: App

    Aplicación Sonder Home Main screen App Sonder Home Screen that shows you all the devices linked in the applica on. Disposi vos - It allows to have several devices in the same house (thermostats by zones). Comedor TERMOSTATO 27.9 - Allows you to configure several devices in several houses (second residence, °C...
  • Page 16: Home

    Home HOME REGISTROS PROGRAMACIÓN CONFIGURACIÓN Main display for thermostat 23.6 °C Room temperature ON / OFF thermostat bu on 22.8°C Desired temperature (select setpoint - / + factory at 20°C) Ba ery charge status Auto Manual / Automa c Mode (Programmed)(factory set to manual mode) 45.1% Regula on mode Hea ng / Cooling...
  • Page 17: Programación

    Programación (Programming) Program the operation of heating and cooling with total freedom, changes are configured where time, temperature and applicable days are indicated. You can memorize up to 8 changes. It can also work in manual mode, indicating only the temperature. Set the regula on mode and program it HOME REGISTROS PROGRAMACIÓN CONFIGURACIÓN Clicking on the icon choose the regula on mode...
  • Page 18: Configuración

    Configuración (Configura on) Display to adjust thermostat opera on HOME REGISTROS PROGRAMACIÓN CONFIGURACIÓN Protección de la bomba recirculadora (Recirculation pump protection) The recirculation pump is activated for 1 minute every 24 hours avoiding blockage during long periods of inactivity. Scale: Activated ... Deactivated From factory: OFF Calibración lectura sensor interno (Internal sensor reading calibration) Adjusts the temperature displayed on the screen.
  • Page 19 Zona horaria (Time Zone) Sets the time zone in which the thermostat is located. Scale: UTC -11 ... UTC +11 From factory: UTC +1 (Madrid / Roma) Cambio hora Verano / Invierno (Summer/Winter time changeover ) The clock adjusts the set time by adding or subtracting 1 hour for summer and winter time changeover.
  • Page 20 SONDER REGULACIÓN S.A. Avenida la Llana N° 93 P.I. La Llana 08191 RUBÍ (Barcelona) - España Telf.: +34 93 588 42 11 Fax: +34 93 588 49 94 www.sonder.es info@sonderregulacion.com...
