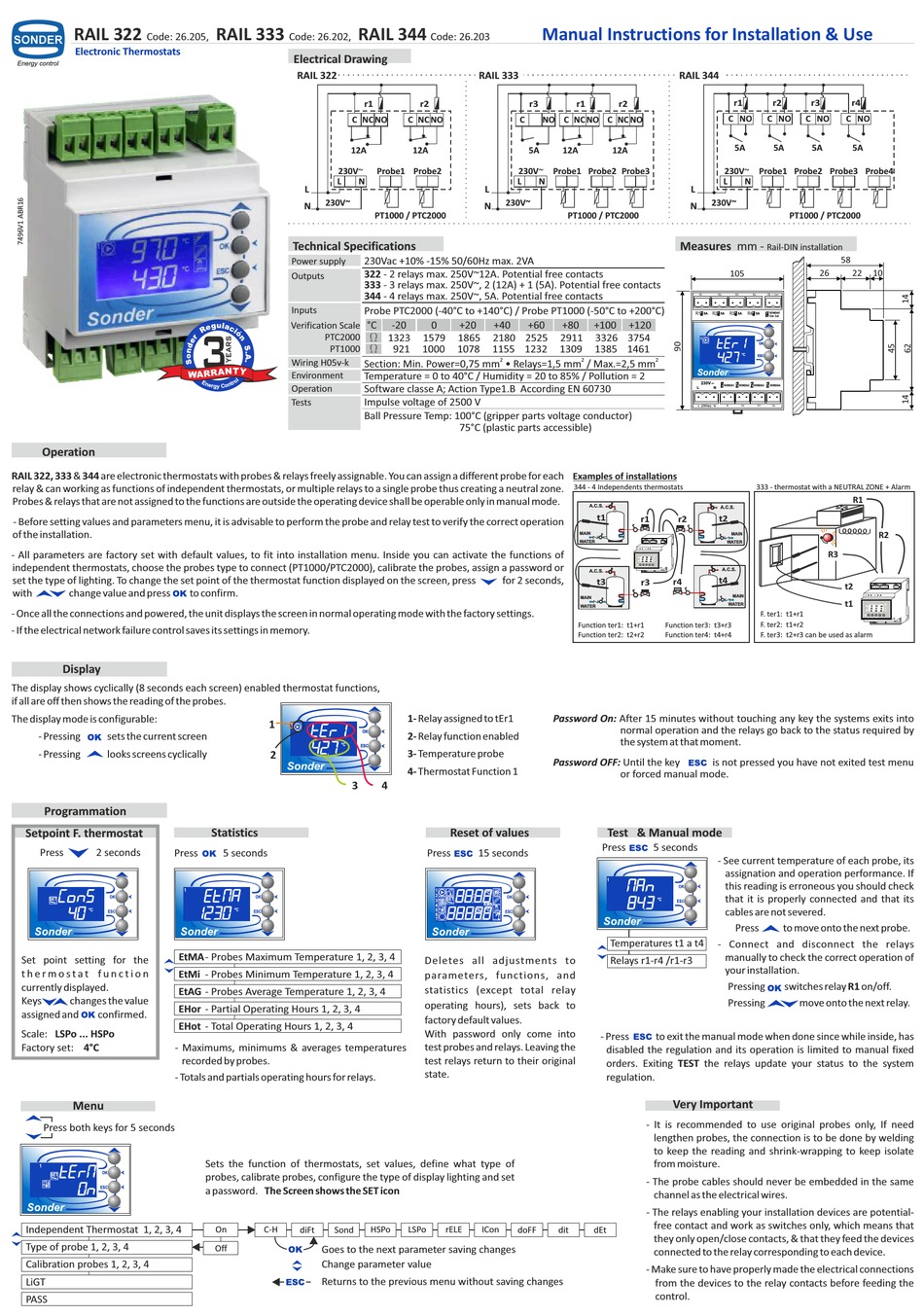

Sonder RAIL 322 Manual Instructions For Installation & Use

RAIL 322
Code: 26.205,
Electronic Thermostats
Energy control
Operation

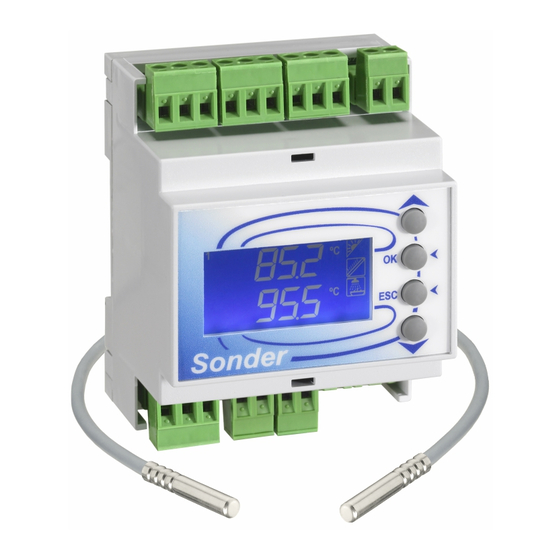

RAIL 322, 333 & 344 are electronic thermostats with probes & relays freely assignable. You can assign a different probe for each
relay & can working as functions of independent thermostats, or multiple relays to a single probe thus creating a neutral zone.
Probes & relays that are not assigned to the functions are outside the operating device shall be operable only in manual mode.
- Before setting values and parameters menu, it is advisable to perform the probe and relay test to verify the correct operation
of the installation.
- All parameters are factory set with default values, to fit into installation menu. Inside you can activate the functions of
independent thermostats, choose the probes type to connect (PT1000/PTC2000), calibrate the probes, assign a password or
set the type of lighting. To change the set point of the thermostat function displayed on the screen, press
with change value and press
- Once all the connections and powered, the unit displays the screen in normal operating mode with the factory settings.
- If the electrical network failure control saves its settings in memory.
Display
The display shows cyclically (8 seconds each screen) enabled thermostat functions,
if all are off then shows the reading of the probes.
The display mode is configurable:
- Pressing sets the current screen
- Pressing looks screens cyclically
Programmation
Setpoint F. thermostat
Press 2 seconds
Press
EtMA
Set point setting for the
t h e r m o s t a t f u n c t i o n EtMi
currently displayed.
EtAG
Keys changes the value
EHor
assigned and confirmed.
EHot
Scale: LSPo ... HSPo
Factory set: 4°C - Maximums, minimums & averages temperatures
recorded by probes.
- Totals and partials operating hours for relays.
Menu
Press both keys for 5 seconds
Independent Thermostat 1, 2, 3, 4
Type of probe 1, 2, 3, 4
Calibration probes 1, 2, 3, 4
LiGT
PASS
RAIL 333 RAIL 344
Code: 26.202,
Electrical Drawing
RAIL 322
C NC
12A
230V~
L N
L
230V~
N
Technical Specifications
Power supply
Outputs
Inputs
Verification Scale
PTC2000
PT1000
Wiring H05v-k
Environment
Operation
Tests
to confirm.
1
OK
ESC
2
Sonder
3
Statistics
5 seconds
- Probes Maximum Temperature 1, 2, 3, 4
- Probes Minimum Temperature 1, 2, 3, 4
- Probes Average Temperature 1, 2, 3, 4
- Partial Operating Hours 1, 2, 3, 4
- Total Operating Hours 1, 2, 3, 4
Sets the function of thermostats, set values, define what type of
probes, calibrate probes, configure the type of display lighting and set
a password. The Screen shows the SET icon
On C-H diFt Sond
Off Goes to the next parameter saving changes
Change parameter value
Returns to the previous menu without saving changes
Code: 26.203
RAIL 333
r1 r2 r3
NO C NC NO C
12A 5A
230V~
Probe1 Probe2
L N
L
230V~
N
PT1000 / PTC2000
230Vac +10% -15% 50/60Hz max. 2VA
322 - 2 relays max. 250V~12A. Potential free contacts
333 - 3 relays max. 250V~, 2 (12A) + 1 (5A). Potential free contacts
344 - 4 relays max. 250V~, 5A. Potential free contacts
Probe PTC2000 (-40°C to +140°C) / Probe PT1000 (-50°C to +200°C)
°C -20 0 +20 +40 +60
W 1323 1579 1865 2180 2525
W 921 1000 1078 1155 1232
2
Section: Min. Power=0,75 mm • Relays=1,5 mm / Max.=2,5 mm
Temperature = 0 to 40°C / Humidity = 20 to 85% / Pollution = 2
Software classe A; Action Type1.B According EN 60730
Impulse voltage of 2500 V
Ball Pressure Temp: 100°C (gripper parts voltage conductor)
75°C (plastic parts accessible)
for 2 seconds,
1- Relay assigned to tEr1
2- Relay function enabled
3- Temperature probe
4- Thermostat Function 1
4
Reset of values
Press 15 seconds
KWh
Deletes all adjustments to
parameters, functions, and
statistics (except total relay
operating hours), sets back to
factory default values.
With password only come into
test probes and relays. Leaving the
test relays return to their original
state.
HSPo LSPo rELE ICon doFF
Manual Instructions for Installation & Use
RAIL 344
r1 r2
NO C NC NO C NC NO
12A 12A
Probe1 Probe2 Probe3
L
230V~
N
PT1000 / PTC2000
Measures mm -
+80 +100 +120
2911 3326 3754
1309 1385 1461
2 2
Sonder
Examples of installations
344 - 4 Independents thermostats
A.C.S.
t1
r1 r2
MAIN
(230Vac) (230Vac) 10 Vdc
WATER
C NC NO C NC NO
1
2
3
5s
OK PRG TEST
A.C.S.
N (230Vac) L
t3 r4
r3
MAIN
WATER
Function ter1: t1+r1 Function ter3: t3+r3
Function ter2: t2+r2 Function ter4: t4+r4
Password On: After 15 minutes without touching any key the systems exits into
normal operation and the relays go back to the status required by
the system at that moment.
Password OFF: Until the key is not pressed you have not exited test menu
or forced manual mode.
Test & Manual mode
Press 5 seconds
Temperatures t1 a t4
Relays r1-r4 /r1-r3
- Press to exit the manual mode when done since while inside, has
disabled the regulation and its operation is limited to manual fixed
orders. Exiting TEST the relays update your status to the system
regulation.
Very Important
- It is recommended to use original probes only, If need
lengthen probes, the connection is to be done by welding
to keep the reading and shrink-wrapping to keep isolate
from moisture.
- The probe cables should never be embedded in the same
channel as the electrical wires.
- The relays enabling your installation devices are potential-
free contact and work as switches only, which means that
dit dEt
they only open/close contacts, & that they feed the devices
connected to the relay corresponding to each device.
- Make sure to have properly made the electrical connections
from the devices to the relay contacts before feeding the
control.
r1 r2 r3 r4
C NO C NO C NO C NO
5A 5A 5A 5A
230V~
Probe1 Probe2 Probe3 Probe4
L N
PT1000 / PTC2000
Rail-DIN installation
58
105 26 22 10
OK
ESC
333 - thermostat with a NEUTRAL ZONE + Alarm
R1
A.C.S.
t2
R2
MAIN
WATER
R3
A.C.S.
t4
t2
(230Vac) (230Vac)
MAIN
C NC NO C NC NO
t1
WATER
1
2
3
F. ter1: t1+r1
5s
OK PRG TEST
F. ter2: t1+r2 N (230Vac) L
F. ter3: t2+r3 can be used as alarm
- See current temperature of each probe, its
assignation and operation performance. If
this reading is erroneous you should check
that it is properly connected and that its
cables are not severed.
Press to move onto the next probe.
- Connect and disconnect the relays
manually to check the correct operation of
your installation.
Pressing switches relay R1 on/off.
Pressing move onto the next relay.
10 Vdc
