Friedrich MS24Y3F Installation Instruction Sheet

Floor Console/Under Ceiling Dual Type

INSTALLATION INSTRUCTION

SHEET
(PART NO. 9359945031)
For authorized service personnel only.
IMPORTANT!
Please Read Before Starting
This air conditioning system meets strict safety and operating standards.
As the installer or service person, it is an important part of your job to
install or service the system so it operates safely and efficiently.
For safe installation and trouble-free operation, you must:
•
Carefully read this instruction booklet before beginning.
•
Follow each installation or repair step exactly as shown.
•
Observe all local, state, and national electrical codes.
•
Pay close attention to all danger, warning, and caution notices given in
this manual.
This symbol refers to a hazard or unsafe practice which
WARNING:
can result in severe personal injury or death.
This symbol refers to a hazard or unsafe practice which
CAUTION: can result in personal injury and the potential for
product or property damage.
•
Hazel alerting symbols
Electrical
Safety / alert
If Necessary, Get Help
These instructions are all you need for most installation sites and mainte-
nance conditions. If you require help for a special problem, contact our
sales/service outlet or your certified dealer for additional instructions.
In Case of Improper Installation
The manufacturer shall in no way be responsible for improper installation
or maintenance service, including failure to follow the instructions in this
document.
SPECIAL PRECAUTIONS
When Wiring
ELECTRICAL SHOCK CAN CAUSE SEVERE PERSONAL INJURY OR
DEATH. ONLY A QUALIFIED, EXPERIENCED ELECTRICIAN SHOULD
ATTEMPT TO WIRE THIS SYSTEM.
•
Do not supply power to the unit until all wiring and tubing are completed
or reconnected and checked.
•
Highly dangerous electrical voltages are used in this system. Carefully
refer to the wiring diagram and these instructions when wiring. Improper
connections and inadequate grounding can cause accidental injury or
death.
•
Ground the unit following local electrical codes.
•
Connect all wiring tightly. Loose wiring may cause overheating at con-
nection points and a possible fire hazard.
When Transporting
Be careful when picking up and moving the indoor and outdoor units. Get
a partner to help, and bend your knees when lifting to reduce strain on
your back. Sharp edges or thin aluminum fins on the air conditioner can
cut your fingers.
When Installing...
...In a Ceiling or Wall
Make sure the ceiling/wall is strong enough to hold the unit's weight. It
may be necessary to construct a strong wood or metal frame to provide
added support.
...In a Room
Properly insulate any tubing run inside a room to prevent "sweating" that
can cause dripping and water damage to walls and floors.
...In Moist or Uneven Locations
Use a raised concrete pad or concrete blocks to provide a solid, level
foundation for the outdoor unit. This prevents water damage and abnor-
mal vibration.
...In an Area with High Winds
Securely anchor the outdoor unit down with bolts and a metal frame.
Provide a suitable air baffle.
...In a Snowy Area (for Heat Pump-type Systems)
Install the outdoor unit on a raised platform that is higher than drifting
snow. Provide snow vents.
When Connecting Refrigerant Tubing
•
Keep all tubing runs as short as possible.
•
Use the flare method for connecting tubing.
•
Apply refrigerant lubricant to the matching surfaces of the flare and
union tubes before connecting them, then tighten the nut with a torque
wrench for a leak-free connection.
•
Check carefully for leaks before starting the test run.
NOTE:
Depending on the system type, liquid and gas lines may be either narrow
or wide. Therefore, to avoid confusion the refrigerant tubing for your
particular model is specified as either "small" or "large" rather than as
"liquid" or "gas".
When Servicing
•
Turn the power OFF at the main circuit breaker panel before opening
the unit to check or repair electrical parts and wiring.
•
Keep your fingers and clothing away from any moving parts.
•
Clean up the site after you finish, remembering to check that no metal
scraps or bits of wiring have been left inside the unit being serviced.
•
After installation, explain correct operation to the customer, using the
operating manual.

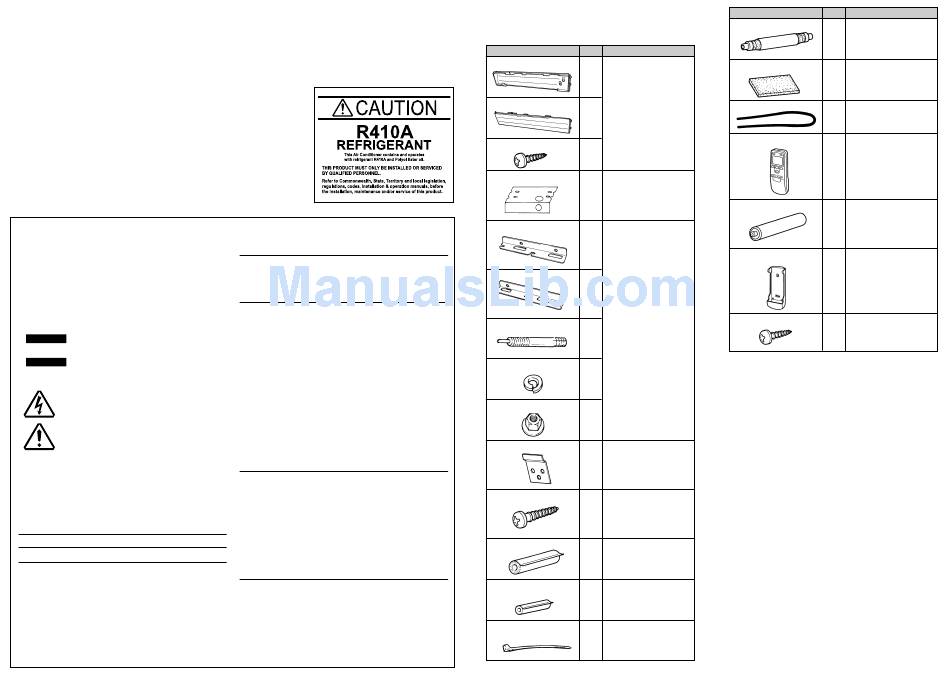

STANDARD PARTS
The following installation parts are furnished. Use them as required.
INDOOR UNIT ACCESSORIES
Name and Shape Q'ty Application
Cover plate (left)
1
Cover plate (right)
1
Tapping screw (ø4 × 10)
2
Installation template For positioning the indoor
unit
1 For under ceiling type
Bracket (left) For suspending the indoor
unit from ceiling
1
Bracket (right)
1
Anchor bolt (M12)
4
Spring washer
4
Special nut
4
Wall bracket For suspending the indoor
unit on the wall.
2
Tapping screw (ø4 × 20)
For fixing the wall bracket.
6
Coupler heat insulator For indoor side pipe joint
(large) (Large pipe)
1
Coupler heat insulator For indoor side pipe joint
(small) (Small pipe)
1
Nylon fastener For fixing the drain hose
1
Name and Shape Q'ty Application
Drain hose
1
Adhesive type 70 × 230
Insulation (drain hose)
1
VT wire For fixing the drain hose
1 L 280 mm
Remote control unit Use for air conditioner
operation
1
Battery (penlight) For remote control unit
2
Remote control unit holder Use as remote control unit
holder
1
Tapping screw (ø3 × 12)
For remote control unit
holder installation
2

OPTIONAL PARTS

The following options are available.
• • • • • WIRED REMOTE CONTROLLER UNIT: UTB-UUB (P/N9075887004)
