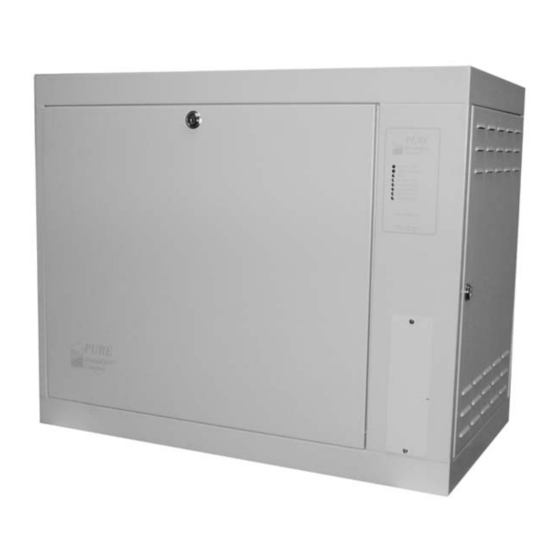

Pure Humidifier EC Series Installation Instructions Manual
Electric humidifier
Hide thumbs
Also See for EC Series:
- Operation manual (16 pages) ,
- Installation instructions and operation and maintenance manual (24 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Pure Humidifier EC Series
Summary of Contents for Pure Humidifier EC Series
- Page 1 READ AND SAVE THESE INSTRUCTIONS Standard Water “EC” Series Electric Humidifier Installation Instructions ————————————————— Operation and Maintenance Manual Our results are comforting ® ® PURE HUMIDIFIER and INTAC are registered trademarks of PURE Humidifier Co. Form No: ECOM-10-19...
-
Page 2: Table Of Contents
The PURE Humidifier Co. Warranty of electric shock, burns, and/or fire. PURE Humidifier Co. guarantees its products to be free from Do not adjust any components inside humidifier defects in material and workmanship for a period of one year control panel without consulting the factory. -
Page 3: Capacity & Electrical Specifications
Capacity & Weights Electrical Specifications Capacity & Weights “EC” Series Humidifier Weight Standard Steam Output Capacity † Empty Full Water Unit Model No. lbs/hr kg/hr EC-5 15.0 139.0 63.1 223.0 101.2 EC-10 30.0 13.6 140.0 63.5 224.0 101.6 EC-15 45.0 20.4 141.0 64.0... -
Page 4: Dimensions & Layout
Dimensions & Layout 2 3/8” Steam 14.75” 16” Outlet Access (37.5) (40.6) Key Locked Electrical Access Door ** 17.00” *Removable access plate allows reservoir to (43.2) slide out for inspection and cleaning without Removable disconnecting the steam supply piping. Access Plate* **See local codes for minimum clearance to electrical compartment. -
Page 5: Humidifier Layout
Humidifier Layout Operating Status Indicating Lights Steam Outlet Connection Over-Temperature Switch 1/4"-IPS Water Removable Inlet and Strainer Humidifier Cover Removable Key Locked Reservoir Access Door Removable Humidifier Reservoir Immersion Heaters Tri-Probe Sensor Humidifier Features SCR modulating control Key locked doors for both reservoir and electrical ... -
Page 6: Location & Mounting
2 feet (61 cm) downstream from water sensitive area, PURE Humidifier Co. recommends an elbow or other uneven air flow area. the addition of a drain pan under the injection tube. The... -
Page 7: Wall Mounting Detail
Wall Mounting Detail Mounting The humidifier should be mounted dead level in both directions. PURE Humidifier Co. supplies a wall mounting bracket. Bracket is mounted to wall studs first. The bracket must be mounted to wall studs or additional support must be provided in the field. -
Page 8: Dispersion Methods
Dispersion Methods Injection Tube and Flexible Hose Insty-Pac and Fast-Pac Multiple Injection Tube Assemblies Allows remote mounting of the humidifier For applications where you need a short reservoir from the duct. Also allows the dissipation distance. Allows remote humidifier to be located below a wall- mounting of the humidifier reservoir from mounted duct. -
Page 9: Injection Tube And Flexible Hose
Total KW “H” humidifier with stainless steel hose clamps 5 thru 20 6” (15 cm) (by PURE Humidifier Co.). 21 thru 34 8” (20 cm) ∆ The water seal height may have to Galvanized steel duct plates are provided to... -
Page 10: Steam Supply Piping Examples
Steam Supply Piping Examples Pitch Use two 45° elbows for (see NOTE 1) hard piping or wide 90° for flexible steam hose 1/4”/1’ 2”/1’ Supply piping see NOTE connectors see NOTE (see NOTE 4) Pitched Towards Steam Generator Pitched Towards Tube Assembly Drain Tee (see NOTE 7) 2”/1’... -
Page 11: Piping
If gravity drain is not possible please use a condensate pump rated for 212°F water or contact a The humidifier has a factory built-in 1.5” (4 cm) air PURE Humidifier Co. representative to purchase gap between the water inlet and the overflow. one. -
Page 12: Blower Pack
Blower Pack Optional Blower Pack Locating Blower Pack In applications where a ducted air system is not The distance that visible steam will travel after available, PURE offers the optional Blower Pack. leaving the Blower Pack is dependent upon the Blower Pack contains... - Page 13 Blower Pack Locating Blower Pack The distance that visible steam will travel after leaving the Blower Pack is dependent upon the relative humidity in the room and the capacity of the humidifier. If this visible steam comes in contact with any solid object (walls, beams, machinery, etc.) it may form condensate and drip.
-
Page 14: Pre-Startup Checklist
Pre-Startup Checklist Pre-Startup Checklist Before starting the “EC” PURE Humidifier Co. Electric Humidifier, check the following installation items: ______ 1. MOUNTING - Verify that the humidifier evaporating chamber is securely supported and that the evaporating chamber is level in both directions. -
Page 15: Non-Intac Startup Procedure
® Non-INTAC Startup Procedure Start Up Procedure ______ 1. With the power "off", set the switch on the control board to the "Standby" position (the control board is located within the humidifier control panel door). ______ 2. Make sure the manual drain valve lever (located on the front of the drain valve) is in the “closed” position. -
Page 16: Intac ® Startup Procedure
® INTAC Startup Procedure Start Up Procedure ______ 1. Make sure the manual drain valve lever (located on the front of the drain valve) is in the “closed” position. ® ______ 2. Turn the electric power “on” to the humidifier. The LCD display on the INTAC controller should illuminate “H2O Level Low - E07”. -
Page 17: Maintenance & Cleaning Instructions
DO NOT use Hydrochloric acid-based de-scalers; this will corrode stainless steel. PURE Humidifier Co. recommends the use of a vinegar, citric acid, diluted phosphoric acid or diluted nitric acid-based cleaner. Follow all precautions on the cleaner packaging. Some cleaners will give off overwhelming and noxious odors, so make sure there is proper ventilation in the working area and the steam outlet pipe is removed so that fumes are not spread throughout the building. -
Page 18: Cover Gasket Replacement Instructions
Cover Gasket Replacement Instructions Remove the reservoir cover. While looking at the top of the unit, reference Figure A and B to determine which humidifier tank style you have. Figure A Installation Fit the gasket around the entire lip of the tank opening. Cut the gasket 1/8” longer than required, this will ensure proper fit when the cover is clamped back on. -
Page 19: Troubleshooting
Troubleshooting Recommended Action Problem Possible Cause Check and replace. Blown heater fuse(s) Humidifier will not heat Check transformer output, and verify voltage. Control transformer not producing 24 vac control voltage Verify that all safety controls are completing the Safety controls open safety circuit. -
Page 20: Tool Requirements & Torque List
Tool Requirements & Torgue List Recommended Maintenance Tool List 7/16” Wrench 5/16” Nut Driver or Socket 11/32” Nut Driver or Socket 3/8” Nut Driver or Socket 5/32” Nut Driver or Socket Flat head screwdriver Wire stripper Wire crimper Torque List Cover Bolts 18 inch/pounds MAX Hose Cuff Screws... -
Page 21: Maintenance Notes
Maintenance Notes Maintenance Notes Maintenance Performed Date... -
Page 23: Parts List
PURE Humidifier Co. “EC” Series Parts List & Two Year Recommended Spare Parts Item No. Description Part No. Rec. Per Unit. SpareQty. EC Exterior Cabinet 18001 EC Cabinet Door, no lock, see item 21 18002 EC Reservoir Assembly EC Reservoir Cover Assembly... - Page 24 DISCLAIMER Product Changes: Changes in products may be required from time to time due to factors beyond the Seller’s control, or the need for continuing improvement of products. The Seller reserves the right to make reasonable changes in products, specifications and performance of any kind without notice or liability.
