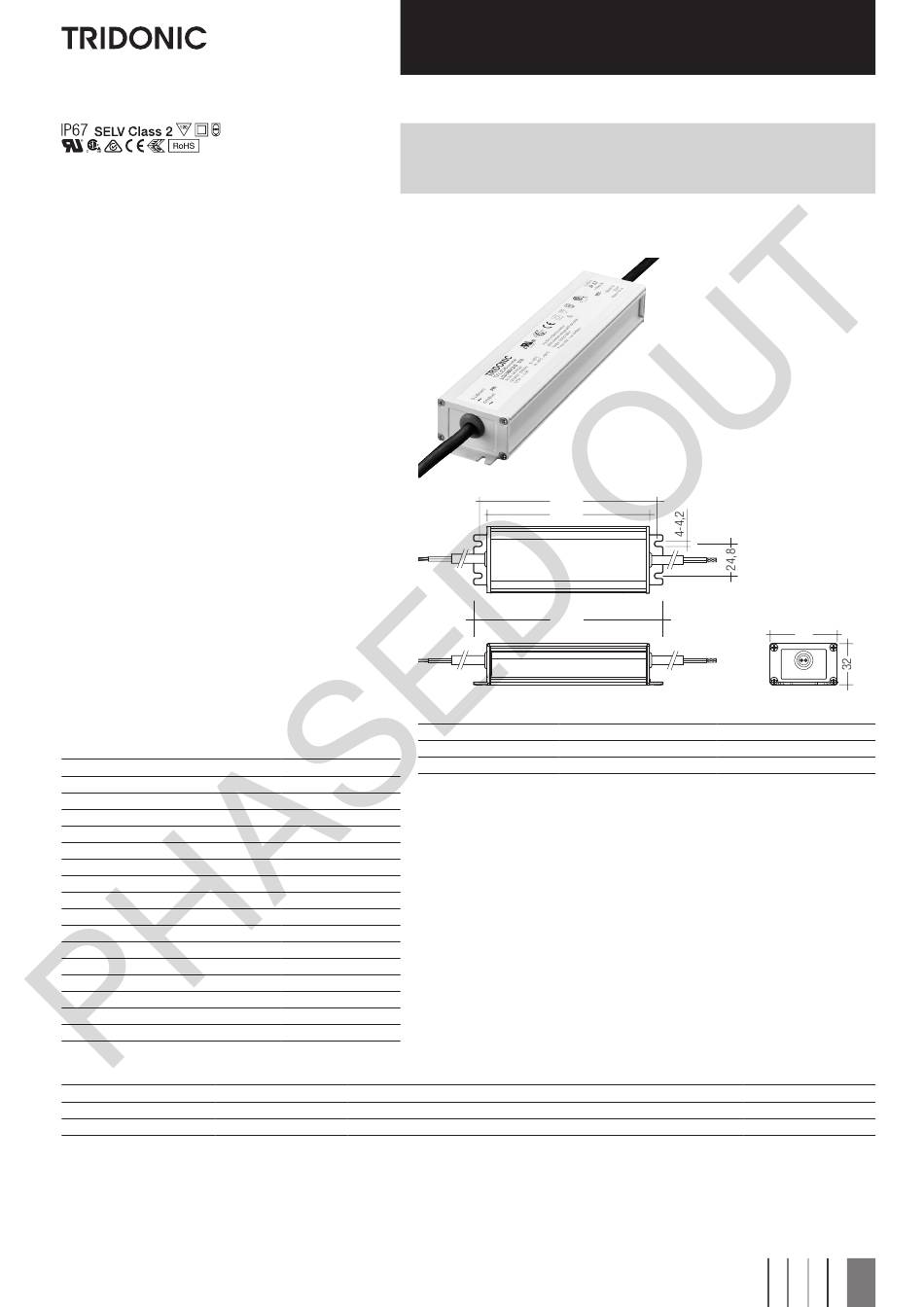

Product description
• Constant voltage LED control gear
• Universal input voltage range
• Constant output voltage
• Connection: Cable with end sleeves (length approx. 500 mm)
• Polarity identifiers, secondary + red / – black
• Metal casing, encapsulated
• Nominal life-time up to 50,000 h (at ta 40 °C with a failure rate
max. 0.2 % per 1,000 h)
• 5-year guarantee
• Complies with CLASS C from minimum to maximum load range
according to EN 61000-3-2
Properties
• High efficiency
• Low power loss
• Overtemperature and overload protection
• Short-circuit shutdown feature with automatic restart
• SELV
• Type of protection IP67
• Metal casing
Technical data
Rated supply voltage
Input voltage, AC
Rated current (at 230 V 50 Hz)
Mains frequency
Efficiency
λ (at 230 V 50 Hz)
Output voltage tolerance
Output power
Output power range
Turn on time (output)
Turn off time (output)
Hold on time at power failure (Output)
Ambient temperature ta
Ambient temperature ta (at life-time 50,000 h)
Storage temperature ts
Dimensions LxWxH
Hole spacing D
Specific technical data
Type
Max. casing temperature tc
LCU 035/08 D010
LCU 035/12 D010
1
At failure mode (230 V, 50 Hz).
Data sheet 08/14-927-10
Subject to change without notice.
U LED
LED control gear
Uconverter LCU 35 W 8/12 V outdoor IP67
LCU outdoor IP67
Ordering data
Type
LCU 035/08 D010
LCU 035/12 D010
120 – 240 V
108 – 264 V
0.2 A
50 / 60 Hz
> 80 %
> 0.91
+ 10 %
35 W
3.5 – 35 W
≤ 0.5 s
≤ 1 s
10 ms
-25 ... +50 °C
-25 ... +40 °C
-30 ... +85 °C
172 x 52 x 32 mm
163 mm
Output voltage
80 °C
8 V
80 °C
12 V
www.tridonic.com
162,6
150,6
171,5
Article number
Packaging carton Packaging pallet
24166317
20 pc(s).
24166318
20 pc(s).
Max. input power
Output current range
43 W
0.40 – 4.37 A
42 W
0.25 – 2.91 A
52
Weight per pc.
600 pc(s).
0.55 kg
600 pc(s).
0.55 kg
1
Max. output voltage
8.8 V
13.2 V
1
Advertisement
Related Manuals for Tridonic Talexx LCU 035/08 D010
Summary of Contents for Tridonic Talexx LCU 035/08 D010
- Page 1 Storage temperature ts -30 ... +85 °C Dimensions LxWxH 172 x 52 x 32 mm Hole spacing D 163 mm Specific technical data Type Max. casing temperature tc Output voltage Max. input power Output current range Max. output voltage LCU 035/08 D010 80 °C 43 W 0.40 – 4.37 A 8.8 V LCU 035/12 D010 80 °C 12 V 42 W 0.25 – 2.91 A 13.2 V At failure mode (230 V, 50 Hz). Data sheet 08/14-927-10 www.tridonic.com Subject to change without notice.
- Page 2 Isolation and electric strength testing of luminaires Electronic devices can be damaged by high voltage. This has to be considered PRI: during the routine testing of the luminaires in production. Ø 7.7 mm; 2 x 1.04 mm (17 AWG) ±0.2 According to IEC 60598-1 Annex Q (informative only!) or ENEC 303-Annex A, each SEC: luminaire should be submitted to an isolation test with 500 V for 1 second. This Ø 8 mm; 2 x 1.31 mm (16 AWG) ±0.2 test voltage should be connected between the interconnected phase and neutral terminals and the earth terminal. The isolation resistance must be at least 2 MΩ. Additional information As an alternative, IEC 60598-1 Annex Q describes a test of the electrical strength Additional technical information at with 1500 V (or 1.414 x 1500 V ). To avoid damage to the electronic devices this www.tridonic.com → Technical Data test must not be conducted. Guarantee conditions at www.tridonic.com → Services No warranty if device was opened. Data sheet 08/14-927-10 www.tridonic.com Subject to change without notice.
