Ava 20 Series Overview

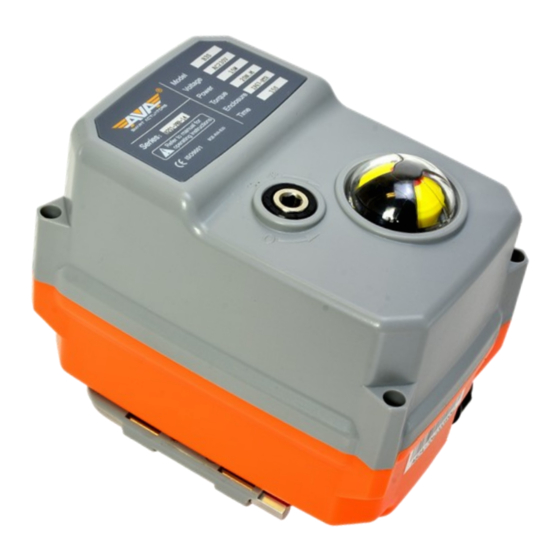

The AVA Basic
is an entry level electric actuator designed where only minimal
features are required for on-off applications. The basic version is constructed traditionally
with internal cams striking micro-switches to stop the reversible motor in the required
positions. The lower torque models are available failsafe using capacitors.
● Fully weatherproof to IP67 ●
● End of travel confirmation switches
● Multiple ISO5211 mountings
Standard Specifications 20Nm
Max Rated torque Nm output (in.lbs)
Voltage range
Mounting (ISO5211) x drive (female octagon)
Ingress Protection
Electrical connection
End of travel confirmation (dry contact/volt-free)
Local visual position indicator
LED Status light - Coming Q3 2020
Housing material
Weight ABS (Aluminium)
Dimensions
:
Note that our smart and basic actuators, regardless of function, are all the same size per series.
AVA 20 Series Overview
Dome style local visual indicator
● Female octagon drive output
● Anti-condensation heater
The AVA Smart
is a truly smart electric actuator designed to cover a wide range of functional applica-
tions, is fully electronic using digital magnetic positioning and entirely run by firmware.
The smart version is recognisable by the introduction of a bright OLED screen and exter-
nal push buttons that are used to set and adjust the AVA Smart actuator. Available in
ON OFF, Modulating, Failsafe, Failsafe Modulating, Timer, Wireless and BUS. Standard
features include:
● OLED Screen
● Anti-condensation heater
Run 20Nm (178) / 25Nm Break (221)
12VDC, 24VAC/DC, 95-265VAC
Pre Wired 0.8m Flying Lead
2 x Mechanical micro-switches
Join the orange
● Hand operation
● User friendly local button controls
● Electronic torque limiter
B20 Basic
F03/04/05 x 14mm
IP67
Dome style
LED open/close/fault
ABS (Aluminium Option)
0.8Kg (1.2Kg)
and grey revolution
● Brushless motors
● Many functional options
S20 Smart
Run 20Nm (178) / 25Nm Break (221)
12VDC, 24VAC/DC, 95-265VAC
F03/04/05 x 14mm
IP67
Pre Wired 0.8m Flying Lead
2 x Electronic relays
Dome style
LED open/close/fault
ABS (Aluminium Option)
0.8Kg (1.2Kg)
X
Revision: 002 Date: 05/06/20
