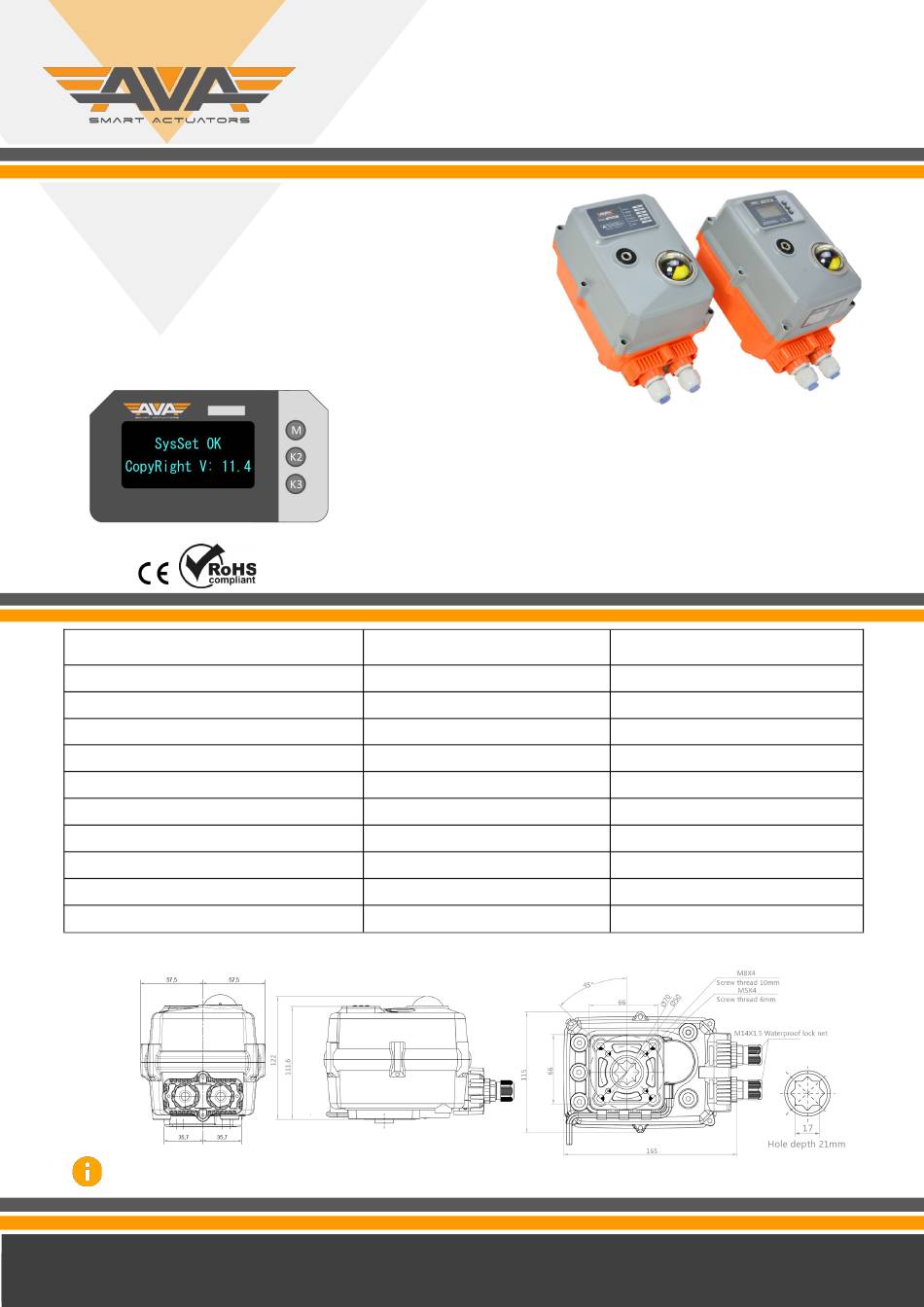

Ava 110 Series Quick Start Manual

The AVA Basic
is an entry level electric actuator designed where only mini-
mal features are required for on-off applications. The basic version is constructed
traditionally with internal cams striking micro-switches to stop the reversible motor
in the required positions. The lower torque models are available failsafe using
capacitors.
● Fully weatherproof to IP67 ●
● End of travel confirmation switches
● Multiple ISO5211 mountings
Standard Specifications 110Nm
Max Rated torque Nm output (in.lbs)
Voltage range
Mounting (ISO5211) x drive (female octagon)
Ingress Protection
Electrical connection
End of travel confirmation (dry contact/volt-free)
Local visual position indicator
LED Status light (Feature coming Q3 2020)
Housing material
Weight ABS (Aluminium)
Dimensions
:
Note that our smart actuator and basic actuators, regardless of function are all

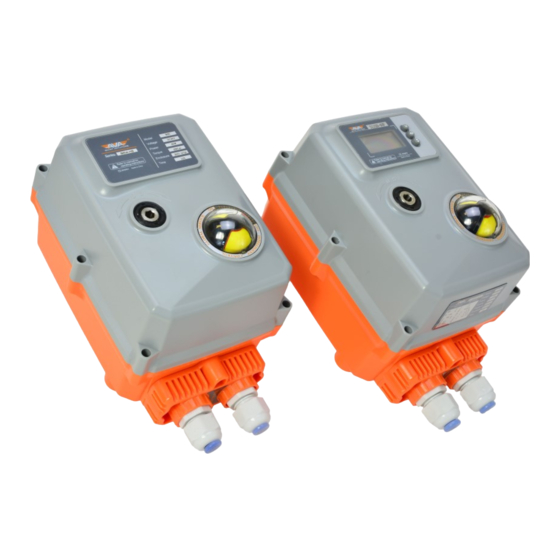

AVA 110 Series Overview
Dome style local visual indicator
● Female octagon drive output
● Anti-condensation heater
The AVA Smart
is a truly smart electric actuator designed to cover a wide range of functional
applications, is fully electronic using digital magnetic positioning and entirely run by
firmware. The smart version is recognisable by the introduction of a bright OLED screen
and external push buttons that are used to set and adjust the AVA Smart actuator.
Available in ON OFF, Modulating, Failsafe, Failsafe Modulating, Timer, Wireless and
BUS. Standard features include:
● OLED Screen
● Anti-condensation heater
Run 110Nm (974) / 140Nm Break (1240)
12VDC, 24VAC/DC, 95-265VAC
Conduit Wiring Box: 2 x M14
2 x Mechanical micro-switches
Join the orange
● Hand operation
● User friendly local button controls
● Electronic torque limiter
B110 Basic
F05 & F07 x 17mm
IP67
Dome style
LED open/close/fault
ABS (Aluminium Option)
2.2Kg (3Kg)
and grey revolution
● Brushless motors
● Many functional options
S110 Smart
Run 110Nm (974) / 140Nm Break (1240)
12VDC, 24VAC/DC, 95-265VAC
F05 & F07 x 17mm
IP67
Conduit Wiring Box: 2 x M14
2 x Electronic relays
Dome style
LED open/close/fault
ABS (Aluminium Option)
2.2Kg (3Kg)
Revision: 002 Date: 05/06/20
