AP800.1D
AP1200.1D

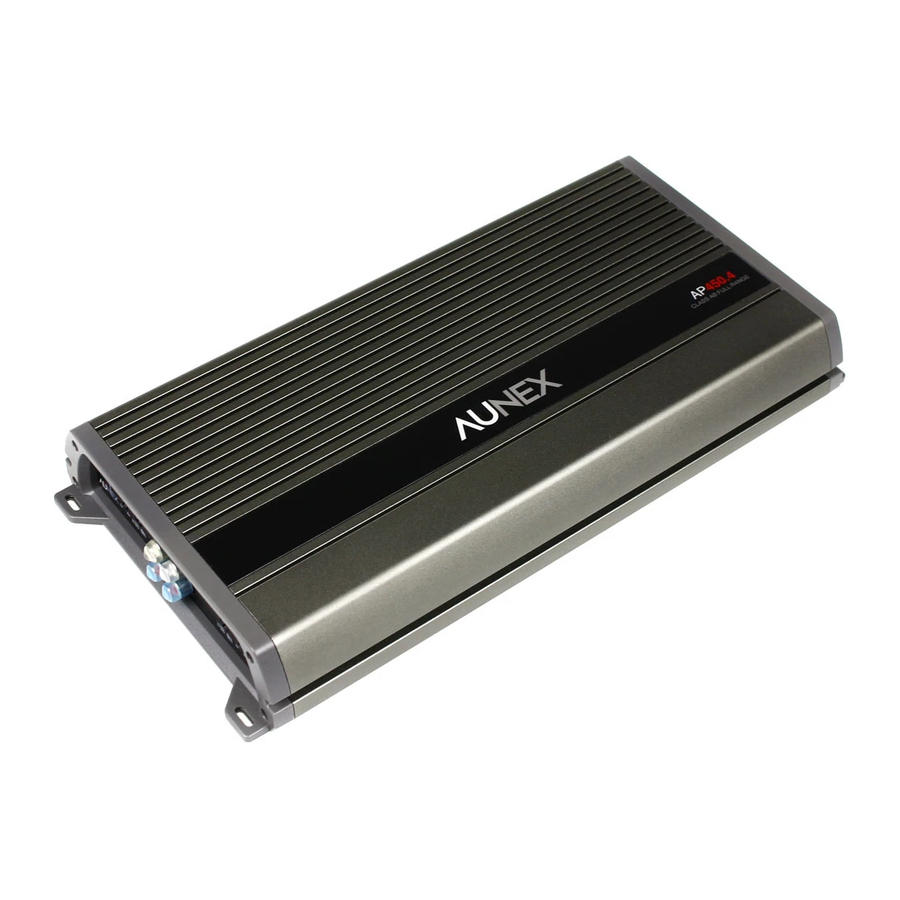

AP Series 1 Channel Amplifiers
Performance Class D Mono Amplifier Series
Models: AP800.1D, AP1200.1D
Installation and Operation Manual
Please take time to thoroughly read through this manual to familiarize yourself with your new amplifier.
This will ensure that your amplifier will perform at its optimum capabilities.
Para obtener una copia de este manual en español, visite
www.aunexusa.com
y luego vaya a la página
del producto que necesita. Haga clic en la pestaña Soporte y descargue su manual en español.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Aunex AP Series
Summary of Contents for Aunex AP Series

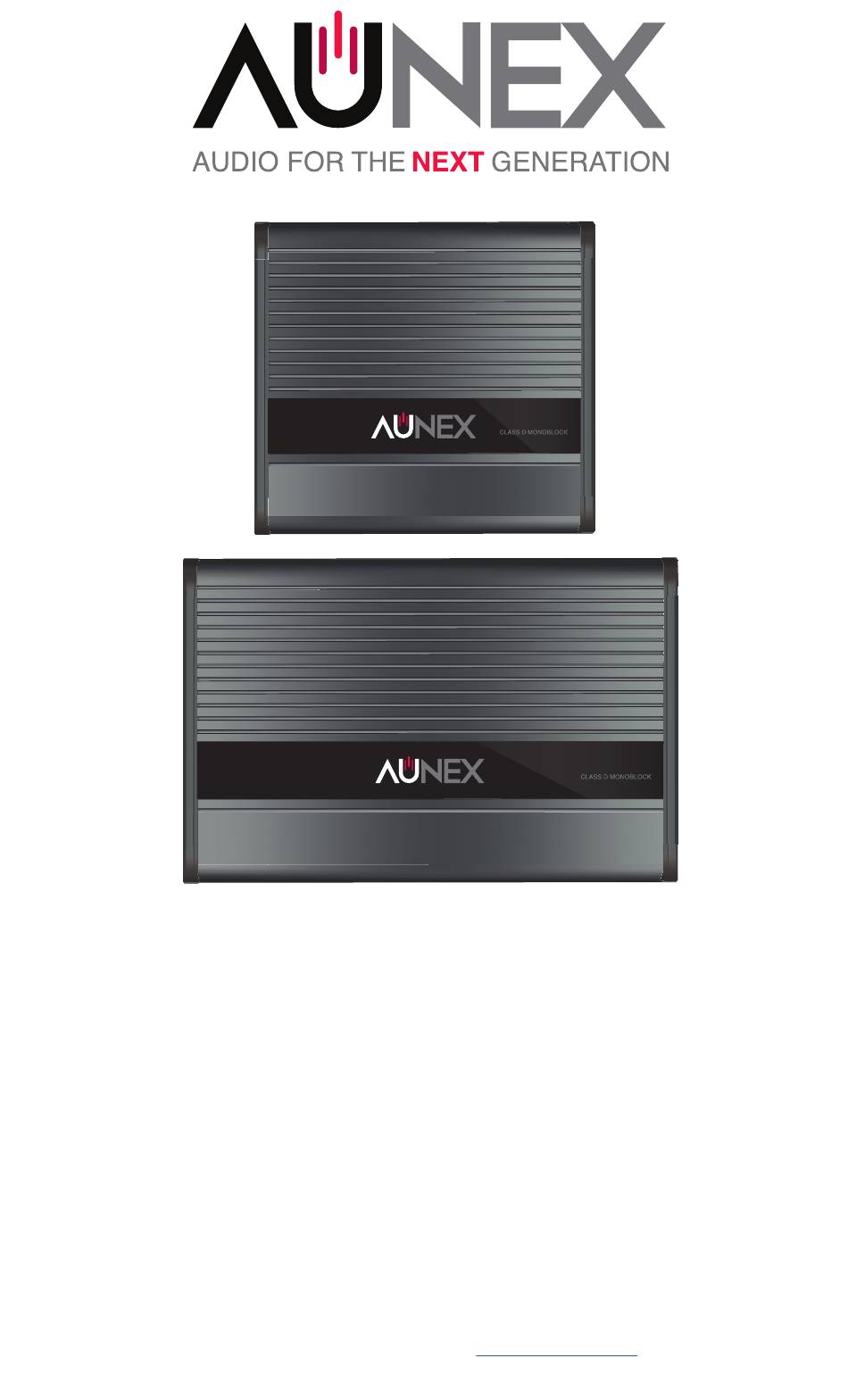

- Page 1 AP800.1D AP1200.1D AP Series 1 Channel Amplifiers Performance Class D Mono Amplifier Series Models: AP800.1D, AP1200.1D Installation and Operation Manual Please take time to thoroughly read through this manual to familiarize yourself with your new amplifier. This will ensure that your amplifier will perform at its optimum capabilities.
- Page 2 Congratulations and thank you for purchasing an Aunex AP Series Amplifier. This product has been engineered and manufactured utilizing precision quality parts and craftsmanship. Improvements in sound quality and system performance will be greatly enhanced with the use of this amplifier.
- Page 3 Feature Set of the AP Series Mono Amplifiers • Heavy Density Aluminum Extruded Heatsink • 2 Layer PCB, SMD Technology • Differential Balanced RCA Inputs • Fully Variable Crossover 30Hz – 500Hz @ 24dB/Octave Slope • Fully Variable Infrasonic Filter 10Hz – 50Hz @ 24dB/Octave •...
- Page 4 If you do not have the required knowledge and experience, we recommend that you have your equipment installed by an Authorized Aunex Dealer. • Turn off all stereo and other electrical devices before you begin. •...
- Page 5 For optimum sound quality, it is highly recommended that you purchase Aunex wiring accessories as they are designed to give your amplifiers high-quality signal it needs to operate at peak performance levels. Aunex provides a wide selection from RCA...
- Page 6 Side Panel Layout 1. Remote Level Control: With the Remote Level Control plugged to your amplifier, you can now adjust the amount of output of your subwoofer from the convenience of this controller.
- Page 7 / source unit to your amplifier. (Note only one type of input is needed to send signal to your amplifier, therefore you only need to use either your Low Level or High-Level input. Aunex does not recommend connecting both Inputs simultaneously.) 3. Low...
- Page 8 Now take 10Hz from 40Hz which is 30Hz and where you should set your Infrasonic Filter. 6. Boost Eq: Your AP Series amplifiers incorporates a Boost Eq. circuit that can increase output 0-18dB centered at 45Hz. Note if you turn up the Boost Eq, you will need to readjust the Input Gains to avoid clipping the output signal.
- Page 9 14 is not recommended and may cause your amplifier to enter into protection mode and may void your warranty. For maximum current flow, Aunex recommends that you tin your speaker wire before connecting it to the speaker output terminals.
- Page 10 Side Panel Layout Continued For maximum current flow, Aunex recommends that you tin your power wire before connecting it to the +12Volt terminal. In addition, Aunex recommends using high quality 100% OFC (Oxygen Free Copper) or Tinned 100% OFC speaker wire. This will ensure that your speaker / subwoofer receives maximum output from your amplifier.
-
Page 11: Power Connection
Grounds as short as possible Vehicle Battery For maximum current flow, Aunex recommends that you tin your ground wire before connecting it to the ground terminal of your amplifier. In addition, Aunex recommends using high quality 100% OFC (Oxygen Free Copper) or Tinned 100% OFC speaker wire. - Page 12 Common Installation Diagrams The illustrations below show the common installation methods for your amplifier. It is important to make sure that the impedance of your subwoofers is either 1 ohm or higher. Connecting your amplifier below these impedances are not recommended as they will cause your amplifier to go into protection.
- Page 13 Common Installation Diagrams Continued 2. Two Single Voice Coil Subwoofer Speakers (Note: Don’t connect speaker impediance under 1 ohm) 2-4 ohm Subwoofer...
- Page 14 As all Aunex amplifiers are designed to deliver high power output, we recommend that you do not use any power wires that contains CCA (Copper Clad Aluminum).
-
Page 15: Technical Specifications
*This manual is the exclusive property of Aunex, Inc. Any reproduction of this manual or use other than its intended purposes is strictly prohibited without the express written consent of Aunex, Inc. ©Copyright 2020 Aunex, Inc. -
Page 16: Troubleshooting
Troubleshooting Problem Solution 1. Check to see if Power, Remote and Ground is connected to the Amplifier. Amplifier does not work; no 2. Check Power and Remote Turn-on lead for proper LED's on +12 Voltage. (12 - 16 Volts DC acceptable range.) 3. - Page 17 While this law is only for California and Aunex sells products to consumers in California, Aunex is required to display this warning. Warning: This product can expose you to...
- Page 18 Warranty Limited Warranty – AP Series Amplifiers Aunex, Inc. warrants this product to be free of defects in materials and workmanship for a period of 1 year from the original purchase date. This warranty is non-transferrable and applies only to the original purchaser from an Authorized Aunex Dealer. (Any...
- Page 19 Products purchased outside of the United States of America are covered by that country’s distributor and not by Aunex, Inc. For Service Information in the U.S.A. and to obtain a Return Merchandise...
- Page 20 Declare Your Independence! Aunex, Inc. 13865 Magnolia Avenue, Unit C Chino, CA 91710 T. (909) 589-5010 / F. (909) 589-5011 8:30am – 5:30pm (PST – Pacific Standard Time) www.aunexusa.com...
