Summary of Contents for Planet Networking & Communication HDVR-435

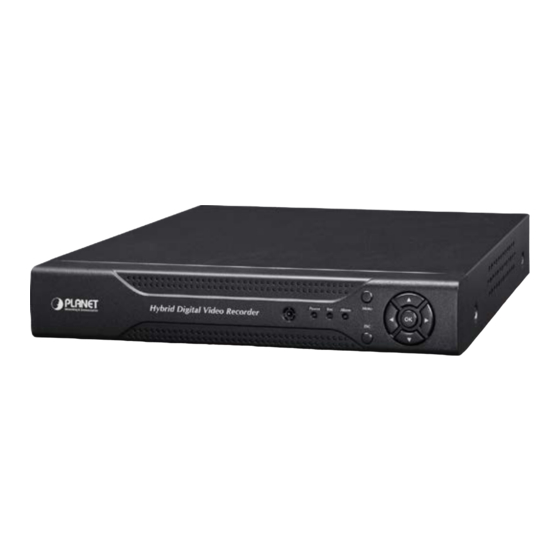

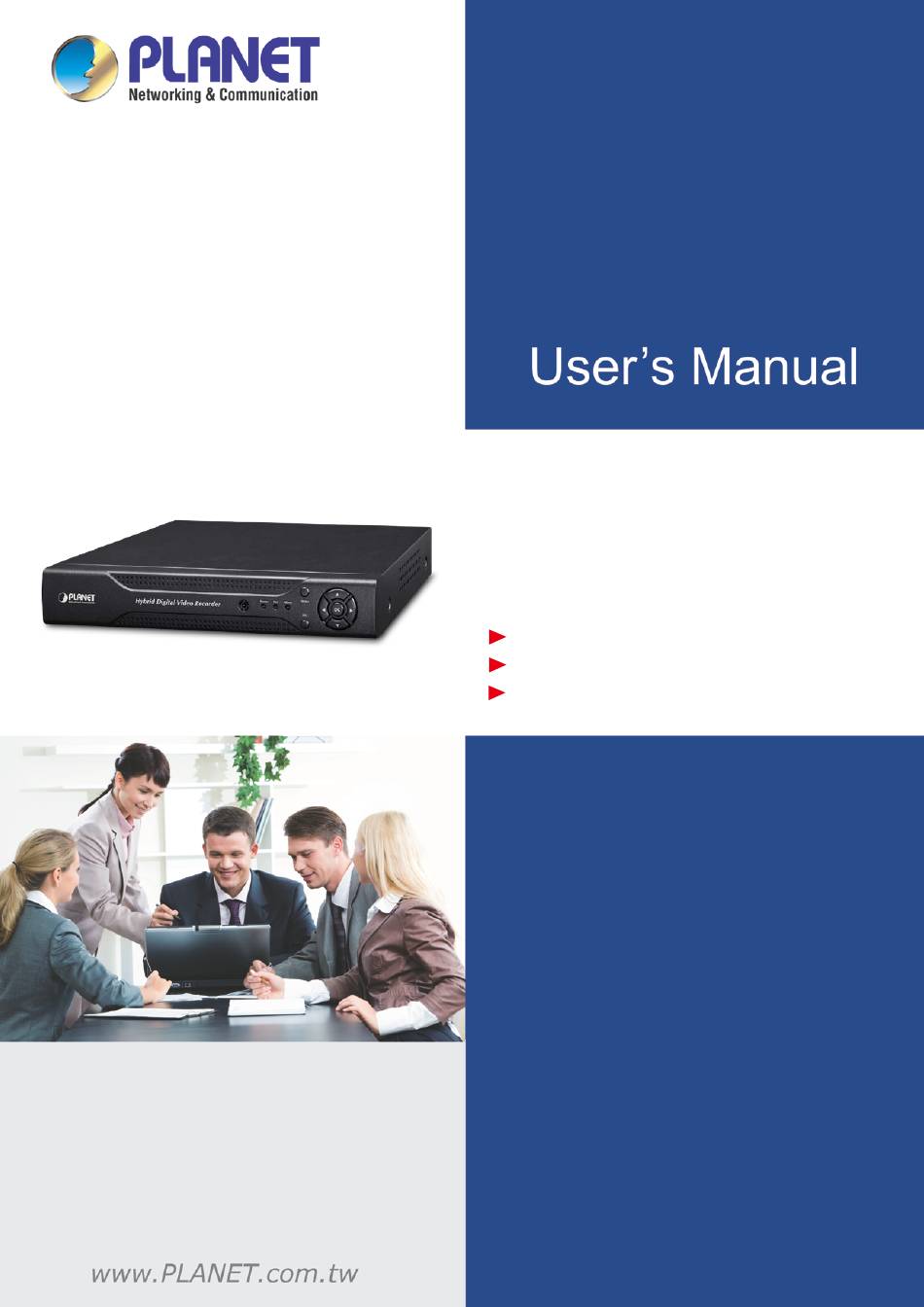

- Page 1 4-/8-/16-Channel H.265 Hybrid Digital Video Recorder HDVR-435 HDVR-835 HDVR-1635...
- Page 2 Hybrid Digital Video Recorder H.265 HDVR series Copyright Copyright 2019 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
- Page 3 Hybrid Digital Video Recorder H.265 HDVR series FCC Caution To assure continued compliance, for example, use only shielded interface cables when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 4 Hybrid Digital Video Recorder H.265 HDVR series Revision User’s Manual of PLANET H.265 Hybrid Digital Video Recorder Model: HDVR-435/HDVR-835/HDVR-1635 Rev: 1.0 (June 2019) Part No. EM-HDVR-435_835_1635_v1.0...
-
Page 5: Table Of Contents
Hybrid Digital Video Recorder H.265 HDVR series Table of Contents Chapter 1. Product Introduction ..............8 1.1 Package Contents ................8 1.2 Overview ................... 9 1.3 Features ..................10 1.4 Product Specifications ..............11 Chapter 2. Hardware Interface ..............15 2.1 Physical Descriptions ...............15 2.2 Hardware Installation ...............17 2.2.1 Installing Hard Disk ..............17 Chapter 3. - Page 6 Hybrid Digital Video Recorder H.265 HDVR series 5.5.1 Motion Detection ..............38 5.5.2 Video Blind ................42 5.5.3 Video Loss ................42 5.5.4 Abnormality ................43 5.6 System Setup ..................44 5.6.1 General ..................44 5.6.2 Encode Setup ................45 5.6.3 GUI Display ................47 5.6.4 PTZ/RS485 Device ..............50 5.6.5 Tour ..................52 5.6.6 Output Adjust .................53 5.6.7 Restore ..................54...
- Page 7 Hybrid Digital Video Recorder H.265 HDVR series Appendix A: Ping IP Address ................89 Appendix B: Planet DDNS Application ............90 Appendix C: Configuring Port Forwarding Manually ........91...
-
Page 8: Chapter 1. Product Introduction
Hybrid Digital Video Recorder H.265 HDVR series Chapter 1. Product Introduction 1.1 Package Contents The package should contain the following items: HDVR Unit x 1 Screw Kit x 1 Power Adapter x 1 Quick Installation Guide x 1 ... -
Page 9: Overview
1.2 Overview Efficient Solution for All Video Formats PLANET HDVR-435, 835, and 1635 are H.265 Hybrid DVR recorders which are able to record video and data from traditional AHD (analog high definition), HD-CVI (high definition composite video interface), HD-TVI (high definition transport video interface) and Network IP security cameras. -
Page 10: Features
H.265 HDVR series High Resolution Local Display The HDVR-435/835/1635 series provides HDMI and VGA video output interfaces for dual local displays, which can be connected to HDMI monitor or VGA monitor for live view monitoring with video output of maximum 1920 x 1080 resolutions. Due to local display, it can eliminate the need for a separate PC to view video from the unit. -
Page 11: Product Specifications
Up to 256 channels with the central management software Supports two USB2.0 ports for mouse control and backup Supports mobile phone remote viewer, Web UI and CMS 1.4 Product Specifications Product HDVR-435 HDVR-835 HDVR-1635 Hardware Ethernet 1 x RJ45, 10/100BASE-TX BNC Interface USB Interface 2 x USB 2.0 for backup device and mouse... - Page 12 Hybrid Digital Video Recorder H.265 HDVR series Power Button Menu, ESC, Direction and Enter Camera Max. Channels 4-channel cameras 8-channel cameras 16-channel cameras Additional Manual/Smart Camera Search Camera Video Video Signal AHD/TVI/CVI/CVBS/IP Video System PAL (625 lines, 50fps); NTSC (525 lines, 60fps) Compression H.265/H.264 IP camera: 1080p/960p/720p/D1...
- Page 13 Hybrid Digital Video Recorder H.265 HDVR series Live View Display Division 1, 4 1, 4, 8, 9 1, 4, 8, 9, 16 Snapshot Video snapshot in JPEG format Playback Record Manual, Alarm, Motion Detection, Schedule 2-ch simultaneous 4-ch simultaneous 8-ch simultaneous playback;...
- Page 14 Hybrid Digital Video Recorder H.265 HDVR series Sessions Privileges Live View, Playback, System Configurations, Camera Configurations, Recording Configuration, Event Configuration, Maintenance Graphic local user interface (Operated by mouse) Web browser (IE ) User Interface CMS utility Log Type All, System, Config, Storage, Alarm Event, Week Day, Account, Playback Software Utility Search utility, CMS, App...
-
Page 15: Chapter 2. Hardware Interface
Press to enter main menu Return Press to return to previous page Direction & Control and Press to select and enter Enter HDVR-435 Rear Panel Connector Description V1‐V4 Composite video signal (CVBS) input interface A1‐A4 The input interface of the audio signal... - Page 16 Hybrid Digital Video Recorder H.265 HDVR series HDVR-835 Rear Panel Connector Description Composite video signal (CVBS) input interface V1‐V8 A1‐A4 The input interface of the audio signal A-OUT/V-OUT The output interface of the audio/video signal The network interface of RJ45 HDMI The output interface of the HDMI video signal The output interface of the VGA video signal...
-
Page 17: Hardware Installation
Hybrid Digital Video Recorder H.265 HDVR series 2.2 Hardware Installation 2.2.1 Installing Hard Disk 1. Remove the upper case. 2. Plug the HDD power cable and SATA cable into the slots of the PCBA board and the HDD, respectively, making sure the connections are well done. - Page 18 Hybrid Digital Video Recorder H.265 HDVR series 3. Please align the screw holes on the HDD with those on the HDVR case and secure them with the given screws. 4. After the HDD is secured, it should look like the one in the pictures (front and back) below:...
-
Page 19: Chapter 3. Connecting To The Hdvr
Hybrid Digital Video Recorder H.265 HDVR series Chapter 3. Connecting to the HDVR There are various ways you can connect to the HDVR and below are the suggested methods for different network setups: The HDVR is placed in a network with a DHCP server: Connect to the HDVR by using “HDVR Search Tool”... - Page 20 Hybrid Digital Video Recorder H.265 HDVR series Next, press the “Search” button to find the HDVR. The HDVR should be located and its IP address should be displayed. Select the HDVR and click on “Visit”; the program should automatically access the HDVR’s web administration page from your default browser.
-
Page 21: Accessing Hdvr With Its Default Ip Address
Hybrid Digital Video Recorder H.265 HDVR series 3.2 Accessing HDVR with its default IP address The HDVR comes with a pre-configured static IP address “192.168.0.20”. However, it is only used when there is no DHCP server presented in the network. Connect the HDVR and PC to your switch or hub, or connect the PC directly to the HDVR using a crossover Cat5 Ethernet cable. - Page 22 Hybrid Digital Video Recorder H.265 HDVR series Login page of Web...
-
Page 23: Chapter 4. Basic Operation
Hybrid Digital Video Recorder H.265 HDVR series Chapter 4. Basic Operation This chapter provides setup instructions of the HDVR local display Interface. 4.1 Main/Live Viewing The main/live view is the first interface displayed once you access the HDVR through local display. -
Page 24: Preview
Hybrid Digital Video Recorder H.265 HDVR series 4.2 Preview You can right-click mouse to switch between the windows. The system date, time and channel name are shown in each viewing window. The surveillance video and alarm statuses are shown in each window. Recording status Video loss Motion detection... -
Page 25: Main Menu
Hybrid Digital Video Recorder H.265 HDVR series 4.3.1 Main Menu The system main menu is shown below after login. Picture 4.3 Main Menu 4.3.2 Window Switch Previewing in single window, four windows, eight windows, nine windows or sixteen windows is up to your choice. -
Page 26: Guide
Hybrid Digital Video Recorder H.265 HDVR series 4.3.3 Guide Select “Cloud” to enable cloud service function. Select “Will no longer be prompted”, HDVR will not display Guide interface after boot. Click “Next Page” button to enter next option. Picture 4.4 Guide 4.3.4 PTZ Control PTZ control is a little different between analog mode and full digital mode. -
Page 27: Coaxial Control
Hybrid Digital Video Recorder H.265 HDVR series Picture 4.5 PTZ Setup Speed Set the PTZ rotation range. Default range: 1 ~ 8. Click the button to adjust the focal length of the Zoom camera. Focus Click the button to adjust the focus of the camera. Iris Click the button to adjust the iris of the camera. -
Page 28: Preview Signal
Hybrid Digital Video Recorder H.265 HDVR series Picture 4.6 Coaxial Control Setup 4.3.6 Preview Signal Click “Preview Signal” to enter preview signal selection interface, and then set43 to AHD/TVI/CVI signal preview. Picture 4.7 Signal 4.3.7 Color Setting Color setting is only applied for hybrid /full analog mode and can be configured in analog channel. -
Page 29: Playback
Hybrid Digital Video Recorder H.265 HDVR series Picture 4.8 Color Setting 4.3.8 Playback There are two methods for you to exceed playback. In the desktop shortcut menu. Main menuPlayback The hard disk that saves the video files must be set as read-write or read-only state. - Page 30 Hybrid Digital Video Recorder H.265 HDVR series Function Function Play/Pause Backward play Slow forward Fast forward Previous frame Next frame Previous file Next file Full screen Stop Table 4.10 Playback Control Button Operation tips: Show function of the key that cursor placed. Play frame by frame;...
-
Page 31: Record
Hybrid Digital Video Recorder H.265 HDVR series 4.3.9 Record Please check the current channel status; “○” means it is not in the recording status, and “●” means it is in the recording status. You can use desktop shortcut menu or click [main menu]> [recording function]>... -
Page 32: Camera Management
Hybrid Digital Video Recorder H.265 HDVR series In this series of product, the HDVR provides full analog channel mode, hybrid mode and full digital mode in channel type. Different models have different channel modes. User can shift the mode freely if necessary. 4.3.11 Camera Management Picture 4.13 Camera Management... -
Page 33: Chapter 5. Main Menu
Hybrid Digital Video Recorder H.265 HDVR series Chapter 5. Main Menu 5.1 Main Menu Navigation Main Menu Sub Menu Function Set the recording configuration, recording type and Record Config recording time section Set recording search, recording play and video file Playback Config storage... - Page 34 Hybrid Digital Video Recorder H.265 HDVR series Main Menu Sub Menu Function System events include no storage, storage error, limited Abnormality storage space, network disconnection and IP Conflict. Event action parameters: message and buzzer. Set system time, data format, language and hard disk in General action when it is full and comes with machine number, configuration...
-
Page 35: Record
Hybrid Digital Video Recorder H.265 HDVR series Main Menu Sub Menu Function Device Info Device configuration and information Upgrade Upgrade firmware with external device (like USB) Automatic Settings for automatic reboot system and auto-delete old Maintenance files. Export the device's log or configuration to external Import/Export device (like USB flash disk);... - Page 36 Hybrid Digital Video Recorder H.265 HDVR series Picture 5.1 Record Configuration Choose the corresponding channel number to set the channel. Channel Choose the all option to set the entire channels. Choose the redundancy function option to implement the file double backup function. Double backup is writing the video files Redundancy in two hard disks.
-
Page 37: Playback
Hybrid Digital Video Recorder H.265 HDVR series Refer to chapter 5.5 to set corresponding sensor function. 5.3 Playback Refer to chapter 4.3.8. 5.4 Backup You can back up the video files to external storage through setup. The storage must be installed before the file backup. -
Page 38: Sensor Function
Hybrid Digital Video Recorder H.265 HDVR series Picture 5.3 Backup Remove Clear the file information. Search Show the file information satisfying the set file attributes. Configure the backup file format based on requirement. H.26X, Backup Format AVI or MP4 format can be selected. Start Click the start button to start the backup Burning... - Page 39 Hybrid Digital Video Recorder H.265 HDVR series Digital channel: It not only enables motion detection function at the local side, but also enables the remote device that is connected. When remote device detects motion movement, the local side will start alarm recording, provided this function is not enabled. Picture 5.4 Motion Detection Channel Choose the set motion detection channel.
- Page 40 Hybrid Digital Video Recorder H.265 HDVR series Only one alarm signal is turned on even there are several Interval/Sec. motion detection signals in the set interval. Delay a few moments and stop when the alarm state is turned Record delay/Sec. off.
- Page 41 Hybrid Digital Video Recorder H.265 HDVR series PTZ Activation: Set the PTZ activation when the alarm is turned on. In hybrid mode, PTZ links to the related PTZ information of analog channel. While in digital channel model, PTZ links to the related PTZ information on the remote device which is connected.
-
Page 42: Video Blind
Hybrid Digital Video Recorder H.265 HDVR series Buzz: When alarm happens, the device will send out a buzz. 5.5.2 Video Blind When the video image is influenced by the environment such as poor brightness or reaching the set sensitivity parameter, the camera mask function and the linkage function are turned on. The details are shown below. -
Page 43: Abnormality
Hybrid Digital Video Recorder H.265 HDVR series Picture 5.9 Video Loss Set method: refer to Motion Detection in Chapter 5.5.1. 5.5.4 Abnormality Analyzing and inspecting the current software and hardware of the device. When some abnormal events happen, the device will take an action immediately, such as show message and buzzer. -
Page 44: System Setup
Hybrid Digital Video Recorder H.265 HDVR series Event Type Select abnormality you want to inspect. Enable Select it to make sure abnormal function workable Automatically alarm cue dialog box pops out of the main Show Message screen Buzzer Device will have one long “di” sound while alarm is happening 5.6 System Setup In system setting, the functions contain General, Encode, GUI display, PTZ configure/RS485 device, Tour, Output Adjust, Restore, RS232, and Account. -
Page 45: Encode Setup
Hybrid Digital Video Recorder H.265 HDVR series Date Separator Choose list separator of the date format. Choose time format: 24-hour or 12-hour. Time Format Language Support multiple languages up to 28. Stop recording: Stop recording when the hard disk is full. HDD Full Overwrite: Cover the earliest recording files and continue recording when the hard disk is full... - Page 46 Hybrid Digital Video Recorder H.265 HDVR series stream parameter in the left part, and set the extra stream parameter in the right part. Extra stream introduces video compression technique which applies for multi-channel playback simultaneously, dial-up multi-channel real-time monitor under poor bandwidth, or mobile monitor, and so on. Picture 5.13 Digital Encode Setup Picture 5.14 Hybrid/ Analog Encode Setup Channel...
-
Page 47: Gui Display
Hybrid Digital Video Recorder H.265 HDVR series Compression Standard H.264/H.265/H.265+ main profile and extra stream. Resolution type: 1080P/720P/960H/VGA/D1/CIF. Resolution Frame Rate 1 frame/s~25 frame/s You can choose limited code stream (CBR) or variable code stream (VBR). When you choose the variable code stream, there are six Bit Rate Type image quality options. - Page 48 Hybrid Digital Video Recorder H.265 HDVR series Encode output: In the network surveillance and video file mode, it includes channel title, time display, channel display, record status, alarm status, transparency and region cover information. The GUI Display Page in Hybrid Mode and All Analog Mode Picture 5.15 Output Mode The GUI Display Page in Full Digital Channel Output Mode Picture 5.16 Output Mode...
- Page 49 Hybrid Digital Video Recorder H.265 HDVR series Time Display Display the system data and time in the surveillance window. Display the system channel number in the surveillance Channel Display window. Display the system recording status in the surveillance window. Record Status Alarm Status Display the system alarm status in the surveillance window.
-
Page 50: Ptz/Rs485 Device
Hybrid Digital Video Recorder H.265 HDVR series 5.6.4 PTZ/RS485 Device When system is in hybrid mode or full analog mode, PTZ device and RS485 device are listed on the PTZ configure page. Picture 5.17 PTZ Configuration Channel Choose input channel of dome camera. Choose the corresponding dome protocol. - Page 51 Hybrid Digital Video Recorder H.265 HDVR series When in full digital mode, only RS485 device is shown below. Picture 5.18 RS485 Device Protocol Choose related protocol of brand model (e.g. Vista) Address Set with corresponding address, default is 1 Choose baud rate that related device uses; default is 9600 Baud Rate Data Bits Include 5-8 options, default is 8...
-
Page 52: Tour
Hybrid Digital Video Recorder H.265 HDVR series 5.6.5 Tour Set the patrol display. The tour mode is enabled when box is checked. You can choose the single-view, four-view or nine-view of single mode tour or hybrid mode tour. Picture 5.19 Tour Configure MD Interval Set the patrol switch interval. -
Page 53: Output Adjust
Hybrid Digital Video Recorder H.265 HDVR series 5.6.6 Output Adjust In hybrid mode, the output adjust function supports black vertical and black horizontal adjustment; in full digital mode, the function does not support the adjustment below. The function allows you to adjust TV output area parameters. You can go to the setup interface via desktop shortcut menu or enter [main menu]>... -
Page 54: Restore
Hybrid Digital Video Recorder H.265 HDVR series 5.6.7 Restore Reset the HDVR’s settings to their factory default values. You can choose the items according to your requirements. Picture 5.21 Restoring to Default 5.6.8 RS232 Picture 5.22 Serial Port Setting Common serial port is used to debug and update program or Function set up specific serial port. -
Page 55: Account
Hybrid Digital Video Recorder H.265 HDVR series Data Bits Include 5-8 options. Stop Bits Include 2 options. Include odd, even, mark, space, default is none. Parity 5.6.9 Account Manage the user purview. 1. The character length is 8 bytes at most for the following user and user team name. The blank ahead or behind the character string is invalid. - Page 56 Hybrid Digital Video Recorder H.265 HDVR series Modify Password: Modify the user password. You can set 1-6 bit password. The blank ahead or behind the character string is invalid. The middle blank in the character string is valid. The user who possesses the user control purview can modify his/her own or other user’s password.
- Page 57 Hybrid Digital Video Recorder H.265 HDVR series Add Group: Add a user group and set the purview. There are 33 different purviews: shut down the equipment, real-time surveillance, playback, record setting, video backup, etc. Picture 5.26 Adding Group Delete User: Delete the current user. Choose the user and click the delete user button. Delete Group: Delete the current group.
-
Page 58: Advanced
Hybrid Digital Video Recorder H.265 HDVR series 5.7 Advanced Manage tools menu provides Version, Log, BPS, Online User, Device Info, Upgrade, Auto Maintain and Import/Export functions. 5.7.1 Version Display the basic information such as hardware information, software version, issue date, serial number and NAT status. -
Page 59: Log
Hybrid Digital Video Recorder H.265 HDVR series 5.7.2 Log Log information includes system operation, configuration operation, data management, alarm affair, recording operation, user management, file management, etc. You can set the time section and click the Search button to look for logs. The log information will be displayed as the following list (one page lists 128 items). -
Page 60: Online User
Hybrid Digital Video Recorder H.265 HDVR series 5.7.4 Online User Check the information of network user that is connected with local device. Tick the selected user to break up connection, (make √ at the box), and then the user will be frozen after connection is stopped. -
Page 61: Upgrade
Hybrid Digital Video Recorder H.265 HDVR series 5.7.6 Upgrade Picture 5.33 Upgrade Upgrade: Choose USB interface. Upgrade file: Choose the upgrade file. 5.7.7 Auto Maintain The user can set the time to auto reboot and auto delete file. Picture 5.34 Auto Maintain 5.7.8 Import/Export Users can export the log info and the configure file from device to connected flash stick, and also can import related configure file from flash stick to settings, which greatly bring... -
Page 62: Hdd Management
Hybrid Digital Video Recorder H.265 HDVR series convenience to the customers. Picture 5.35 Import/Export Interface 5.8 HDD Management Configure and manage the hard disk. The menu displays the following current hard disk information: hard disk number, input port, type, status and overall capability. The operation setup includes the write-read disk, read-only disk, redundant disk, hard disk format, recover and partition. -
Page 63: Hdd Info
Hybrid Digital Video Recorder H.265 HDVR series Picture 5.36 HDD Manage 5.8.1 HDD Info Display the hard disk state and it lists hard disk type, overall capability, residual capability, the recording time, etc. Picture 5.37 HDD Info Tips: Symbol “○” means that the hard disk is normal; symbol “X” means that the hard disk is broken down;... -
Page 64: Network
Hybrid Digital Video Recorder H.265 HDVR series Symbol “*” behind serial number means the current working disk such as 1*. If the corresponding disk is damaged, the information will show “？”. 5.9 Network Manage tools menu provides Network, DDNS, UPNP, Email, Cloud and Net Service. 5.9.1 Network Setup Picture 5.38 Network Setup Net Card... -
Page 65: Ddns
Hybrid Digital Video Recorder H.265 HDVR series address must be set and reboot to enable to work. Media Port Default: 34567. Default: 80. HTTP Port HS Download Network high-speed download There are three strategies: self-adaption, image quality precedence and fluency precedence. The code stream will adjust according to the setup. -
Page 66: Upnp
Hybrid Digital Video Recorder H.265 HDVR series Provide the domain name registered by DDNS. Domain Name For example, hdvr1630test.planetddns.com User Name Provide the account registered by DDNS. Provide the password registered by DDNS. Password When the DDNS is successfully configured and starts, you can connect the domain name in the IE address column to visit. -
Page 67: Email
Hybrid Digital Video Recorder H.265 HDVR series Router will automatically distribute TCP port for the device. TCP Port The port is needed when live view is made via CMS. 5.9.4 EMAIL If the alarm is turned on or the alarm linkage photos are taken, send an email about the alarm information and the photos to appointed address. -
Page 68: Cloud
Hybrid Digital Video Recorder H.265 HDVR series Title You can set a message as you want (e.g. Alarm Message). 5.9.5 Cloud The cloud function is enabled by default. The user is able to scan the iOS or Android QR code to install app viewer (OKview) on mobile. -
Page 69: Net Service
Hybrid Digital Video Recorder H.265 HDVR series When you execute OKview app, you can input the required information as below then press the “save” button to take effect. Picture 5.43 App Setup In GID field, you can double click the QR code icon to start your QR code scanner app. - Page 70 Hybrid Digital Video Recorder H.265 HDVR series Choose the network service option and click the set button to configure the advanced network functions or double-click the service button to configure the parameters. Picture 5.44 Net Service Setup PPPoE Setup Picture 5.45 PPPoE Setup Input the user name and password that ISP (Internet service provider) provides.
- Page 71 Hybrid Digital Video Recorder H.265 HDVR series visit the HDVR through user port. RTSP Setup The setting is for live view via browsers (Safari, Firefox, and Chrome) and VLC software. This function is only for live view and it cannot control the device. Picture 5.46 RTSP Setup It means the function is activated when the box is checked.
- Page 72 Hybrid Digital Video Recorder H.265 HDVR series Picture 5.47 IP Filter Setup FTP Setup FTP is available only when alarm happens or alarm activates record and snapshot. It will upload related record and snapshot pictures to FTP server. Picture 5.48 FTP Setup Server IP IP address of FTP server Port...
- Page 73 Hybrid Digital Video Recorder H.265 HDVR series User Name User name of FTP server Password Password of FTP server When anonymous is enabled, setting user name and password Anonymous is not required Max. length for uploaded files at every packed, default value is Max.
- Page 74 Hybrid Digital Video Recorder H.265 HDVR series Port Default: 123. You can set the port according to NTP server. The same with the NTP server check interval. Default: 10 Update Period minutes. Dropbox Setup Picture 5.50 Dropbox...
- Page 75 Hybrid Digital Video Recorder H.265 HDVR series The procedure follows below: 1. Log in with a Dropbox account to apply for a Drobox space. Go to https://www.dropbox.com/developers/apps and create an app (click on the "Create app" button). The interface is shown below. Here we create a normal API, the permissions for the directory and the name is SimonTestApp3.
- Page 76 Hybrid Digital Video Recorder H.265 HDVR series Set the corresponding parameters, click the "Apply for production" button, and mainly remember the contents of the App key and App secret. We need to use it for the device configuration. If you don't remember it, you can view all the created apps at https://www.dropbox.com/developers/apps.
- Page 77 Hybrid Digital Video Recorder H.265 HDVR series 3. In the newly opened page, follow the prompts and finally copy the Code value in the following figure to the “Code” column in the “Network Service Dropbox” configuration interface. Note: Be sure to complete the operation within 3 minutes, otherwise the code will expire.
-
Page 78: Camera
Hybrid Digital Video Recorder H.265 HDVR series 4. Click “OK” and wait for the result. If the configuration fails, repeat steps 2 and 3 until the configuration is successful. 5.10 Camera The camera function includes camera manage, channel status and channel type. There is only analog mode if device is in full analog mode... - Page 79 Hybrid Digital Video Recorder H.265 HDVR series Channel Manage Page in All Analog (DVR) Mode Picture 5.51 Camera Interface Channel Manage Page in Hybrid Mode/Full Digital Mode Picture 5.52 Camera Interface...
- Page 80 Hybrid Digital Video Recorder H.265 HDVR series Digital Channel: Picture 5.53 Single Link Page of Digital Channel Select channel title Channel When the digital channel is enabled, user is able to configure Enable related settings for the channel. Time When the function is enabled, the time of channel will be the Synchronization same as the device.
- Page 81 Hybrid Digital Video Recorder H.265 HDVR series Picture 5.54 Remote Channel Configuration Default configuration title of the device. User can modify it if Configure Name necessary. Device Type Default is IPC Default is NETIP Protocol User can input remote channel title from the device that you Remote Channel want to connect remotely Stream...
- Page 82 Hybrid Digital Video Recorder H.265 HDVR series After clicking the Search button, the list will show all the devices in the network. User can choose any device that you prefer. Picture 5.55 Device Searched List Channel Status: Channel status is to show the status of all digital channels which are connected. The status information includes channel, maximum resolution, frame rate and connection status.
- Page 83 Hybrid Digital Video Recorder H.265 HDVR series When a channel is added to device but it is not enabled, you will see as shown below. Picture 5.57 Resolution Status Channel status interface is in full digital mode; the first channel with 5MP resolution is disconnected because of resolution limitation (1080p).
-
Page 84: Logout
Hybrid Digital Video Recorder H.265 HDVR series Channel Type: Picture 5.59 Channel Type In this series of product, the HDVR provides full analog channel mode, hybrid mode and full digital mode in channel type. Different models have different channel modes. User can shift the mode freely if necessary. 5.11 Logout In logout setup interface, it comes with logout, shutdown and reboot functions. - Page 85 Hybrid Digital Video Recorder H.265 HDVR series Logout Press to log out; password is needed to re-enter. Press to turn off the system after three seconds. Cancel Shutdown midway is of no effect. Press to reboot the system. Reboot...
-
Page 86: Chapter 6. Web Remote Management
Hybrid Digital Video Recorder H.265 HDVR series Chapter 6. Web Remote Management The HDVR is able to be viewed from Internet Explorer when the network is available. You can have live view, playback and most of the functions that are the same as those of the HDVR system. - Page 87 Hybrid Digital Video Recorder H.265 HDVR series see the “Bit Rate Type” window shown below: You may select bit rate type you would like to view on your computer. The bit rate type can impact bandwidth consumption on IE.
-
Page 88: Live View On Browser
Hybrid Digital Video Recorder H.265 HDVR series 6.2 Live View on Browser On the main page, the Web user interface provides playback, log, main config, local config and logout functions. All the main settings of the device are on the main config page. - Page 89 Hybrid Digital Video Recorder H.265 HDVR series Appendix A: Ping IP Address The ping (Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It’s also a very useful tool to confirm whether or not Internet camera is installed or if the IP address conflicts with any other device over the network.
- Page 90 Hybrid Digital Video Recorder H.265 HDVR series Appendix B: Planet DDNS Application Configuring PLANET DDNS Steps: Step 1 Visit DDNS provider’s web site and register an account if you do not have one yet. For example, register an account at http://planetddns.com Step 2 Enable DDNS option through accessing web page of the camera.
- Page 91 Hybrid Digital Video Recorder H.265 HDVR series Appendix C: Configuring Port Forwarding Manually The device can be used with a router. If the device wants to be accessed from the WAN, its IP address needs to be set up as a fixed IP address. The port forwarding or Virtual Server function of router also needs to be set up.
- Page 92 Hybrid Digital Video Recorder H.265 HDVR series Your WAN IP address will be listed here. 3. Opening/Setting Virtual Server Ports to enable remote image viewing The firewall security feature is built into the router and most routers prevent users from accessing the video from the device over the Internet.
- Page 93 Hybrid Digital Video Recorder H.265 HDVR series instructions on how to open ports. Enter valid ports in the Virtual Server section of your router. Please make sure to check the box on this line to enable settings. Then the device can be accessed from WAN by the router’s WAN IP address.
