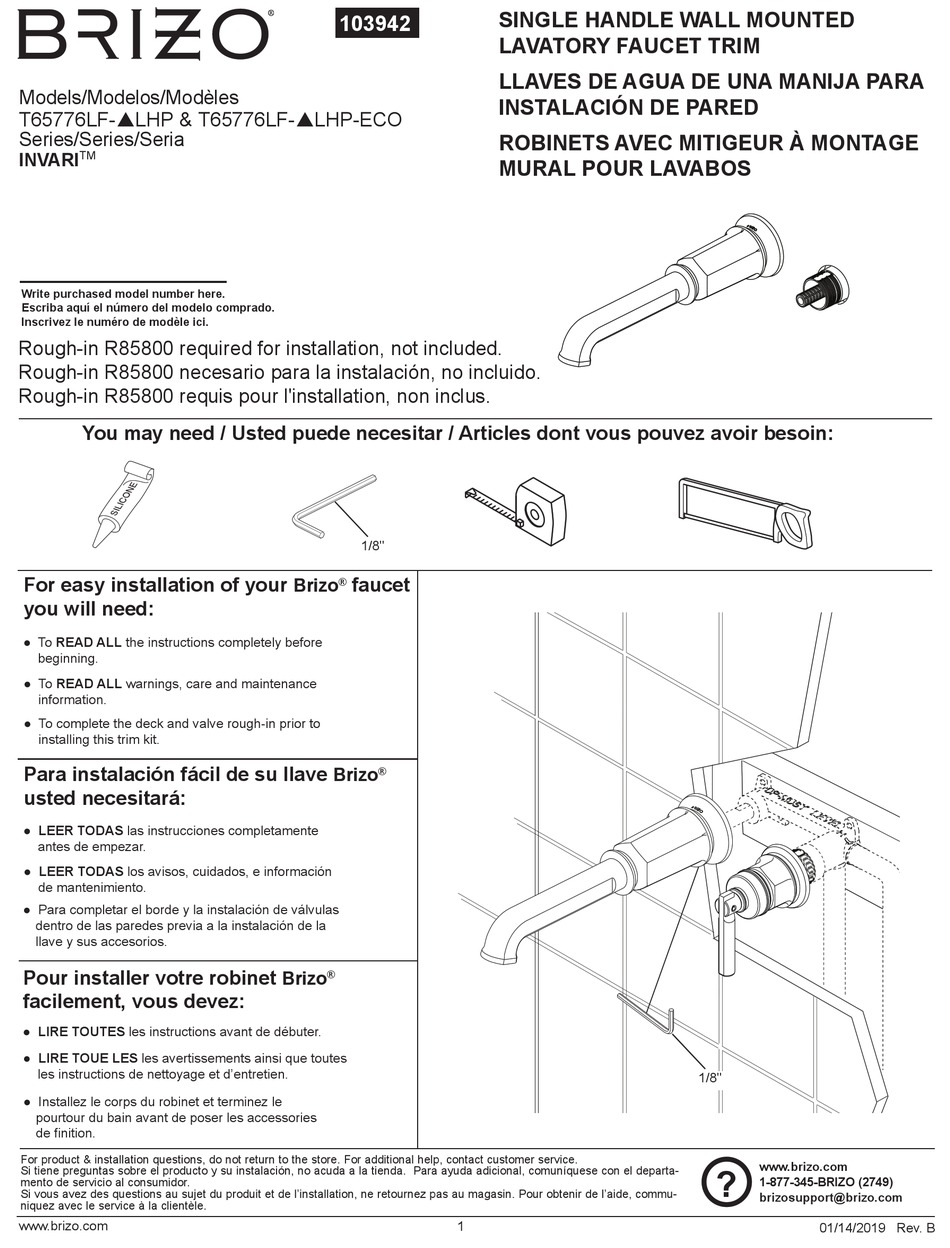

Brizo INVARI T65776LF-LHP Series Quick Start Manual

Single handle wall mounted lavatory faucet trim

Advertisement

Quick Links

Models/Modelos/Modèles
T65776LF-pLHP & T65776LF-pLHP-ECO
Series/Series/Seria
INVARI
TM
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
Rough-in R85800 required for installation, not included.
Rough-in R85800 necesario para la instalación, no incluido.
Rough-in R85800 requis pour l'installation, non inclus.
You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin:
For easy installation of your
you will need:
● To READ ALL the instructions completely before
beginning.
● To READ ALL warnings, care and maintenance
information.
● To complete the deck and valve rough-in prior to
installing this trim kit.
Para instalación fácil de su llave
usted necesitará:
● LEER TODAS las instrucciones completamente
antes de empezar.
● LEER TODAS los avisos, cuidados, e información
de mantenimiento.
● Para completar el borde y la instalación de válvulas
dentro de las paredes previa a la instalación de la
llave y sus accesorios.
Pour installer votre robinet
facilement, vous devez:
● LIRE TOUTES les instructions avant de débuter.
● LIRE TOUE LES les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien.
● Installez le corps du robinet et terminez le
pourtour du bain avant de poser les accessories
de finition.
For product & installation questions, do not return to the store. For additional help, contact customer service.
Si tiene preguntas sobre el producto y su instalación, no acuda a la tienda. Para ayuda adicional, comuníquese con el departa-
mento de servicio al consumidor.
Si vous avez des questions au sujet du produit et de l'installation, ne retournez pas au magasin. Pour obtenir de l'aide, commu-
niquez avec le service à la clientèle.
www.brizo.com
103942
1/8"
faucet
Brizo
®
Brizo
®
Brizo
®
1
SINGLE HANDLE WALL MOUNTED
LAVATORY FAUCET TRIM
LLAVES DE AGUA DE UNA MANIJA PARA
INSTALACIÓN DE PARED
ROBINETS AVEC MITIGEUR À MONTAGE
MURAL POUR LAVABOS
1/8"
www.brizo.com
?
1-877-345-BRIZO (2749)
brizosupport@brizo.com
01/14/2019 Rev. B

Advertisement

loading
Need help?

Need help?

Do you have a question about the INVARI T65776LF-LHP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Brizo INVARI T65776LF-LHP Series

  • Page 1 Si tiene preguntas sobre el producto y su instalación, no acuda a la tienda. Para ayuda adicional, comuníquese con el departa- mento de servicio al consumidor. 1-877-345-BRIZO (2749) Si vous avez des questions au sujet du produit et de l’installation, ne retournez pas au magasin. Pour obtenir de l’aide, commu- brizosupport@brizo.com...
  • Page 2 R85800 Finished wall Cut 1 7/8” from finished wall Remove and cut 1” from finished wall. Finished wall Rough (R85800) must be installed prior to installing trim. Vertify finished Mark the cartridge stem (4) 1 7/8" (48 mm) from the finished wall (3). wall is located between indicator lines on plaster guard.
  • Page 3 Turn cartridge stem (4) clockwise to off position. Install gasket (10) Flush your system into groove of handle base (11). Place the handle over the cartridge Turn on water supplies, if closed. urn faucet handle to the full on position stem (4).
  • Page 4: Mantenimiento

    Maintenance SHUT OFF WATER SUPPLIES If faucet exhibits very low flow: SHUT OFF WATER SUPPLIES. A. Remove debris from aerator (7) using a small soft brush. If faucet leaks from under handle: SHUT OFF WATER SUPPLIES. A. Remove handle (3), stem (1) and sleeve (2). B.
  • Page 5 PRODUCT FOR AN UNINTENDED APPLICATION, FREEZING WATER, ABUSE, NEGLECT OR IMPROPER product are not covered by this warranty. Brizo Kitchen & Bath Company shall not be liable for any damage to the OR INCORRECTLY PERFORMED INSTALLATION, MAINTENANCE OR REPAIR, INCLUDING FAILURE TO product resulting from reasonable wear and tear, outdoor use, misuse (including use of the product for an unin- FOLLOW THE APPLICABLE INSTALLATION, CARE AND CLEANING INSTRUCTIONS.
  • Page 6 103942 Rev. B...

This manual is also suitable for:

Invari t65776lf-lhp-eco series
