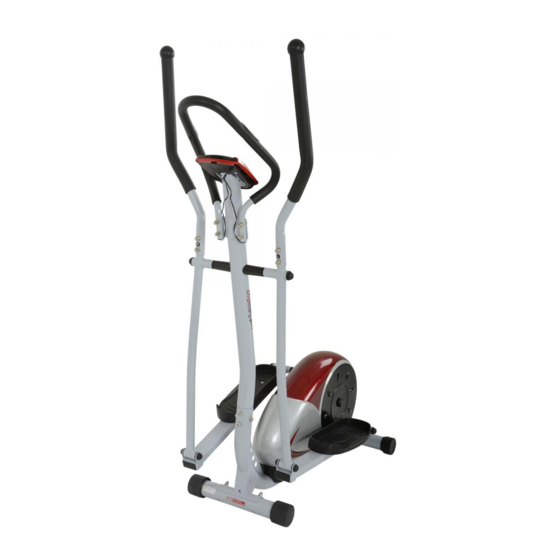

Summary of Contents for Rossler FITSTAR CT

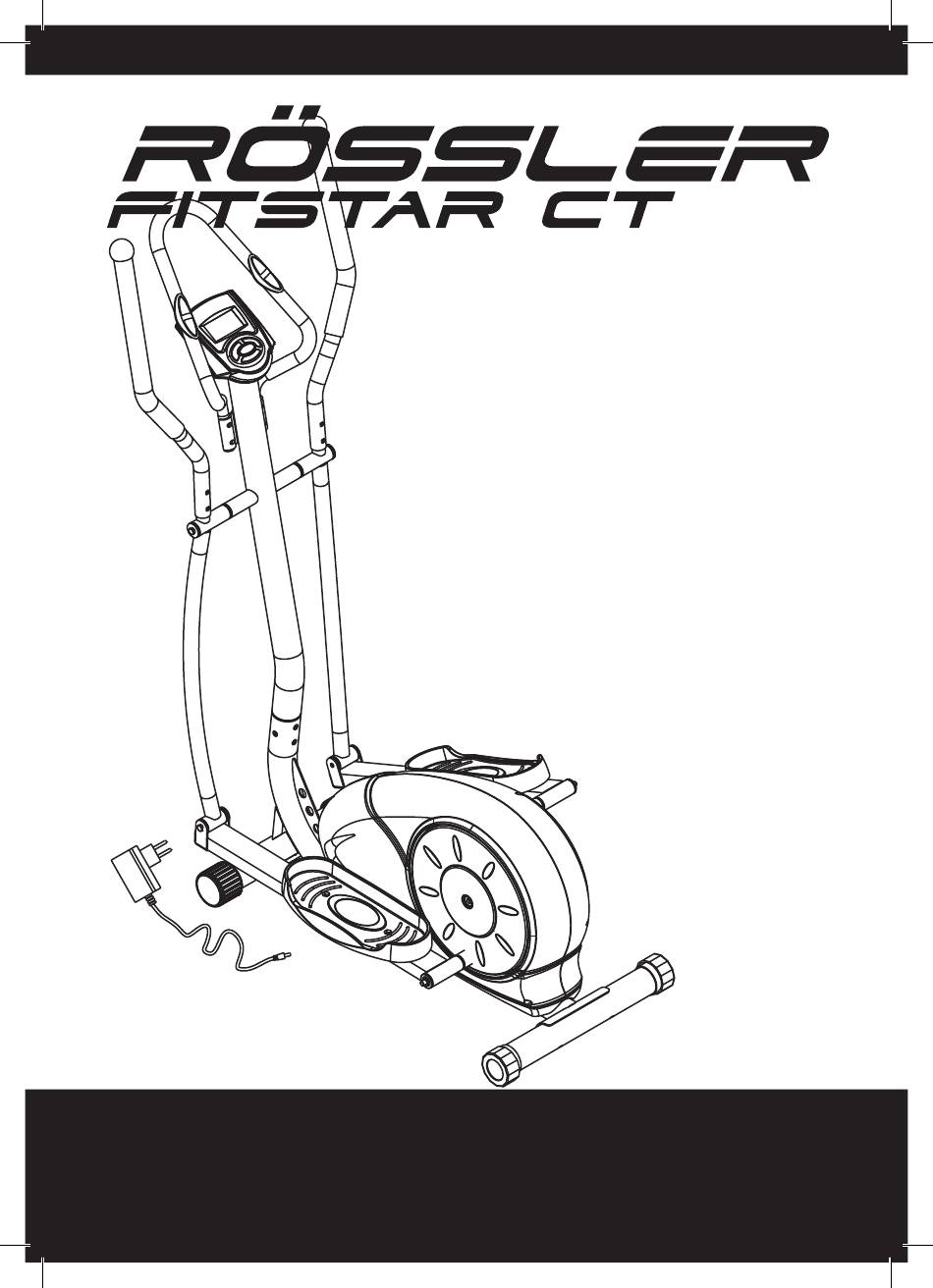

  • Page 1 021153 Gebruiksaanwijzing User manual Mode d’ emploi Montage Assembly Montage Computerinstructies Exercise monitor Console électronique Algemene fitnesstips General fitness tips Conseils généraux fitness Garantie Warranty Garantie...
  • Page 2 Opengewerkte tekening/ Exploded view/ Vue d’ensemble...
  • Page 3 Onderdelenlijst Omschrijving Stuks Omschrijving Stuks Computer Afsluitdop ф60 Schroef m5*10 Achterste stabilisator Afstandhouder Bout m8*73*20*h5 31.8*Φ19.2*75.5 Alu bus 2 φ32*3 Boogring d8*φ20*2*r30 Sluitring d8*φ32*2 Frame Bout m8*16*s14 Afsluitdop ф60*ф78*62 Afsluitdop s13 Voorste stabilisator Bout m8*43*20*h3 Aansluitsnoer 1 Boogring d8*φ20*2*r16 Aansluitsnoer 2 Moer m8*h16*s13 Schroef m8*38*15*s6 Stuurbuis (L/R)
  • Page 4: Parts List

    Parts list Description Q’ty Description Q’ty Computer End cap ф60 Screw m5*10 Rear stabilizer Long spacer 31.8*Φ19.2*75.5 2 Bolt m8*73*20*h5 Alloy wrap 2 φ32*3 Arc washer d8*φ20*2*r30 Washer d8*φ32*2 Main frame Bolt m8*16*s14 End cap ф60*ф78*62 End cap s13 Front stabilizer Bolt m8*43*20*h3 Trunk wire 1 Arc washer d8*φ20*2*r16...
  • Page 5: Liste Des Pieces

    Liste des pieces Description Q’té Description Q’té Computer Embout ф60 Vis m5*10 Stabilisateur arrière Entretoise 31.8*Φ19.2*75.5 Écrou m8*73*20*h5 Bus 2 φ32*3 Arc rondelle d8*φ20*2*r30 Rondelle d8*φ32*2 Cadre Écrou m8*16*s14 Embout ф60*ф78*62 Embout s13 Stabilisateur avant Écrou m8*43*20*h3 Câble de raccordement 1 Arc rondelle d8*φ20*2*r16 Câble de raccordement 2 Boulon m8*h16*s13...
  • Page 6 Verbind de voorste stabilisator (33) en de achterste stabilisator (28) met het frame (31) door mid- del van de bouten (29), boogringen (30) en moeren (10). Secure front stabilizer (33) and rear stabilizer (28) to main frame (31) with bolts (29), arc washers (30) and nuts (10).
  • Page 7 Klik aansluitsnoer 1 (34) stevig vast op aan- sluitsnoer 2 (35). Verbind de centrale buis (41) met het frame (31) met de bouten (15) en boogringen (30). Connect trunk wire 1 (34) with trunk wire 2 (35) well. Secure handlebar post (41) to main frame (31) with screws (15) and arc washers (30).
  • Page 8 Verbind de swingarmen (14L/R) met de as van de centrale buis (41), en maak vast met de bouten (6), veerringen (48) en sluitringen (5) en plaats de afsluitdoppen (7). Maak de verbindingsarmen (23L/R) vast aan het frame (31) met moeren (25) en ringen (24), en plaats de afsluitdoppen (26). Maak de swingarmen (14L/R) vast aan de verbindingsarmen (23L/R) met de bouten (19), ringen (17) en moeren (16).
  • Page 9 Verbind de pedalen (21L/R) met de verbindingsstangen (23L/R)met behulp van de bouten (20), sluitringen (17) en moeren (16). Verbind stuurstangen (11 L/R) aan de swingarmen (14L/R) met de bouten (8), boogringen (9) en moeren (10). Secure pedal (21L/R) to connecting rod (23L/R) with bolts (20), washers (17) and nuts (16). Secure handle bar (11L/R) to swing rod (14L/R) with bolts (8), arc washers (9) and nuts (10);...
  • Page 10 Schroef het stuur (37) vast op de centrale buis (41) met schroeven (36) en boogringen (9). Klik de draad uit de computer (1) op aansluitsnoer 2 (35) en schroef de computer vast op de centrale buis met schroeven (2). Steek de polssensorsnoeren (38) in het gat ach- terop de computer.
  • Page 11 De computer instellen Computer instructions Configuration de l’ordinateur...
  • Page 12 Power Up 3. Druk ST/SP om de meting in het Bodyfat programma te starten. Wanneer het apparaat wordt aangezet zal de computer een lange pieptoon geven en alle Workout instellingen: elementen van het LCD display lichten even op. Daarna start het ‘MANUAL’ programma. Na het kiezen van de gewenste workout, kun je verschillende waardes ingeven zoals: Er zijn 6 standaard modules...
  • Page 13 Veld Instelbereik Standaard Toename/ Omschrijving waarde Afname Time 10:00~ 0:00 ± 1:00 1.Wanneer het display op 0:00 staat zal de tijd oplopen. 99:00 2. Wanneer u de tijd insteld op 10:00 tot 99:00 zal de klok terugtellen naar 0 Distance 1.0~999.0 0.0 ±1.0 1.Wanneer het display op 0 staat zal de afstand oplopen.
  • Page 14 door op de UP of DOWN toets te drukken, u alle 10 workouts heeft geprogrammeerd. druk ENTER en selecteer de functiewaarden Druk op ST/SP om de workout te beginnen. voor tijd, afstand, calorieën, leeftijd enz. Met de UP of DOWN toetsen wijzigt u het Wanneer de functiewaarde wordt ingegeven niveau van de workout tijdens de workout.
  • Page 15: Workout Parameters

    Power Up program. When turned on, the monitor will emit a long Workout parameters: beep sound and all LCD displays light up. Af- ter that it will enter the MANUAL PROGRAM. After selecting desired workout mode you may pre-set several workout parameters for There are 6 basic workout modes: desired results.
  • Page 16 Field Setting Default Increment/ Description range value Decrement Time 10:00~ 0:00 ± 1:00 1.When display is 0:00, Time will count up. 99:00 2.When time is 10:00-99:00, It will count down to 0 Distance 1.0~999.0 0.0 ±1.0 1.When display is 0, Distance will count up 2.When Distance is1.0~999.0, it will count down to 0.
  • Page 17: Maintenance

    Maintenance: to confirm the setting value, at the same time enter to the next parameter to set. After finishing the setting, user can press ST/SP and Verify that all the bolts and nuts are locked place your palms on the both of contact pads properly and the turning parts should be to start workout.
  • Page 18: Algemene Veiligheidsvoorschriften

    Algemene veiligheidsvoorschriften Bij het ontwerp en de productie van dit fitnessapparaat is veel aandacht besteed aan veilig- heid. U dient echter altijd bepaalde veiligheidsvoorschriften in acht te nemen. Zorg ervoor dat u de gehele handleiding uitvoerig heeft doorgelezen voordat u het apparaat in gebruik neemt. Houd daarbij rekening met onderstaande punten: Dit apparaat is geen speelgoed en dient Let in het bijzonder op de reactie van uw...
  • Page 19: Montage

    Waarschuwing ginnende scheuren geconstateerd wor- den en of er geen scherpe randen e.d. zijn Raadpleeg uw arts voordat u met oefenin- wat tot lichamelijk letsel kan leiden. gen begint. Een frequent en inspannend trai- • D efecte onderdelen dienen direct ver- ningsprogramma moet eerst door uw huis- vangen te worden.
  • Page 20 Bepaal uw eigen tempo wordt voorkomen. Drink geen te koude vloeistof, maar neem water of een andere De mate van oefenen op dit apparaat is af- drank op kamertemperatuur. hankelijk van uw eigen conditie. Als u gedu- rende enkele jaren niet heeft getraind of u Controleer uw hartslag heeft last van overgewicht is het verstandig om langzaam te beginnen met slechts een...
  • Page 21: Warming-Up - Cooling Down

    Warming-up – Cooling down Een succesvolle oefening begint met een warming-up en wordt afgesloten met een cooling down. Doe alle oefeningen twee tot drie keer per week en neem tussen de oefendagen een rustdag. Binnen enkele maanden kunt u het aantal oefeningen uitbreiden naar 5 tot 6 keer per week.
  • Page 22 Artikel 1 Garantiebepalingen Service Nederland (FSN) is vastgesteld dat er sprake is van een materiaal en/of constructiefout, worden gerepareerd of 1.1. BIG Wholesale BV (hierna te noemen BIG) garandeert dat alle Producten waarop dit garantiebewijs betrekking heeft indien nodig vervangen, dan wel worden vergoed. FSN be- vrij zijn van constructie- en/of materiaalfouten conform het- paalt zelf of de onderdelen zullen worden gerepareerd, dan geen in deze bepalingen is opgenomen.
  • Page 23 Om op garantie aanspraak te kunnen maken verzoeken wij u, binnen twee weken na aankoop, de aankoop te registreren op de website www.fietsservicenederland.nl of www.fietsservicebelgie.be.Indien u niet in de gelegenheid bent om dit online te doen, kunt u ook een kopie van dit formulier, samen met een kopie van de aankoopbon, sturen naar het onderstaande adres. BIG Wholesale BV garandeert de goede werking van het geleverde product met inachtneming van de op dit garantiebewijs vermelde bepalingen.
  • Page 24: General Safety Instructions

    General safety instructions In the design and the production of this fitness equipment, much attention has been paid to safety. Nevertheless, you need at all times to remain conscious of certain safety measures. Make sure that you have carefully read the whole user manual prior to your use of the equipment. Please keep in mind the following points: This equipment has not been designed to Pay attention to how your body reacts...
  • Page 25: Maintenance And Use

    Warning that the equipment in general should be checked for cracks and sharp edges etc. Consult with your physician prior to starting • D efective components must be replaced your exercises. A frequent and intensive trai- immediately. If this is not feasible, the ning programme should first be approved by equipment must be put out of order until your family physician.
  • Page 26: Check Your Heart Rate

    Set your own pace The liquids you take in must be at room temperature. Avoid too cold drinks. The intensity level of your workout on this equipment depends on your own condition. Check your heart rate If you have not been in training for some years or if you are overweight, it is recommended To be able to check your heart rate, you first that you start slowly with only a few minutes...
  • Page 27: Weight Training

    Warming-up – Cooling down A successful exercise starts with a warm-up and is completed with a cool-down. Run through all of the exercises two or three times a week and take a day off in between the exercise days. After a few months you can extend the number of exercises to 5 to 6 times a week. The warm-up will be preparing your body for the effort you are about to exert.
  • Page 28 Warranty Article 1 Warranty conditions Article 4 Parts covered by warranty 1.1. BIG Wholesale BV (BIG) guarantees that all Products 4.1 Whilst the warranty is valid, the parts covered by these to which this warranty certificate are related are free from warranty conditions, of which Fiets Service Nederland (FSN) faults in the design and/or material, in accordance with the has established that they have a fault in the design and/or...
  • Page 29 In order for the warranty to be valid, please register on our website www.fietsservicenederland.nl within two weeks after your purchase. Save the purchase receipt and this filled in form. You may send a copy of this filled in form to the address below if you are not able to register online.
  • Page 30: Consignes De Sécurité Générales

    Consignes de sécurité générales Lors de la conception et la fabrication de cet appareil de remise en forme nous avons prêté beaucoup d’attention à la sécurité. Vous devez cependant toujours respecter certaines consignes de sécurité. Lisez attentivement le manuel entier avant d’utiliser l’appareil. Observez les points suivants : Cet appareil n’est pas un jouet et ne doit Ne pas utiliser l’appareil quand celui-ci...
  • Page 31: Entretien Et Utilisation

    Mise en garde • L ’appareil doit être contrôlé régulière- ment afin de prévenir des blessures cor- Consultez votre médecin avant de commen- porelles. Cela signifie également qu’une cer les exercices. Un programme d’entraîne- vérification régulière doit avoir lieu afin ment fréquent et intensif doit d’abord être de s’assurer que les boulons et les écrous approuvé...
  • Page 32 Déterminez votre propre rythme sons doivent être à température ambiante. Ne buvez pas trop de liquide froid. Le degré d’entraînement sur cet appareil dé- pend de votre condition physique. Si vous Contrôlez votre fréquence cardiaque n’avez pas pratiqué d’exercice physique ré- gulier pendant quelques années ou si vous Pour contrôler votre fréquence cardiaque il avez quelques kilos de trop, il est plus sage de...
  • Page 33 Echauffement et détente Un exercice réussi commence avec l’échauffement et se termine avec la détente. Faites tous les exercices deux ou trois fois par semaine et prenez un jour de repos entre les jours d’entraînement. En l’espace de quelques mois vous pouvez augmenter le nombre de sessions d’entraînement à 5 ou 6 fois par semaine. L’échauffe- ment est très important avant de commencer un exercice.
  • Page 34 Conditions de garantie complémentaires Article 1 Clauses de garantie 1.1. BIG Wholesale BV (BIG) garantit que tous les Produits Article 4 Pièces couvertes par la garantie auxquels se rapporte le présent certificat de garantie ne 4.1 Pendant la période de garantie, les pièces couvertes par comportent aucun défaut de construction et/ou de matériau, les présentes conditions de garantie et sur lesquelles Velo conformément aux dispositions des présentes clauses de ga-...
  • Page 35 Pour bénéficier de la garantie, nous vous prions de bien vouloir dans les deux semaines de la date d’achat, vous inscrire en ligne à www.veloservicebelgique.be. Si vous n’êtes pas en mesure de s’inscrire en ligne, vous pouvez aussi avoir une copie de ce formu- laire, accompagné...

This manual is also suitable for:

021153
