Simpli Home WyndenHall Brooklyn + Max 3AXCBUR-004 Instruction Booklet

Burlington / portland / berkshire medium storage cabinet
Hide thumbs Also See for WyndenHall Brooklyn + Max 3AXCBUR-004:

Advertisement

Quick Links

Download this manual

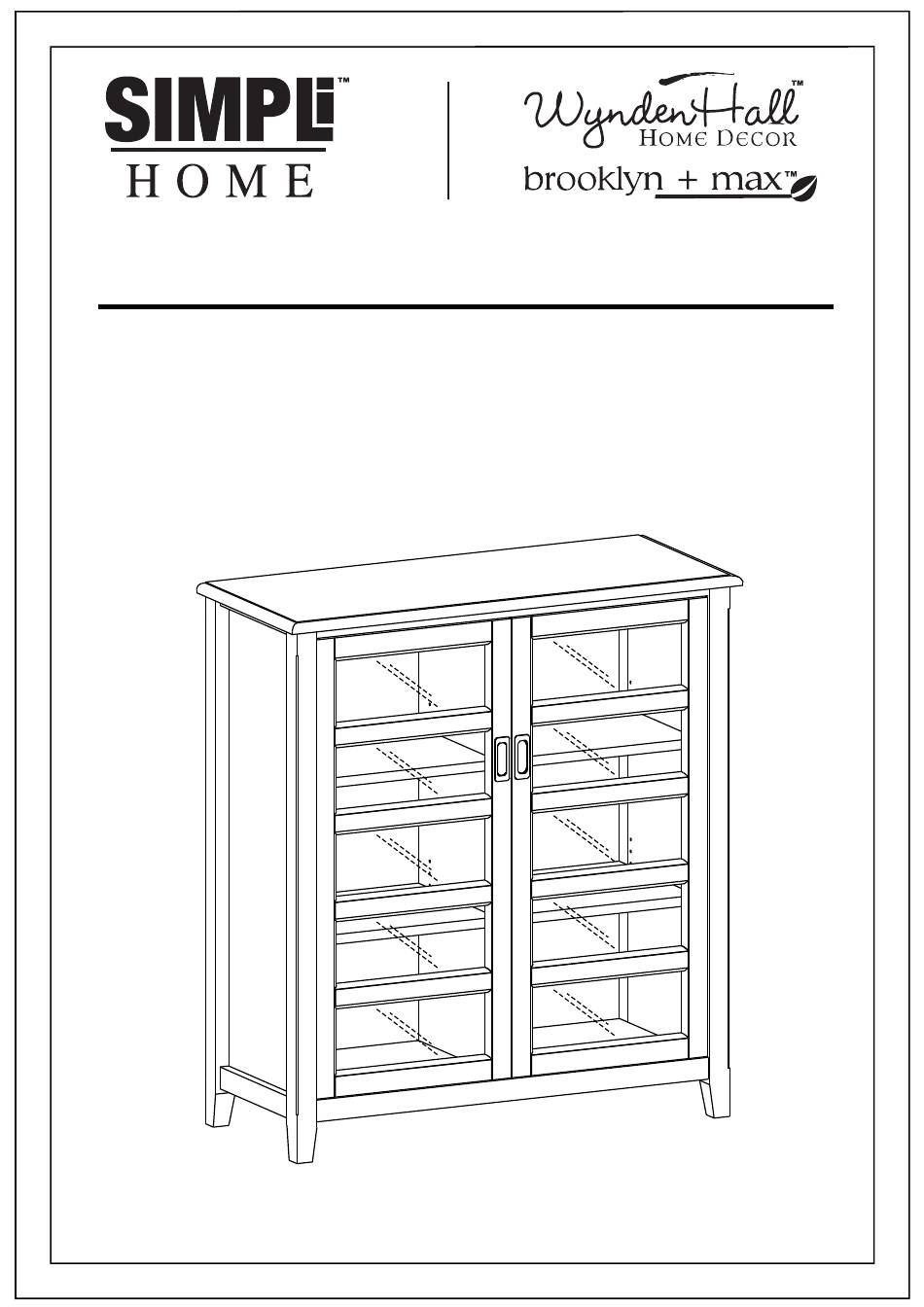

BURLINGTON / PORTLAND / BERKSHIRE
MEDIUM STORAGE CABINET
MODEL #
3AXCBUR-004
1/16

Advertisement

loading
Need help?

Need help?

Do you have a question about the WyndenHall Brooklyn + Max 3AXCBUR-004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simpli Home WyndenHall Brooklyn + Max 3AXCBUR-004

Summary of Contents for Simpli Home WyndenHall Brooklyn + Max 3AXCBUR-004

  • Page 1 BURLINGTON / PORTLAND / BERKSHIRE MEDIUM STORAGE CABINET MODEL # 3AXCBUR-004 1/16...
  • Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: simpli home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET 2/16...

  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
  • Page 4 PRE ASSEMBLY INFORMATION MODEL # 3AXCBUR-004 PARTS DESCRIPTION SIDE BOTTOM SHELF QTY 1 PAIR QTY 1 QTY 1 CENTRE SUPPORT DOOR CABINET SHELF QTY 1 QTY 1 PAIR QTY 4 BACK PANEL QTY 1 PAIR NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.

  • Page 5: Hardware Description

    PRE ASSEMBLY INFORMATION MODEL # 3AXCBUR-004 HARDWARE DESCRIPTION ALLEN KEY SCREW WOOD DOWEL M6 X 30 mm ALLEN KEY Ø8 X 30 mm QTY 18 QTY 1 QTY 4 PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW M4 X 15 mm M3 X 12 mm SHELF SUPPORT QTY 24 QTY 28...
  • Page 6 COMPONENTS – KEY DIAGRAM MODEL # 3AXCBUR-004 6/16...
  • Page 7 ASSEMBLY MODEL # 3AXCBUR-004 STEP 1 1. Insert 4 Dowels 2 into pre-drilled holes on Bottom Shelf C ( 2 / each Side ). 2. Align Dowels 2 on Bottom Shelf C with pre-drilled holes on Sides A . 3. Attach Sides A to Bottom Shelf C using 6 Allen Key Screws 1 ( 3 Screws / each Side ). 4.
  • Page 8 ASSEMBLY MODEL # 3AXCBUR-004 STEP 2 1. Attach Centre Support D to Bottom Shelf C using 3 Allen Key Screws 1 . 2. Use Allen key 3 to tighten. Do not over-tighten. Note: Prior to inserting Allen Key Screws 1 , ensure that the direction the holes for the Shelf Supports 6 on Centre Support D and the holes for the Shelf Supports 6 on the Side A are compatible.
  • Page 9 ASSEMBLY MODEL # 3AXCBUR-004 STEP 3 1. Attach Top B to Centre Support D and Side A using 9 Allen Key Screws 1 ( 3 Screws / each part ). 2. Use Allen key 3 to tighten. Do not over-tighten. 9/16...
  • Page 10 ASSEMBLY MODEL # 3AXCBUR-004 STEP 4 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Doors E to Sides A using Phillips Screws 5 . 2. Attach Magnet Plates 7 into guide holes on bottom corner of Doors E using Phillips Screws 5 .
  • Page 11 ASSEMBLY MODEL # 3AXCBUR-004 STEP 5 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Back Panel G to back frame of cabinet using Phillips Screws Round Head 4 into pre-drilled guide holes. 2. Use Phillips screwdriver to tighten screws. Do not over tighten. 11/16...
  • Page 12 ASSEMBLY MODEL # 3AXCBUR-004 STEP 6 1. Use 4 Shelf Supports 6 for each Shelf F in desired location. 2. 2 Shelf Supports 6 may be used on back top of each Shelf F as a tipping restraint . 12/16...
  • Page 13 ASSEMBLY MODEL # 3AXCBUR-004 STEP 7 NOTE: The screwdriver is not included in the hardware pack. 1. To attach Tipping Restraint 8 , follow instructions on Tipping Restraint package. When you determined the location for your unit, install the Furniture Tipping restraint.

  • Page 14: Warranty

    WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
  • Page 15 Question, problems, missing parts? Before returning please email Customer Support at simpli-home.com/customer-support or call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 5 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings 15/16...
  • Page 16 Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of Simpli Home furniture pieces Free!!! www.facebook.com/simplihomefurnishings (draws monthly – shipping included)
