- Page 1 Chale H182W/P02W INSTRUCTION MANUAL DIR | www.dirsalonfurniture.uk |...
-
Page 2: Table Of Contents

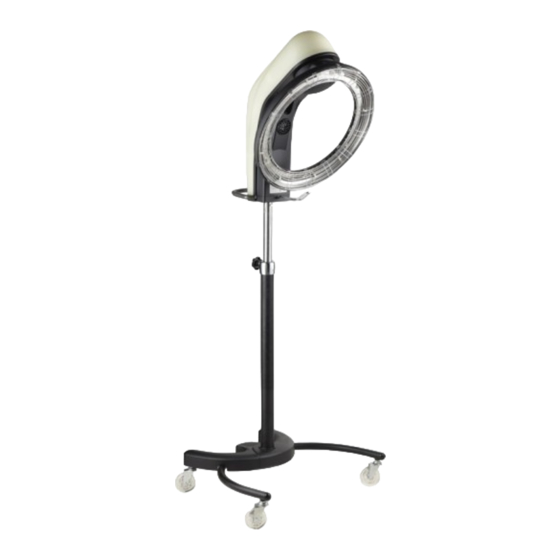

CONTENTS www.dirsalonfurniture.uk Product Information Part Instruction Assembly Instructions Control Panel Cautions Operation Order Modes-Application & Reference Work State Please read the operation manual before using the product. Please put the operation manual in the place easy for you to read and you can read it at any time. - Page 3 PRODUCT INTRODUCTION www.dirsalonfurniture.uk Product Name: Chale Product Code: H182W/P02W Chale hair processor features the infrared temperature test module to test hair temperature. Our product can test temperature of hair instantly and precisely without damaging hair.
- Page 4 WARRANTY www.dirsalonfurniture.uk The warranty period is one year. DIR warrants to you, the original buyer, that goods shall be free of defects in material and/or workmanship attributable to manufacture for one year from date of buyer′s receipt of product. Damage resulting from improper handling after merchandise is received, or from exposure to weather or extreme atmospheric conditions is not covered by the warranty.
-
Page 5: Part Instruction
ASSEMBLY INSTRUCTIONS www.dirsalonfurniture.uk Part Instruction Infrared Heat Sensor Guard Net Product Name: Chale Re ector Product Code: W182 Laser Pointer Air Outlet Heater Grip Support Lever Inner sliding pipe Knob Pole Pole base Power Indicator Light Machine Head Circular Heater... - Page 6 ASSEMBLY INSTRUCTIONS www.dirsalonfurniture.uk Base Assembly Instructions Notice:Make the slot Locking screw of sliding pipe and the adjusting handle are in the same direction. Sliding pipe Slot of sliding pipe Adjusting handle Adjusting block Positioning gap Leg assembly Castor Washer Hexagon screw...
- Page 7 ASSEMBLY INSTRUCTIONS www.dirsalonfurniture.uk Tighten the locking Notice: screw of head please make assembly. sure the machine head towards the longer side of the base.
- Page 8 Correct Positioning Adjust the height of the Chale hair processor by moving the inner sliding pipe of the wall mount up and down, set the distance from the rotating point to the head at about 12cm and 12cm to the to the front point of the infrared sensor.
-
Page 9: Control Panel
ASSEMBLY INSTRUCTIONS www.dirsalonfurniture.uk Control panel 1. Temperature Level Indicator Light Temperature Level Indicator Light The chart below shows the various temperature settings. There are 7 levels in total. Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 W182 2. -
Page 10: Operation Order
ASSEMBLY INSTRUCTIONS www.dirsalonfurniture.uk Operation Order 1. Set the machine at the correct position. If the circular heater is not at the correct position then the hair processor will not perform at is optimum performance. 2. Turn on the Power Switch After one minute of turning on the power, the temperature indicator light and the time digital display will illuminate 3. - Page 11 ASSEMBLY INSTRUCTIONS www.dirsalonfurniture.uk Cautions 6. Do not insert or metal objects into the machine, otherwise you may get a short circuit or an electric shock. 7. The infrared does not have any bad e ects on the human body; however, if any customers feel unwell or any discomfort caused by the temperature, than please stop the machine im- mediately.
- Page 12 ASSEMBLY INSTRUCTIONS www.dirsalonfurniture.uk Cautions 1. Please avoid exposing and working the machine at extreme hot, cold or damp conditions. It is best to use this machine between 10c – 25c. Diagram 1 2. Please connect the machine with a sustainable outlet and do not share with other appliances.
- Page 13 Swing Operation 1. Adjust Position Chale can be adjusted freely so it won’t be too close to the customers head or in the way of the user. 2. Swing Selection After turning on the power, press the Swing Program Selection Key to con rm the set temperature and time press this key again and the time display will be alternated to show the rotation angle.
-
Page 14: Modes-Application & Reference Work State
ASSEMBLY INSTRUCTIONS www.dirsalonfurniture.uk Modes-Application & Reference Work State Both the temperature and time in the following table are the value xed before leaving factory. Operation Temperature Application Time Temperature Angle Modes Control Way 10 mins 50℃ Rotation Adjust time and temperature to suit Colouring 1 to type of dye, quality of hair. - Page 15 ASSEMBLY INSTRUCTIONS www.dirsalonfurniture.uk GUARANTEE CARD GUARANTEE CARD Dear customer, MODEL: W182 Thank you for using our products. Ensuring you are pleased and assured to use our products, please fill in the GUARANTEE CARD carefully when you buy our products. From the date of purchase, you will have 12 months of Serial NO: free repair after-sales service due to quality problem, but not due to man-made damage.
- Page 16 CONTACT US www.dirsalonfurniture.uk DIR BIRMINGHAM DIR NEW YORK DIR IRELAND (HEADQUATERS) 66 Rea Street South 24 Woodward Ave. Unit 5 Block E Birmingham Suite C Riverview Business Park B5 6LB Queens, NY 11385 Nangor Road Dublin 12 Sales: +44(0)800 085 3667...
- Page 17 www.dirsalonfurniture.uk Copyright © 2019 Dream In Reality Co Ltd - All Rights Reserved...
