Summary of Contents for DIR Capsule D03WM

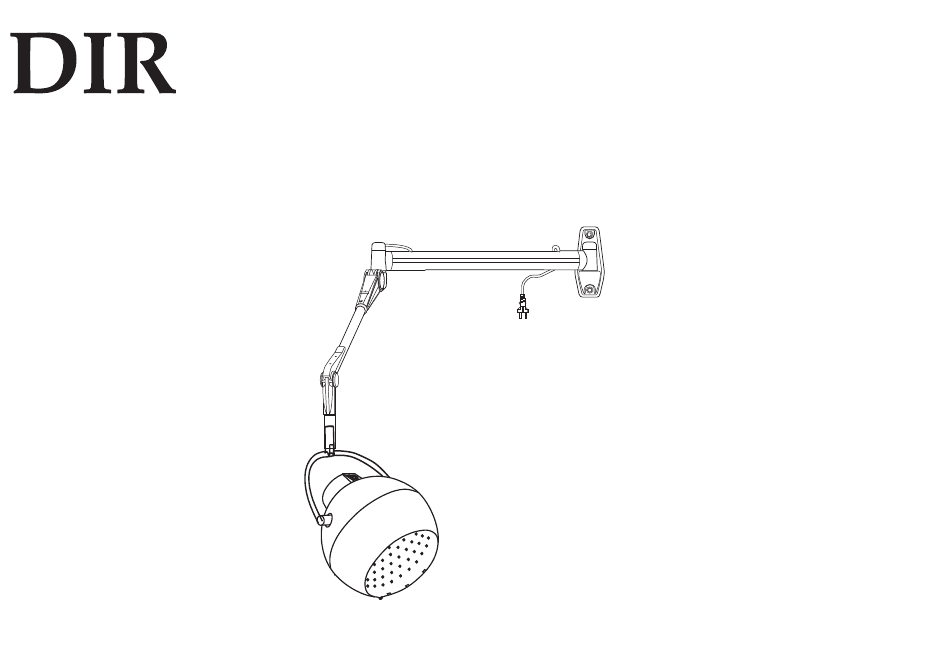

- Page 1 ® CAPSULE D03WM/H133W INSTRUCTION MANUAL...
- Page 2 Assembly Instruction 1470mm 1630mm Installation of Wall Mount Arm Before Installation 1. Wall The wall must be strong enough to support the arm assembly. 2. Height The recommended height of the wall bracket is 1840/1950mm from the floor to the bottom of the bracket (see diagram) 3.
- Page 3 Arm Assembly & Machine Head The machine head and the arms are fairly heavy, it is suggested that the installation is done by two persons, as instructed in the following steps. 1 Remove the screw on the protector plate and rotate the protector plate anti-clockwise until it is vertical.
- Page 4 CARE INSTRUCTIONS Adjustable Joint 2 1. The inner cap can get dir ty easily, please clean regularly. Chemicals such as hair dyes can cause Step 1: Insert the Step 3: Insert the dysfunction.
- Page 6 Warranty The warranty period is one year. DIR warrants to you, the original buyer, that goods shall be free of defects in material and/or workmanship attributable to manufacture for one year from date of s receipt of product. Damage resulting from improper handling after merchandise is received, or from exposure to weather or extreme atmospheric conditions is not covered by the warranty.
