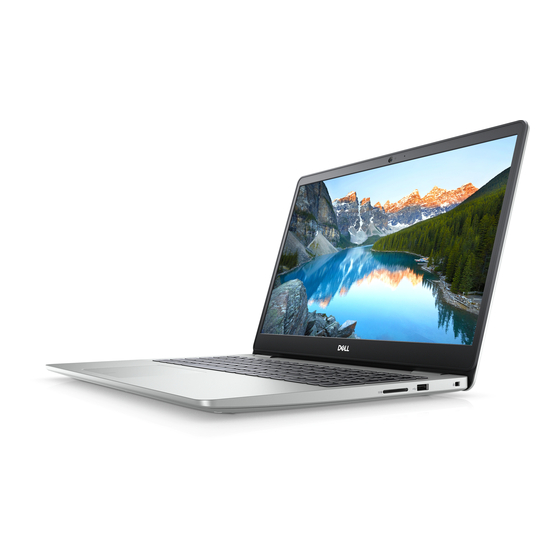

- Page 1 Inspiron 5593 Setup and Specifications Regulatory Model: P90F Regulatory Type: P90F002...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2019 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents 1 Set up your Inspiron 5593......................4 2 Views of Inspiron 5593......................... 6 Left......................................6 Right......................................6 Base......................................7 Display..................................... 7 Bottom....................................8 3 Specifications of Inspiron 5593..................... 9 Dimensions and weight................................. 9 Processors....................................9 Chipset....................................9 Operating system................................. 10 Memory.................................... -
Page 4: Set Up Your Inspiron 5593
SLN151664 SLN151748 at www.dell.com/support. For Windows: Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: • Connect to a network for Windows updates. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted. - Page 5 Table 2. Locate Dell apps in Windows 10 Home Resources Description My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available. Dell Update Updates your computer with critical fixes and latest device drivers as they become available.
-
Page 6: Views Of Inspiron 5593
Views of Inspiron 5593 Left 1. Power-adapter port Connect a power adapter to provide power to your computer. 2. USB 3.1 Gen 1 (Type-C) port (optional) Connect to external storage devices. Provides data transfer speeds up to 5 Gbps. NOTE: This port does not support video/audio streaming. -
Page 7: Base
If the power button has a fingerprint reader, place your finger on the power button to log in. Me and My Dell at NOTE: You can customize power-button behavior in Windows. For more information, see www.dell.com/support/manuals. -
Page 8: Bottom
1. Left speaker Provides audio output. 2. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. 3. Right speaker Provides audio output. -
Page 9: Specifications Of Inspiron 5593
Specifications of Inspiron 5593 Dimensions and weight Table 3. Dimensions and weight Description Values Height: Front 18 mm (0.71 in.) Rear 19.90 mm (0.78 in.) Width 363.96 mm (14.33 in.) Depth 249 mm (9.80 in.) Weight (maximum) 2.05 kg (4.52 lb) -
Page 10: Operating System
Intel Optane Memory M10 functions only as a non-volatile storage cache/accelerator, enabling enhanced read/write speeds for hard-drive storage. It neither replaces nor adds to the memory (RAM) installed on your computer. Table 7. Intel Optane Memory M10 specifications Description Values PCIe Gen 3.0x2 NVMe Interface Specifications of Inspiron 5593... -
Page 11: Ports And Connectors
One USB 3.1 Gen 1 Type-C port (optional) Audio One headset (headphone and microphone combo) port Video One HDMI 1.4b port Media card reader One SD-card slot Docking port Not supported Power adapter port One 4.5 mm x 2.9 mm (DC-in) Specifications of Inspiron 5593... -
Page 12: Communications
64-bit/128-bit • 64-bit/128-bit • 64-bit/128-bit • AES-CCMP • AES-CCMP • AES-CCMP • AES-CCMP • AES-CCMP • TKIP • TKIP • TKIP • TKIP • TKIP Bluetooth Bluetooth 4.0 Bluetooth 4.2 Bluetooth 4.2 Bluetooth 5.0 Bluetooth 5.0 Specifications of Inspiron 5593... -
Page 13: Audio
PCIe NVMe Gen3.0 x4, up to 32 Gbps Up to 1 TB Media-card reader Table 15. Media-card reader specifications Description Values Type One SD-card slot Cards supported • Secure Digital (SD) • Secure Digital High Capacity (SDHC) Specifications of Inspiron 5593... -
Page 14: Keyboard
Values Number of cameras Type RGB HD camera Location Front (above the LCD screen) Sensor type CMOS-sensor technology Resolution: Still image 0.92 megapixel Video 1280 x 720 (HD) at 30 fps Diagonal viewing angle 78.6 degrees Specifications of Inspiron 5593... -
Page 15: Touchpad
–40°C to 70°C (–40°F to 158°F) Battery NOTE: Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption. -
Page 16: Display
4 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com... -
Page 17: Fingerprint Reader (Optional)
Intel UHD Graphics One HDMI 1.4b port Shared-system memory Generation Intel Core i3/i5 Intel Iris Plus Graphics One HDMI 1.4b port Shared-system memory Generation Intel Core i7 Computer environment Airborne contaminant level: G1 as defined by ISA-S71.04-1985 Specifications of Inspiron 5593... - Page 18 0 m to 10,668 m (0 ft to 35,000 ft) * Measured using a random vibration spectrum that simulates user environment. † Measured using a 2 ms half-sine pulse when the hard drive is in use. Specifications of Inspiron 5593...
-
Page 19: Keyboard Shortcuts
Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. - Page 20 Function key Redefined key (for multimedia control) Behavior Switch to external display Print screen Home The fn key is also used with selected keys on the keyboard to invoke other secondary functions. Table 27. List of keyboard shortcuts Function key Behavior Pause/Break Sleep...
- Page 21 Function key Behavior Page down Keyboard shortcuts...
-
Page 22: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 28. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com My Dell Tips Contact Support In Windows search, type Contact Support, and press Enter.
