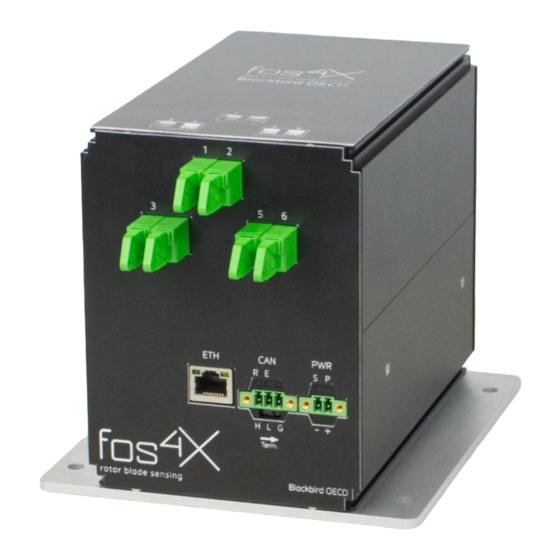

fos4X Blackbird OECD MDE1117 Instructions For Use Manual

6ch, cno
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Blackbird OECD
Blackbird OECD
(6Ch, CNO)
(6Ch, CNO)
MDE1117
MDE1117
INSTRUCTIONS FOR USE
INSTRUCTIONS FOR USE
Product Type
Product Type
Product Version
Product Version
Document Version
Document Version
Issue Date
Issue Date
Language
Language
Measuring
Measuring
device
device
1.3.x
1.3.x
5.0
5.0
2020-02-07
2020-02-07
en-us
en-us

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blackbird OECD MDE1117 and is the answer not in the manual?

Questions and answers

Related Manuals for fos4X Blackbird OECD MDE1117

Summary of Contents for fos4X Blackbird OECD MDE1117

  • Page 1 INSTRUCTIONS FOR USE INSTRUCTIONS FOR USE Measuring Measuring Product Type Product Type Blackbird OECD Blackbird OECD device device Product Version Product Version 1.3.x 1.3.x (6Ch, CNO) (6Ch, CNO) Document Version Document Version MDE1117 MDE1117 Issue Date Issue Date 2020-02-07 2020-02-07 Language Language en-us...
  • Page 2 Brand names and protected trademarks are the property of their respective owners. The naming of brand names and protected trademarks has only descriptive character. Named trademarks are not part of any partnership or cooperation with fos4X. MDE1117_4-10_1.3.x_5.0_Blackbird 2 / 83 ©...

  • Page 3: Table Of Contents

    3.2.1 Measurement and Sensors..............13 3.2.2 Interfaces....................14 3.2.3 Optical Data....................15 3.2.4 Electrical Data..................15 3.2.5 Environmental Conditions..............15 3.2.6 Tested Standards and MTBF............... 16 3.2.7 Mechanical Data..................17 3.2.8 Dimensions....................17 MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 3 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 4 5.3 Connecting the Interfaces................53 5.4 Connecting the Power Supply................54 5.5 Connecting a Sensor..................55 Commissioning....................57 6.1 Commissioning the Ethernet Interface............57 6.2 Commissioning the CAN Interface..............57 6.3 Set or change the password................57 Operation......................60 MDE1117_4-10_1.3.x_5.0_Blackbird 4 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 5 9.2.1 Cleaning E-2000/APC Connections..........71 9.2.2 Replacing the PWR Connector............72 9.2.3 Replacing the CAN Connector............73 9.2.4 Firmware Update..................73 9.3 fos4X Support...................... 76 9.4 Spare Parts and Accessories................77 10 Taking out of Service and Disposal............... 78 10.1 Taking out of Service..................78 10.2 Disassembly......................

  • Page 6: About This Document

    The safety notes with the signal words Caution and Notice have the following meanings: CAUTION Risk which, if not avoided, could result in minor injury. NOTICE Risk which, if not avoided, will result in damage to property. MDE1117_4-10_1.3.x_5.0_Blackbird 6 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...

  • Page 7: Non-Safety-Related Information

    Name of a window or button in the software CONTROL ELEMENT Designation of a control element of the product Abbreviations Controller Area Network CANopen Direct Current DHCP Dynamic Host Configuration Protocol Ethernet MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 7 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 8 International Protection Light Emmiting Diode Maximum MTBF Mean Time Between Failures (CANopen) Network Management OECD Opto-Electronic Converter Device Personal Computer Single Mode Fiber SNTP Simple Network Time Protocol User Datagram Protocol MDE1117_4-10_1.3.x_5.0_Blackbird 8 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...

  • Page 9: Safety

    2 Safety Conformity The product is in conformity with the relevant Union harmonisation legislation. The EU Declaration of Conformity is available on request. Contact details see fos4X Support, page 76. 2.2 Changes to the Product Changes to the product may only be carried out by fos4X.

  • Page 10: Intended Use

    Task Personnel Maintenance Taking out of Service Instructed personnel Disassembly fos4X or specialized disposal company Disposal 2.4 Intended Use The measurement device Blackbird OECD is designed exclusively for the measurement of fiber optical sensors in industrial environments. Any other use or use going beyond this is considered improper use.

  • Page 11: Product Description

    The Blackbird OECD consists of the following components: Mounting plate: Used to attach the Blackbird OECD with 4 M6 bolts or welding studs. E-2000/APC connectors: 6 sockets for the connection of fiber optical sensors with E-2000/APC connector. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 11 / 83 OECD_(6Ch, CNO)-en-us...

  • Page 12: Operation

    Up to 6 fiber Bragg grating sensors are connected via fiber optical cables to the E-2000/APC connectors of the Blackbird OECD. The Blackbird OECD evaluates the signals of the sensors and provides the wavelengths of the individual sensors via the following interfaces: Ethernet CANopen MDE1117_4-10_1.3.x_5.0_Blackbird 12 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...

  • Page 13: Technical Data

    3 Time between power-up and operation within specification 4 Triggered by CANopen SYNC messages. Requirements for sensors Table 4: Requirements for sensors Property Value Unit Sensor type Fiber Bragg grating 70 ± 20 Reflectivity MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 13 / 83 OECD_(6Ch, CNO)-en-us...

  • Page 14: Interfaces

    3. Product Description Property Value Unit Full width half maximum (FWHM) 400 ... 600 Side lobe suppression > 12 Compatible sensors from fos4X Table 5: Compatible sensors from fos4X Measurand Sensor fos4Strain Strain fos4Strain expert fos4Acc 1D Vibration fos4Acc 2D...

  • Page 15: Optical Data

    Electrical connector MC 1,5/ 2-GF-3,81 3.2.5 Environmental Conditions Table 10: Environmental Conditions Property Value Unit IP protection class IP20 Maximum operating altitude 3000 Permitted temperature -40 … +85 °C (Transport and storage) MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 15 / 83 OECD_(6Ch, CNO)-en-us...

  • Page 16: Tested Standards And Mtbf

    IEC 60068-2-27, 10 g in all directions Vibration IEC 60068-2-6, 2 g IEC 60068-2-1 Class 3M6 Temperature IEC 60068-2-2 Class 3M6 Electromagnetic Compatibility IEC 61326-1, EN 55032 MTBF Table 12: MTBF Property Value Unit MTBF > 100000 MDE1117_4-10_1.3.x_5.0_Blackbird 16 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...

  • Page 17: Mechanical Data

    Property Value Unit Length Height Width Total weight * Blackbird OECD without packaging Table 14: Mounting Property Value Unit Mounting 4x M6 3.2.8 Dimensions Number of channels depends on the variant. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 17 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 18 3. Product Description Figure 5: Dimensions (front view) MDE1117_4-10_1.3.x_5.0_Blackbird 18 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 19 3. Product Description Figure 6: Dimensions (top view) MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 19 / 83 OECD_(6Ch, CNO)-en-us...

  • Page 20: Markings On The Product

    Optional: Customer-specific ERP number: ERP 123456 GTIN: P/N: 4251112345678 3.4 Display and Control Elements 3.4.1 Status LEDs 3.4.1.1 LED Flashing Patterns The Blackbird OECD uses different LED flashing patterns to signal the device status. MDE1117_4-10_1.3.x_5.0_Blackbird 20 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 21 Description LED is continuously on Slow flashing Fast flashing Single flash Double flash Triple flash Quadruple flash 3.4.1.2 LEDs on the PWR connector There are 2 LEDs on the PWR connector. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 21 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 22 System not Identify Fast flashing adjusted The STATUS-LED flashes quickly every 4 s when in the state Table 18: STATUS-LED and device state Device state Description System healthy Normal operation MDE1117_4-10_1.3.x_5.0_Blackbird 22 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 23 System not adjusted loaded Microcontroller defective 3.4.1.3 LEDs on the ETH Connector There are 2 LEDs on the Ethernet connector. Figure 9: LED on the Ethernet connector. 1 Power-LED (green) 2 Status-LED (yellow) MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 23 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 24 (1). In the right position, the terminating resistor is active. Run-LED Table 20: Run-LED on the CAN Connector State Device state Description After booting, if auto- operational is active Operational Set by Bus-Master MDE1117_4-10_1.3.x_5.0_Blackbird 24 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...

  • Page 25: Software

    Error with the connection to the CAN Bus off controller 3.5 Software 3.5.1 Factory Settings Table 22: Factory Settings Parameter Factory setting Static IP-address 198.168.44.44 MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 25 / 83 OECD_(6Ch, CNO)-en-us...

  • Page 26: Web Interface

    The web interface has the following functions: Monitoring of the system status of the Blackbird OECD and the connected sensors. Updating the firmware of the Blackbird OECD. Setting the configuration of the Blackbird OECD. MDE1117_4-10_1.3.x_5.0_Blackbird 26 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 27 Uptime: Operating time of the system. Informations about the system: Device Type: Type designation and version of the Blackbird OECD. System Information Serial Number: Serial number of the Blackbird OECD. Firmware Version: Currently installed firmware version. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 27 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 28 3. Product Description 3.5.2.2 System State The page SYSTEM STATE consists of the following pages: CAN STATE SIGNAL STATE HARDWARE STATE SYSTEM REBOOT CAN State Figure 12: CAN State MDE1117_4-10_1.3.x_5.0_Blackbird 28 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 29 Table 25: Signal State: Informations about each channel Column Content Channel Number of the channel. Wavelength Wavelength of the sensor. Signal value of the sensor: Reference (top) and Raw Signal Filter (bottom). State Status of the channel. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 29 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 30 Status of the CANopen node. CAN Bus State Status of the CAN bus. Serial number Serial number of the Blackbird OECD. Software State Status of the software. Software Software Version: Temp Temperature. MDE1117_4-10_1.3.x_5.0_Blackbird 30 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 31 Status of the laser of the light source. Current of the laser (top) and of the temperature Currents regulation of the laser (bottom). Software State Status of the software. Software Software Version: Temp Temperature. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 31 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 32 3. Product Description System Reboot Figure 15: System Reboot A restart of the Blackbird OECD system can be carried out by clicking on the PERFORM SYSTEM REBOOT button. MDE1117_4-10_1.3.x_5.0_Blackbird 32 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 33 The page VISUALIZATION graphically displays the wavelength curve of the connected sensors. The channels can be selected by clicking on the channel at Channel Selection. The current wavelengths for all channels are displayed in the Current Values section. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 33 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 34 System Name Set name of the system. System Location Set location of the system. With a click on the button EDIT the editing for System Name and System Location can be activated. MDE1117_4-10_1.3.x_5.0_Blackbird 34 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 35 Enabled: Displays if the system log is on. Syslog Server-IP: Current set server address for the system log. With a click on the button EDIT the editing for the settings can be activated. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 35 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 36 OECD is rebooted and then works in Ethernet mode. In Ethernet mode: With a click on the button SWITCH TO CAN MODE the Blackbird OECD is rebooted and then works in CAN mode. MDE1117_4-10_1.3.x_5.0_Blackbird 36 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 37 The page CAN BUS SETTINGS displays the information about the CAN bus. See System State, page 28. With a click on the button EDIT the editing for the following settings can be activated: Bitrate CANopen Node ID Auto-Operational Auto-Recover From Bus-OFF PDO Transmission Mode MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 37 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 38 The page CAN SIGNAL SETTINGS displays the CAN settings for each channel. See CANopen Objects, page 43. With a click on the button EDIT the editing for the following settings can be activated: Offset Scale Factor MDE1117_4-10_1.3.x_5.0_Blackbird 38 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 39 Displays if read access to the web interface is possible without password without password. With a click on the button CHANGE OR DISABLE PASSWORD the editing for the password settings can be activated. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 39 / 83 OECD_(6Ch, CNO)-en-us...

  • Page 40: Signal Quality

    Signal Problem: There are one or more errors. See Tab. 32: Signal Quality, page 40. Measurements are not possible. Table 32: Signal Quality Signal Quality Associated status codes Signal Good MDE1117_4-10_1.3.x_5.0_Blackbird 40 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...

  • Page 41: Ethernet Interface

    Communication takes place via IPv6 link-local addresses. The fos4X multicast address ff02::13c is used for device recognition. For communication via the Ethernet interface, fos4X recommends the use of the fos4X C API. See fos4X C API documentation. Time synchronization...

  • Page 42: Can Interface

    All CANopen messages are in the little-endian byte order. Node Guarding fos4X recommends: Use Node Guarding to monitor the correct operation of the Blackbird OECD. For more information on Node Guarding, see Standard CiA 301. See Tab. 33: CiA Standards, page 42.
  • Page 43 Status 2 3.5.5.2 CANopen Objects 0x1009 Manufacturer hardware version The object Manufacturer hardware version (0x1009) contains from firmware version 2.69 the hardware version number of the Blackbird OECD as visible string. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 43 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 44 The other values are formed with the offset and scaling factor for each channel. See 0x2004 Scale Factor, page 48 and 0x2005 Offset, page 49. Offset and scaling factor can be configured via the web-interface. See Web Interface, page 26. MDE1117_4-10_1.3.x_5.0_Blackbird 44 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 45 Sensor or channel error. 0x8005 … 0x800F Reserved. 0x2001 Status The Blackbird OECD has 4 status fields. Each 16 bit status field consists of 12 status bits and 4 counter bits. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 45 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 46 Temperature At least one component is at the limit of its Warning permissible operating temperature. Counter bit. 12 … 15 Sync counter The counter bit is incremented at each Sync frame. MDE1117_4-10_1.3.x_5.0_Blackbird 46 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 47 Object 0x2002 contains the lower limit of the measuring range for all channels. Each sub-object of 0x2002 corresponds to one channel of the device. Example: 0x2002sub1 contains the value for the first channel. Object 0x2002 is read-only. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 47 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 48 0x2004sub1 contains the value for the first channel. Object 0x2004 is read-only. Sub-Objects All sub-objects are 32 bit unsigned integers. Sub-Objects for channels that are not present contain the value 0. MDE1117_4-10_1.3.x_5.0_Blackbird 48 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 49 The sub-objects contain the 20 bit fix point representation of the wavelength. To calculate the wavelength, the raw value must be divided by 1048576. Sub-Objects for channels that are not present contain the value 0. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 49 / 83 OECD_(6Ch, CNO)-en-us...

  • Page 50: Packaging And Transport

    Remove the upper foam part from the box. Remove the measuring device from the box. Check the scope of delivery. See Scope of Delivery, page 50. If parts of the scope of delivery are missing: Contact fos4X Support. See fos4X Support, page 76. MDE1117_4-10_1.3.x_5.0_Blackbird 50 / 83 ©...

  • Page 51: Packing

    Transporting the Blackbird OECD: Handle the Blackbird OECD with care during transport. Observe the transport conditions. See Environmental Conditions, page 15. Pack the Blackbird OECD in a transport packaging. See Packing, page 51. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 51 / 83 OECD_(6Ch, CNO)-en-us...

  • Page 52: Storage

    Store the Blackbird OECD in a dry and clean place. Store the Blackbird OECD in a transport packaging. See Packing, page 51. Observe the environmental conditions. See Environmental Conditions, page 15. MDE1117_4-10_1.3.x_5.0_Blackbird 52 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...

  • Page 53: Installation

    Attaching the measuring device in the control cabinet: Attach the measuring device with 4x M6 screws and nuts. Control cabinets from fos4X provide 4 welding studs to attach the measuring device with 4 x M6 nuts. 5.3 Connecting the Interfaces Connecting the Ethernet Interface: Connect a RJ45 cable to the ETH connector.

  • Page 54: Connecting The Power Supply

    GF-3,81 connector. Figure 26: PWR Observe the pin assignments (+) and (-) on the PWR connector connector. Connect the MC 1,5/ 2-GF-3,81 connector to the PWR connector. Switch on the power supply. MDE1117_4-10_1.3.x_5.0_Blackbird 54 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...

  • Page 55: Connecting A Sensor

    GTIN Recommended: Optical connector Fujikura 4251140910209 cleaner OCC-A Ultra Connecting a Sensor Figure 27: E-2000/APC connector and socket 1 Locking mechanism 4 Socket 2 Connector 5 Dust cap 3 Protective cover MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 55 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 56 Close the protective cover (3). Connect the connector (2) to the socket (4). The connector (2) snaps into the socket (4) with a clicking sound. The sensor is connected. Repeat the procedure for all sensors. MDE1117_4-10_1.3.x_5.0_Blackbird 56 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...

  • Page 57: Commissioning

    6 Commissioning Observe the safety instructions. See Safety, page 9. Commissioning the Ethernet Interface For communication via the Ethernet interface, fos4X recommends the use of the fos4X C API. See fos4X C API documentation. 6.2 Commissioning the CAN Interface Conditions: Planned Node ID for the Blackbird OECD available.
  • Page 58 Figure 28: No password set Figure 29: Password set If no password is set: Click on CREATE PASSWORD. If a password is set: Click on CHANGE OR DISABLE PASSWORD. Figure 30: Setting a password MDE1117_4-10_1.3.x_5.0_Blackbird 58 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 59 Enter the new password in the field at Verify Password:. 10. Optional: Check the box at Read access without password. The option Read access without password allows read access to the web interface without password. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 59 / 83 OECD_(6Ch, CNO)-en-us...

  • Page 60: Operation

    Enter the IP-Adresse of the measuring device in the address bar. (Factory setting: 198.168.44.44). If the option READ ACCESS WITHOUT PASSWORD is not set, the page AUTHORIZATION REQUIRED is displayed. Figure 31: Log in If the page AUTHORIZATION REQUIRED is displayed: MDE1117_4-10_1.3.x_5.0_Blackbird 60 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
  • Page 61 Click on LOGIN. The page STARTING WEB APPLICATION is displayed. Figure 32: Initialization of the Web Interface Wait until the initialization is complete. The page HOME is displayed. Figure 33: Home page MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 61 / 83 OECD_(6Ch, CNO)-en-us...

  • Page 62: Troubleshooting

    Tasks that are not described in these operating instructions may only be done by fos4X. 8.1 Troubleshooting PWR LED If the described options do not help to fix the problem: Contact fos4X Support. See fos4X Support, page 76. Table 43: Troubleshooting PWR LEDs Problem Possible cause Solution Check the power cable for damage.
  • Page 63 Opening the Web Interface., page 60. System error Open the page SYSTEM STATE. Open the page HARDWARE STATE. If a web-interface is available on the measuring system: Check the status of the measuring device. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 63 / 83 OECD_(6Ch, CNO)-en-us...

  • Page 64: Troubleshooting Signal Quality

    8. Troubleshooting 8.2 Troubleshooting Signal Quality If the described options do not help to fix the problem: Contact fos4X Support. See fos4X Support, page 76. Table 44: Troubleshooting Signal Quality Signal Quality Status codes Solution Make sure to operate Temperature Low within specification.

  • Page 65: Troubleshooting Ethernet

    Turn the power supply off and Device Wait until the initialization is Initializing complete. 8.3 Troubleshooting Ethernet If the described options do not help to fix the problem: Contact fos4X Support. See fos4X Support, page 76. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 65 / 83 OECD_(6Ch, CNO)-en-us...

  • Page 66: Troubleshooting Can

    Support, page 76. 8.4 Troubleshooting CAN If the described options do not help to fix the problem: Contact fos4X Support. See fos4X Support, page 76. 8.4.1 Troubleshooting CAN Connection and LEDs Table 46: Troubleshooting CAN Connection and LEDs Problem...

  • Page 67: Troubleshooting Can Object 0X2000

    Do a firmware update. See Firmware Update, page 73. 8.4.2 Troubleshooting CAN Object 0x2000 The number of the sub-object corresponds to the channel number. Table 47: Troubleshooting CAN Object 0x2000 Problem Possible cause Solution MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 67 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 68 71. Object 0x2000 has Sensor or channel Reboot the Blackbird OECD. Turn the value 0x8004. error. power supply off and on. Check the signal quality. See Troubleshooting Signal Quality, page 64 MDE1117_4-10_1.3.x_5.0_Blackbird 68 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...

  • Page 69: Troubleshooting Can Sub-Object 0X2001Sub1

    Bit 8 or 11 of power supply off and on. Warning 0x2001sub1 set. Make sure to operate within Temperature See 0x2001 Status, specification. See Environmental Error page 45. Conditions, page 15. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 69 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 70 Check the signal quality. See Troubleshooting Signal Quality, page 64 Bit 10 of Check which warnings are pending. 0x2001sub1 set. Warning See Opening the Web Interface., See 0x2001 Status, page 60. page 45. MDE1117_4-10_1.3.x_5.0_Blackbird 70 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...

  • Page 71: Maintenance

    Type Quantity GTIN Recommended: Optical connector Fujikura 4251140910209 cleaner OCC-A Ultra Cleaning E-2000/APC connections: Release the locking mechanism (1) of the connector (2). Remove the connector (2) from the socket (4). MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 71 / 83 OECD_(6Ch, CNO)-en-us...

  • Page 72: Replacing The Pwr Connector

    Dispose of old MC 1,5/ 2-GF-3,81 in accordance with local regulations. Attach the cable of the power supply to the MC 1,5/ 2- GF-3,81 connector. Observe the pin assignments (+) and (-) on the PWR connector. MDE1117_4-10_1.3.x_5.0_Blackbird 72 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...

  • Page 73: Replacing The Can Connector

    Connect the MC 1,5/ 3-GF-3,81 connector to the CAN connector. Switch on the power supply. 9.2.4 Firmware Update 9.2.4.1 Firmware Update via Web Interface Condition: Firmware archive for the Blackbird OECD available. MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 73 / 83 OECD_(6Ch, CNO)-en-us...
  • Page 74 Conditions: Firmware archive for the Blackbird OECD available. IPv6 protocol enabled on the PC. Doing a firmware update via fos4X Firmware Flasher: Stop the normal operation of the Blackbird OECD. If necessary: Remove the cable from the ETH connector. MDE1117_4-10_1.3.x_5.0_Blackbird 74 / 83 ©...
  • Page 75 9. Maintenance Connect the PC to the ETH connector. Open the software fos4X Firmware Flasher (f3.exe). The page FOS4X FIRMWARE FLASHER is displayed. Figure 37: fos4X Firmware Flasher Select the network adapter in Network Interface. Detected measurement devices are displayed in Available Devices.

  • Page 76: Fos4X Support

    Email Answers will be sent within one working day. +49 89 999542-02 Phone Monday-Friday 9:00-17:00 CET. The support of fos4X is available in German and English. Please include the following information in your support request: Product name Product type MDE1117_4-10_1.3.x_5.0_Blackbird 76 / 83 ©...

  • Page 77: Spare Parts And Accessories

    Power supply MC 1,5/ 2-GF-3,81 Phoenix Contact 4017918050313 connector CAN connector MC 1,5/ 3-GF-3,81 Phoenix Contact 4251140902143 Accessories Table 54: Accessories Name Type Manufacturer GTIN Optical connector OCC-A Ultra Fujikura 4251140910209 cleaner MDE1117_4-10_1.3.x_5.0_Blackbird © fos4X 2020 77 / 83 OECD_(6Ch, CNO)-en-us...

  • Page 78: Taking Out Of Service And Disposal

    Remove the power cable from the PWR connector. Remove the RJ45 cable from the ETH connector. Remove the CAN cable from the CAN connector. Secure the Blackbird OECD against falling down. MDE1117_4-10_1.3.x_5.0_Blackbird 78 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...

  • Page 79: Disassembly

    Remove the Blackbird OECD from the control cabinet. Pack the Blackbird OECD. See Packing, page 51. 10.2 Disassembly The product may only be disassembled by fos4X or a specialized disposal company. 10.3 Disposal NOTICE Risk to the environment due to incorrect disposal of the product.

  • Page 80: List Of Figures

    Home page........................61 Fig. 34. E-2000/APC connector and socket................. 71 Fig. 35. PWR connector....................... 72 Fig. 36. CAN connector........................ 73 Fig. 37. fos4X Firmware Flasher....................75 Fig. 38. E-2000/APC connector and socket................78 MDE1117_4-10_1.3.x_5.0_Blackbird 80 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...

  • Page 81: List Of Tables

    Representation of the information in the operating instructions....7 Tab. 2. Tasks............................9 Tab. 3. Measuring Properties....................13 Tab. 4. Requirements for sensors....................13 Tab. 5. Compatible sensors from fos4X................14 Tab. 6. Ethernet-Interface......................14 Tab. 7. CAN Interface........................14 Tab. 8. Optical Data........................15 Tab. 9.
  • Page 82 Troubleshooting CAN Sub-Object 0x2001Sub1..........69 Tab. 49. Material and equipment....................55 Tab. 50. Material and equipment....................72 Tab. 51. Material and equipment....................73 Tab. 52. Material and equipment....................74 Tab. 53. Spare Parts........................77 Tab. 54. Accessories........................77 MDE1117_4-10_1.3.x_5.0_Blackbird 82 / 83 © fos4X 2020 OECD_(6Ch, CNO)-en-us...
