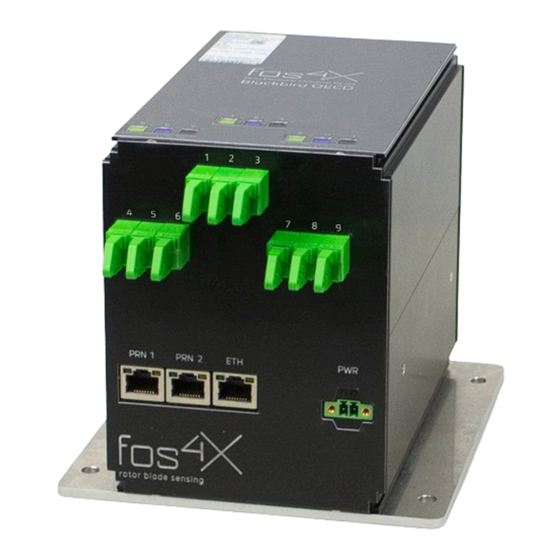

fos4X Blackbird OECD MDE1195 Instructions For Use Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Blackbird OECD
Blackbird OECD
(9CH, PRN)
(9CH, PRN)
MDE1195
MDE1195
INSTRUCTIONS FOR USE
INSTRUCTIONS FOR USE
Product Type
Product Type
Product Version
Product Version
Document Version
Document Version
Issue Date
Issue Date
Language
Language
Measuring
Measuring
device
device
1.3.x
1.3.x
5.0
5.0
2020-02-07
2020-02-07
en-us
en-us

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blackbird OECD MDE1195 and is the answer not in the manual?

Questions and answers

Related Manuals for fos4X Blackbird OECD MDE1195

Summary of Contents for fos4X Blackbird OECD MDE1195

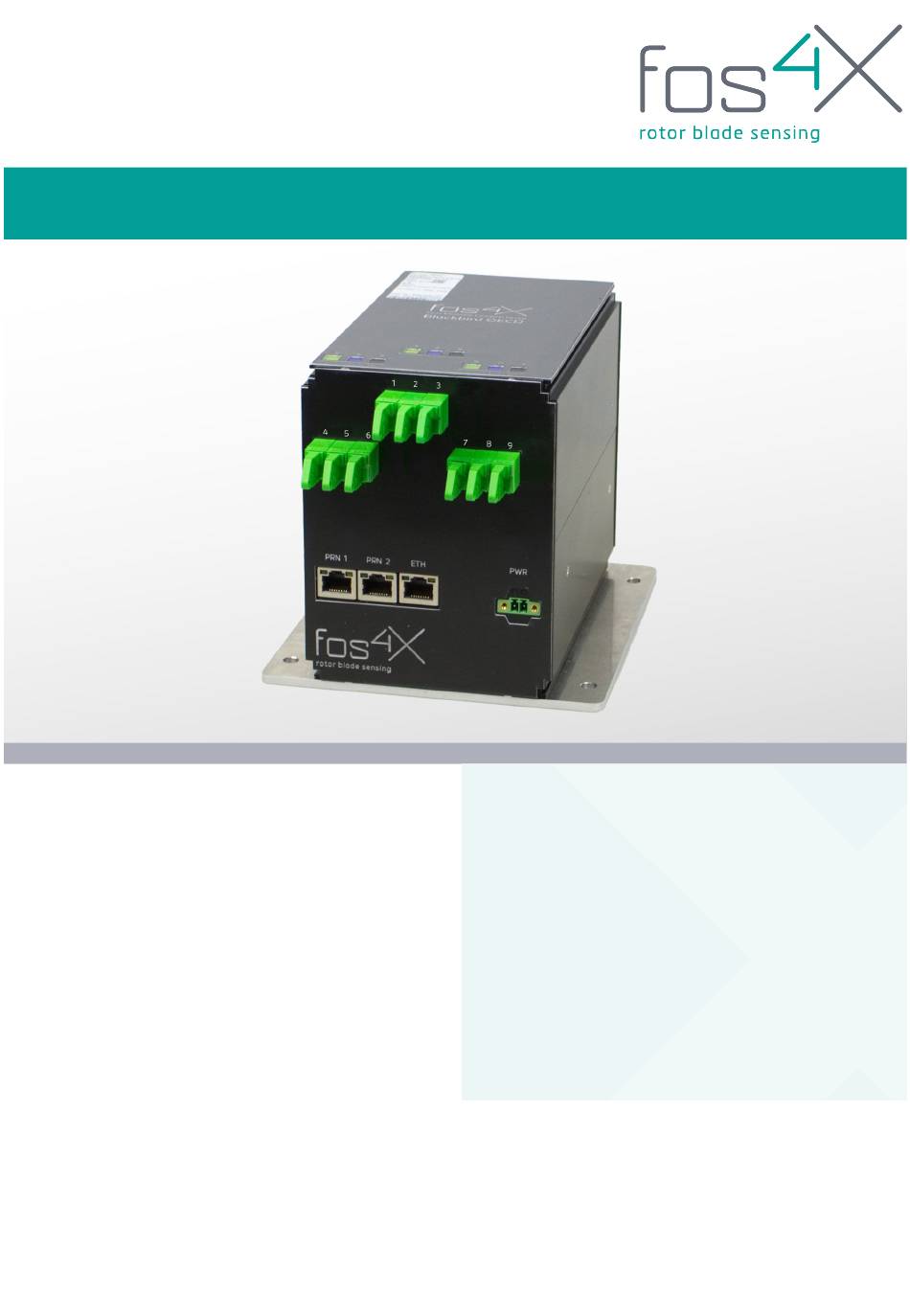

  • Page 1 INSTRUCTIONS FOR USE INSTRUCTIONS FOR USE Measuring Measuring Product Type Product Type Blackbird OECD Blackbird OECD device device Product Version Product Version 1.3.x 1.3.x (9CH, PRN) (9CH, PRN) Document Version Document Version MDE1195 MDE1195 Issue Date Issue Date 2020-02-07 2020-02-07 Language Language en-us...
  • Page 2 Brand names and protected trademarks are the property of their respective owners. The naming of brand names and protected trademarks has only descriptive character. Named trademarks are not part of any partnership or cooperation with fos4X. MDE1195_4-10_1.3.x_5.0_Blackbird 2 / 76 ©...

  • Page 3: Table Of Contents

    3.2.1 Measurement and Sensors..............13 3.2.2 Interfaces....................14 3.2.3 Optical Data....................15 3.2.4 Electrical Data..................15 3.2.5 Environmental Conditions..............15 3.2.6 Tested Standards and MTBF............... 16 3.2.7 Mechanical Data..................17 3.2.8 Dimensions....................17 MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 3 / 76 OECD_(9CH, PRN)-en-us...
  • Page 4 5.4 Connecting the Power Supply................46 5.5 Connecting a Sensor..................47 Commissioning....................49 6.1 Commissioning the Ethernet Interface............49 6.2 Commissioning the Profinet Interface............49 6.3 Set or change the password................49 Operation......................52 MDE1195_4-10_1.3.x_5.0_Blackbird 4 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...
  • Page 5 9.2 Corrective Maintenance................... 64 9.2.1 Cleaning E-2000/APC Connections..........64 9.2.2 Replacing the PWR Connector............65 9.2.3 Firmware Update................... 66 9.3 fos4X Support...................... 69 9.4 Spare Parts and Accessories................70 10 Taking out of Service and Disposal..............71 10.1 Taking out of Service..................71 10.2 Disassembly......................

  • Page 6: About This Document

    The safety notes with the signal words Caution and Notice have the following meanings: CAUTION Risk which, if not avoided, could result in minor injury. NOTICE Risk which, if not avoided, will result in damage to property. MDE1195_4-10_1.3.x_5.0_Blackbird 6 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...

  • Page 7: Non-Safety-Related Information

    Name of a window or button in the software CONTROL ELEMENT Designation of a control element of the product Abbreviations Direct Current Ethernet Fiber Bragg Grating GTIN Global Trade Item Number Input/Output MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 7 / 76 OECD_(9CH, PRN)-en-us...
  • Page 8 1. About this Document International Protection Light Emmiting Diode Maximum MTBF Mean Time Between Failures OECD Opto-Electronic Converter Device Personal Computer Profinet Single Mode Fiber TCP/IP Transmission Control Protocol/Internet Protocol User Datagram Protocol MDE1195_4-10_1.3.x_5.0_Blackbird 8 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...

  • Page 9: Safety

    2 Safety Conformity The product is in conformity with the relevant Union harmonisation legislation. The EU Declaration of Conformity is available on request. Contact details see fos4X Support, page 69. 2.2 Changes to the Product Changes to the product may only be carried out by fos4X.

  • Page 10: Intended Use

    Task Personnel Maintenance Taking out of Service Instructed personnel Disassembly fos4X or specialized disposal company Disposal 2.4 Intended Use The measurement device Blackbird OECD is designed exclusively for the measurement of fiber optical sensors in industrial environments. Any other use or use going beyond this is considered improper use.

  • Page 11: Product Description

    The Blackbird OECD consists of the following components: Mounting plate: Used to attach the Blackbird OECD with 4 M6 bolts or welding studs. E-2000/APC connectors: 9 sockets for the connection of fiber optical sensors with E-2000/APC connector. MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 11 / 76 OECD_(9CH, PRN)-en-us...

  • Page 12: Operation

    Up to 9 fiber Bragg grating sensors are connected via fiber optical cables to the E-2000/APC connectors of the Blackbird OECD. The Blackbird OECD evaluates the signals of the sensors and provides the wavelengths of the individual sensors via the following interfaces: Ethernet Profinet MDE1195_4-10_1.3.x_5.0_Blackbird 12 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...

  • Page 13: Technical Data

    3 Time between power-up and operation within specification Requirements for sensors Table 4: Requirements for sensors Property Value Unit Sensor type Fiber Bragg grating 70 ± 20 Reflectivity Full width half maximum (FWHM) 400 ... 600 MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 13 / 76 OECD_(9CH, PRN)-en-us...

  • Page 14: Interfaces

    3. Product Description Property Value Unit Side lobe suppression > 12 Compatible sensors from fos4X Table 5: Compatible sensors from fos4X Measurand Sensor fos4Strain Strain fos4Strain expert fos4Acc 1D Vibration fos4Acc 2D fos4Acc 3D Temperature fos4Temp 3.2.2 Interfaces 3.2.2.1 Ethernet...

  • Page 15: Optical Data

    Electrical connector MC 1,5/ 2-GF-3,81 3.2.5 Environmental Conditions Table 10: Environmental Conditions Property Value Unit IP protection class IP20 Maximum operating altitude 3000 Permitted temperature -40 … +85 °C (Transport and storage) MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 15 / 76 OECD_(9CH, PRN)-en-us...

  • Page 16: Tested Standards And Mtbf

    IEC 60068-2-27, 10 g in all directions Vibration IEC 60068-2-6, 2 g IEC 60068-2-1 Class 3M6 Temperature IEC 60068-2-2 Class 3M6 Electromagnetic Compatibility IEC 61326-1, EN 55032 MTBF Table 12: MTBF Property Value Unit MTBF > 100000 MDE1195_4-10_1.3.x_5.0_Blackbird 16 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...

  • Page 17: Mechanical Data

    Property Value Unit Length Height Width Total weight * Blackbird OECD without packaging Table 14: Mounting Property Value Unit Mounting 4x M6 3.2.8 Dimensions Number of channels depends on the variant. MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 17 / 76 OECD_(9CH, PRN)-en-us...
  • Page 18 3. Product Description Figure 5: Dimensions (front view) MDE1195_4-10_1.3.x_5.0_Blackbird 18 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...
  • Page 19 3. Product Description Figure 6: Dimensions (top view) MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 19 / 76 OECD_(9CH, PRN)-en-us...

  • Page 20: Markings On The Product

    Optional: Customer-specific ERP number: ERP 123456 GTIN: P/N: 4251112345678 3.4 Display and Control Elements 3.4.1 Status LEDs 3.4.1.1 LED Flashing Patterns The Blackbird OECD uses different LED flashing patterns to signal the device status. MDE1195_4-10_1.3.x_5.0_Blackbird 20 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...
  • Page 21 Description LED is continuously on Slow flashing Fast flashing Single flash Double flash Triple flash Quadruple flash 3.4.1.2 LEDs on the PWR connector There are 2 LEDs on the PWR connector. MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 21 / 76 OECD_(9CH, PRN)-en-us...
  • Page 22 System not Identify Fast flashing adjusted The STATUS-LED flashes quickly every 4 s when in the state Table 18: STATUS-LED and device state Device state Description System healthy Normal operation MDE1195_4-10_1.3.x_5.0_Blackbird 22 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...
  • Page 23 System not adjusted loaded Microcontroller defective 3.4.1.3 LEDs on the ETH Connector There are 2 LEDs on the Ethernet connector. Figure 9: LED on the Ethernet connector. 1 Power-LED (green) 2 Status-LED (yellow) MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 23 / 76 OECD_(9CH, PRN)-en-us...
  • Page 24 Network traffic at PRN1 connector Network Status PRN1 (yellow) Table 21: LED Network Status PRN1 (yellow) at the PRN1 connector State Device state Description Off No error Fatal event Serious internal error MDE1195_4-10_1.3.x_5.0_Blackbird 24 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...
  • Page 25 Connection to the IO controller established IO controller in operating state STOP Online (STOP) Single flash Bad IO data IRT-synchronization not finished Used by engineering tools to identify the Flashing node in the network MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 25 / 76 OECD_(9CH, PRN)-en-us...

  • Page 26: Software

    The web interface has the following functions: Monitoring of the system status of the Blackbird OECD and the connected sensors. Updating the firmware of the Blackbird OECD. Setting the configuration of the Blackbird OECD. MDE1195_4-10_1.3.x_5.0_Blackbird 26 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...
  • Page 27 Signals: Informations about the System State measurement channels Uptime: Operating time of the system. Informations about the system: Serial Number: Serial number of the System Information Blackbird OECD. Firmware Version: Currently installed firmware version. MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 27 / 76 OECD_(9CH, PRN)-en-us...
  • Page 28 Figure 12: Signal State (number of channels depends on the variant) Table 26: Signal State: Informations about each channel Column Content Channel Number of the channel. Wavelength Wavelength of the sensor. MDE1195_4-10_1.3.x_5.0_Blackbird 28 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...
  • Page 29 Signal value of the sensor: Reference (top) and Raw Signal Filter (bottom). State Status of the channel. Hardware State Figure 13: Detailed Hardware State (number of channels depends on the variant) MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 29 / 76 OECD_(9CH, PRN)-en-us...
  • Page 30 Status of the laser of the light source. Current of the laser (top) and of the temperature Currents regulation of the laser (bottom). Software State Status of the software. Software Software Version: Temp Temperature. MDE1195_4-10_1.3.x_5.0_Blackbird 30 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...
  • Page 31 3. Product Description System Reboot Figure 14: System Reboot A restart of the Blackbird OECD system can be carried out by clicking on the PERFORM SYSTEM REBOOT button. MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 31 / 76 OECD_(9CH, PRN)-en-us...
  • Page 32 The page VISUALIZATION graphically displays the wavelength curve of the connected sensors. The channels can be selected by clicking on the channel at Channel Selection. The current wavelengths for all channels are displayed in the Current Values section. MDE1195_4-10_1.3.x_5.0_Blackbird 32 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...
  • Page 33 System Name Set name of the system. System Location Set location of the system. With a click on the button EDIT the editing for System Name and System Location can be activated. MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 33 / 76 OECD_(9CH, PRN)-en-us...
  • Page 34 Displays if read access to the web interface is possible without password without password. With a click on the button CHANGE OR DISABLE PASSWORD the editing for the password settings can be activated. Firmware Update Figure 18: Firmware Update MDE1195_4-10_1.3.x_5.0_Blackbird 34 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...

  • Page 35: Signal Quality

    35. Measurements are not possible. Table 31: Signal Quality Signal Quality Associated status codes Signal Good Temperature Low Temperature High Signal Level Low Signal Warning Signal Level High Wavelength Low Wavelength High MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 35 / 76 OECD_(9CH, PRN)-en-us...

  • Page 36: Ethernet Interface

    Communication takes place via IPv6 link-local addresses. The fos4X multicast address ff02::13c is used for device recognition. For communication via the Ethernet interface, fos4X recommends the use of the fos4X C API. See fos4X C API documentation. Time synchronization...

  • Page 37: Profinet Interface

    3.5.5 Profinet Interface GSDML Configuration File To integrate the Blackbird OECD into a Profinet network, a GSDML configuration file is required. You will receive the GSDML configuration file from fos4X. 3.5.5.1 Adjustment of the sampling rate to the cycle time As of firmware version 2.77, the sampling rate of the measuring device is adjusted to...
  • Page 38 See Tab. 37: Data Format for the Wavelengths, Sensor page 41. 5 … 20 Wavelength Data block 5 corresponds to channel n = 1. Data blocks of non-existent channels contain the value 0xfffffffe. MDE1195_4-10_1.3.x_5.0_Blackbird 38 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...
  • Page 39 Channel n is affected by at least one of the errors. Error in channel n 20 … 31 Bit 20 corresponds to channel n = 1. (Channels 1 … 12) Bits of non-existent channels are set to 0. MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 39 / 76 OECD_(9CH, PRN)-en-us...
  • Page 40 Data block 0 corresponds to channel n = 1. Bits of non-existent channels are set to 0. 16 … 31 Data Format for the Wavelengths Values 0xfffffff9 … 0xfffffffff are error messages. MDE1195_4-10_1.3.x_5.0_Blackbird 40 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...
  • Page 41 Description Bit 0 of the Command word is sent back in Bit 0 of the Status word 1. See Input Data, Command word page 37. Otherwise this data will be ignored. MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 41 / 76 OECD_(9CH, PRN)-en-us...

  • Page 42: Packaging And Transport

    Remove the upper foam part from the box. Remove the measuring device from the box. Check the scope of delivery. See Scope of Delivery, page 42. If parts of the scope of delivery are missing: Contact fos4X Support. See fos4X Support, page 69. MDE1195_4-10_1.3.x_5.0_Blackbird 42 / 76 ©...

  • Page 43: Packing

    Transporting the Blackbird OECD: Handle the Blackbird OECD with care during transport. Observe the transport conditions. See Environmental Conditions, page 15. Pack the Blackbird OECD in a transport packaging. See Packing, page 43. MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 43 / 76 OECD_(9CH, PRN)-en-us...

  • Page 44: Storage

    Store the Blackbird OECD in a dry and clean place. Store the Blackbird OECD in a transport packaging. See Packing, page 43. Observe the environmental conditions. See Environmental Conditions, page 15. MDE1195_4-10_1.3.x_5.0_Blackbird 44 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...

  • Page 45: Installation

    Attaching the measuring device in the control cabinet: Attach the measuring device with 4x M6 screws and nuts. Control cabinets from fos4X provide 4 welding studs to attach the measuring device with 4 x M6 nuts. 5.3 Connecting the Interfaces Connecting the Ethernet Interface: Connect a RJ45 cable to the ETH connector.

  • Page 46: Connecting The Power Supply

    GF-3,81 connector. Figure 21: PWR Observe the pin assignments (+) and (-) on the PWR connector connector. Connect the MC 1,5/ 2-GF-3,81 connector to the PWR connector. Switch on the power supply. MDE1195_4-10_1.3.x_5.0_Blackbird 46 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...

  • Page 47: Connecting A Sensor

    GTIN Recommended: Optical connector Fujikura 4251140910209 cleaner OCC-A Ultra Connecting a Sensor Figure 22: E-2000/APC connector and socket 1 Locking mechanism 4 Socket 2 Connector 5 Dust cap 3 Protective cover MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 47 / 76 OECD_(9CH, PRN)-en-us...
  • Page 48 Close the protective cover (3). Connect the connector (2) to the socket (4). The connector (2) snaps into the socket (4) with a clicking sound. The sensor is connected. Repeat the procedure for all sensors. MDE1195_4-10_1.3.x_5.0_Blackbird 48 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...

  • Page 49: Commissioning

    6 Commissioning Observe the safety instructions. See Safety, page 9. Commissioning the Ethernet Interface For communication via the Ethernet interface, fos4X recommends the use of the fos4X C API. See fos4X C API documentation. 6.2 Commissioning the Profinet Interface To integrate the Blackbird OECD into a Profinet network, a GSDML configuration file is required.
  • Page 50 If no password is set: Click on CREATE PASSWORD. If a password is set: Click on CHANGE OR DISABLE PASSWORD. Figure 25: Setting a password Check the box at Password enabled. MDE1195_4-10_1.3.x_5.0_Blackbird 50 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...
  • Page 51 Enter the new password in the field at Verify Password:. 10. Optional: Check the box at Read access without password. The option Read access without password allows read access to the web interface without password. MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 51 / 76 OECD_(9CH, PRN)-en-us...

  • Page 52: Operation

    Open a browser on the PC. Enter the IP-Adresse of the measuring device in the address bar. If the option READ ACCESS WITHOUT PASSWORD is not set, the page AUTHORIZATION REQUIRED is displayed. MDE1195_4-10_1.3.x_5.0_Blackbird 52 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...
  • Page 53 Enter the password in the field at Password:. Click on LOGIN. The page STARTING WEB APPLICATION is displayed. Figure 27: Initialization of the Web Interface Wait until the initialization is complete. The page HOME is displayed. MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 53 / 76 OECD_(9CH, PRN)-en-us...
  • Page 54 7. Operation Figure 28: Home page MDE1195_4-10_1.3.x_5.0_Blackbird 54 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...

  • Page 55: Troubleshooting

    Tasks that are not described in these operating instructions may only be done by fos4X. 8.1 Troubleshooting PWR LED If the described options do not help to fix the problem: Contact fos4X Support. See fos4X Support, page 69. Table 40: Troubleshooting PWR LEDs Problem Possible cause Solution Check the power cable for damage.
  • Page 56 Opening the Web Interface., page 52. System error Open the page SYSTEM STATE. Open the page HARDWARE STATE. If a web-interface is available on the measuring system: Check the status of the measuring device. MDE1195_4-10_1.3.x_5.0_Blackbird 56 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...

  • Page 57: Troubleshooting Signal Quality

    8. Troubleshooting 8.2 Troubleshooting Signal Quality If the described options do not help to fix the problem: Contact fos4X Support. See fos4X Support, page 69. Table 41: Troubleshooting Signal Quality Signal Quality Status codes Solution Make sure to operate Temperature Low within specification.

  • Page 58: Troubleshooting Ethernet

    Turn the power supply off and Device Wait until the initialization is Initializing complete. 8.3 Troubleshooting Ethernet If the described options do not help to fix the problem: Contact fos4X Support. See fos4X Support, page 69. MDE1195_4-10_1.3.x_5.0_Blackbird 58 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...

  • Page 59: Troubleshooting Profinet

    Contact fos4X Support. See fos4X defective. Support, page 69. 8.4 Troubleshooting Profinet If the described options do not help to fix the problem: Contact fos4X Support. See fos4X Support, page 69. 8.4.1 Troubleshooting Profinet Generic Table 43: Troubleshooting Profinet Problem Possible cause Solution Check the Profinet cable for...

  • Page 60: Troubleshooting Profinet Status Word 1

    Possible cause Solution Problem with the Check the Profinet network and Profinet network. configuration. Blackbird OECD Contact fos4X Support. See fos4X defective. Support, page 69. Do a firmware update. See Firmware Update via Web Interface, LED NETWORK Serious internal page 66.
  • Page 61 Bit 20 ... 21 in Check which warnings are pending. Status word 1 Error in channel n See Opening the Web Interface., set. page 52. MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 61 / 76 OECD_(9CH, PRN)-en-us...

  • Page 62: Troubleshooting Profinet Sensor Status And Wavelenght

    Bit 0 ... 11 in Sensor page 64. channel n has a low Status set. reflectivity. Reboot the Blackbird OECD. Turn the power supply off and on. Wavelenght Error Values See also Input Data, page 37. MDE1195_4-10_1.3.x_5.0_Blackbird 62 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...
  • Page 63 Clean the optical connectors. See Cleaning E-2000/APC Connections, Sensor or channel page 64. 0xfffffffa error. Reboot the Blackbird OECD. Turn the power supply off and on. MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 63 / 76 OECD_(9CH, PRN)-en-us...

  • Page 64: Maintenance

    Type Quantity GTIN Recommended: Optical connector Fujikura 4251140910209 cleaner OCC-A Ultra Cleaning E-2000/APC connections: Release the locking mechanism (1) of the connector (2). Remove the connector (2) from the socket (4). MDE1195_4-10_1.3.x_5.0_Blackbird 64 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...

  • Page 65: Replacing The Pwr Connector

    Dispose of old MC 1,5/ 2-GF-3,81 in accordance with local regulations. Attach the cable of the power supply to the MC 1,5/ 2- GF-3,81 connector. Observe the pin assignments (+) and (-) on the PWR connector. MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 65 / 76 OECD_(9CH, PRN)-en-us...

  • Page 66: Firmware Update

    Click on UPLOAD FIRMWARE. The status is displayed at Status:. Wait until the firmware update is complete. Reboot the Blackbird OECD. Turn the power supply off and on. Firmware update complete. MDE1195_4-10_1.3.x_5.0_Blackbird 66 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...
  • Page 67 Conditions: Firmware archive for the Blackbird OECD available. IPv6 protocol enabled on the PC. Doing a firmware update via fos4X Firmware Flasher: Stop the normal operation of the Blackbird OECD. If necessary: Remove the cable from the ETH connector. Connect the PC to the ETH connector.
  • Page 68 9. Maintenance Figure 31: fos4X Firmware Flasher Select the network adapter in Network Interface. Detected measurement devices are displayed in Available Devices. If the Blackbird OECD is not displayed: Make sure that the PC is connected to the ETH port of the Blackbird OECD.

  • Page 69: Fos4X Support

    Answers will be sent within one working day. +49 89 999542-02 Phone Monday-Friday 9:00-17:00 CET. The support of fos4X is available in German and English. Please include the following information in your support request: Product name Product type Serial number Nature of the problem MDE1195_4-10_1.3.x_5.0_Blackbird...

  • Page 70: Spare Parts And Accessories

    Table 50: Spare Parts Name Type Manufacturer GTIN Power supply MC 1,5/ 2-GF-3,81 Phoenix Contact 4017918050313 connector Accessories Table 51: Accessories Name Type Manufacturer GTIN Optical connector OCC-A Ultra Fujikura 4251140910209 cleaner MDE1195_4-10_1.3.x_5.0_Blackbird 70 / 76 © fos4X 2020 OECD_(9CH, PRN)-en-us...

  • Page 71: Taking Out Of Service And Disposal

    Remove the power cable from the PWR connector. Remove the RJ45 cable from the ETH connector. Remove all RJ45 cables from the PRN connectors. Secure the Blackbird OECD against falling down. MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 71 / 76 OECD_(9CH, PRN)-en-us...

  • Page 72: Disassembly

    Remove the Blackbird OECD from the control cabinet. Pack the Blackbird OECD. See Packing, page 43. 10.2 Disassembly The product may only be disassembled by fos4X or a specialized disposal company. 10.3 Disposal NOTICE Risk to the environment due to incorrect disposal of the product.

  • Page 73: List Of Figures

    Initialization of the Web Interface................53 Fig. 28. Home page........................54 Fig. 29. E-2000/APC connector and socket................64 Fig. 30. PWR connector.......................65 Fig. 31. fos4X Firmware Flasher....................68 Fig. 32. E-2000/APC connector and socket................. 71 MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 73 / 76 OECD_(9CH, PRN)-en-us...

  • Page 74: List Of Tables

    Representation of the information in the operating instructions....7 Tab. 2. Tasks............................9 Tab. 3. Measuring Properties....................13 Tab. 4. Requirements for sensors....................13 Tab. 5. Compatible sensors from fos4X................14 Tab. 6. Ethernet-Interface......................14 Tab. 7. Profinet Interface......................14 Tab. 8. Optical Data........................15 Tab. 9.
  • Page 75 Tab. 46. Troubleshooting Profinet Wavelenght Error Values.......... 63 Tab. 47. Material and equipment....................47 Tab. 48. Material and equipment..................... 65 Tab. 49. Material and equipment....................67 Tab. 50. Spare Parts........................70 Tab. 51. Accessories........................70 MDE1195_4-10_1.3.x_5.0_Blackbird © fos4X 2020 75 / 76 OECD_(9CH, PRN)-en-us...
