Campbell Hausfeld IN728800AV Setup Manual

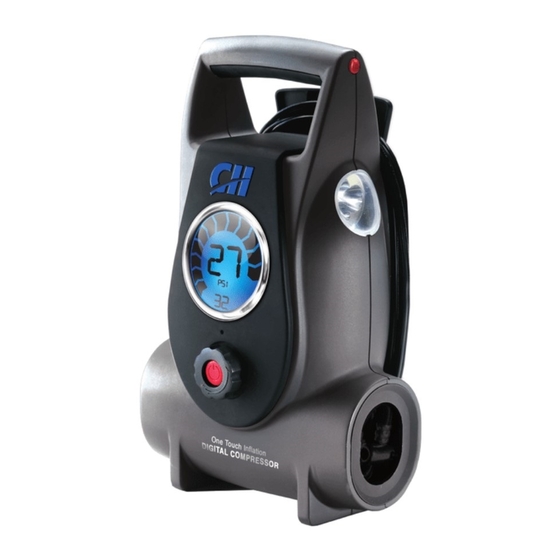

12-Volt Inflator
RP3300
A
Items requiring maximum pressure less than 20 psi
1
Setup Like a Pro
Visit us at chpower.com
Before using, insert 12-volt power plug into your
vehicle's power outlet. Some vehicles require
the vehicle to be turned on.
What are you InflatIng?
Balls, ATVs, Bicycles
or
or Tractor or Vehicle
Tires. Tires.
A
B
Go to Go to
NOTE: Not all inflatables fall into the above suggested range.
Double check your inflatable for its maximum pressure.
2
Connect universal
adapter to valve stem or
Insert
inflation needle
securely into the universal
adapter. With universal
adapter in place, Press
locking lever down.
B
1
Connect
universal
adapter to valve stem.
With universal adapter in
place, press locking
lever down.
3
Push
button to inflate.
Dial pressure
selector to LO.
Items requiring pressure between 20 psi and 99 psi
2
Actual Pressure
Desired
Pressure
Dial pressure
selector to desired
pressure.
4
Item reaches
desired firmness,
power
Push
power
button off. Gauge
displays actual
pressure.
RP3300 — 12-Volt Inflator
3
Push
power
button.
Actual Pressure
5
Repeat Steps
3 and 4 for more
inflation.
IN728800AV 2/09
