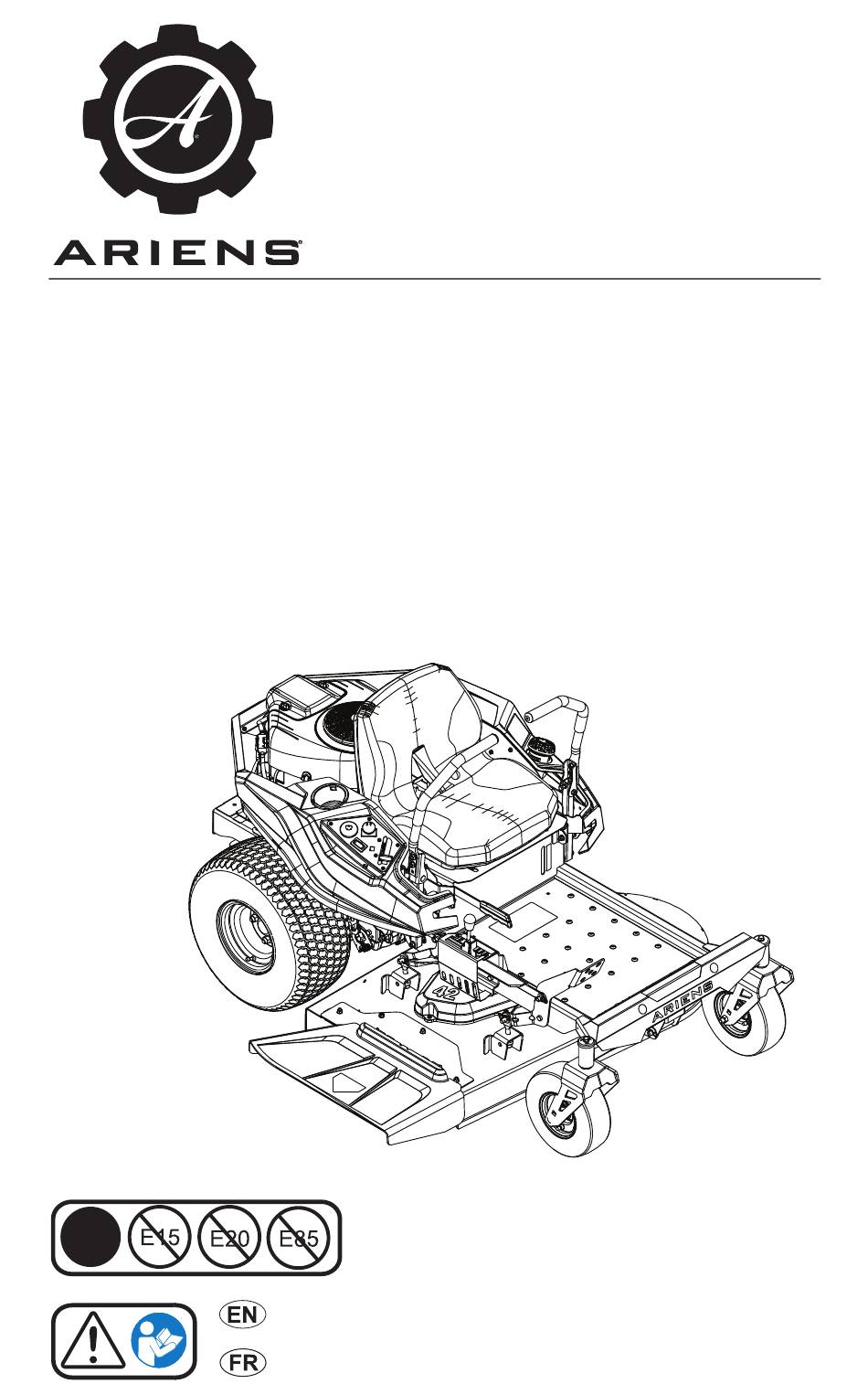

- Page 1 Edge Operator’s Manual Manuel du Utilisateur Models 915243 – Edge 34 (SN 000101 +) 915245 – Edge 42 (SN 000101 +) 915251 – Edge 34 (SN 000101 +) 915253 – Edge 42 (SN 000101 +) 915254 – Edge 52 (SN 000101 +) ENGLISH •...
-
Page 2: Table Of Contents
TABLE OF CONTENTS WELCOME ..... . 1 Move Unit Manually ....13 Transport Unit . -
Page 3: Welcome
WELCOME Congratulations on your purchase and welcome to the Ariens family! Every machine in the Ariens lineup is designed for long-lasting and unsurpassed performance. We are confident your machine will be part of your family for many years to come. -
Page 4: Safety
The safety alert symbol above and signal penalties. Emission controls and components words below are used on decals and in this can only be adjusted by an Ariens dealer or manual. Read and understand all safety an authorized engine manufacturer's service messages. -
Page 5: Safety Decals
5. Important ALWAYS replace missing or damaged safety decals. Replacement decal part numbers are IMPORTANT: Indicates general reference found in the parts manual for your machine information worthy of special attention. and may be ordered from your dealer. SAFETY DECALS See Figure 2 for safety decal locations. - Page 6 Safety Decal Descriptions 3. DANGER! 1. DANGER! Discharge Hazard - NEVER DANGER! operate unit without discharge chute in operating position. Thrown objects can cause injury or damage. Read and understand the DO NOT operate mower operator’s manual before unless all guards are in operating unit.
- Page 7 3. Tipping Hazard Look behind when operating the unit in reverse. Avoid tipping hazard. 3. Loss of Traction Hazard If loss of traction is DO NOT operate on slopes experienced do the over 15°. following: DO NOT operate on slopes Disengage PTO.
-
Page 8: Safety Instructions
SAFETY INSTRUCTIONS 6. HOT PARTS! The following safety instructions are based on the B71.1 specifications of the American National Standards Institute and ISO 5395 in DO NOT touch parts which are hot from operation. effect at the time of production. ALWAYS allow parts to cool. - Page 9 Children are often attracted to the machine explain it to them.Manuals are available in and the mowing activity. NEVER assume other languages at www.ariens.com. that children will remain where you last saw Only run the engine in well ventilated areas.
- Page 10 Mow up and down slopes, NEVER across. Service Exercise caution when changing direction Keep machine in good working order. on slopes. Use caution while operating near Replace worn or damaged parts. dropoffs. Use caution when servicing blades. Wrap Avoid mowing wet grass. Wet surfaces can the blade(s) or wear gloves.
-
Page 11: Controls And Features
CONTROLS AND FEATURES Models 915251, 915253 Model 915254 Models 215243, 915245 Figure 3 1. Fuel Tank and Cap 11. Power Take-off (PTO) Knob 2. Fuel Level Window 12. Hour Meter 3. Oil Filter 13. Height-of-Cut Adjustment System 4. Oil Drain 14. -
Page 12: Ignition Key
Models 915251, 915253 WARNING: AVOID INJURY. See Figure 6. Read and understand the entire Safety section before proceeding. See Figure 3 for all controls and features locations. IGNITION KEY Choke Off See Figure 4. Controls power to the engine. The key cannot be removed when in run position. -
Page 13: Hour Meter
PARKING BRAKE LEVER Blades On See Figure 10. Blades Off Controls the parking brake. The engine will not start with brake in the off position. Parking Brake Engaged (On) Figure 8 HOUR METER Hour meter measure engine runtime and cannot be reset. HEIGHT-OF-CUT ADJUSTMENT SYSTEM See Figure 9. -
Page 14: Operation
System by performing the tests in Check engine starts and then turn choke off. Safety Interlock System on page 16. Contact your Ariens dealer for repair if IMPORTANT: Make sure choke is completely any of the tests fail. off. Engine will not run smoothly using partial 5. -
Page 15: Stop The Engine
• Do not allow grass or debris to collect WARNING: AVOID INJURY. inside of mower deck. Clean after each Move the steering levers use. slowly and keep the throttle at STOP THE ENGINE slow speed until you learn how to operate the unit. WARNING: AVOID INJURY. -
Page 16: Transport Unit
MAINTENANCE WARNING: AVOID INJURY. Read and understand the Safety section before proceeding. Your Ariens dealer can provide service and adjustments to keep your unit operating at peak efficiency. Contact an authorized engine manufacturer’s service center for engine service. MAINTENANCE SCHEDULE... -
Page 17: Service Parts
SERVICE PARTS SERVICE POSITION See your Ariens dealer to purchase service Before starting any of the following parts for your unit. maintenance procedures: 1. Park unit on a flat, level surface. Description Qty. Part No. 2. Stop engine, remove key and wait for all HA Raw Laminated Belt –... -
Page 18: Check Safety Interlock System
See Specifications on page 22 for recommended tire pressure. Check function of the Safety Interlock System by performing the tests below. Contact your Ariens dealer for repair if any of the tests fail. WARNING: AVOID INJURY. Explosive separation of tire Test Steering... -
Page 19: Check Mower Blades
CHECK MOWER BLADES ADJUSTMENTS Check blades for wear and damage. Replace or sharpen as needed. WARNING: AVOID INJURY. CAUTION: AVOID INJURY. Use Read and understand the sturdy gloves or padding to Safety section before protect hands when working with proceeding. mower blades. - Page 20 Adjust Steering Level Reach See Figure 19. 1. Loosen hardware securing steering lever to upper control arm. 2. Pivot steering lever to desired position. 3. Ensure levers are aligned with each other. 4. Tighten hardware. 1. Adjusting Hole 2. Mounting Hole 3.
-
Page 21: Troubleshooting
Connect spark plug wire(s) or replace spark plug(s) are faulty. spark plug(s). Refer to engine manual. Electrical system is faulty. Contact your Ariens dealer. Engine is faulty. Contact your Ariens dealer. Choke is in the on position. Move choke to the off position. - Page 22 TROUBLESHOOTING Problem Probable Cause Correction Mower blades not level or mower Level and adjust pitch of mower deck. deck pitch is incorrect. Refer to your unit’s Service Manual. Mower blades are dull or faulty. Sharpen or replace mower blades. Refer to your unit’s Service Manual.
-
Page 23: Storage
STORAGE ACCESSORIES SHORT-TERM STORAGE See your Ariens dealer for a complete list of compatible accessories and attachments for IMPORTANT: NEVER wash unit with high- your unit. pressure water or store outdoors. Description Part No. 1. Allow unit to cool and clean with mild soap and water. -
Page 24: Specifications
SPECIFICATIONS Model Number 915243 915245 Description Edge 34 Edge 42 Engine Kohler 6000 660 (40.3) Engine Displacement – cm Maximum RPM – No Load 3600 ± 100 Oil Capacity Refer to engine manual. Liquid or Air Cooled Transmission Type Hydrostatic Drive 15W-50 synthetic motor oil (P/N 00057100) or equivalent Drive... -
Page 25: Specifications
SPECIFICATIONS Model Number 915251 915253 915254 Description Edge 34 Edge 42 Edge 52 Engine Briggs & Stratton Kawasaki FR651 724 (44.3) 726 (44.3) Engine Displacement – cm Maximum RPM – No Load 3600 ± 100 Oil Capacity Refer to engine manual. Liquid or Air Cooled Transmission Type... -
Page 26: Warranty
“Commercial Use.” If any product is rented or leased, then the duration of these warranties shall be 90 days after the date of purchase. An authorized Ariens dealer will repair any defect in material or workmanship, and repair or replace any defective part, subject to the conditions, limitations and exclusions set forth herein. Such repair or replacement will be free of charge (labor and parts) to the original purchaser;... - Page 27 Exclusions – Items Not Covered by This Warranty • Parts that are not genuine Ariens service parts are not covered by this warranty and may void the war- ranty if the parts result in premature wear or damage to the product.
- Page 28 Parts and Accessories Service replacement parts and non-serialized accessories are warranted for 90 days from date of purchase. Parts and accessories must be installed by an authorized Ariens dealer to be covered. Labor is not included. Customer Responsibilities Register the product immediately at the time of sale. If the dealer does not register the product, the customer must register the unit on-line at www.ariens.com.
- Page 29 Disclaimer AriensCo may from time to time change the design of its products. Nothing contained in this warranty shall be construed as obligating the AriensCo to incorporate such design changes into previously manufactured products, nor shall such changes be construed as an admission that previous designs were defective. Limitation of Remedy and Damages AriensCo liability under this warranty, and under any implied warranty that may exist, is limited to repair of any defect in workmanship, and repair or replacement of any defective part.
- Page 30 655 West Ryan Street Brillion, WI 54110 www.ariens.com parts.ariens.com...
