Connection Diagram For Single Phase - CD Automation REVEX 1PH 120 User Manual

REVEX
1PH from 120A to 210A

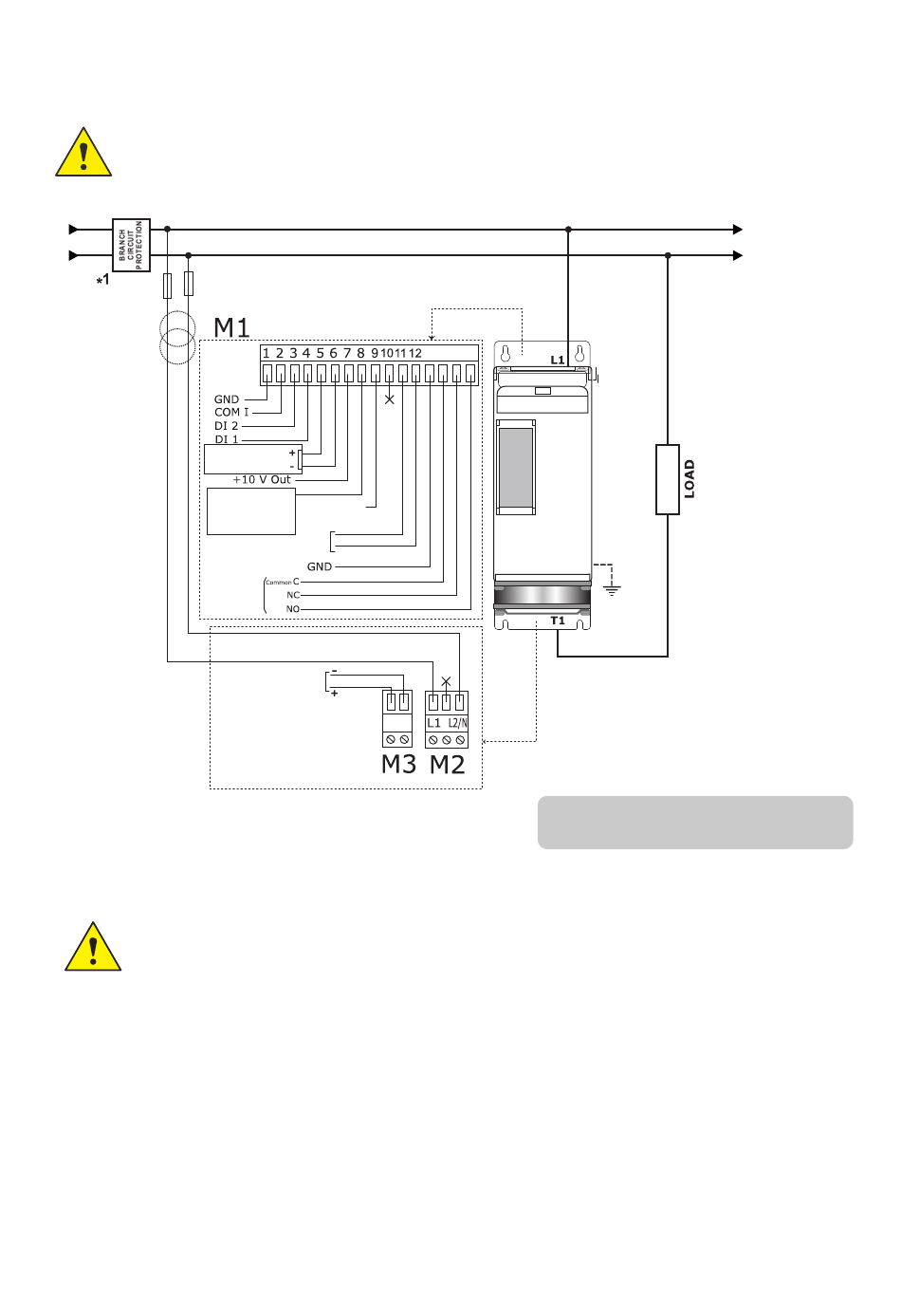

8.4 Connection Diagram for single phase

Caution: this procedure must be performed only by qualified persons.
L1
L2/N
Fuse
1A Max
Warning: It is not possible to remove the M3 connector when the unit is powered.
Remove the AUX 24Vdc power supply before extracting the M3 connector.
Extracting the M3 connector with the AUX 24Vdc power supply connected to
the M3 terminal could damage the unit
* 1 The user installation must be protecting by electromagnetic circuit breaker or by fuse isolator.
The Fuse must be branch circuit protection.
Analog Inp.1
0-10VDC /4-20mA
ANALOG SET POINT
Analog Inp.2
0-10VDC /4-20mA
SLAVE OUT
Reference
Ext.FeedBack
A+
RS 485
B-
Relay
Thermal or
SC/HB
AUX
131415 16
SYNC
+ -
24Vdc
Note: Aux Voltage and Load Voltage
must be synchronized
25
User's manual
L1
L2/N
