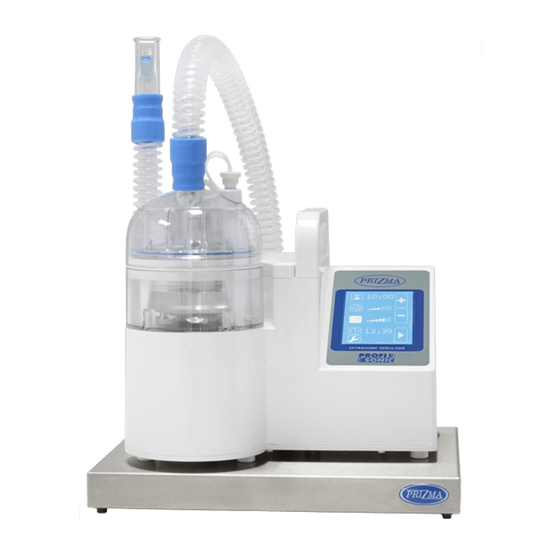

Professional ultrasonic nebuliser
1
Thank you for purchasing this PRIZMA ultrasonic nebuliser. Please read this instruction manual
carefully before using the unit as it contains important health and safety information. Please
keep your instruction manual at hand all the time.
This unit is medical instrument. Be sure to use unit properly according to instructions given
by medical professionals. Only use medications as prescribed and instructed by your doctor.
We wish you good health and all the best in the future.
Dear customer,
With best regards,
PRIZMA, Kragujevac

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROFI SONIC H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Prizma PROFI SONIC H

Summary of Contents for Prizma PROFI SONIC H

  • Page 1 Professional ultrasonic nebuliser Dear customer, Thank you for purchasing this PRIZMA ultrasonic nebuliser. Please read this instruction manual carefully before using the unit as it contains important health and safety information. Please keep your instruction manual at hand all the time.

  • Page 2: Table Of Contents

    Instruction manual IMPORTANT INFORMATION – READ THOROUGHLY History of document revisions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Intended use .

  • Page 3: History Of Document Revisions

    Professional ultrasonic nebuliser History of document revisions Version Date Description of changes 1 .0 01. 02. 2014. Initial version 1 . 1 25. 12. 2014. Package contents 1 .2 01. 12. 2015. Optional parts...

  • Page 4: Intended Use

    Instruction manual Intended use PROFI SONIC H is medical device intended for successfull treatment of asthma, bronchitis, allergy and other respiratory disorders. Use it only according to recommendations issued by your doctor or therapist. Intended use Device is intended to be used for inhalation of medication for respiratory disorders.

  • Page 5: Exclusions And Limitations Of Liability

    1. Due to our commitment to the ongoing development and improvement of our products, PRIZMA reserves the right to amend or change the content of this Instruction Manual without notice. 2. The contents of this manual are believed to be correct at the time of printing.

  • Page 6: Safety Notes

    Be sure to immediately dry the cleaned and disinfected parts, and then store them in a dry place in order to prevent them from getting contaminated in the future. In case of any problem with your nebuliser please contact your local PRIZMA service representative (address on/inside package)
  • Page 7 Professional ultrasonic nebuliser Safety notes Warning Do not use this device in presence of explosive gases or in areas with high risk of explosion. Use with non­flammable liquids only. Do not use this device in combination with ventilation equipment. Do not use in oxygen rich environment. •...
  • Page 8 Do not disassemble, repair, or modify the unit in any way. • The unit may malfunction or cause injury. Contact your nearest PRIZMA service representative. Do not use the power cord other than the supplied one. • The unit may ignite or you may suffer electric shock.
  • Page 9 1) Power­off the unit and unplug the power plug from the electric outlet. 2) Write ‘Faulty­Do not use’ on the main unit so that it will not be used. 3) Contact the store where you purchased the unit or the nearest PRIZMA dealer.

  • Page 10: Components Of The Product

    Instruction manual Components of the product...
  • Page 11 Professional ultrasonic nebuliser Components of the product - Main unit - Medication cup cover - Water tank - LCD touch screen display ­ Handle - Power button - Fuses - Cover fixing lever - Electric power socket - Bacterial filter - Drain hose - Filter cover - Inhalation hose holder...

  • Page 12: Principle Of Nebulisation

    Instruction manual Principle of nebulisation and main features Principle of nebulisation 1. PROFI SONIC H transmits the energy of ultrasonic vibrations from the vibrator located at the bottom of the water tank into water. 2. The ultrasonic vibrations are transmitted to the me- dication cup through the water in the water tank.

  • Page 13: How To Prepare Before Inhalation

    Professional ultrasonic nebuliser How to prepare before inhalation 1. Disassembling the nebulisation unit Rotate the medication cup cover fixing lever clockwise. Take the medication cup holder (plastic ring) located below the cup cover and lift it up. In this way, the nebulisation section is removed. Note: Medication cup holder is a three-legged part which keeps it steady on the table.
  • Page 14 Instruction manual How to prepare before inhalation 4. Removing the medication cup cover Hold the medication cup holder with one hand while the other is removing the medication cup cover 5. Placing the medication cup Place the medication cup in the medication cup holder (opaque plastic ring) Note: The medication cup is made of thin plastics.
  • Page 15 Professional ultrasonic nebuliser How to prepare before inhalation 8. Attaching the inhalation hose Attach the inhalation hose to the medication cup cover . Approximately 10mm of the hose length should be fitted over the adapter on the medication cup cover. Conect cable running from heating tube to socket on the rear side of unit.

  • Page 16: How To Inhale

    Instruction manual How to inhale You operate the nebuliser by pressing the icons on the touch screen. A short beep sound is produced with each command enabling the user to have greater control over the device. Note: Use your fingertips only to tap the LCD touch screen in order to prevent damages and to provide durability to the device .
  • Page 17 Professional ultrasonic nebuliser How to inhale STOP inhalation icon Press the “+” button to increase a parameter value. Press the “−“ button to decrease a parameter value. Bar graph depicting set values of the air-flow volume and the nebulisation rate as been set.
  • Page 18 Instruction manual How to inhale 4. Setting the air-flow volume Press the button and it will change its colour into . Adjust the air-flow volume by pressing the “+” and “−“ buttons. The air volume can be seen in the eight-level bar graph adjacent to the setting button.
  • Page 19 Professional ultrasonic nebuliser How to inhale 8. Interruption of the inhalation before the end of session The inhalation session may be stopped at any time by pressing the button . The main page will appear. The air-flow volume and nebulisation rate will remain on the display as set before, and the inhalation time will return to the initially set value.

  • Page 20: Finishing The Inhalation Treatment

    Instruction manual Finishing the inhalation treatment When the treatment is finished you should: 1. Turn off the power button (position 0). 2. Remove the inhalation hose from the medication cup cover. 3. Remove the medication cup cover 4. Discard the remaining medication 5.

  • Page 21: How To Take Care Of The Nebuliser Unit

    Professional ultrasonic nebuliser How to take care of the nebuliser unit How to take care of the bacterial filter Replace the bacterial filter after each 50 hours of operation or more often if it becomes dirty (due to the high level of dirt in the air).

  • Page 22: Cleaning And Disinfection

    Instruction manual Cleaning and disinfection Cleaning the unit Clean the dust from the main unit by wiping it with a disposable cloth after being moistened with water or light-detergent solution. Other parts of the unit may be cleaned with a light-detergent solution in warm or hot water.
  • Page 23 Professional ultrasonic nebuliser Cleaning and disinfection Immersion disinfection Do not immerse the unit in a disinfectant! Only the medication cup holder, medication cup cover, medication cup cover sealing and inhalation hose may be immersed in a disinfectant. The time to immerse the parts in the disinfectant differs with the type of the disinfectant used.
  • Page 24 Instruction manual Cleaning and disinfection Disinfection/cleaning of the unit under home conditions The medication cup holder, medication cup cover, medication cup and inhalation hose should be: washed in a warm detergent solution, rinsed thoroughly in running water and any excess water should be shaken from them, dried properly.

  • Page 25: Troubleshooting

    • If the unit does not operate normally after taking the above­mentioned measures, do not touch the internal mechanism and consult the store where you purchased the unit or the nearest PRIZMA service centre.

  • Page 26: Technical Data

    Instruction manual Specifications Technical data This device fulfils the provisions of the EC directive 93/42/EEC (Medical Device Directive). Product name PRIZMA Ultrasonic Nebuliser Model PROFI SONIC H Product class IIa Power source 100­240V~, 50­60Hz Power consumption 90VA Fuse 2 x T2AH/250VAC...
