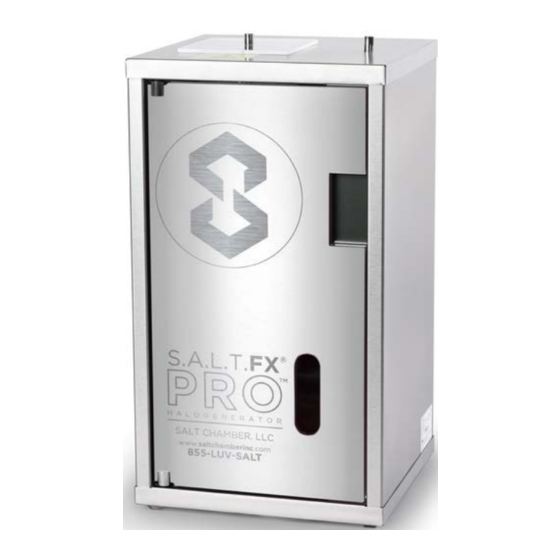

- Page 1 SALT FX® Pro Halogenerator User Manual...
- Page 2 Dear customer, Thank you for purchasing this PRIZMA's device. Be sure to read this instruction manual thoroughly before using the product so that you can use it safely and correctly. Please keep this instruction manual always at hand for future reference.
-
Page 3: Table Of Contents
Revision list Index MAKE SURE TO READ THIS SECTION Exemption from liability ................1 Notes on safety ..................2 ABOUT THE DEVICE Device features ..................8 Principle of operation ................9 Parts of the device ............. -
Page 4: Exemption From Liability
1. Any trouble and/or damage caused by the maintenance and/or repair conducted by other than PRIZMA or PRIZMA's authorized dealer. 2. Trouble and/or damage of PRIZMA's product caused by the product of other manufacturer not delivered by PRIZMA. 3. Trouble and/or damage caused by maintenance and/or repair using the repair part(s) not authorized by PRIZMA. -
Page 5: Notes On Safety
Notes on safety The warning signs and the sample icons shown here are listed for you to use this product safely and correctly as well as to prevent the risk of injury to you and others. The icons and meanings are as follows: Warning sign Contents Indicates situations in which the possibility of death or severe... - Page 6 Notes on safety IMPORTANT SAFETY INSTRUCTIONS WANING - When using electric appliances, basic precautions should always be followed, including the following: Read all the instructions before using the appliance. To reduce the risk of injury, close supervision in necessary when an appliance is used near children.
- Page 7 Corrosion can occur and damage some parts of the device. In case of a problem with this device please, contact your local PRIZMA service representative (address on/ inside package). Do not use this device in the vicinity of flammable gases or in areas with high risk of explosion.
- Page 8 Notes on safety WARNING The device is intented for operation with dry salt NaCl. If you use other substances, malfunction may occur or the device may be damaged. Relative humidity must be up to 40%. If the device is used at higher relative humidity, the degradation of its performance may occur.
- Page 9 It may cause malfunction of the device or human injury. There are no parts serviceable by user inside the device. Contact your nearest PRIZMA service representative. Do not use a power cord other than the supplied one. The device may ignite or you may suffer an electric shock.
- Page 10 If an error occurs, immediately take the following measures: 1) Turn power to the unit OFF and unplug from the electrical outlet. 2) Place a notice on the device “Faulty-Do not use”. 3) Contact the store where you purchased the product or the nearest PRIZMA dealer.
-
Page 11: About The Device
About the device Device features All mechanical parts and electronics are located inside one cabinet. Device is powered from the mains, via power cord. Touch screen displays program number, salt dispensing mode during session, fan speed, remaining time of session and indication of problems during session. -
Page 12: Principle Of Operation
About the device Principles of operation 1) The dispenser works in programmed time intervals and drops small amounts of salt from the salt tank down to grinder. 2) Grinder breaks salt grains to salt dust particles of various size, from few microns to parts of millimeter. -
Page 13: Parts Of The Device
About the device About the device Parts of the device Salt filling orifice cover Dispenser Dispenser fuse Dispenser power plug Display Fan power plug Grinder Grinder fuse Grinder power plug Extension Power cord Brush sleeve and NEMA 5-15P plug 4 pcs deflector... -
Page 14: Installation
Installation Instructions INSTALlATION INSTRUCTIONS Choose appropriate position for halogenerator on wall between clean room and salt room. Center of the outlet hole should be about 1m above floor level. Wall Salt room Clean room Outlet hole Halogenerator Drill a 110 mm diameter hole for outlet in the wall, between clean room and salt room. - Page 15 Installation Instructions Note: Power plug is on the bottom side of the halogenerator. Ventilation/light Power plug Main switch Fuse holder control plug Note: Mains plug is considered as disconnecting device. Mains power outlet used for connection of the halogenerator to the mains should be easily reachable to the operator.
- Page 16 Installation Instructions Installation Instructions GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
- Page 17 Installation Instructions Instruction for positioning of the halogenerator in salt room For proper operation of the halogenerator and salt room essential influence has: Position of the halogenerator. Supply of fresh air to the halogenerator. Position of exhaust ventilation orifice. ...
- Page 18 Installation Instructions Installation examples If ventilation system is perfect, and air pressure after halogenerator is 0.0 mm O (0.0 inch H O), fan can produce maximum air flow of 2.3 m /min (80 CFM/min). Very short, big cross area intake and exhaust air ducts Salt room Halogenerator...
- Page 19 Installation Instructions Therefore, it is essential to have good supply of fresh air before halogenerator and good air exhaust system from the salt room. If air supply is not good enough (meaning high air pressure drop after halogenerator), fan inside halogenerator will need help of additional fan/fans located in external air installation.
- Page 20 Installation Instructions To have good distribution of salt dust inside salt room, halogenerator and exhaust orifice must be separated as much as possible. If they are close to each other, salt dust will mainly go to exhaust orifice, instead to spread across salt room. Picture bellow is example of good configuration of halogenerator and exhaust orifice.
-
Page 21: How To Prepare Session
How to prepare session Intake of salt Remove the salt tank cover. Prepare the salt for use. For proper operation of the device, salt must be dry. If the salt is wet, it is necessary to heat it up for 5-10 minutes to 80°C in order to remove moisture. - Page 22 How to prepare session 2. Switching on the device. Close the door of halogenerator. Lock the door of halogenerator. Turn the main switch on (position "1"). Note: The main switch is on the bottom of the control unit.
-
Page 23: How To Work
How to work The unit is operated by pressing the command buttons on screen touch display. If you touch a command button, the unit will produce a short sound. This way, a user has both tactile and audible signs of operation. Note: To avoid damaging the screen, please do not touch it with your fingernails or sharp objects, only with finger tip. - Page 24 How to work 1. To set up duration of session Press button or displayed number for session duration. Device will enter session duration setup menu. Duration of session can be set by pressing Maximum duration of session is 99 minutes. Duration of session is displayed in the middle of screen.
- Page 25 How to work 4. To set air volume Press button or displayed number above. Device will enter air volume setup menu. Air volume can be set by pressing . Air volume value may be adjusted from 1 to 9. Press to confirm.
-
Page 26: At The End Of The Work Day
At the end of the work day At the end of the workday: Turn off the main switch (position "0"). Unplug the power plug from the electrical outlet. Clean the halogenerator. Note: It is important that you clean the halogenerator thoroughly at the end of the work day. -
Page 27: How To Take Care Of The Device
How to take care of the device General advice Do not wipe the main unit with volatile chemicals, such as benzene or thinners. Preparing for cleaning Turn off the main switch (position "0") on the bottom side of device. Dispenser power plug Unlock the door, take them by hand... - Page 28 How to take care of the device Dispenser cleaning Rotate the dispenser screw nut until it is possible to pull it outside the dispenser body. Dispenser screw nut Pull the dispenser parts out of the dispenser body. Wipe any salt remaining inside, on the surface of the salt tank Wipe out salt from all surfaces and blind holes of the dispenser plug...
- Page 29 How to take care of the device Remove the remaining salt inside the dispenser body and rotating part with a dry brush Use the bottle brush to remove the remaining salt inside the dispenser tube Put bottle brush inside dispenser tube, through Remove the remaining salt inside the dispenser tube Fan cleaning...
- Page 30 How to take care of the device Wipe out any remaining salt on all fan surfaces with a dry brush Grinder cleaning Hold the grinder flange by hand and slightly rotate the flange Pull the grinder down and take it out of halogenerator Clean all the surfaces of the grinder Do not forget to clean all the surfaces between...
-
Page 31: Storing
How to take care of the device WARNING Dry up all metal parts immediately if they get wet during cleaning. Metal parts may corrode. Do not wash the product with water, or let water get into the power supply. ... -
Page 32: Troubleshooting
"Grinder fuse is Replace the fuse. blown? blown" If the unit does not operate normally after the above-mentioned measures, do not touch the internal mechanism and consult the store where you purchased the device or the nearest PRIZMA dealer. -
Page 33: Safe Disposal
This product does not contain any hazardous substances. Symbols = Warning: read the instruction manual carefully = Correct disposal of This Product = Do not open! Session in progress! Manufacturer : PRIZMA Kragujevac d.o.o. Kumanovska 8 34000 Kragujevac, Serbia... - Page 34 Specifications Technical data This device fulfils the provisions of the standard EN 60335-1. Product name : PRIZMA Dry Salt Aerosol Generator Model : PRIZSALT+S Power source : 120 V , 60Hz Power consumption : 25-35 W Switch: 2 x T2AH/250VAC;...
