Prizma PRIZJet User Manual

Compressor nebuliser
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PRIZJet
1
Dear customer,
PRIZJet is a medical device intended for the successfull treatment of asthma,
bronchitis, allergies and other respiratory disorders. Use it only according
to the recommendations issued by your doctor or therapist.

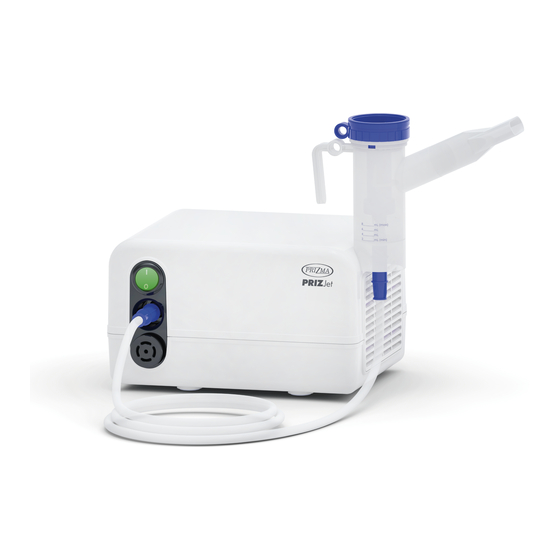

PRIZJet has two main parts, the compressor and nebuliser kit. Filtered
compressed air from the compressor transforms medication inside
the nebuliser kit to microscopic aerosol particles suitable for very easy
inhalation.
We wish you good health and all the best in the future
Compressor nebuliser
PRIZMA, Kragujevac

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRIZJet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Prizma PRIZJet

Summary of Contents for Prizma PRIZJet

  • Page 1 PRIZJet Compressor nebuliser Dear customer, PRIZJet is a medical device intended for the successfull treatment of asthma, bronchitis, allergies and other respiratory disorders. Use it only according to the recommendations issued by your doctor or therapist. PRIZJet has two main parts, the compressor and nebuliser kit. Filtered...

  • Page 2: Table Of Contents

    2. Guide to using the PRIZJet ........

  • Page 3: Intended Use

    PRIZJet Compressor nebuliser Intended use Intended Device is intended to be used for inhalation of medication for respiratory disorders. Intended users professionals. User must be capable of understanding the instruction manual and general device operation. Intended Conscious, spontaneously breathing patients.

  • Page 4: Before Using The Device

    Users’s manual Important safety information Read all the information in this instruction manual and any of the supplied documents before using the device. Description of symbols used regarding safety of device Potentially dangerous situation which, if not avoided, may result in Warning injuries or physical damage of device.
  • Page 5 Compressor nebuliser device with a blanket or towel. a fresh dose of medication for each use. circuits. (Risk of electrical shock) authorized PRIZMA service. Read and follow instructions on “Important information regarding this manual. (Usage) children or persons with a disability.
  • Page 6 Users’s manual filter has been used for more than 60 days, replace it with a new one. medication. dropping the device on the floor. tank with a pin. dry. oven. (Risk of electrical shock)
  • Page 7 PRIZJet Compressor nebuliser cleaning. General safety precautions and vibration. Also, compressed air leaving nebuliser kit produces some noise. This is normal and does not indicate a malfunction. other purpose. it into connectors to avoid the air tube disconnecting during use.

  • Page 8: Know Your Device

    Users’s manual 1. Know your device A. Compressor (main unit, PC) A1. Power switch A4. Nebuliser kit holder A2. Air connector...
  • Page 9 PRIZJet Compressor nebuliser A6. Fuse holder D. Nebuliser kit A7. Power jack D1. Filter and filter housing A8. Power cord D2. Top cover assembly B. Air tube (PVC, 220 cm) D3. Mouthpiece D5. Medication tank C. Inhalation attachments D6. Air valve button D7.

  • Page 10: Guide To Using The Prizjet

    Users’s manual 2. Guide to using the PRIZJet Preparing the nebuliser for use (Section 3) chments before using the device for the first time, or if it has not been used for more than one week. Taking medication (Section 4)

  • Page 11: Operating Instructions

    PRIZJet Compressor nebuliser 3. Preparing the nebuliser for use Warning: Clean and disinfect the nebuliser kit, mouthpiece or masks before using them for the first time or after purchase, if the device has not been used for a long period of time, or if more than one person uses the same device.
  • Page 12 Users’s manual 3. Plug the power plug into a power outlet. 4. Remove the mouthpiece from the nebuliser kit. 5. Remove the top cover from the medication tank. dication tank. 6. Add the correct amount of pre- scribed medication to the medi- cation tank.
  • Page 13 PRIZJet Compressor nebuliser head out of medication tank. Plea- se use the scale on your syringe or vial for accurate measurement of medication. 7. Put the top cover back inside the medication tank. cover with indent in the medication tank, as shown.
  • Page 14 Users’s manual Attaching the adult mask Attach the adult mask to the me- dication tank. Attaching the child mask Attach the child mask to the me- dication tank.
  • Page 15 PRIZJet Compressor nebuliser 9. Attach the air tube. nnector on the compressor. to the air tube connector on the medication tank. Notes: ly attached to the compressor and nebuliser kit, and does not come lose. Twist the air tube plug...

  • Page 16: Taking Medication

    Users’s manual 4. Taking medication 4.1 Inhalation 1. Hold the nebuliser kit as indicated in picture. Caution: Do not tilt the nebuliser kit more than 45°, as medication may flow into the mouth. 2. To start the compressor Press the power switch to the on...
  • Page 17 PRIZJet Compressor nebuliser To start the nebuliser Press the air valve button against medication tank. Note: Observe whether aerosol is generated. Note: For your convenience, it is possible to lock air valve button. To stop the nebulisation Unlock and release the air valve button.
  • Page 18 Users’s manual 3. Inhale medication according to your doctor’s instructions. Using the mouthpiece Prepare your mouthpiece accor- Insert the mouthpiece into your mouth and inhale the medica- normal through the mouthpiece. Using the adult or child mask Prepare your adult or child mask Attach the mask so that it covers your nose and mouth and inhale the mask.

  • Page 19: Handling Nebuliser Kit

    PRIZJet Compressor nebuliser Unplug the device from the power outlet. Warning: Condensation may occur inside air tube. Do not store the air tube while it contains condensation or moisture. This could result in infection from bacteria. moisture is purged from air tube.
  • Page 20 Users’s manual 8. Hold your breath for up to ten seconds to allow medication time to deposit in the airway. 9. Press air valve button and resume breathing as indicated above. Notes: to where it can be converted to an aerosol. lock down.

  • Page 21: Care And Maintenace

    PRIZJet Compressor nebuliser 5. Cleaning and daily disinfecting 5.1 Cleaning It is necessary to clean the device after each use. Cleaning will prevent drying of remaining medication inside the medication tank, remove moisture and condensation inside the air tube to prevent infections.
  • Page 22 Users’s manual 6. After cleaning and disinfecting the parts, rinse them thoroughly with clean water and allow the parts to air dry in a clean environment. 7. If the compressor is dirty, wipe it clean with a soft cloth slightly moistened with water or mild detergent.

  • Page 23: Disinfecting The Nebulising Parts

    PRIZJet Compressor nebuliser 5.2 Disinfecting the nebulising parts Always disinfect medication tank of nebuliser kit, top cover assembly of nebuliser kit, used mouthpiece and masks after the last treatment of the day. All mentioned parts can be disinfected by alcohol.

  • Page 24: Maintenance And Storage

    Users’s manual 6. Maintenance and storage To keep your device in the best condition and protect it from damage Caution: cannot express their consent. dropping the device on the floor. Notes: humidity or under direct sunlight. to applicable local regulations. Always transport the device in its carrying bag, and store the device in the bag if it will not be used for a long period of time.

  • Page 25: Changing The Air Filter

    PRIZJet Compressor nebuliser 7. Changing the air filter The air filter should be replaced after 60 days of use or when the filter has changed colour. 1. Pull the air filter cover off the compressor. 2. Remove the old air filter with a sharp object, such as toothpick, and insert the new air filter.
  • Page 26 Users’s manual 4. Put the air filter cover back in place. Notes: without a filter. replace it. A damp air filter can cause blockages. filter cover regularly. Do not boil the air filter cover. Remove the air filter cover, wash it, and make sure it is dry and reattached correctly. supplied with the device are damaged or missing.

  • Page 27: Troubleshooting

    PRIZJet Compressor nebuliser 8. Troubleshooting Check the following if your device should fail during operation. You can also refer to the pages of this Instruction manual for complete instructions. Symptom Cause Remedy Is the power cord plugged into Check that plug is inserted into the...
  • Page 28 The device is Are the ventilation slots blocked? Do not block the ventilation slots. very hot. Notes: repair the device - no parts of the device are user serviceable. Return the device to an authorized PRIZMA retail outlet or distributor. service centre.

  • Page 29: Technical Data

    PRIZJet Compressor nebuliser 9. Technical data Model Compressor nebuliser PRIZJet Type Non-heating compressor nebuliser Electrical: Power consumption: Operating temperature/ humidity: Storage temperature/ humidity/air pressure: Weight: Dimensions: Contents: Carrying bag, Instruction manual. Notes: different to those defined in the specifications.
  • Page 30 Users’s manual Technical data for the PRIZMA PRIZJet compressor with the Atlantean AT-Neb Nebuliser kit Particle size: Medication tank capacity: Appropriate medication quantities: Sound: Nebulisation rate: *MMAD = Mass Median Aerodynamic Diameter Notes: Notes: components. = Class II = Read the instructions manual carefully...
  • Page 31 Recommendation is distance is shorter. at address mentioned in this instruction manual. Documentation is also available at www.prizma.rs. Correct disposal of this product (Waste electrical & electronic equipment) This marking shown on the product or its literature indicates that it should not be disposed of with other household wastes at the end of its working life.

  • Page 32: Optional Parts And Accessories

    Nebuliser kit with hose Adult mask Child mask (Catalogue Code: PJNK) (Catalogue Code: PJAM) (Catalogue Code: PJCM) Filter cover Carrying bag (Catalogue Code: PJAF) (Catalogue Code: PJCF) (Catalogue Code: PJCB) Instruction manual Manufacturer PRIZMA d.o.o. EU-representative GRAJSKA VRATA d.o.o Production facility PRIZMA d.o.o.
