- Page 1 USER MANUAL CENTRAL POWER SUPPLY SYSTEM FOR EMERGENCY SYSTEM...
- Page 3 Please strictly observe all warnings and instructions in this operating manual. Please keep this manual properly for future reference, and not to use this fi no units when they are not carefully read all information and warnings described.
- Page 4 index PROGRAMMING AND INSTALLATION MANUAL FOR CPS CHAPTER 1 INTRODUCTION pag.1 1.1 Intro 1.2 Description of the system CHAPTER 2 INSTALLATION pag.6 2.1 Intro 2.2 Description of the system 2.3 Positioning 2.4 Rules for making connections CHAPTER 3 ELECTRICAL CONNECTIONS Pg.
-
Page 5: Environmental Protection
CHAPTER 1 INTRODUCTION Thank you for choosing this product. This manual provides instructions for safety, installation and of 'equipment operation. It also allows the most complete product knowledge in order to obtain from it the best service. Please keep this manual. WARNING! The system described in this manual must be used exclusively to 'use for which they have been specifically designed. -
Page 6: Description Of The System

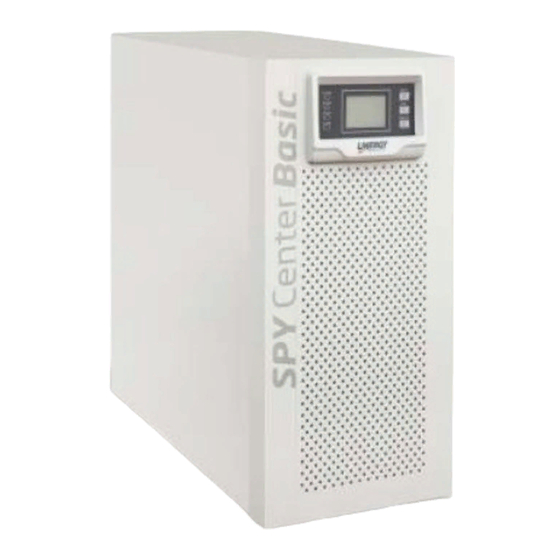

DESCRIPTION OF THE SYSTEM This unit online double conversion ensures continuous feeding in of d 'emergency lighting systems or security systems. The double conversion system has primary to eliminate noise from the main. VFI (Voltage and Frequency Independent): where in the CPS output voltage is independent of the variations of the mains voltage and frequency variations are controlled within the limits prescribed by the European Standard (IEC 110-10). -
Page 7: Unpacking And Inspection
UNPACKING AND INSPECTION 1) Unpack the 'packaging and check the contents inside. The dell 'package content includes: CPS; the manual for the 'installer; the comunicazone cable to board relay Relay card (already assembled in 'units) Battery Box (with battery connected) Kit cables and fuses. - Page 8 L 'reverse polarity cause immediate and irreversible damage to the rescuer. The damage due to reverse polarity are not in any case covered by the warranty of the SRL Linergy Use tools with the 'insulated handle.
- Page 9 1 3 1 3 PROJECT OF THE FAN TO EN 50272-2 and CEI EN IEC 62458-2 The quantity of air "Q" necessary for the ventilation of a battery compartment, must be calculated according to the formula simpli fi ed: Q = 0.05 x xnx Igas Crt x 10 (m / h) = 0.05 vxqxs (v = hydrogen density;...
-
Page 10: Rules For Installation
CHAPTER 2 RULES FOR INSTALLATION Warning: Before installing the system carefully read the safety instructions: Do not install 'central unit (CPS) and the battery box next to' water or in moist environments. Do not install 'central unit (CPS) and the battery box in places exposed to direct sunlight or heat sources. - Page 11 1 3 1 3 REMOVING THE PARAMEDIC AND THE BATTERY BOX WARNING: TO PREVENT DAMAGE TO PEOPLE AND / OR EQUIPMENT FOLLOW THE FOLLOWING. SOME OF THE FOLLOWING OPERATIONS REQUIRE THE TWO PEOPLE WORK. Cut the straps. Remove the packaging material. Remove the 2 brackets that fi...
-
Page 12: Room Temperature
1 3 1 3 DO NOT TURN THE BATTERY BOX CORRECT DO NOT TURN IN NO EVENT SHALL THE BATTERY BOX ROOM TEMPERATURE The life expectancy for lead-acid batteries is reduced by half for every increase of 10 degrees with respect to the design temperature of 20/25 °... -
Page 13: Battery Maintenance
Batteries should be replaced by qualified. Replace if necessary Linergy the batteries with batteries of the same type. Do not replace the batteries individually. All batteries should be replaced at the same time following the instructions of Linergy Srl. - Page 14 1 3 1 3 1 1 1 REAR VIEW CPS SCB050 SCB050 SCB060 SCB060 AC Input Battery Output 1 (SA) AC Output 2 (SE) Input Battery INTELLIGENT SLOT RS232 COOLING FANS SWITCH PROTECTION EARTH EPO...
- Page 15 1 3 1 3 REAR VIEW CPS models: SCB080 SCB080 SCB100 SCB100 AC Input Battery Output 1 (SA) AC Output 2 (SE) Input Battery INTELLIGENT SLOT RS232 COOLING FANS SWITCH PROTECTION EARTH...
-
Page 16: Electrical Connections
1 3 1 3 ELECTRICAL CONNECTIONS OUTPUT NOT MAINTAINED OUTPUT MAINTAINED battery... - Page 17 1 3 1 3 The emergency stop function (EPO = Emergency Power-Off) serves the immediate shutdown at a distance of the UPS system and the connected loads. To this end it is necessary to remove the jumper from the emergency stop plug (on the back of the UPS system) and connect an external emergency stop switch.
- Page 18 L 'reverse polarity cause immediate and irreversible damage to the rescuer. The damage due to reverse polarity are not in any case covered by the warranty of the SRL Linergy After connecting the batteries to the PSC Box close the circuit by inserting the fuses provided in the fuse holder on the inside.
- Page 19 1 3 1 3 POWER CPS To turn on the central correctly. On the back of the rescuer Turn ON the first switch battery, then turn ON switch Input (AC input) OFF CPS To properly ATurn the center. On the back of the rescuer Turn OFF the first switch input, then turn OFF switch Battery (Battery) Battery...
- Page 20 1 3 1 3 IGNITION CPS with electricity mains present (Line mode / AC mode). 1) After making sure that all connections are made correctly place the first 'switch' s entry into the ON position. At this point the cooling fans start and the SPC lights up in standby mode. 2) To activate the CPS mode, hold down the ON / OFF button continuously for more than one second.
- Page 21 OFF THE CPS with this grid. 1) Press continuously ON / OFF for longer than a second to switch off the 'inverter operating. 2) At this point, the display shows the level of battery charge, also once the 'Inverter turns off the machine returns to standby mode.
- Page 22 CHAPTER 4 DISPLAY LCD DISPLAY AND FUNCTIONALITY 'KEYBOARD Function Led machine on signaling, indicating that the PSC is on WARN: if flashing indicates that the machine is not ensured continuity of electric current in the case of blackouts. Inverter off. FAULT: red LED signaling faults or danger.
- Page 23 Function OFF: Pressed once allows shutdown of 'INVERTER, pressed and held for more than one second makes it possible to switch off the machine completely BY PASS indicates that the bypass circuit is working LINE: main grid display this BATTERY: battery circuit indicator present if LINE is active indicates that the battery circuit is charging.
-
Page 24: Operative Mode
CHAPTER 5 OPERATIVE MODE In the standard mode of operation, the function in which the mains is present and in case it fails is ensured l 'battery power. In the standard mode of operation, the function in which the mains is present and in case it fails is ensured l 'battery power. In the standard mode of operation, the function in which the mains is present and in case it fails is ensured l 'battery power. - Page 25 METHOD 'BYPASS The By-pass circuit excludes the UPS and directly connects the output with the input. The changeover takes place in a synchronized manner at the end to always guarantee the correct output voltage. METHOD 'STANDBY...
-
Page 26: Communication Ports
CHAPTER 7 COMMUNICATION PORTS In the rear part of the rescuer are present the following communication ports: RS 232 - Power Manager RS 232 - Power Manager Expansion slot for additional communication cards Expansion slot for additional communication cards INTELLIGENT SLOT The rescuer equipped with an expansion slot for optional communication cards (see fi... - Page 27 SCBMOD Product description Reporting Form Status Led Spy Center for Basic Viewing using local LEDs active EPO function - terminals nr. 11/12 Views Led by local and signaling REMOTE Battery - terminals nr. 10/2 General alarm - terminals nr.8 / 2 Mains absent - terminals no.7 / 2 CPS Fault - terminals nr.6 / 2 CPS in function - terminals no.3 / 2 Function bypass - terminals No.4 / 2 (models SCB050 / 060/080/100) Remote Signaling through contacts 12 / 24Vdc...
- Page 28 POWER MANAGER (ex works) After entering the username and password, you will see the homepage monitoring, we can check the status of the rescuer and start the control software. - It allows the control and monitoring via a local PC - Interface graphs simple and immediate ca - Real-time dynamic updating of data on UPS status - Alerts noti fi...
- Page 29 Keep charging the battery for 12 h continuous aged Batteries Replace the batteries. Contact Linergy SRL for spare parts. L 'operation must be carried out by quali fi ed THE "ON" button is pressed too briefly Press the "ON"...
- Page 30 When you call for service, please provide the number of CPS series in this' label on the back of the machine example SPY CENTER BASIC SERIAL NUMBER 00:00:00 Coef fi cient derating according to altitude Altitude (meters) Coef fi cient derating...
- Page 31 TABLE MODELS POWER (W) SECOND EN50171 EN 50171...
- Page 32 TABLE FOR THE SIZING OF PROTECTION Code INPUT ENTRANCE DIFFERENTIAL 300mA SCB050 32A curve C 300mA SCB060 32A curve C 300mA SCB080 40A curve C SCB100...
-
Page 33: Technical Specifications
TECHNICAL SPECIFICATIONS SCB050 / SCB060 SCB080 / SCB100 SCB050 / SCB060 SCB080 / SCB100 ALL / ALL <135% OVERLOAD acoustic alarm <160% shutdown the output after 1 minutes... - Page 36 Linergy Ltd. Via A. De Gasperi, 9-63075 Acquaviva (AP) - Italy Tel: (+39) 0735 5974 - Fax: (+39) 0735 597 474 Mail: info@linergy.it...
