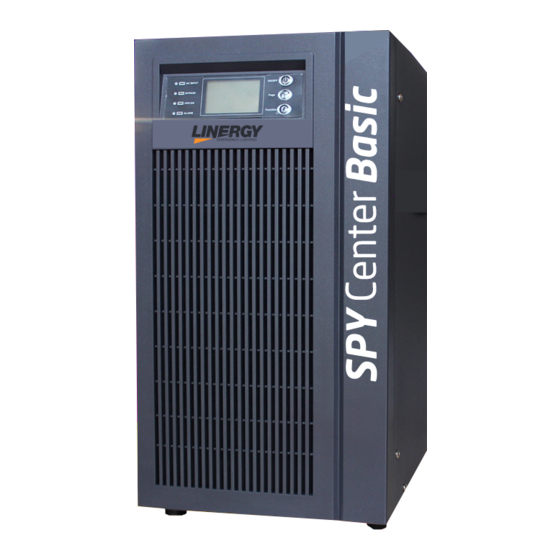

CENTRAL POWER SUPPLY SYSTEM
FOR INSTALLATIONS WITH CENTRALIZED
SUPPLY LUMINAIRES
CE NTER
SPY
BASIC
MANUAL
SERIES SCB050
SERIES SCB060
VER .
1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCB050 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Linergy SCB050 Series

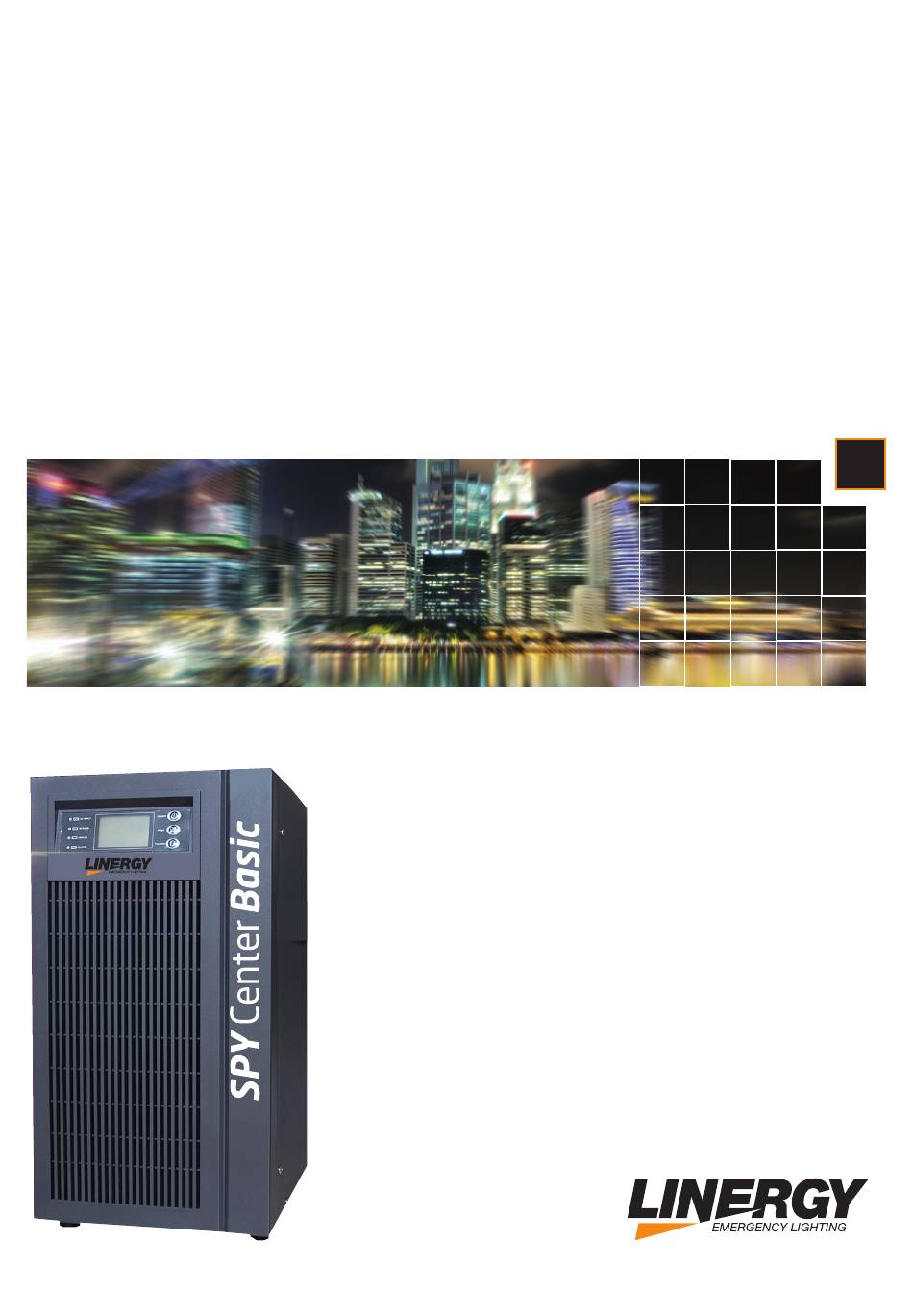

  • Page 1 CE NTER BASIC MANUAL SERIES SCB050 SERIES SCB060 VER . CENTRAL POWER SUPPLY SYSTEM FOR INSTALLATIONS WITH CENTRALIZED SUPPLY LUMINAIRES...
  • Page 3 Please strictly comply with all warnings and instructions indicated in this operating manual. Keep this manual properly for future reference and do not use this unit until you have carefully read all the information and warnings described.
  • Page 4 index MANUAL CHAPTER 1 Introduction pg.1 System description pg.2 Unpacking pg.3 Rules for connection pg.4 Local ventilation pg.5 CHAPTER 2 Rules for installation pg.6 Removal of the CPS and battery box pg.7 Local temperatures pg.8 Battery maintenance pg.9 CPS rear view pg.10 Electrical connections diagram pg.11...
  • Page 5: Disposal Of The Product

    CHAPTER 1 INTRODUCTION Thank you for choosing this product. Before installing the CPS, read this manual carefully. This manual provides instructions for the safety, installation and operation of the equipment. It also allows the most complete knowledge of the product in order to obtain the best service from it.
  • Page 6: System Description

    SYSTEM DESCRIPTION This double conversion online unit ensures continuous power supply to emergency lighting systems or security systems. The double conversion system has the main feature of eliminating disturbances from the main network. VFI (Voltage and Frequency Independent): in which the voltage at the rescuer's output is independent of changes in the mains voltage and frequency variations are controlled within the limits prescribed by the regulations.
  • Page 7: Unpacking And Inspection

    UNPACKING AND INSPECTION 1) Unpack the packaging and check the contents inside. The content of the packaging includes: The CPS; Ÿ The manual; Ÿ The serial and USB communication cable Ÿ CD with POWER MANAGER program Ÿ Battery Box (with batteries connected) Ÿ...
  • Page 8 Always respect the indicated polarity. The inversion of polarity causes immediate and irreversible damage to the rescuer. Damages due to polarity inversion are in no case covered by the Linergy S.R.L. Use tools with insulated handles. 1. Open the terminal block cover located on the UPS rear panel.
  • Page 9 VENTILATION PROJECT ACCORDING TO EN 50272-2 e CEI EN IEC 62458-2 The amount of air "Q" necessary for the ventilation of a battery compartment, must be calculated according to the simplified formula: Q = 0.05 x n x Igas x Crt x 10-3 (m / h) 0.05 = v x q x s (v = hydrogen density;...
  • Page 10: Installation

    CHAPTER 2 INSTALLATION Attention: before installing the system, read the safety instructions carefully: Do not install the central unit (CPS) and the battery box near the water or in humid environments. Do not install the central unit (CPS) and the battery box in places directly exposed to sunlight or heat sources.
  • Page 11 1 3 1 3 REMOVAL CPS AND THE BATTERY BOX WARNING: TO AVOID DAMAGE TO PERSONS AND / OR DAMAGE TO THE EQUIPMENT CAREFULLY FOLLOW THE FOLLOWING INSTRUCTIONS. SOME OF THE FOLLOWING OPERATIONS NEED THE WORK OF TWO PEOPLE. § Cut the straps .
  • Page 12 DO NOT TURN THE BATTERY BOX OVER CORRECT DO NOT TURN THE BATTERY BOX IN ANY CASE TEMPERATURE The life expectancy for lead batteries is reduced by half for each 10 degree increase compared to the design temperature of 20/25 °C. Where possible, where an optimal useful cycle is necessary, it is preferable to choose controlled temperature environments.
  • Page 13: Battery Maintenance

    Batteries must be replaced by qualified personnel. If necessary, replace the batteries with Linergy batteries of the same type. Do not replace batteries individually. All batteries should be replaced at the same time following the instructions of Linergy Srl.
  • Page 14 1 3 1 3 1 1 1 REAR VIEW CPS OUTPUT 12Vdc OUTPUT CONTROL EXT BATTERY NC COM NO Input Breaker Input Ouput RS 232 INPUT SWITCH OUTPUT 12V INTELLIGENT SLOT OUTPUT CONTROL OUTPUT DRY CONTACT INPUT OUTPUT 230Vac INPUT BATTERY BOX GROUND...
  • Page 15: Output Control

    ELECTRICAL CONNECTIONS DIAGRAM The CPS is equipped with 3 single-phase outputs (L1-N; L2-N; L3-N) which can be managed individually in Not Maintained (NM) or Maintained (M) through the Output control (K1; K2; K3) . By jumpering the relevant terminal it is possible to configure the Not Maintained (NM), by opening the circuit, we have the circuit Maintained (M).
  • Page 16 CONFIGURATION ‘’Ln’’ Example of configuration of the output circuits: K1 jumper open the output circuit L1 is enabled in Maintained (M) K2 jumper closed the output circuit L2 is enabled in Not Maintained (NM) K3 jumper closed the output circuit L3 is enabled in Not Maintained (NM) OUTPUT CONTROL OUTPUT 12Vdc OUTPUT CONTROL...
  • Page 17 RELE’ NC/NO The system is equipped as standard with an output for remote signaling dry contacts. It is activated in the event of black out (230Vac), it signals the general emergency status. NC COM NO OUTPUT 12Vdc OUTPUT CONTROL OPEN=EMERGENCY OPEN=OK EXT BATTERY CLOSED=OK...
  • Page 18 The inversion of polarity causes immediate and irreversible damage to the CPS. Damages due to polarity inversion are in no case covered by the Linergy S.R.L. Connecting the battery box to the CPS, close the circuit by inserting the fuses provided in the fuse...
  • Page 19: Emergency Power Off (Epo)

    EMERGENCY POWER OFF (EPO) The emergency stop function (EPO = Emergency Power-Off) is used for immediate remote shutdown of the system and connected users. For this purpose it is necessary to remove the jumper from the emergency stop plug (on the back of the system) and connect an external emergency stop switch. Cross-section of the connection cable = 0.5 - 2.5mm2 (AWG 13 - 20) Recommended section of the connection cable = 1.5mm2 (AWG 15) EPO CLAMP...
  • Page 20 SWITCHING ON THE CPS with the mains present. ( Line mode/ AC mode). 1) After making sure that the connections have been made correctly first place the protection switch in the ON position. (fig.1) 2) To activate the CPS in operating mode, keep the keys pressed simultaneously for 0.5 seconds.
  • Page 21 SWITCHING ON without main power supply provided (battery mode. 1) Put the INPUT BREAKER in OFF position (fig. 1). To activate the CPS in battery mode, the keys must be pressed simultaneously for more than 0.5 seconds. 2) In this mode the CPS supplies power to the output load, until the batteries are discharged.
  • Page 22: Panel Display

    CHAPTER 3 PANEL DISPLAY Display Function Error message Failure occurred Warnings Fault code Mute Mute function Input and output voltage, DC voltage, CPS internal temperature VAC: input and output voltage VDC: DC voltage : CPS internal temperature HZ : Frequency Load information The load volume(0~25%,26%-50%,51%-75%,76%-100%) is shown here,and the overload icon flashes when overload.
  • Page 23: Function Key

    LED FAULT RED: flashing when CPS alarm, and always on when fault. LED BYPASS YELLOW: LED is continuous on when CPS working in bypass mode When CPS working in standby mode, its frequency conversion do not turn on and bypass abnormal, LED flashes LED BATTERY YELLOW: LED is always on when CPS work in battery mode and battery self-test mode, LED flashes and CPS alarm when battery is low...
  • Page 24 CPS working status table of LED indicator and beeping Beeping: Beeping Description Continuous beeping Fault mode Battery low voltage in DC mode Beep every second Overload Bypass mode Beep every two minutes Beep every four seconds Other beeping UPS working status table of LED indicator: Panel display Beeping Working mode...
  • Page 25 AC mode LCD display Instruction CPS can provide stable AC oytput when AC input in the permissible range. In the AC mode, battery will also be charged by the CPS Battery mode LCD display Instruction When the AC input is out of limited range or shut off, the CPS will turn to the battery mode.
  • Page 26 Parameter query Normally the LCD display can show 8 pages totally. Press the query bottom for 0.1~2 sec can change to the different pages which shown all information, such as input, battery, output, loading, software version, temperature, and etc. If there have alarm condition, display will add 1 more page to show the alarm information.
  • Page 27 LCD Display 3: Battery voltage and capacity LCD Display 4: Output voltage and Output active power LCD Display 5: Output voltage and output complex power LCD Display 6: Output voltage and load percentage LCD Display 7: CPS system software version LCD Display 8: connected battery quantity...
  • Page 28: Communication Ports

    CHAPTER 4 COMMUNICATION PORTS The following communication ports are located on the rear of the CPS: RS 232 connector - Power manager Expansion slot USB communication cable E P O V dc T 12 TP U TR O TP U B A TT E X T RS232 communication cable...
  • Page 29 POWER MANAGER (supplied standard) Monitoring software that allows you to view and check the status of the CPS. - Allows control and monitoring via local PC - Simple and immediate graphic interface - Dynamic update in real time of data relating to the status of the - Notification alerts - CPS programming on / off, battery test, load shutdown and audible alarms...
  • Page 30 SCBMOD Product description Status Led signaling module for Spy Center Basic. Visualization through local Led EPO function active - terminals no. 11/12 Visualizations via local Led and REMOTE signaling Low battery - terminals no. 10/2 General alarm - terminals 8/2 No power supply - terminals 7/2 CPS anomaly - terminals 6/2 CPS in operation - terminals 3/2...
  • Page 31 When contacting the after-sales service, please provide the CPS serial number present on the label on the back of the machine esempio SPY CENTER BASIC SERIAL NUMBER 00.00.00 Derating coefficient as a function of altitude Altitudine (metri) Coefficiente di declassamento...
  • Page 32 CHAPTER 5 Error reports and solutions When the “ “ symbol on the CPS LCD flashes, the CPS is in alarm state. Press the page turn key to the error state page (refer to 3.5), observe the alarm code and make appropriate processing according to the table below.
  • Page 33 Fault code Meaning Possible reasons Treatment measure 1. city electricity is too low Please check the city electricity, if no any Busbar undervoltage 2. software processing errors abnormal, please contact supplier 3.BUS capacitor failure 1. Fan failure 1.Please check the rectifier on the fan; 2.The air duct on the rear 2.
  • Page 34 TABELLA MODELLI SCB050P10 SCB050P20 SCB050P30 CODE Nr. 3 selectable (SE + SA) OUTPUT LINES BATTERY 16 xPb 12V 33Ah 16 xPb 12V 60Ah 16 xPb 12V 90Ah AUTONOMY NOMINAL POWER 5000 (VA) 4000 POWER (W) POWER (W) 3100 IN ACCORD EN 50171 230Vac OUTPUT VOLTAGE N.
  • Page 36 Linergy s.r.l. Via A. De Gasperi, 9 - 63075 Acquaviva Picena (AP) - Italy Tel: (+39) 0735 5974 - Fax: (+39) 0735 597474 Mail: info@linergy.it...
