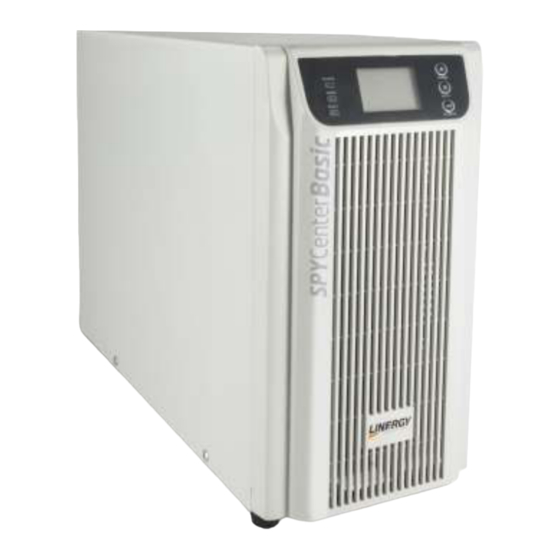

Central power supply system for emergency systems

Advertisement

CENTRAL POWER SUPPLY SYSTEM
FOR EMERGENCY SYSTEMS
SPY
SPY
CENTER
CENTER
BASIC
SERIES
SCB010
SCB020
SCB030
VER.
2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spy Center Basic Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Linergy Spy Center Basic Series

  • Page 1 CENTER CENTER BASIC SERIES SCB010 SCB020 SCB030 VER. CENTRAL POWER SUPPLY SYSTEM FOR EMERGENCY SYSTEMS...
  • Page 2 Please observe all warnings and instructions in this operating manual.
  • Page 3 index PROGRAMMING AND INSTALLATION MANUAL FOR CPS CHAPTER 1 INTRODUCTION pag.1 1.1 Intro 1.2 Description of the system CHAPTER 2 INSTALLATION pag.4 2.1 Intro 2.2 Description of the system 2.3 Positioning 2.4 Connections CHAPTER 3 ELECTRICAL CONNECTIONS Pg. 7 3.1 Connections battery circuit 3.2 Measures for the maintenance of the batteries 3.3 Rear view of the CPS 3.4 Electrical connection diagram...
  • Page 4: Disposal Of The Product

    The system described in this manual must be used exclusively to 'use for which they have been specifically designed. Any other use is considered improper and dangerous. The Central Power Supply of the SPY CENTER BASIC series, provide electrical continuity to every kind of user, in case of lack of main power supply.
  • Page 5: Description Of Symbols

    DESCRIPTION OF THE SYSTEM This unit online double conversion ensures continuous feeding in of d 'emergency lighting systems or security systems. The double conversion system has primary to eliminate noise from the main network NL Nederlands. VFI (Voltage and Frequency Independent): wherein the UPS output voltage is independent of the variations of the mains voltage and frequency variations are controlled within the limits prescribed by the European Standard (IEC 110-10).
  • Page 6: Unpacking And Inspection

    UNPACKING AND INSPECTION 1) Unpack the 'packaging and check the contents inside. The dell 'package content includes: The CPS; the manual for the 'installer; the comunicazone cable to board relay Relay card (already assembled in 'units) Battery Box (with battery connected) Kit cables and fuses.
  • Page 7 Installation of this equipment must be done by personnel qualified. Reverse polarity cause immediate and irreversible damage to the rescuer. The damage due to reverse polarity are not in any case covered by the warranty of the Linergy Use tools with the 'insulated handle.
  • Page 8 PROJECT OF THE FAN TO EN 50272-2 and CEI EN IEC 62458-2 The quantity of air "Q" necessary for the ventilation of a battery compartment, must be calculated according to the formula simpli fi ed: Q = 0.05 x xnx Igas Crt x 10 (m / h) = 0.05 vxqxs (v = hydrogen density;...
  • Page 9: Rules For Installation

    CHAPTER 2 RULES FOR INSTALLATION Warning: Before installing the system carefully read the safety instructions: Do not install 'central unit (CPS) and the battery box next to' water or in moist environments. Do not install 'central unit (CPS) and the battery box in places exposed to direct sunlight or heat sources.
  • Page 10: Room Temperature

    DO NOT TURN THE BATTERY BOX CORRECT DO NOT TURN IN NO EVENT SHALL THE BATTERY BOX ROOM TEMPERATURE The life expectancy for lead-acid batteries is reduced by half for every increase of 10 degrees with respect to the design temperature of 20/25 °...
  • Page 11: Battery Maintenance

    Batteries should be replaced by qualified personnel. Replace if necessary Linergy the batteries with batteries of the same type. Do not replace the batteries individually. All batteries should be replaced at the same time following the instructions of Linergy Srl.
  • Page 12 1 1 1 REAR VIEW CPS SCB010 232 models: COOLING FANS INTELLIGENT SLOT RS BREAKER PROTECTION EARTH EPO...
  • Page 13 REAR VIEW CPS models: SCB020 SCB030 COOLING FANS INTELLIGENT SLOT RS BREAKER PROTECTION EARTH EPO...
  • Page 14: Electrical Connections

    ELECTRICAL CONNECTIONS NOT MAINTAINED / SE MAINTAINED / SA battery...
  • Page 15 The emergency stop function (EPO = Emergency Power-Off) serves the immediate shutdown at a distance of the UPS system and the connected loads. To this end it is necessary to remove the jumper from the emergency stop plug (on the back of the UPS system) and connect an external emergency stop switch.
  • Page 16 Reverse polarity cause immediate and irreversible damage to the rescuer. The damage due to reverse polarity are not in any case covered by the warranty of the SRL Linergy After connecting the batteries to the Box close the circuit by inserting the fuses provided in the fuse holder on the inside.
  • Page 17 START CPS with electricity mains present (Line mode / AC mode). 1) After making sure that all connections are made correctly place the first 'switch' s entry into the ON position. At this point the cooling fans start and the CPS lights up in standby mode. 2) To activate the CPS mode, hold down the ON / OFF button continuously for more than one second.
  • Page 18: Warning And Error Codes

    OFF THE CPS with this grid. 1) Press continuously ON / OFF for longer than a second to switch off the 'inverter operating. 2) At this point, the display shows the level of battery charge, also once the 'Inverter turns off the machine returns to standby mode.
  • Page 19: Display Lcd

    CHAPTER 5 DISPLAY LCD Function Led machine on signaling, indicating that the CPS is ON WARN: if flashing indicates that the machine is not ensured continuity of electric current in the case of blackouts. Inverter off. FAULT: red LED signaling faults or danger. Flashing indicates that the battery circuit is open or broken.
  • Page 20 Function OFF: Pressed once allows shutdown of 'INVERTER, pressed and held for more than one second makes it possible to switch off the machine completely BY PASS indicates that the bypass circuit is working LINE: main grid display this BATTERY: battery circuit indicator present if LINE is active indicates that the battery circuit is charging.
  • Page 21: Operative Mode

    CHAPTER 6 OPERATIVE MODE In the standard mode of operation, the function in which the mains is present and in case it fails is ensured l 'battery power. In the standard mode of operation, the function in which the and in case it fails is ensured l 'battery power. and in case it fails is ensured l 'battery power.
  • Page 22: Bypass Mode

    BYPASS MODE The By-pass circuit excludes the CPS and directly connects the output with the input. The changeover takes place in a synchronized manner at the end to always guarantee the correct output voltage, avoiding interruptions or surges. STANDBY MODE...
  • Page 23: Communication Ports

    CHAPTER 7 COMMUNICATION PORTS In the rear part of the CPS (see CPS Views) are present the following communication ports: RS 232 - Power Manager Expansion slot for additional communication cards INTELLIGENT SLOT The UPS comes with an expansion slot for optional communication cards (see fi gure on right) which allow the device to communicate using the main communication standards.
  • Page 24 SCBMOD Product description Reporting Form Status Led Spy Center for Basic Viewing using local LEDs Active EPO function - terminals nr. 11/12 Led by local and signaling REMOTE Remote Signaling through contacts 12 / 24Vdc CPS Function, Contact NO (Normally Open) 12 / 24V FLASHING (example) PSC Fault, Contacts NO (Normally Open)
  • Page 25 POWER MANAGER (ex works) After entering the user name and password, the homepage monitoring displays, we can control the UPS status and vviare the control software. - It allows the control and monitoring via a local PC - Interface graphs simple and immediate ca - Real-time dynamic updating of data on UPS status - Alerts noti fi...
  • Page 26 Keep charging the battery for 12 h continuous Batteries old Replace the batteries. Contact Linergy SRL for spare parts. L 'operation must be carried out by quali fi ed THE "ON" button is pressed too briefly Press the "ON"...
  • Page 27 When you call for service, please provide the number of CPS series in this' label on the back of the machine example SPY CENTER BASIC SERIAL NUMBER 00:00:00 Coefficient derating according to altitude Altitude (meters) Coefficient derating CONFORMITY CE SCB10 /SCB20 / SCB30 EN 50171 EN 62040-1-1 EN 50031-2 Class B EN 50091-2...
  • Page 28 TABLE MODELS...
  • Page 29 TABLE TENSION AND THEIR MODELS INPUT OUTPUT Cod. 4.5A SCB010 SCB020 SCB030 13,6A TABLE FOR THE SIZING OF PROTECTION Code INPUT ENTRANCE DIFFERENTIAL 10A curve C 300mA SCB010 16A curve C 300mA SCB020 16A curve C 300mA SCB030...
  • Page 30 SCB10 SCB30 SCB20 Rated Power / Active Power / Power according to EN 50171 1000VA / 800W / 650W 2000VA / 1600W / 1300W 3000VA / 2400W / 2000W 4 ms 12 V 4 hours recover to 90% capacity Storage temperatures Alititude...
