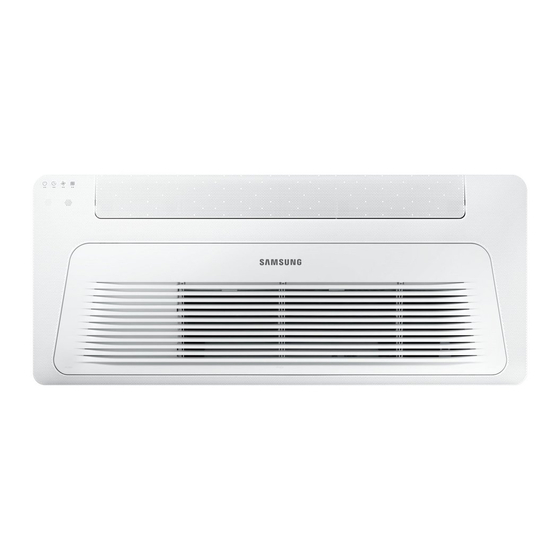

- Page 1 Air conditioner User manual AJ***NB1DEH Thank you for purchasing this Samsung air conditioner. Before operating this unit, please read this user manual carefully and retain it for future reference.
-
Page 2: Table Of Contents
Contents Safety Information Safety Information At a Glance Indoor Unit Overview Main parts Power Smart Features Operating temperature and humidity Cleaning and Maintenance Cleaning and Maintaining Information about refrigerant Important information: regulation regarding the refrigerant used Correct Disposal of This Product (Waste Electrical &... -
Page 3: Safety Information
Safety Information this manual. If you have any questions, call your nearest contact centre or find WARNING CAUTION damage. Do NOT attempt. Make sure the machine is grounded to prevent electric shock. FOR INSTALLATION WARNING Use the power line with the power specifications of the product or higher and use the power line for this appliance only. - Page 4 Safety Information Safety Information The installation of this appliance must be performed by a qualified technician or service company. Install a switch and circuit breaker dedicated to the air conditioner. Failing to do so may result in electric shock or fire. Fix the outdoor unit firmly so that the electric part of the outdoor unit is not exposed.
- Page 5 When installing the outdoor unit, make sure to connect the drain hose so that draining is performed correctly. or property damage. FOR POWER SUPPLY WARNING When the circuit breaker is damaged, contact your nearest service centre. Do not pull or excessively bend the power line. Do not twist or tie the power line.
- Page 6 Safety Information Safety Information In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power line. Do not touch the appliance or power line. Do not use a ventilating fan. To reinstall the air conditioner, please contact your nearest service centre. electric shock, or fire.
- Page 7 Do not insert your fingers or foreign substances into the air inlet/outlet of the air conditioner. fingers into the product. Do not strike or pull the air conditioner with excessive force. Do not place an object near the outdoor unit that allows children to climb onto the machine.
- Page 8 Safety Information Safety Information Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. Do not operate the appliance with wet hands. This may result in electric shock. Do not spray volatile material such as insecticide onto the surface of the appliance.
- Page 9 FOR CLEANING WARNING Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner, alcohol or acetone to clean the appliance. This may result in discoloration, deformation, damage, electric shock or fire. Before cleaning or performing maintenance, unplug the air conditioner from the wall socket and wait until the fan stops.
-
Page 10: At A Glance
Indoor Unit Overview Indoor Unit Overview Main parts depending on the model and the panel type. 01 Display Indication Function Operation indicator Timer indicator Fan indicator Filter reset indicator 04 Wind-Free panel (You can use the Wind-Free Cooling function English... -
Page 11: Power Smart Features
Power Smart Features Operating temperature and humidity Mode Outdoor temperature Indoor temperature Indoor humidity Cool mode 80% or less Depending on the outdoor Heat mode unit specifications Dry mode CAUTION conditions. If the indoor unit is out of the operating temperature and humidity range, the safery device may operate and the air conditioner may stops. -
Page 12: Cleaning And Maintenance
Cleaning and Maintaining Cleaning and Maintaining Cleaning and Maintaining Cleaning the indoor unit exterior damp cloth. CAUTION Do not use alkaline detergent, sulphuric acid, hydrochloric acid, or organic solvents clean the surfaces. Do not attach any stickers on the surfaces When you clean the heat exchanger on the indoor unit. - Page 13 Cleaning the air filter CAUTION NOTE 1 Detaching the air filter Push signs on the front panel, then open the grille. PUSH English...
- Page 14 Cleaning and Maintaining Cleaning and Maintaining 2 Cleaning the air filter CAUTION cleaning utensil. This may damage the filter. NOTE If the air filter dries in a humid area, it may produce offensive odours. Clean it again and The cleaning period may differ depending on the usage and environmental conditions, conditioner is in the dusty area.
- Page 15 Filter Reset Options Filter Reset NOTE Be sure to reset the filter-cleaning reminder every time you clean the air filter although the filter reset indicator ( English...
- Page 16 Cleaning and Maintaining Cleaning and Maintaining Periodical maintenance Requires qualified Unit Maintenance item Interval technicians Clean the air filter. Clean the condensate drain pan. Once a year Indoor Clean up the heat exchange. Once a year unit Clean the condensate drain pipe. Once every 4 months Clean the heat exchanger on the Once every 4 months...
- Page 17 Troubleshooting unnecessary expense. Problem Solution When you clean the air conditioner or do not use it for an extended The air conditioner does not operate starting operation. at all. NOTE The temperature conditioner controls the set temperature automatically, and you cannot does not change.
- Page 18 Cleaning and Maintaining Cleaning and Maintaining Problem Solution The air conditioner is not turned on or off immediately with the wired remote control. The Timed on/off function does not operate. The indoor unit display blinks the conditioner. continuously. I want to get cooler air.
- Page 19 Problem Solution efficiencies. If the Cool mode is stopped and then started immediately, cool air comes The air is not cool or warm enough. If the refrigerant pipe is too long, the cooling and heating efficiencies The air conditioner normal operation. makes strange noises.
-
Page 20: Information About Refrigerant
Information about refrigerant Important information: regulation regarding the refrigerant used This product contains fluorinated greenhouse gases. Do not vent gases into the atmosphere. CAUTION If the system contains 5 tCO Refrigenat type GWP value 2088 Calculating tCO English... - Page 21 Memo English...
- Page 22 020 405 888 support support support support support support 02-201-24-18 support support support support from land line support support land line support 8-800-77777 support support support support support SAMSUNG ELECTRONICS CO., LTD. Samsung Electronics Service Department...
