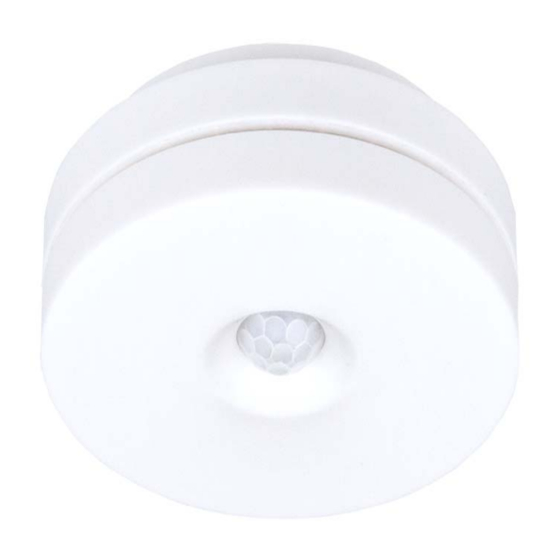

Mini-Sewi KNX L-Pr and
Mini-Sewi KNX TH-L-Pr
Brightness and Presence Detectors
Item numbers 70403 Mini-Sewi KNX TH-L-Pr, 70428 Mini-Sewi KNX L-Pr
Installation and Ad justment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini-Sewi KNX L-Pr and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for elsner elektronik Mini-Sewi KNX L-Pr

Summary of Contents for elsner elektronik Mini-Sewi KNX L-Pr

  • Page 1 Mini-Sewi KNX L-Pr and Mini-Sewi KNX TH-L-Pr Brightness and Presence Detectors Item numbers 70403 Mini-Sewi KNX TH-L-Pr, 70428 Mini-Sewi KNX L-Pr Installation and Ad justment...

  • Page 3: Table Of Contents

    6.9. Temperature PI control ..................38 6.9.0.1. General control ................38 6.9.0.2. General setpoint values ............... 40 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 4 6.18.AND logic connection inputs ................62 6.18.1. Connection inputs of the OR logic ............. 64 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 5 Clarification of signs Installation, inspection, commissioning and troubleshooting of the device must only be carried out by a competent electrician. This manual is amended periodically and will be brought into line with new software releases. The change status (software version and date) can be found in the contents footer. If you have a device with a later software version, please check www.elsner-elektronik.de in the menu area "Service"...
  • Page 6 Clarification of signs...

  • Page 7: Description

    Configuration is made using the KNX software ETS. The product file can be down- loaded from the Elsner Elektronik website on www.elsner-elektronik.de in the “Ser- vice” menu. 1.0.1. Scope of delivery • Combined sensor Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 8: Technical Data

    ± 4,5% rH at 10% … 90% rH ± 7,5% rH at 90% … 100% rH The product is compliant with the provisions of the EU guidelines. Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 9: Measuring Accuracy

    Elsner Elektronik is not liable for any changes in norms and standards which may occur after publication of these operating instructions. 2.2. Installation location Install and use only in dry interior rooms! Avoid condensation. Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 10: Coverage Area Of The Motion Detector

    2.2.1. Coverage area of the motion detector Angle of coverage: approx. 94° × 82° Range: approx. 5 m Segmentation of the coverage area Fig. 1 length Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 11: Construction Of The Sensor

    Programming LED KNX terminal BUS +/- 6 a+b Holes for mounting (hole distance 30 Brightness sensor Cable bushing (under the KNX termi- nal) Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 12: Assembly

    Use mounting material suitable for the wall condi- tion. Also see Information on cavity wall mount- ing. Fig. 7 Plug the KNX terminal with the bus cable to the slot. Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 13: Information On Cavity Wall Mounting

    The movement sensor and the air slots on the side must not get dirty or covered. As a rule, it is sufficient to wipe the device with a soft, dry cloth twice a year. Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 14: Transfer Protocol

    Light controller: Start / Stop Input -WC- [1.1] DPT_Switch 1 bit (1 = Start | 0 = Stop) Light controller: Dimmer Input [5.1] DPT_Scaling 1 byte increments Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 15 Output R-CT Depending on setting 1 Bit - 4 Bytes Motion sensor: Master 1: Switch Input RWC- [7.5] 2 Bytes on delay DPT_TimePeriodSec Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 16 Output R-CT Depending on setting 1 Bit - 4 Bytes Motion sensor: Master 3: Switch Input RWC- [7.5] 2 Bytes on delay DPT_TimePeriodSec Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 17 Temperature sensor: measured Output R-CT [9.1] 2 Bytes value total DPT_Value_Temp Temperature sensor: measured Input -WC- [1.17] 1 Bit value min./max. query DPT_Trigger Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 18 -WC- [1.1] 1 Bit output block DPT_Switch 102 Temp. threshold value 4: Abso- Input / -WCT [9.1] 2 Bytes lute value Output DPT_Value_Temp Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 19 Input / -WCT [9.1] 2 Bytes ting Output DPT_Value_Temp 124 Temp.control: Setpoint Eco hea- Input -WC- [1.1] 1 Bit ting (1:+ | 0:-) DPT_Switch Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 20 -WC- [1.17] 1 Bit value min./max. reset DPT_Trigger 146 Humidity thresholdV 1: Abso- Input / -WCT [9.7] 2 Bytes lute value Output DPT_Value_Humidity Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 21 Input -WC- [7.5] 2 Bytes from 1 to 0 DPT_TimePeriodSec 168 Humidity thresholdV 4: Swit- Output R-CT [1.1] 1 Bit ching output DPT_Switch Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 22 DPT_Value_Amplitude 189 Absolute humidity [g/m³] Output R-CT [14.17] 4 Bytes DPT_Value_Density 190 Ambient climate status: 1=com- Output R-CT [1.1] 1 Bit fortable|0=uncomfort. DPT_Switch Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 23 1 Bit DPT_Bool 210 Logic input 5 Input -WC- [1.2] 1 Bit DPT_Bool 211 Logic input 6 Input -WC- [1.2] 1 Bit DPT_Bool Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 24 232 AND logic 3: 8 bit output B Output R-CT [5.010] DPT_Val- 1 Bit - ue_1_Ucount 2x1 Byte 233 AND logic 3: Block Input -WC- [1.1] 1 Bit DPT_Switch Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 25 252 OR logic 4: 8 bit output B Output R-CT [5.010] DPT_Val- 1 Bit - ue_1_Ucount 2x1 Byte 253 OR logic 4: Block Input -WC- [1.1] 1 Bit DPT_Switch Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 26: Parameter Setting

    The brightness reading can be corrected in order to compensate for a dull or bright point of installation for the sensor. Use reading correction No • Yes Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 27: Brightness Threshold Values

    Select whether the threshold value is to be specified per parameter or via a communi- cation object. Threshold value setpoint using Parameter • Communications object Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 28: Switching Output

    • on change to 1 and periodically • on change to 0 and periodically Cycle 5 s ... 2 h (if sent periodically) Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 29: Block

    • never point-actual difference, dimming increment • after power supply restoration and times • after power supply restoration and programming Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 30 •the actual value deviates from the setpoint value by more than X Lux Target / actual difference in % 1...100; 20 (for a deviation in %) Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 31 Value prior to initial communication 0 • 1 Output pattern On block • send nothing • send off command • send on command • send value Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 32: Motion Detector

    Activate the slave in order to use it. Use slave No • Yes When a motion is detected, the device periodically sends a 1 to the master via the bus. Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 33: Master 1/2/3/4

    • after power supply restoration and programming Select, whether motion is to be detected constantly or brightness dependent. Motion detection constantly • brightness dependent Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 34 Switch off sensor, at the earliest after a waiting period of seconds 0...600; 5 after motion detection and above measured brightness plus hysteresis in Lux 1...5000; 200 Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 35 • on change to movement and periodically • on change to no movement periodically Cycle 1s • 5 s • ... 2 h (if sent periodically) Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 36: Align Communication Between Master And Slave

    When the master performs a switch-off action, it simultaneously sends a message to the bus via the "master: slave cycle reset". . This message can be received by the slave Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 37: Temperature Measurement

    0.1°C • 0.2°C • 0.5°C • ... • 5.0°C (if sent on change) Send cycle 5 s • 10 s • ... • 2 h (if sent periodically) Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 38: Temperature Threshold Values

    For units which have already been taken into service, the last communicated threshold value can be used. Basically, Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 39: Switching Output

    • on change to 0 and periodically Cycle 5 s • 10 s • 30 s… • 2 h (only if sending periodically is selected) Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 40: Block

    The parameter is only taken into consideration if the setting via object is activated below. Please note that the setting "After power supply restoration and pro- Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 41 (Default). Then configure a temperature control block via the blocking object. Mode after reset • Comfort • Standby • Eco • Building protection Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 42: General Setpoint Values

    • Dual-level heating + dual-level cooling General setpoint values You may enter separate setpoint values for each mode or use the comfort setpoint as a basic value. Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 43: Comfort Setpoint

    Starting heating/cooling setpoint (in 0.1 °C) -300…800; 210 valid until 1st communication (not upon saving the setpoint value after programming) Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 44: Standby Setpoint

    0…200; 30 (for heating) Increase cooling setpoint (in 0.1°C) 0…200; 30 (for cooling) Eco setpoint Eco mode is usually used for night mode. Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 45: Setpoint Values For Frost/Heat Protection (Building Protection)

    • common control variable are used for Level 1+2 Use control variable for 4/6-way valve No • Yes (only for common control variables in level 1) Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 46: Heating Control Level 1/2

    In case of a short reset time, the control responds with a fast increase of the control variable. In case of a long reset time, the control responds somewhat less Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 47 (if a value is sent) In case of a common control variable for heating and cooling, 0 is always transmitted as a fixed value. Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 48: Cooling Control Level 1/2

    • PI control Control variable is a • 1 bit object (for level 2 with 2-point controlling, no • 8 bit object common control variables) Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 49 When blocked, the control variable shall • not be sent • send a specific value Value (in %) 0...100 (if a value is sent) Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 50: Humidity Measurement

    Use external measured value No • Yes Ext. Reading proportion of the total reading 5% • 10% • ... • 50% • ... • 100% Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 51: Humidity Threshold Values

    • after power supply restoration and programming Set the threshold value directly in the application program using parameters, or define them via the bus using a communication object. Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 52: 2.Switching Output

    None • 1 s • 2 s • 5 s • 10 s • … • 2 h (If delay can be set via objects: valid until 1st communication) Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 53: 3.Block

    Switching output sends on change to 1 and periodically if switching output = 0  send 0 Switching output sends on change to 0 and periodically Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 54: Humidity Pi Control

    Set, in which cases setpoint values received via object are to be retained. Please note that the setting "After power supply restoration and programming" should not be used Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 55: 3.Dehumidification And/Or Humidification

    - dead zone value. Dehumidification and/or humidification Depending on the control mode, settings sections for humidification and dehumidifi- cation appear (level 1/2). Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 56: Dewpoint Measurement

    Activate the monitoring of the coolant temperature if required. The menus for setting the monitoring are displayed. Use monitoring of the coolant temperature No • Yes Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 57: Cooling Medium Temp. Monitoring

    (if sent on change) Send cycle 5 s • 10 s • 30 s • 1 min • … • 2 h (if sent periodically) Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 58: 2.Switching Output

    • Send switching output status Switching output sends on change to 1 • Do not send message • if switching output = 1  send 1 Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 59: Absolute Humidity

    In this way, it is for example possible to monitor compliance with DIN 1946 (stan- dard values) or even to define your own comfort field. Use comfort field No • Yes Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 60: Variable Comparator

    The chapter "Variable comparator" only applies to the TH-L-Pr model. The integrated variable comparators can output maximum, minimum and average values. Use comparator 1/2 No • Yes Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 61: Control Variable Comparator 1/2

    AND logic AND logic 1 not active • active AND logic ... not active • active AND logic 4 not active • active Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 62: 2.Or Logic

    0 … 255 / 100% / 360° / 63; 0 if logic = 0 Output value object B 0 … 255 / 100% / 360° / 63; 0 if logic = 0 Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 63: 1.Block

    • 1 + 2 + 3 • 1 + 2 + 4 • 1 + 3 + 4 • 2 + 3 + 4 • 1 + 2 + 3 + 4 Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 64: And Logic Connection Inputs

    Temperature sensor malfunction ON Temperature sensor malfunction OFF Humidity sensor malfunction ON Humidity sensor malfunction OFF Motion detector test output Motion detector test output inverted Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
  • Page 65 Cooling 1 temperature controller inactive Cooling 2 temperature controller active Cooling 2 temperature controller inactive Humidity controller dehumidification 1 active Humidity controller dehumidification 1 inactive Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.

  • Page 66: Connection Inputs Of The Or Logic

    Switching output AND logic 2 inverted Switching output AND logic 3 Switching output AND logic 3 inverted Switching output AND logic 4 Switching output AND logic 4 inverted Sensors Mini-Sewi KNX TH-L-Pr and Mini-Sewi KNX L-Pr • Version: 30.08.2018 • Technical changes and errors excepted.
