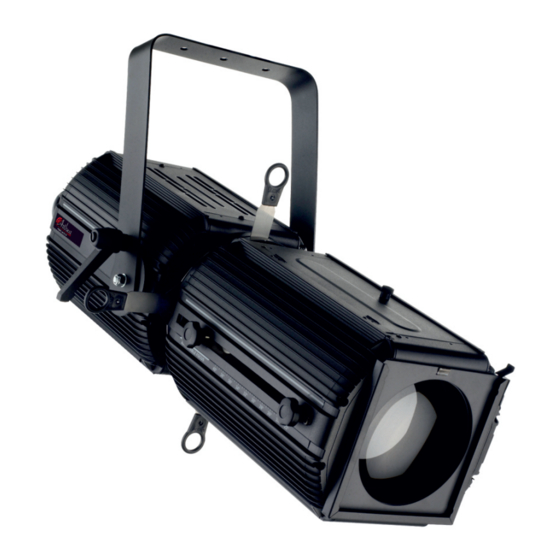

- Page 1 PROFILE 200 RGBW ULP200RGBW1528 / ULP200RGBW2240 Version 1.0 USER MANUAL Be sure to read the USER MANUAL carefully before using this product. Be sure to keep the USER MANUAL properly for future needs. Use this product correctly when you can fully understand the User Manual...
-
Page 2: Safety Instructions
PROFILE RGBW 1.Safety instructions Thank you for choosing our PROFILE 200 RGBW . for your own safety, please read this user manual carefully BEFORE YOU INITIAL START - UP! CAUTION! Be careful with your operations. With a high voltage you can suffera dangerous electric shock when touching the wires! This device has left our premises in absolutely perfect condition. -
Page 3: Power Connector
PROFILE RGBW 2.UNPACKING The PROFILE adopts 200W LED lamp which features high brightness and stability. Please carefully unpack it when you receive the fixture and check whether it is damaged during the transportation. And please check whether the following items are included inside the box: ▲... -
Page 4: Technical Information
PROFILE RGBW 3.TECHNICAL INFORMATION 2 DMX Channel Modes:1/5... - Page 5 PROFILE RGBW 4.PHOTOMETRICS DIAGRAM PROFILE 15°-28° PROFILE 22°-40° mt 8 mt 8 mt 4 mt 4 mt 3 mt 3 mt 2 mt 2 mt 1 mt 1 Lux center 174870 4372 1944 1093 Lux center 32000 8000 3556 2000 Beam angle 22°...
-
Page 6: Installations
PROFILE RGBW 6.INSTALLATIONS Cautions: For added protection mount the fixtures in areas outside walking paths, seating areas, or in areas were the fixture might be reached by unauthorized personnel. Before mounting the fixture to any surface, make sure that the installation area can hold a minimum point load of 10 times the device’s weight. -
Page 7: Control Connection
PROFILE RGBW 7.CONTROL CONNECTION LCD DISPLAY ARTHEA LUCE LED LINE POWER 90/260Vac 50/60Hz MENU ENTER DMX 512 POWER Connect the provided XLR cable to the female 5-pin XLR output of your controller and the other side to the male 5-pin XLR input of the moving head. You can chain multiple projectors together through serial linking. -
Page 8: Menu Operations
PROFILE RGBW 8.MENU OPERATIONS LCD DISPLAY ARTHEA LUCE LED LINE POWER N°SERIAL MENU ENTER DATE Description MENU DMX address setting Dmx Address Dmx Address A001~AXXX Xeno it can simulate dimmer effect with Dimmer Tungsten or Xenon lamp Tungsten White Tmp 2800K to 5800K 0-255 Dimmer 0-255... - Page 9 PROFILE RGBW Game 1 Set the projector so MASTER and Game 2 perform a demonstration Sel Game MENU Game 3 programme Master Mode Game 4 0,1sec to 60 sec Speed of execution of program steps Sel Speed Waiting time betweeen steps of program 0,1sec to 60 sec Sel Pause Slave...
- Page 10 PROFILE RGBW d mx c ha nne l ty p e o f s ta nd a rd R GB s imula te d CMY e ffe c t d e c ima l p e rc e nta g e c o ntro l 1c h 8c h 4c h...
-
Page 11: Maintenance And Cleaning
PROFILE RGBW 10.Maintenance and cleaning It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on or within the fixture. Otherwise, the fixture‘s light-output will be significantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life.A soft lint-free cloth moistened with any good glass cleaning fluid is recommended, under no circumstances should alcohol or solvents be used! - Page 12 ULTRALITE DEUTSCHLAND Haerle Lichttechnik GmbH • Marie-Curie-Str. 4 • 89584 Ehingen Germany • +49 7391 7747 0 • www ultralite.eu • info@ultralite.eu...
