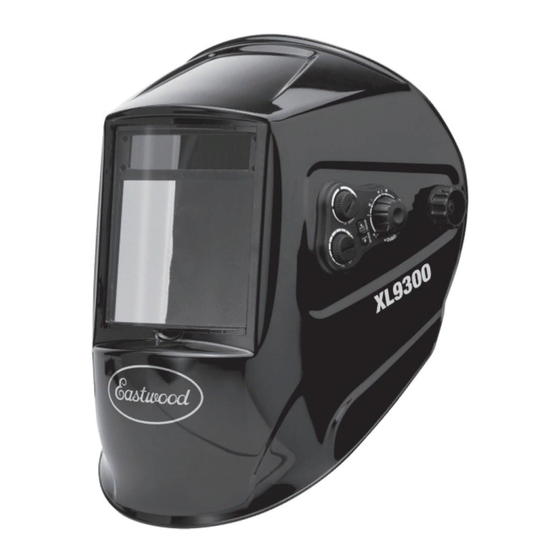

- Page 1 Item #21484 XL VIEW AUTO DARKENING WELDING HELMET INSTRUCTIONS...
- Page 2 EASTWOOD WELDING HELMETS are specifically designed to provide maximum eye and face protection from harmful UV and IR radiation emitted when welding, in a lightweight, comfortable housing. The Extra Large Viewing area provides additional visibility for added safety and convenience.
- Page 3 13, DO NOT use this helmet and seek alternate protection. • Eastwood welding helmets are designed to protect the user’s eyes and face from harmful radiation, sparks and spatter under normal welding conditions.
- Page 4 The Shade Control Knob is designed to function in 2 separate ranges; one for shade levels 5 through 9 and one for shade levels 9 through 13. Shade 5 is lightest while shade 13 is darkest. Move the Shade Range Switch down for levels 5-9; up for levels 9-13. Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com...
- Page 5 To Set Shade Control to “Grind”: Rotate the Shade Control Knob past the detent fully to the “GRIND” position which will lock the viewer on full transparency. To avoid serious and permanent eye damage, NEVER attempt to weld with the Shade Control set to “GRIND”. To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 6 Helmet (FIG 5). Reverse to install by squeezing sides to curl the center outward then insert edges into channels around frame of opening (FIG 5). Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com...
- Page 7 Follow fit adjustment steps in instructions. During Use properly Batteries “Low-Bat” Replace with two CR2032 Batteries or Recharge require Indicator Batteries per Battery Recharge/Replacement recharging or Glows procedure in preceding Maintenance section. replacement To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 8 Replacement Inner Lens If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: techelp@eastwood.com PDF version of this manual is available online >> eastwood.com/21484manual The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA US and Canada: 800.343.9353 Outside US: 610.718.8335...
