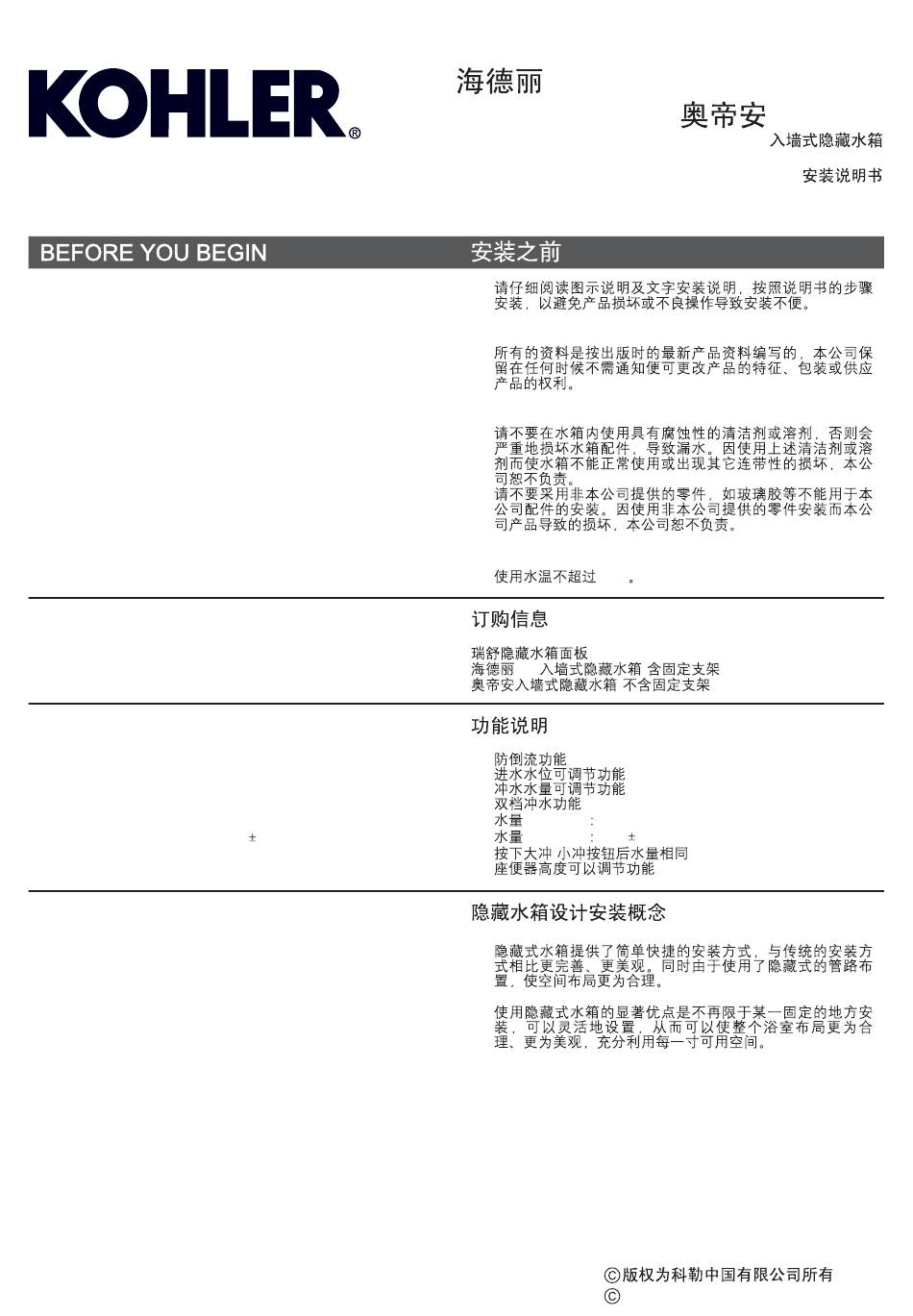

Read installation guide in illustration and word file
carefully, and install the tank according to instructions in
the guide to avoid product damage and installation
inconvenience caused by inappropriate operation.
·
All data contained is based upon the last product
information available at the time of publication. Kohler
Company reserves the right to implement changes of
product characteristics, packaging and availability at any
time without further notice.
·
Do not apply erosive cleanser and solvent in the tank,
which will damage tank spares and result in leakage in the
tank. Kohler will not be responsible for any damage
related to above mentioned cleanser or solvent.
·
Do not apply spares that are not provided by Kohler, and
please note that glass adhesive tape shall not be applied
to the installation of Kohler spares. Kohler will not be
responsible for any damage related to installation with
spares not provided by Kohler.
· Water temperature must not exceed 27 C.
Ordering Information
RATIO In-Wall Tank Faceplate ...................................K-6283T
HYDRO-TOWER 100 In-Wall Tank(With Frame) .......K-6284T
ODEON In-Wall Tank(Without Iron Rack) ..................K-6285T
Function Explanation
·
Anti flow-backwards
·
Adjustment of inlet water level
·
Adjustment of flushing volume
·
Single/double gear
flushing
Water usage (K-6284T): 3/6L
Water usage (K-6285T): 7.7 0.2L
Same water usage for both small/big push buttons
·
Adjustable toilet height
Design And Installation Concept Of In-wall Tank
·
Installation of in-wall tank is much easier and nice-looking
comparative to that of traditional tank. Meanwhile, the
space layout will be more reasonable due to the
application of in-wall tank pipes and connectors.
·
The most remarkable advantage of in-wall tank is that the
installation will never be limited to certain area, and can
be installed wherever as you wish, which will make the
bathroom layout more reasonable and nice-looking, and
make good use of every inch of the bathroom space.
1048671-T01-K
·
·
·
·
·
o
·
·
·
·
·
·
·
-1-
100 HYDRO-TOWER 100
INSTALLATION INSTRUCTIONS
K-6283T/K-6284T/K-6285T
o
27
C
.......................................................K-6283T
100
(
(
(K-6284T) 3/6L
(K-6285T) 7.7 0.2L
/
Copyright Kohler China Ltd., 2012
ODEON
IN-WALL TANK
) .....................K-6284T
)........................K-6285T
, 2012
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kohler K-6283T
Summary of Contents for Kohler K-6283T
- Page 1 · · Do not apply spares that are not provided by Kohler, and please note that glass adhesive tape shall not be applied to the installation of Kohler spares. Kohler will not be responsible for any damage related to installation with spares not provided by Kohler.
- Page 2 05/7/13 Advantages Of In-wall Tank · · Made of macromolecular materials that prevents corrison and leaking. · · Adjustable dual flush design which conserves water. · · Sustainable to pressure of 400 kg. · · Will not affect the structure of the wall and provides excellent sound insulation.
-
Page 3: Installation
INSTALLATION Ways of Installation There are two ways of installation for the products: In-wall tank toilet and In-wall tank squat. In-wall Tank Toilet In-wall Tank Squat 1048671-T01-K... - Page 4 Installation A. Installation Procedures Of Toilet Insert the frame screw and screw cap in the holes of fixing frame, lock the frame screw with nut, then tighten the frame screws on the fixing frame with medium Allen key as shown in illustration A. Tighten the bolts with medium Allen key as shown in illustration B, and adjust the height of the adjustable bracket according to customer's requirements.
- Page 5 3. Tighten the hexagonal long screw with medium Allen key as shown in illustration A. Tighten the screw of adjustable brackets with medium Allen key as shown in illustration B, and tighten the screw with spanner. Ensure the tank to remain level. Screw Spanner Adjustable Bracket...
- Page 6 5. Install the water pipe to the connecting pipe at the side of the tank for water supply. ( Inlet valves should be shut down Connecting Pipe Water Pipe 6. Install the rectangular shield in the block screen of the tank, and tighten the screw to fix the rectangular shield to the tank.
- Page 7 8. When finishing the brickwork of the wall, take out the big and small filtration caps, and eliminate unwanted rectangular shield with a sharp knife. Rectangular Shield Small Filtration Cap Big Filtration Cap 9. Install the inlet pipe and outlet pipe to the lavatory as shown, and mark on the pipes at the back side of the tank with a ruler and a pencil, and reserve appropriate space according to the distance from the back of the tank to the...
- Page 8 11. Install the big and small leak-proof gaskets on inlet pipe and outlet pipe, then install it to corresponding pipes on the toilet tank. Small Leak-proof Gasket Inlet Pipe Outlet ipe Big Leak-proof Gasket 12. 48mm-58mm of the long screw shall be reserved outside the wall as shown in the illustration.
- Page 9 14. Install the rubber cover gasket, hexagonal nut and decoration cap onto long screw according to the order shown in the illustration. Gasket Long Screw 1045164 Screw Cover Rubber Cover Hexagonal Nut Decoration Cap 15. When fixing the adjustable board to block screen, the locknut should be put directly on positing of the sign of "...
- Page 10 16. Fix the adjustable board on the wall by tightening the locknut as shown in the illustration. And the locknut should be directly put on the position of the sign of " LOCK . (Indications are marked on the adjustable board, "...
- Page 11 B. Fixing Squat 1. Mark on the wall for appropriate position for fixing bracket, and drill four holes with diameter of 12mm and depth of 12mm 70-76mm 70-76mm with churn drilling as shown in illustration, and fill in the holes with bulge screw and tighten the screw to set the fixing bracket.
- Page 12 3. Install the rectangular shield in the block screen of the tank, and tighten the screw to fix the rectangular shield to the Block Shield tank. Rectangular Shield Screw 4. Fix the leak-proof gasket to syphon as shown in illustration, and adjust the syphon to appropriate position to be fixed to the infall of squat.
- Page 13 6. When fixing the adjustable board to block shield, the locknut should be put directly on positong of the sign of " OPEN . " Remark: Stir pole shall remain level. Block Shield OPEN Locknut Adjustable Board Stir Pole 7. Fix the adjustable board on the wall by tightening the locknut as shown in the illustration.
- Page 14 9. In-wall tank toilet is ready to be put into use. Long Flush Button Short Flush Button Finished Installation Illustration MAINTENANCE AND CONTROL PROCEDURES MAINTENANCE AND CONTROL PROCEDURES . Hold the cover with both hands and push upward to take down the cover.
- Page 15 . Tighten the locknut to the marked position of OPEN to " " take out the adjustable board. OPEN Locknut . Pin the indentation on block screen with screwdriver to take out the block screen. Block Screen D. Wash Filtration Net Close corner valve first, then loosen and take out the tighten nut, and wash the waste on filtration net with clean water.
- Page 16 E. Adjust The Control Pole Of Drainage Valve Pin the pole first to take out the control button as shown in the illustration. Then take out the fixing frame with both hands. Pole Control Button Fixing Frame Fixing Frame . Pull out reversed lock on the fixing frame as shown in the illustration, and adjust the height of the control poles to ensure the leak-proof of drainage valve.
- Page 17 G. Adjust Drainage Valve Control Pole Drainage volume and overflow level of the tank can be adjusted by drainage valve: 1) Heavy drainage adjustment: Open adjustment switch to open the small hole. 2) Slight drainage adjustment: adjust the height of floating box and the water level of slight drainage will be at the bottom of the floating box.
-
Page 18: Troubleshooting Procedures
TROUBLE SHOOTING PROCEDURES TROUBLE SHOOTING PROCEDURES Symptoms Probable Causes Recommended Action The inlet valve is closed Open inlet valve (refer to page 15) No water fills in via inlet Floating box of inlet valve is blocked by tank wall Adjust floating box to appropriate position valve Floating box of inlet valve is block by waste Wash the floating box with clean water...
