BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Read installation guide in illustration and word file
carefully, and install the tank according to instructions in
the guide to avoid product damage and installation
inconvenience caused by inappropriate operation.
·
All data contained is based upon the last product
information available at the time of publication. Kohler
Company reserves the right to implement changes of
product characteristics, packaging and availability at any
time without further notice.
·
Do not apply erosive cleanser and solvent in the tank,
which will damage tank spares and result in leakage in the
tank. Kohler will not be responsible for any damage
related to above mentioned cleanser or solvent.
·
Do not apply spares that are not provided by Kohler, and
please note that glass adhesive tape shall not be applied
to the installation of Kohler spares. Kohler will not be
responsible for any damage related to installation with
spares not provided by Kohler.
· Water temperature must not exceed 27 C.
Ordering Information

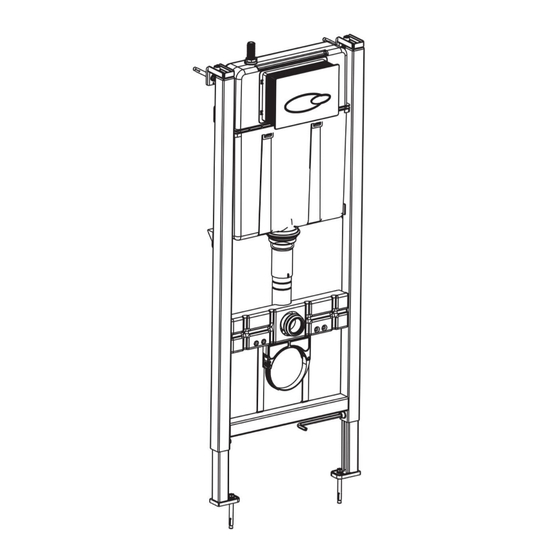

HYDRO-TOWER 300 In-Wall Tank(With Frame) .......K-4178T
DROPLET In-Wall Tank Faceplate .............................K-4177T
BEVEL In-Wall Tank Faceplate ..................................K-8857T
Wall-hung Toilet That Matches The Tank
·
K-8752T/8750T ODEON Wall-hung P-Trap Toilet/Bowl
·
K-19045W/19045T ESCALE Wall-hung P-Trap
Toilet/Bowl
·
K-18609T/19720T VIA Wall-hung P-Trap Toilet/Bowl
·
K-19080/19080T PRESQU'ILE Wall-hung P-Trap
Toilet/Bowl
·
K-19957W/19957T OVE Wall-hung P-Trap Toilet/Bowl
Function Explanation
·
Anti flow-backwards
·
Adjustment of inlet water level
·
Adjustment of flushing volume
·
Single/double gear flushing
Design And Installation Concept Of In-wall Tank
·
Installation of in-wall tank is much easier and nice-looking
comparative to that of traditional tank. Meanwhile, the
space layout will be more reasonable due to the
application of in-wall tank pipes and connectors.
·
The most remarkable advantage of in-wall tank is that the
installation will never be limited to certain area, and can
be installed wherever as you wish, which will make the
bathroom layout more reasonable and nice-looking, and
make good use of every inch of the bathroom space.
1148318-T01-B
·
·
·
·
·
o
·
·
·
·
·
·
·
·
·
·
·
-1-

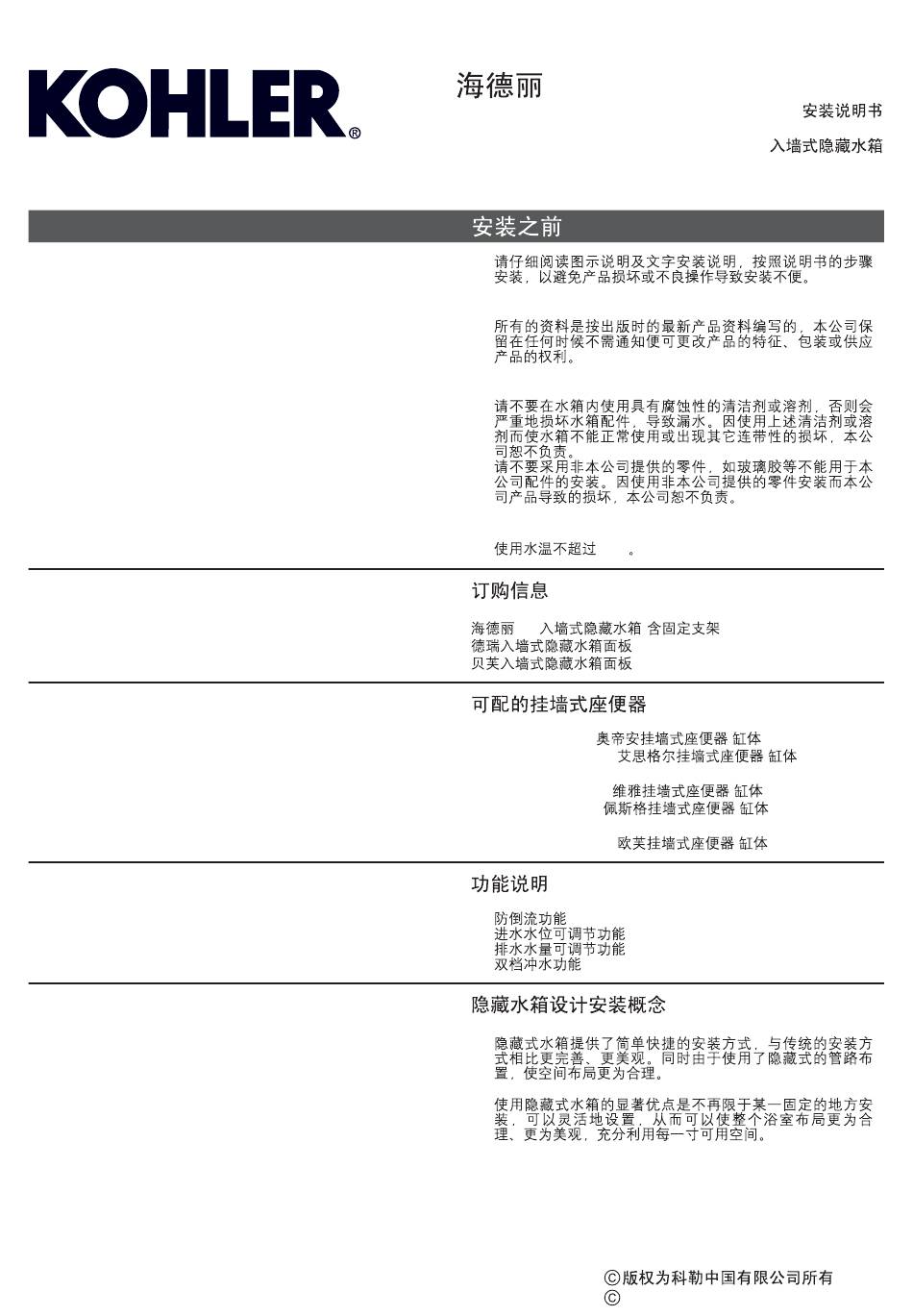

300 HYDRO-TOWER 300
INSTALLATION INSTRUCTIONS
o
27
C
300
(
............................................K-4177T
............................................K-8857T
K-8752T/8750T
K-19045W/19045T
K-18609T/19720T
K-19080/19080T
K-19957W/19957T
Copyright Kohler China Ltd., 2012
IN-WALL TANK
K-4178T/K-4177T/K-8857T
) .....................K-4178T
/
/
/
/
/
, 2012
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kohler HYDRO-TOWER 300 K-4178T
Summary of Contents for Kohler HYDRO-TOWER 300 K-4178T
- Page 1 · · Do not apply spares that are not provided by Kohler, and please note that glass adhesive tape shall not be applied to the installation of Kohler spares. Kohler will not be responsible for any damage related to installation with spares not provided by Kohler.
- Page 2 ROUGHING-IN Reference Value UNIT: mm 478 2 88~128 13~62 88 2 705 2 1110 2 35 2 100 2 10-230 180 1 230 1 Kohler reserves the right to change marked dimensions without prior notice. 1148318-T01-B...
-
Page 3: Installation
INSTALLATION A. Installation of In-wall Tank 1. Unscrew the medium allen key to adjust the length of the fixing frame as shown in illustration A. Unscrew the medium allen key to adjust the length of the adjustable bracket as shown in illustration B. Note: The fixing frame and the adjustable bracket can be adjusted according to customers' requirements, but make... - Page 4 3. Tighten the nut with the spanner as shown in illustration A. Tighten the nut with the spanner as shown in illustration B. Spanner Spanner B. Installation of S-trap 1. Loosen the knob open on the fixing frame, put the "...
- Page 5 2. Tighten the long screw into the holes of the tank bracket and cover the drainage hole with the big filtration cap, Tank Bracket cover the inlet hole with the small filtration cap. Small Filtration Inlet Hole Long Screw Drainage Hole Big Filtration Cap 3.
- Page 6 C. Installation of P-trap 1. Loosen the knob open on the fixing frame, put the " " open drainage straight pipe into the fixing frame, then adjust and lock tighten the knob lock . Fill the bottom of the drainage "...
- Page 7 3. When finishing the brickwork of the wall, take out the big and small filtration caps, and eliminate unwanted rectangular shield with a sharp knife. Rectangular Shield Small Filtration Cap Big Filtration Cap D. Installation of Toilet 1. Install the inlet pipe to the lavatory as shown, and mark on the pipes at the back side of the tank with a ruler and a pencil, and reserve appropriate space according to the distance from the back of the tank to the inlet hole on the...
- Page 8 2. Eliminate unwanted part of the inlet pipe according to the Inlet Pipe marks of reserved space ,and rasp a smooth surface with files. Reserved Space Drainage Pipe 3. Install the big and small leak-proof gaskets on inlet pipe and outlet pipe ,then install it to corresponding pipes on the toilet tank.
- Page 9 5. Install the toilet as shown in the illustration, and use a spirit level to ensure the lavatory to remain level. Spirit Level 6. Install the reserved lock, rubber cover, gasket, hexagonal nut and decoration cap onto long screw according to the order shown in the illustration.
- Page 10 When fixing the supporting board, the locknuts should be screwed to the LOCK sign. " " LOCK Locknut Supporting Board 3. Tighten the long screws to the bolt through the hole. Note: the long screw should be vertical to the wall. Screw Long Screw Bracket...
- Page 11 5. In-wall tank toilet is ready to be put into use. Long Flush Button Short Flush Button REMOVE AND MAINTENANCE OF THE OUTLET VALVE REMOVE AND MAINTENANCE OF THE OUTLET VALVE 1. Hold the cover with both hands and push upward to take down the cover.
- Page 12 3. Tighten the locknut to the marked position of OPEN to " " take out the supporting board. OPEN Locknut Supporting Board 4. Take out the supporting board as shown. Supporting Board 5. Take out the pole lock and the reversed lock as shown. Reversed Lock Pole Lock 1148318-T01-B...
- Page 13 6. Hold the top of the bracket, and unplug the locknut by pulling the bracket. Bracket 7. Turn on/off the water supply Turn on /off the water supply by turning the valve. Valve 8. Take out the bracket as shown. Bracket 1148318-T01-B -13-...
- Page 14 9. Loosen the filter nut as shown, and then take out the inlet valve. Loosen Tighten Filter 10. Loosen the filter nut as shown and take out the inlet valve to clean or adjust. Inlet Valve 11. Hold the upside of the fixing lock, and take it out as shown.
- Page 15 12. Turn the outlet valve as shown and take it out. Note: A click sound will be heard when the outlet valve is successfully installed or removed. Outlet Valve 13. Take out the outlet valve as shown for cleaning or adjustment.
- Page 16 B. Adjust Drainage Valve Drainage volume and overflow level of the tank can be adjusted by drainage valve:1)heavy drainage adjustment: open adjustment switch to open the small hole.2)slight drainage adjustment: adjust the height of floating box and the water level of slight drainage will be at the bottom of the floating box.
-
Page 17: Troubleshooting Procedures
TROUBLE SHOOTING PROCEDURES TROUBLE SHOOTING PROCEDURES Symptoms Probable Causes Recommended Action The inlet valve is closed. Open inlet valve (refer to page 13). No water fills in via inlet Readjust the position of other parts to avoid Floating box of inlet valve is blocked by other parts. valve contacting the floating box when it is functioning (refer to page 16). - Page 18 INSTALL THE BREAK WATER BOARD INSTALL THE BREAK WATER BOARD 1. Tear the protective paper. Protective Paper Tank 2. Fix the rectangular cover into the covering board of the tank. Tighten the four screws to firm the rectangular cover. Tank Rectangular Cover Screw 3.
- Page 19 4. Insert the long screw through the hole on the break water board, and then tighten it. Break Water Board Long Screw 5. Screw the tightening screw to the "OPEN" position. Fix the OPEN supporting bracket in the arrow direction. Supporting Bracket Tightening Screw 6.
