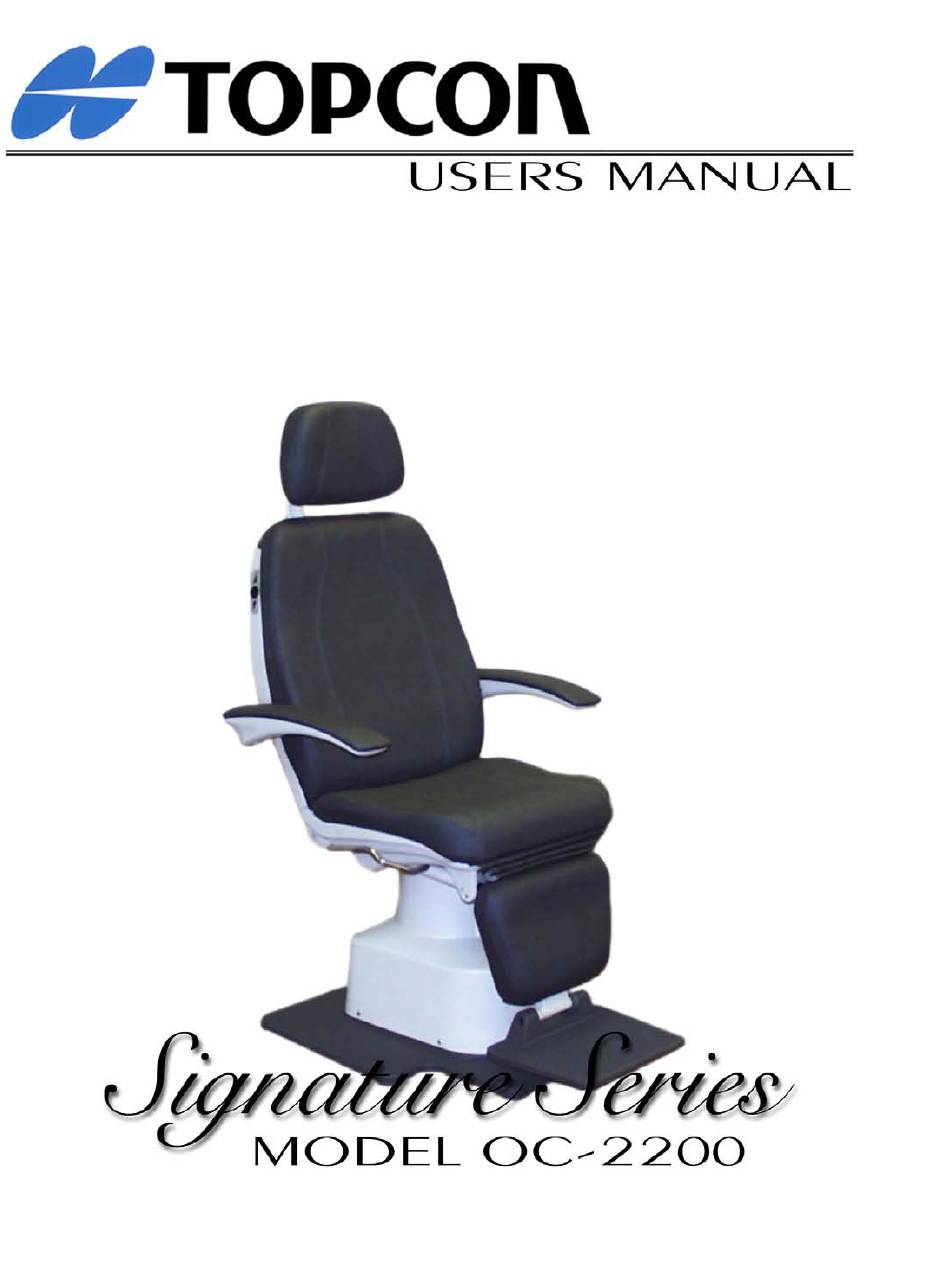

- Page 2 Thank you for purchasing the Signature Series Model OC-2200 Ophthalmic Chair. Please read this User's Manual carefully and place it in a convenient location for future reference. WARNING: The installation of the chair shall be performed only by a qualified technician.
-
Page 3: Table Of Contents
2000010184 Revision D, 9/04 CONTENTS 1.0 NOMENCLATURE 1.1 Model OC-2200 Main Components 2.0 PERFORMANCE AND SPECIFICATIONS 3.0 ASSEMBLY Tools Ophthalmic Chair / Stand Position Electrical Connections Alternate Connections Power Up 4.0 OPERATION Elevation Control Recline Control Swivel Brake Operation Armrest Retraction Headrest Position Footrest Retraction 5.0 ADJUSTMENTS... -
Page 4: Nomenclature
NOMENCLATURE Signature Series Model OC-2200 Main Components Figure 1 shows the primary features and key components of the OC-2200 Ophthalmic Chair. Use the figure as a reference. Headrest Chair Switch Recline Button Armrest Recline Position Brake Handle Footrest PERFORMANCE & SPECIFICATIONS Chair Dimensions •... - Page 5 Environmental Operating Conditions • Ambient Temperature Range: 50 to 104 Degrees F (10 to 40 Degrees C) • Relative Humidity Range: 30 to 75% • Atmospheric Pressure Range: 10.1 to 15.4 psi (700 to 1060 hPa) Environmental Storage/Transportation Conditions • Ambient Temperature Range: -20 to 130 Degrees F (-23 to 54 Degrees C) •...
-
Page 6: Assembly
Safety Switch Blue WARNING: If the chair is used with a Topcon IS-800 stand, the plastic base shroud (non-fuse side) must be removed to make a configuration change on the circuit board. This will make the IS-800 safety switch feature operable. -
Page 7: Power Up
If the chair has a 1 generation circuit board, remove the blue jumper pin located between the transformer and the 9-pin connector. Re-install the base shroud. If the chair has a 2 generation circuit board, move the red jumper pin located between the 9-pin connector and the 6-pin connector labeled ‘Stand Safety’... -
Page 8: Headrest Position
armrest. To return the armrest to the horizontal position, simply pivot the armrest back down until it latches. Headrest Position The headrest assembly consists of a 2 pivot-articulating clamp as well as a pivoting pillow mount. The headrest assembly has a very wide adjustment range and can accommodate any examination situation. -
Page 9: Armrest Adjustment
Armrest Adjustment The armrests may require periodic adjustment to maintain proper function. Remove the three arm upholstery mounting screws, and then remove the arm upholstery to gain access to the arm adjustment screw. Turn the flat head adjustment screw in the back side of the armrest casting with an Allen wrench to adjust the amount of play in the armrest latching mechanism (clockwise for more play, counter-clockwise for less play). -
Page 10: Trouble Shooting
3A 250 v - SB Base Shroud Secondary 5A 250 v - SB 3A 250 v - SB If problems persist, call your dealer or Topcon for assistance. Topcon Medical Systems, Inc. 37 West Century Road Paramus, NJ 07652 800-223-1130...
