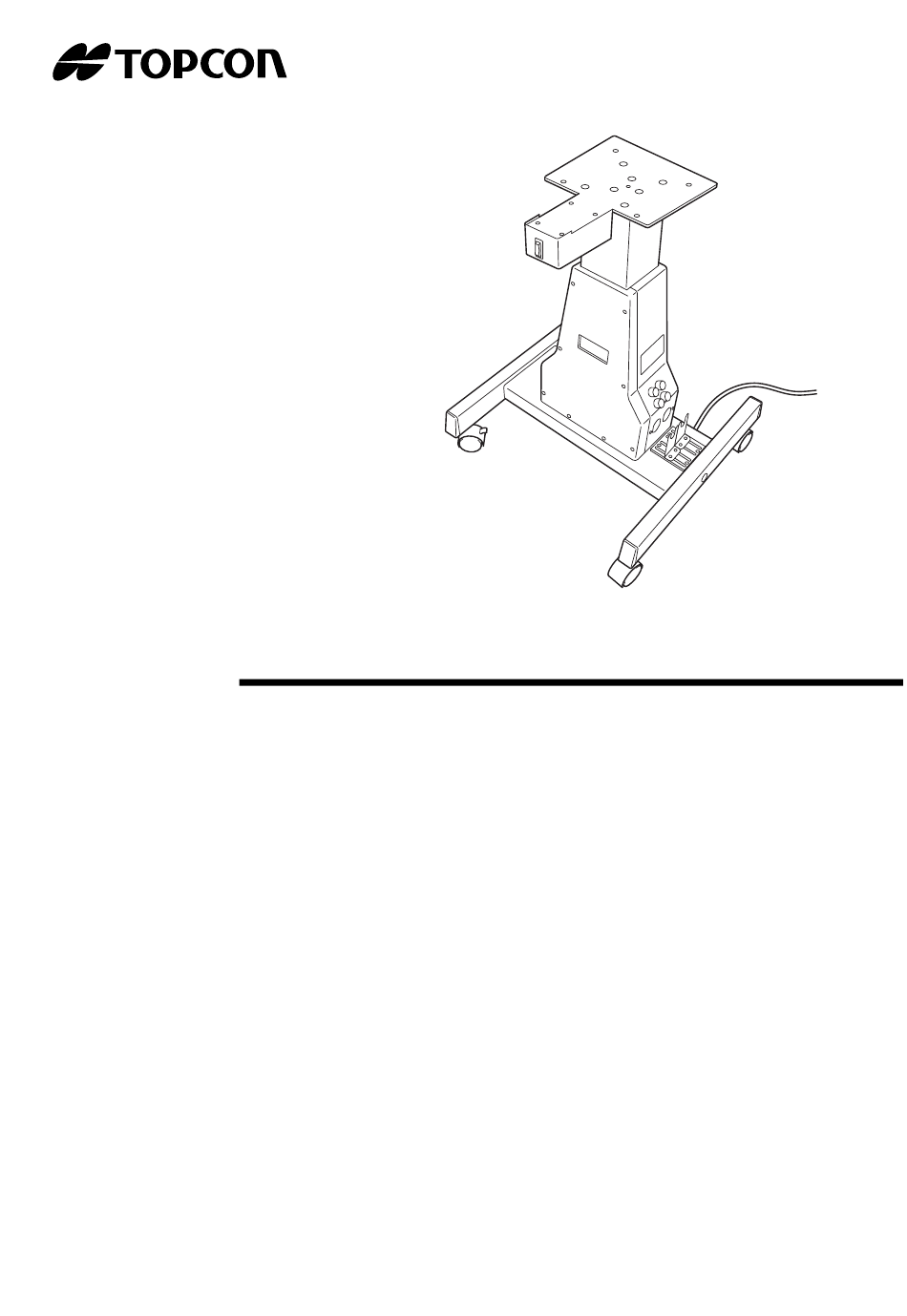

- Page 1 INSTRUCTION MANUAL ADJUSTABLE INSTRUMENT TABLE AIT-16...
-
Page 2: Introduction
INTRODUCTION Thank you for purchasing the TOPCON AIT-16 Adjustable Instrument Table. Purpose of use • This table enhances the operability of the equipment which is loaded on it. This adjustable instrument table has the following features: • The equipment loaded on this table can be moved up and down smoothly according to the height of the patient's eyes. -
Page 3: Display For Safe Use
DISPLAY FOR SAFE USE In order to encourage the safe use of products and prevent any danger to the operator or others or damage to property, important warnings are put on the products and inserted into the instruction manuals. We suggest that everyone understand the meaning of the following displays and icons before reading the "SAFETY PRECAUTIONS"... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS WARNING Icons Prevention Item Page Do not disassemble, modify or repair this adjustable instrument table. You may receive an electric shock. Ask your dealer to repair it. Do not splash this adjustable instrument table with water or any other liquid. ----- A fire or electric shock may occur as a result. -
Page 5: Maintenance
• TOPCON shall take no responsibility for damage derived from the use or inability to use this equipment, such as a loss of business profit and/or suspension of business. -
Page 6: Warning Indications And Positions
For safety purposes, this equipment includes clearly labeled warnings. Correctly use the equipment following these warning instructions. If any of the following marking labels are missing, please contact your dealer or your local TOPCON office listed on the back cover. CAUTION Make sure the table fixation bolts are tightened securely. -
Page 7: Table Of Contents
CONTENTS INTRODUCTION ............................1 DISPLAY FOR SAFE USE ........................2 SAFETY PRECAUTIONS ........................3 MAINTENANCE ............................4 USER MAINTENANCE ........................4 ESCAPE CLAUSE ........................... 4 WARNING INDICATIONS AND POSITIONS ..................5 NOMENCLATURE AND FUNCTIONS NOMENCLATURE AND FUNCTIONS ....................7 STANDARD ACCESSORIES ......................8 HOW TO USE ASSEMBLY PROCEDURE ......................... -
Page 8: Nomenclature And Functions

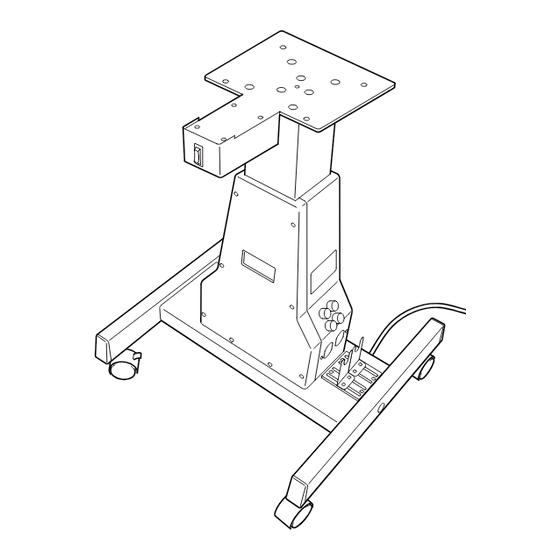

NOMENCLATURE AND FUNCTIONS NOMENCLATURE AND FUNCTIONS Up-and-down switch Table fixation bolt Support Main switch Fuse Base Caster Leg fixation bolt Spare receptacle Up-and-down switch: Used to move the table up and down. Support: The table is mounted on its top. Base: The leg unit is attached to it by means of the center column. -
Page 9: Standard Accessories
Hexagonal socket bolt M6 × 20 With SW (4) (2) 10A-125V Hexagonal socket bolt M8 × 30 With SW (2) Hexagonal wrench for M8 (1) Hexagonal wrench for M6 (1) If any of the standard accessories are missing, contact your local TOPCON office. NOMENCLATURE AND FUNCTIONS... -
Page 10: How To Use
To attach the tabletop, use the four accessory M6 hexagonal socket bolts (with spring washers). Securely tighten and affix the bolts. * Do not use any other tabletop except for the one included with the AIT-16 Instrument Table. Set the adjustable instrument table in the specified position. -
Page 11: Installation Of Device
INSTALLATION OF DEVICE Make sure that the loaded device is set at the specified position. Refer to each setup manual for details on connecting the cable wiring. OPERATION If smoke comes from this adjustable instrument table, immediately turn off the power switch (main switch) and remove the WARNING power plug from the outlet. -
Page 12: Trouble Shooting
If the problem is not resolved by following the instructions or if there is no relevant item in the "Symp- tom" column of the check list, contact your local TOPCON office listed on the back cover of this man- ual. -
Page 13: Reference Materials
REFERENCE MATERIALS OPTIONAL ACCESSORIES Table (AIT-16) : This is a standard table with dimensions of "500 (W) × 490 (D)". Special table (AIT-11) : This is a large table with dimensions of "800 (W) × 500 (D)". In general, it is used to load two devices onto the tabletop. -
Page 14: Electromagnetic Compatibility
Guidance and manufacturer's declaration - electromagnetic emissions The AIT-16 is intended for use in the electromagnetic environment specified below. The customer or the user of the AIT-16 should assure that it is used in such an environment. Emissions test Compliance... - Page 15 Guidance and manufacturer's declaration - electromagnetic immunity The AIT-16 is intended for use in the electromagnetic environment specified below. The customer or the user of the AIT-16 should assure that it is used in such an environment. IEC 60601 Compliance...
- Page 16 Guidance and manufacturer's declaration - electromagnetic immunity The AIT-16 is intended for use in the electromagnetic environment specified below. The customer or the user of the AIT-16 should assure that it is used in such an environment. IEC 60601 Compliance...
- Page 17 The AIT-16 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the AIT-16 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (trans- mitters) and the AIT-16 as recommended below, according to the maximum output power of the com- munications equipment.
-
Page 18: Maintenance And Inspection
MAINTENANCE AND INSPECTION INSPECTION 1. Inspect the adjustable instrument table and the parts periodically. 2. When using the adjustable instrument table after it has been in storage for an extended period of time, make sure that it operates normally and safely before using it with a patient. 3. -
Page 19: Cleaning
PERIOD OF USE AND DISPOSITION Period of use 8 years only when regular maintenance and inspection are done (according to self-certification [Topcon data]). Disposition Dispose of the adjustable instrument table according to your local government's laws regarding dispo- sition and recycling. - Page 20 Topcon House,Kennet Side,Bone Lane,Newbury,Berkshire RG14 5PX United Kingdom Phone:01635-551120 Fax:01635-551170 TOPCON SOUTH ASIA PTE.LTD. Blk 192 Pandan Loop, #07-01 Pantech Industrial Complex, SINGAPORE 128381 Phone:62780222 Fax:62733540 www.topcon.com.sg TOPCON INSTRUMENTS (MALAYSIA) SDN.BHD. Excella Business Park Block C,1st Floor,Jalan Ampang Putra,Taman Ampang Hillir, 55100 Kuala Lumpur,MALAYSIA Phone:03-42701192 Fax:03-42704508 TOPCON INSTRUMENTS (THAILAND) CO.,LTD.
