Read the manual carefully and ensure you have fully understood its
contents before operating this device for the first time.
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 32B4E30T and is the answer not in the manual?

Questions and answers

Related Manuals for Hisense 32B4E30T

Summary of Contents for Hisense 32B4E30T

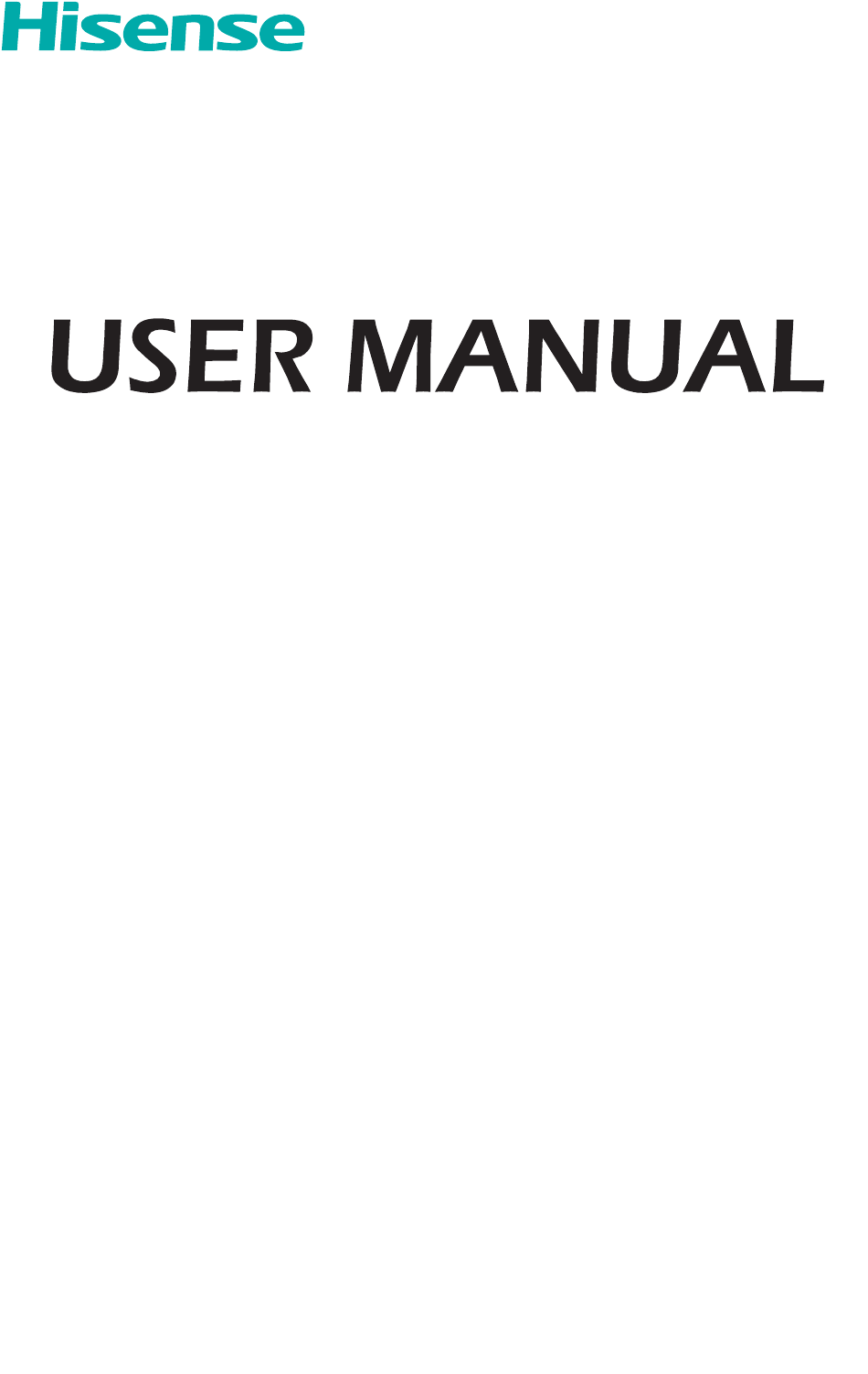

  • Page 1 Read the manual carefully and ensure you have fully understood its contents before operating this device for the first time. English...
  • Page 2 Safety Instructions This symbol indicates high voltage CAUTION is present inside. It is dangerous RISK OF SHOCK to make any kind of contact with ELECTRIC any inside part of this product. CAUTION: To reduce the risk of electric shock, do not remove cover This symbol alerts you that (or back).
  • Page 3 Safety Instructions Important Safety Instructions Read and follow these instructions when connecting and using your Public Information Display. • Unplug the display if you are not going to use it for an extensive period of time. • Unplug the display if you need to clean it with a slightly damp cloth. The screen may be wiped with a dry cloth when the power is off.
  • Page 4 Safety Instructions 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
  • Page 5 Safety Instructions • The Class I apparatus shall be connected to a mains socket outlet with a protective earthing connection. Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: •...
  • Page 6 Safety Instructions NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 7: Table Of Contents

    Contents Unpacking and Installation ..................1 1.1. Unpacking ....................1 1.2. Package Contents ..................1 1.3. Installation Notes..................2 1.4. Mounting on a Wall ..................2 Parts and Functions ....................4 2.1. Control Panel ...................4 2.2. Input/Output Terminals ................5 2.3. Remote Control ..................6 Connecting External Equipment ................8 3.1.

  • Page 8: Unpacking And Installation

    Unpacking and Installation This manual is for reference only, please refer to the actual machine. Unpacking and Installation 1.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. •...

  • Page 9: Installation Notes

    Unpacking and Installation 1.3. Installation Notes • Only use the power cable provided with this product. If an extension cord is required, please consult your service agent. • The product should be installed on a flat surface, or the product may tip over. Leave a space between the rear of the product and the wall for proper ventilation.
  • Page 10 Unpacking and Installation To prevent the display from falling: • For wall or ceiling installation, we recommend installing the display with metal brackets which are commercially available. For detailed installation instructions, refer to the guide received with the respective bracket. •...

  • Page 11: Parts And Functions

    Parts and Functions Parts and Functions 2.1. Control Panel MUTE INPUT MENU 2 3 4 5 6 7 8 NOTE: The appearance and color of the product are subject to the material object. The picture is for reference only. [ ] button ] button Turn the display on or put the display Move the highlight bar up to adjust...

  • Page 12: Input/Output Terminals

    Parts and Functions 2.2. Input/Output Terminals RS232 AUDIO AUDIO D-SUB HDMI 2 HDMI 1 NOTE: The appearance and color of the product are subject to the material object. The picture is for reference only. AC IN USB PORT AC power input from the wall outlet. Connect to a USB storage device.

  • Page 13: Remote Control

    Parts and Functions 2.3. Remote Control Go to Time Setup OSD. ] FORMAT button 2.3.1. General functions Reserved. ] HOME button Go to Android Launcher first widgets. FUNCTION button Reserved. COLOR buttons Reserved. ] Source Button FORMAT FUNCTION Choose input source. SOURCE ] Settings Button Access the OSD menu.
  • Page 14 Parts and Functions 2.3.2. Inserting the Batteries in the Remote Control The remote control is powered by two 1.5V AAA batteries. To install or replace the batteries: 1. Press and then slide the cover to open it. 2. Insert the batteries with the correct polarity (+) and (–).

  • Page 15: Connecting External Equipment

    Connecting External Equipment Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using HDMI video input RS232 HDMI 2 HDMI 1 DVD / VCR / VCD HDMI OUT HDMI IN 3.2. Connecting a PC 3.2.1. Using HDMI input RS232 HDMI 2 HDMI 1 HDMI OUT HDMI IN...

  • Page 16: Connect Usb

    Connecting External Equipment 3.2.3. Display control connection RS232 HEADPHONE D-SUB HDMI 2 HDMI 1 LINE IN RS232 RS232 3.2.4. Using network interface HEADPHONE LINE IN WiFi INTERNET 3.2.5. Connecting an external audio device RS232 AUDIO AUDIO HDMI 2 HDMI 1 D-SUB AUDIO OUT HDMI 2...

  • Page 17: Operation

    Operation Operation 4. If you select the empty playlist, the application will guide you to choose media sources. 4.1. Media Player All media files should be located in Introduction the root directory. For example: - Video at /root/movies/ 1. The front page of the media player, - Photos /root/pictures/ this page contains three items: - Music /root/music/...
  • Page 18 Operation 7. After you start editing the playlist, 9. In choosing the desired file you will see the following screen. information and press button, you Source - storage device files. can get detailed information. Playlist - playlist files. There are 4 icons which map to the keys of remote controller.

  • Page 19: Pdf Reader Play

    Operation 12. On the first page of “Settings”, this 3. Select “Compose” on home page, page contains three parts: first you should choose one playlist “Repeat Mode”, “Slideshow Effect” to edit between File 1 and File 7. and “Effect Duration”. The pencil icon means the playlist is Repeat Mode: playback mode.
  • Page 20 Operation 6. You could rename the playlist, just 8. If you choose “Sort” in the slidebar, input new name after pressing the you can change the order of files one “OPTIONS” key on the remote by one. control. 9. Select “Settings” on home page, this 7.

  • Page 21: U Player Autoplay Instructions

    Operation 4.3. U player Autoplay 6. Press [ ] down button to select Instructions UPlayer setting, press [OK] to enter UPlayer setting. 1. U disk, the format must be FAT32, and only one partition can not be partitioned, the capacity can not exceed 32G.

  • Page 22: U Disk Files Playback And Copy Instructions

    Operation 4.4. U disk Files Playback 7. After selecting the directory to copy to, press the [ ] left / right and Copy Instructions buttons on the remote control to 1. U disk, the format must be FAT32, select Paste or Cancel, as shown and only one partition can not be below.

  • Page 23: Osd Menu

    OSD Menu OSD Menu 5. Press [ ] button to return to the previous menu. An overview of the On-Screen Display (OSD) structure is shown below. You 5.1.2. Navigating the OSD Menu can use it as a reference for further Using the Display’s Control adjustment of your display.

  • Page 24: Operation On The Osd Menu

    OSD Menu 5.2. Operation on the OSD Menu Column 2, 3 or Column 1 Column 2 Column 1, 3 Remarks Column 2, 2 Airport and train station Hotel and convenient store Dining and clothing Mode Security control and monitoring Picture Office Mode Outdoor...
  • Page 25 OSD Menu Standard Audio cannot be set through restoring News Sound settings. Music Mode You can reset audio by Movie Restore Default. Sound HDMI Audio Available only in the Source HDMI Source Line in Balance [-50 … +50] Advanced Volume [0 …...
  • Page 26 OSD Menu Set Year/Month/Date Time Setting Date Picker Time:Minute OFF/Once/Everyday/ Repeat Workday Shutdown Time Time Set the time. OFF/Once/Everyday/ Repeat Workday Time Set the time. VGA/ HDMI1/ HDMI2/ Power Time home/ PDF/ Media/ Source CMS/ Customer/ Last Source File Number It depends on the [1 …...
  • Page 27 OSD Menu English Language 中文（中国） Available only HDMI1.4 HDMI 43B4E30T/50B4E30T/ Version HDMI2.0 55B4E30T Power On Power On Standby Mode Last Status Switch On/Off 1. When SCHEDULE is set with startup time, but the startup time has not arrived yet, boot the HDMI1/ HDMI2/ device according to the PDF/ Media/ CMS/...
  • Page 28 OSD Menu 1. When Uplayer Setting switch on, Boot On Source is grayed, the setting is unavailable. 2. Supported file name：SuperU 3. To play content in UPlayer, the system will cut the signal Switch On/Off source to USB, and stay at the USB source when plugging and unplugging the USB Uplayer...

  • Page 29: Compatibility Of The Usb Device

    Compatibility of the USB device Compatibility of the USB device Format of the USB multi-media coder-decoder Video decoding Video Type coder- Container Decoding Coding Channel Remarks decoder Supported size in a range from 48x48 pixels to File 1920X1080 pixels MPEG1/2 MPEG1/2 format: Max.
  • Page 30 Compatibility of the USB device Supported picture size: SQCIF(128x96), QCIF(176x144), CIF(352x288), 4CIF(704x576) Max. frame rate: File 30fps H.263 H.263 format: 3GP, MP4 Max. bit rate: 38.4Mbps Audio coder-decoder: (1) Not support H.263+ Supported picture size: from 48x48 pixels to 1920x1080 pixels File Max.
  • Page 31 Compatibility of the USB device Audio decoding Audio coder- Type Container Decoding Coding Channel Remarks decoder Bit rate: MPEG1/2/2.5 Decode: 8Kbps~320Kbps, MPEG Audio MP1, MP2, CBR and VBR audio Layer1/2/3 Sampling rate: 8KHz~48KHz Bit rate: 8Kbps~320Kbps Sampling rate: Windows WMA version Decode: 8KHz~48KHz Media...
  • Page 32 Compatibility of the USB device Picture decoding Type Picture coder- Picture Decoding Coding Channel Remarks decoder Decode: Resolution ratio 48X48 to 8176X8176 (1) Row-by-row scanning is not JFIF file format File format: supported. JPEG 1.02 JPG, JPEG (2) Software supports SRGB JPEG.

  • Page 33: Input Mode

    1920 1080 60 Hz 148.5 MHz 16:9 WXGA 1366 60 Hz 85.75 MHz 16:9 Recommended resolution ratio: 1920 x 1080@60Hz (32B4E30T) HDMI computer mode (43B4E30T/50B4E30T/55B4E30T) Available Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Resolution H pixel V line 60 Hz 25.175 MHz...
  • Page 34 Input mode HDMI video mode (32B4E30T) Available Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Resolution H pixel V line 1080 P 59.94/60 1920 1080 60 Hz 148.5 MHz 16:9 1080 P 50 Hz 1920 1080 50 Hz 148.5 MHz 16:9 1080 P 29.97/30...
  • Page 35 Input mode HDMI video mode (43B4E30T/50B4E30T/55B4E30T) Available Resolution Refresh Standard Resolution Pixel Rate Aspect Ratio Rate H pixel V line 3840 x 2160 P 60 Hz 3840 2160 60 Hz 594 MHz 16:9 3840 x 2160 P 30 Hz 3840 2160 30 Hz 297 MHz...

  • Page 36: Cleaning And Troubleshooting

    Cleaning and Troubleshooting Cleaning and Troubleshooting 8.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes.

  • Page 37: Troubleshooting

    Cleaning and Troubleshooting 8.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is 1. Plug in the power cord. disconnected. 2. Make sure that the power 2. The main power switch is switched on. switch on the back 3.
  • Page 38 Cleaning and Troubleshooting Some picture Some pixels of the This display is designed using an elements do not light display are off. extremely high level of precision technology: however, sometimes some pixels of the display may not display. This is not a malfunction.. After-Images can A still picture is Do not allow a still image to be...

  • Page 39: Technical Specifications

    Technical Specifications Technical Specifications Display: Specifications Item 32B4E30T 43B4E30T Screen Size (Active Area) 31.5 inches 42.5 inches Aspect Ratio 16:9 16:9 Number of pixels 1920 (H) x 1080 (V) 3840 (H) x 2160 (V) Pixel pitch 0.36375 (H) x 0.36375 (V) 0.2451 (H) x 0.2451 (V)
  • Page 40 Technical Specifications Specifications Item 50B4E30T 55B4E30T Internal memory 8GB eMMC 8GB eMMC Power 100 - 240V~, 50 - 60Hz, 100 - 240V~, 50 - 60Hz, 2.5A 2.5A Power Consumption (typ.) 145 W 155 W Power Consumption (Max) 170 W 185 W Power Consumption <0.5 W <0.5 W...
  • Page 41 2019 © All rights reserved. Q41G43M166101B Specifications are subject to change without notice.
