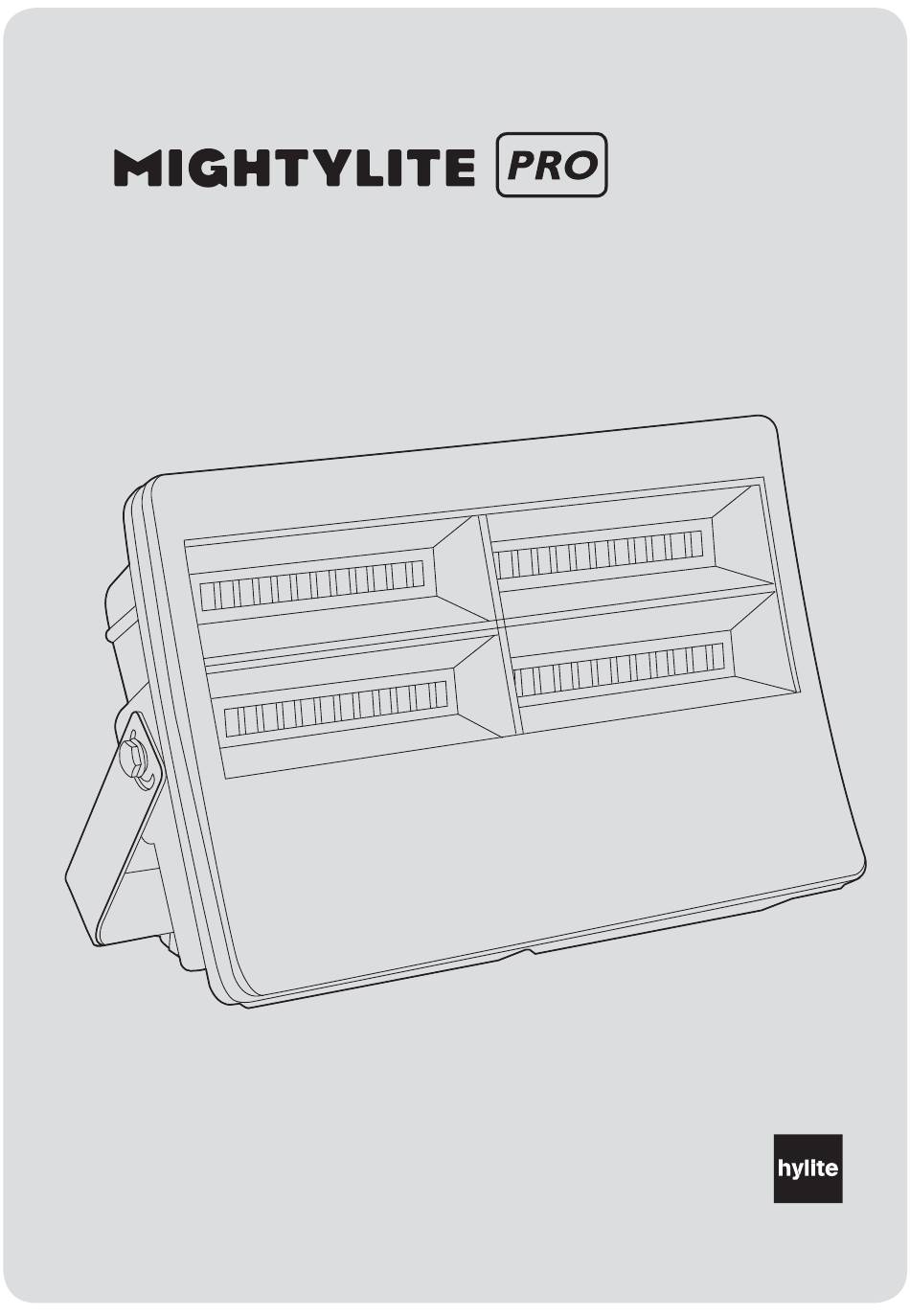

Mightylite Pro 120W / 200W LED Floodlights
Models: MLP120 / MLP200
Installation & operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIGHTYLITE PRO MLP120 and is the answer not in the manual?

Questions and answers

Related Manuals for hylite MIGHTYLITE PRO MLP120

Summary of Contents for hylite MIGHTYLITE PRO MLP120

  • Page 1 Mightylite Pro 120W / 200W LED Floodlights Models: MLP120 / MLP200 Installation & operating instructions...

  • Page 2: Important Safety Instructions

    HYLITE MIGHTYLITE PRO – INSTALLATION AND OPERATING INSTRUCTIONS The Hylite Mightylite Pro floodlight a high-powered, professional LED floodlight which is suitable for use outdoors in a range of commercial applications including lighting perimeters, car parks, garden areas and outside warehouse facilities.

  • Page 3: Wiring Requirements

    2. WIRING REQUIREMENTS • The unit requires connection to a 230 AC 50Hz mains electricity supply. • It is recommended that the unit is connected to the lighting circuit via a 5 amp fused spur and using Twin & Earth 2-Core round flexible cable of at least 1mm gauge (waterproof cable should be used for outdoor installations).

  • Page 4: Connecting To Power Supply

    AC cable ready to attach it to the terminal block in the front of the light fitting. NOTE: The Hylite Mightylite Pro MLP120 and MLP200 are Class 1 fittings and therefore need to be Earthed 4.1 CONNECTING TO POWER SUPPLY...
  • Page 5 Fig. 9: Wiring for Four Lighting Levels (using 2 units) L2 (LIVE) L1 (LIVE) L3 (LIVE) NEUTRAL L4 (LIVE) EARTH EARTH LIVE 1 LIVE 2 LIVE 3 LIVE 4 NEUTRAL 1+2 NEUTRAL 1+2 EARTH Note: A separate switch is used to control each of the four LED arrays within one or more Mightylite Pro units. Diagram shows 2 units wired together so that both can operate at 25%, 50%, 75% or 100% light level dependent upon switching.

  • Page 6: Technical Specification

    6. TECHNICAL SPECIFICATION Ref: MLP120B MLP200B Mightylite PRO 120W Floodlight Description: Mightylite PRO 200W Floodlight Fascia: Matt black polycarbonate Matt black polycarbonate Backplate: Matt black aluminium Matt black aluminium Lens: Frosted Frosted Wattage: 120W 200W Lumens generated: 12000 17000 Voltage: 80 -280V 80 -280V LED array:...
