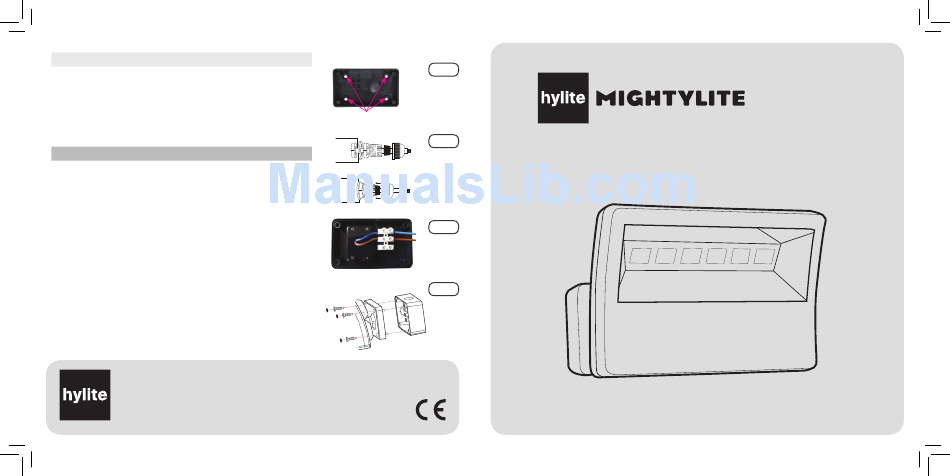

hylite Mightylite MFL015 Installation & Operating Instructions

Fixing The Connection Box (Cont)
• Use the connection box Fixing Holes [Fig.6] to mark the 4 drill holes required to
secure the box to the wall (and mark the cable outlet location if required). Drill
the wall and screw the connection box onto the wall using the screws and wall
plugs provided.
• Once the wire(s) has been fed through the Sealing Gland, the nut on the gland
should be gently tightened up against the gland body [Fig. 8] to ensure the
wire(s) is secured in place and no water can get though into the connection box.

WIRING THE FLOODLIGHT

• Once the power cable has been fed through the cable gland (or sealing
grommet if using the knock-out at the rear of the connection box)
approximately 6mm of insulation should be stripped from each of the cores of
AC cable ready to attach it to the terminal block in the front of the light fitting.
NOTE: The Hylite Mightylite is a Class 2 fitting, therefore no Earth is required

CONNECTING TO POWER SUPPLY

• Connect the BROWN or RED (Live) wire to the terminal (marked "L") holding the
single BROWN wire in the floodlight unit [Fig.8].
• Connect the BLUE or BLACK (Neutral) wire to the terminal (marked "N") holding
the BLUE wire in the floodlight unit.
• After the connections have been secured, the floodlight front (Connection Box
front) should be fastened to the Connection Box using the 4 Connection Box
Screws provided [Fig.9]
• Once screws are secure, the screw covers (provided) should be fitted should be
fitted [Fig.9]
• To adjust the MightyLite simply hold the Connection Box firmly whilst moving
the head of the floodlight to the required position.
