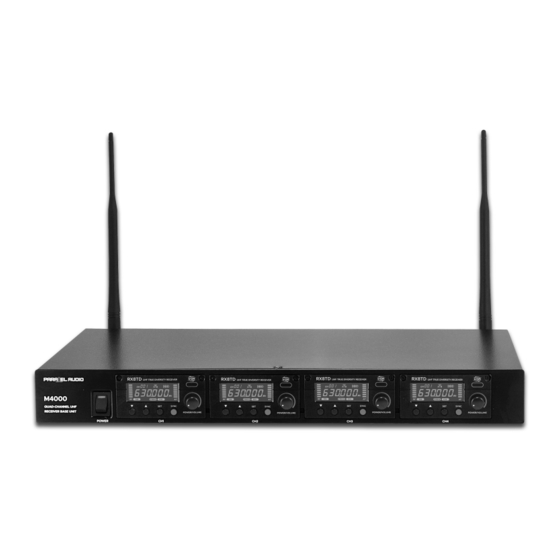

- Page 2 M4000 Thank you for purchasing this professional modular wireless system. This versatile modular cabinet can be used for four RECEIVER modules. Before operation, please read this manual thoroughly to familiarise with the function of each part and the flexibility of this versatile cabinet.
-
Page 3: Audio Output Connection
M4000 Audio Output Connection There are two kinds of audio outputs on the back of the receiver: • Balanced output of channels 1~4: Low-impedance MIC level. • Unbalanced output of channels 1~4 (mixed): High-impedance LINE level / Low-impedance MIC level. Switchable between MIC and LINE levels. -
Page 4: Rack Mounting
M4000 Rack Mounting M4000 is an EIA standard 1U rack-mountable receiver base with metal chassis. It can be cabinet-mounted with provided kits. Please refer to the following assembly illustration. Receiver Installation For best operation, the receiver should be at least 1m above the ground and 1m away from a wall or metal surface to minimise reflections. - Page 5 M4000 Notes OPERATION MANUAL V1.0 PAGE 5...
- Page 6 M4000 Notes PAGE 6 OPERATION MANUAL V1.0...
- Page 7 M4000 PARALLEL AUDIO WARRANTY INFORMATION – 5 Year Warranty Term Consumer Guarantees When you purchase a NAS distributed product, you have the peace of mind in knowing that your product is covered by the NAS warranty. The NAS warranty is provided by: In Australia: National Audio Systems Pty Ltd, ABN 50 085 679 894 [‘NAS’], 127 Merrindale Drive, Croydon, Victoria 3136.
-
Page 8: Warranty Exclusions
The Warranty excludes removal or reinstallation costs. * All Parallel Audio products come with a 5 year warranty term, excluding Parallel Audio batteries and CD players (see below). Parallel Audio Limited Battery and CD Player Warranty: Batteries and CD players fitted to all Parallel Audio portable PA products carry a 3 months warranty.
