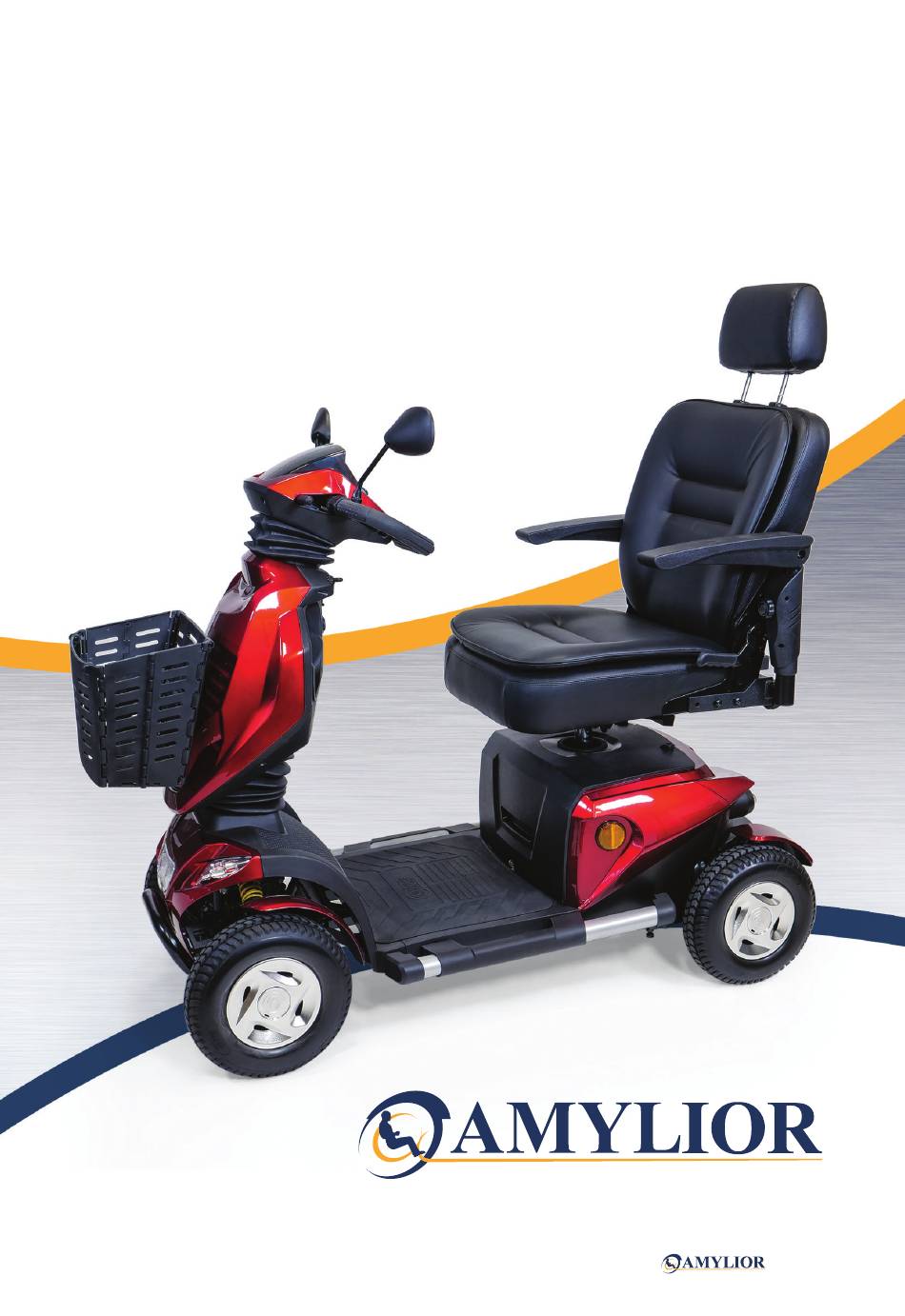

- Page 1 OWNER’S MANUAL Scooter Continent Globe is an brand OM | TMK180126-8 | 1000589.EN | REV. 01 Inc.
- Page 2 SAFETY GUIDELINES The distributor must supply a copy of this manual to the user upon delivery. Do not operate this scooter without first reading the owner’s manual. Before using this product, the user must read, understand and follow all the instructions and suggestions in this manual in order to ensure comfort and safety.
-
Page 3: Table Of Contents
Gs300 - OWNER’S MANUAL TABLE OF CONTENTS General information .................2 Indications of use ..................2 Safety guideline ..................3 EMI (electromagnetic interference) ............4-7 Gs300 details ...................8 Technical specifications ................9 Control panel ..................10-13 Seat adjustment ..................14 Park brake .....................15 Reuse by third parties ................15 Care and maintenance ...............16-17 Diagnostics ..................18-19 Bluetooth mirrors instructions ..............20... -
Page 4: General Information
GENERAL INFORMATION This owner’s manual is an integral part of the delivery of your Gs300 Scooter. user should keep it available at all times and keep it with the product if this is passed on to a third party. The manufacturer reserves the right to make changes relative to the details included in this manual. - Page 5 Gs300 - OWNER’S MANUAL CAUTION : READ and FOLLOW all the instructions, warnings and notes of this manual before using your Gs300 scooter. • An authorized dealer of Amylior products • NEVER remain seated in your scooter must deliver this product, following all during transportation in a vehicule procedures contained in this manual.
-
Page 6: Emi (Electromagnetic Interference)
EMI ( electromagnetic interference WARNING - Read all warnings to reduce the risk of unintended brake release or scooter movement: 1. Beware of the danger from hand-held transceivers. Never turn on or use a hand- held transceiver while power to your scooter is on. Use extra care if you believe that such a device may be in use near your scooter. - Page 7 Gs300 - OWNER’S MANUAL WARNING B. WHAT EFFECT CAN EMI HAVE? 1. EMI can cause your scooter, without warning, to: • Release its brakes • Move by itself • Move in unintended directions If any of these occurs, it could result in severe injury to you or others. 2.
- Page 8 C. SOURCES OF EMI ( continued 1. Medium-Range Mobile Transceivers: These include two-way radios used in police cars, fire trucks, ambulances and taxi cabs. The antenna isusually mounted on the outside of the vehicle. NOTE - These devices can transmit signals while they are on, even if they are not in use.
- Page 9 You should promptly report any unintended movement or brake release. Be sure to indicate whether there was a radio wave source near your scooter at the time. Contact: Amylior customer service department at: +1 450 424-0288 WARNING G. EMI FROM CHAIR...
-
Page 10: Gs300 Details

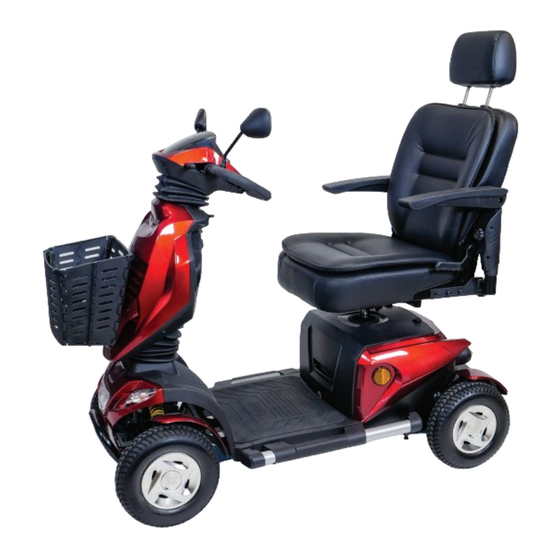

Gs300 DETAILS 1 - Removable, collapsible basket 7 - High back captain seat with headrest 2 - Mirrors 8 - Brake lever 3 - Control panel 9 - Battery rack 4 - Adjustable tiller 10 - Non-slip rubber floor mat 5 - Adjustable armrest 6 - Folding backrest... -
Page 11: Technical Specifications
Gs300 - OWNER’S MANUAL TECHNICAL SPECIFICATIONS Gs300 Scooter SPECIFICATIONS: Weight capacity 350 lb (159 kg) Maximum Speed 9 mph (14 km/h) Operating Range 24 miles (40 km) Ground Clearance to Center Deck 6” (155 mm) Ground Clearance to Transaxle/Motor 3.75” (95 mm) Turning Radius 70”... -
Page 12: Control Panel
CONTROL PANEL 1 - Speed adjustment knob 9 - Light controls 2 - Emergency flashers 10 - Battery meter 3 - Brake handle 11 - Hi/Low speed switch 4 - Throttle control lever « Forward » 12 - USB plug 5 - Right flasher 13 - Charging plug 6 - Horn button... - Page 13 Gs300 - OWNER’S MANUAL Battery Meter: • This gauge is to help you evaluate the battery power remaining for your scooter. • Green = fully charged, Yellow = 50 % charged, Red = less than 50 % charged Speed • It is recommended to select a speed setting at which you are adjustment comfortable, safe and in control, depending on your current knob:...
- Page 14 Control Panel • Once the tiller angle is adjustment adjusted, adjust the angle of lever: the control panel so it is easy for you to see it and access the controls. Key switch • Your scooter requires a (On/Off): key to function. Always keep the second key in a safe place.
- Page 15 Gs300 - OWNER’S MANUAL Charging plug • The charging plug and USB and USB plug: plug are in the middle upper section of the tiller. • The USB can be used to charge devices using a USB charging cable. Cup Holders: •...
-
Page 16: Seat Adjustment
SEAT ADJUSTMENT 1. To adjust the height or to remove the headrest, push the button on the top of the backrest, just below the headrest. 2. To recline, pull the lever upward and push back on the seat. Let go of the lever at the desired recline. -
Page 17: Park Brake
Gs300 - OWNER’S MANUAL PARK BRAKE Your scooter is equipped with an electromechanical park brake on the base toward the back. 1. To use your scooter, the lever must be engaged in the Drive position “D”. 2. To move your scooter without using battery power, disengage the lever in the neutral position “N”. -
Page 18: Care And Maintenance
CARE AND MAINTENANCE CLEANING YOUR SCOOTER TIRES • Clean the tires with ordinary kitchen-type cleaners/mild soap and a damp cloth. • Do not use solvents on tires. These can cause the tire material to break down or become too soft. BODY •... - Page 19 The main circuit breaker reset button is located on the battery pack. If pressing the reset button does not rectify the issue, contact your authorized Amylior dealer. If the main circuit breaker continues to trip, there may be an electrical issue that needs to be addressed.
-
Page 20: Diagnostics
These diagnostics and your scooter’s serial number can be found under the battery packs, providing you easy access to this resource. If possible, refer to this information prior to contacting your authorized Amylior dealer. flash beep... - Page 21 “OFF” position to • If the above does not resolve the issue, stop the beep code, engage the brake contact your authorized Amylior dealer. lever then turn the key back on. • If this does not resolve the issue, contact your authorized Amylior dealer.
-
Page 22: Bluetooth Mirrors Instructions
BLUETOOTH MIRRORS INSTRUCTIONS... -
Page 23: Limited Warranty
• 1-YEAR WARRANTY – Batteries purchased through Amylior • EXCLUSIONS – Amylior does not provide warranty on any of the following items which may require replacement due to the normal wear and tear of day to day usage: Plastic parts, motor brush, brake pads, fuses and light bulbs, tires and inner tubes, seats and upholstery and padding. -
Page 24: Our Mission
OUR MISSION Amylior’s mission is to design and distribute rehabilitation products that will help improve the quality of life of people with a loss of autonomy. To reach its goal, Amylior works closely with therapists, medical equipment specialists and end-users to meet the challenges people with a loss of autonomy face every day.
